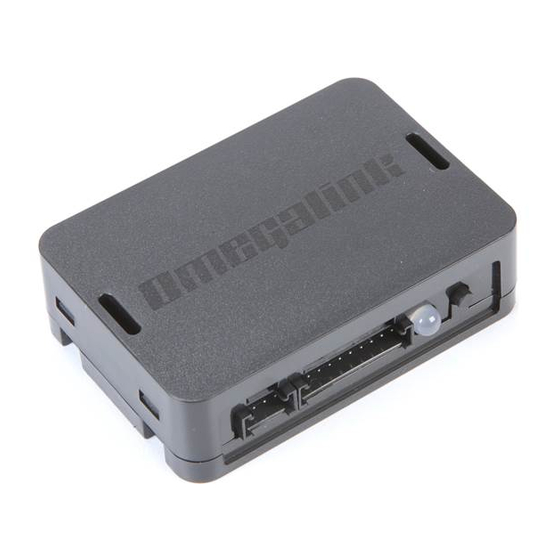

Alarms & Remote Start
OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN
NOTICE
The manufacturer will accept no responsability for any electrical
damage resulting from improper installation of this product, be that either
damage to the vehicle itself or to the installed device. This device must be in-
stalled by a certified technician. Please review the Installation Guide carefully
before beginning any work.
U.S. Patent No. 8,856,780
Automotive Data Solutions Inc. © 2016
INSTALL GUIDE
DOCUMENT NUMBER
27743
REVISION DATE
20160317
FIRMWARE
OEM-AL(RS)-TL6-[OL-MDB-ALL]
HARDWARE
OL-MDB-ALL
ACCESSORIES
OL-LOADER (REQUIRED)
BEFORE INSTALLATION
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
Advertisement
Related Manuals for Omega OL-MDB-ALL
Summary of Contents for Omega OL-MDB-ALL
- Page 1 Alarms & Remote Start INSTALL GUIDE OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN DOCUMENT NUMBER 27743 REVISION DATE 20160317 FIRMWARE OEM-AL(RS)-TL6-[OL-MDB-ALL] HARDWARE OL-MDB-ALL ACCESSORIES OL-LOADER (REQUIRED) NOTICE BEFORE INSTALLATION The manufacturer will accept no responsability for any electrical damage resulting from improper installation of this product, be that either 1- Connect module to computer damage to the vehicle itself or to the installed device.
- Page 2 • • • • • • • • • • • • • • *Available only if vehicle is equipped with factory hood switch. **Read "WARNING: Door Lock Synchronization" U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 3 BLUE (WEBLINK, RF, TELEMATIC) 3 PIN BLUE CONNECTOR DATA CABLE 2 WEBLINK CABLE (required accessory sold separately) WEBLINK CABLE MODULE COMPUTER DATA PORT USB PORT 4 PIN BLACK CABLE U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 4 Finally, as factory keyless operates normally during remote start with this solution and take-over is not supported, a one-button remote control is a very good choice for these vehicles in order to prevent any possible user issues. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 5 PAGE 5 OF 31 COMPONENT LOCATOR - 1 OF 1 • 20160317 DOC.: #27743 INTERIOR VIEW DRIVER SIDE VIEW PASSENGER SIDE VIEW U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 6 30 pin 25 Blue (DATA) Main body ECU Parking Light White 30 pin 30 White Main body ECU White 30 pin 30 Purple Certifi cation ECU, behind glove box U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 7 09 GREEN - PARKING LIGHT (-) OUTPUT GREEN 10 PURPLE/WHITE (NC) IMPORTANT: 1- NO TAKEOVER AVAILABLE. UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN. 2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 8 Main body ECU White 30 pin 25 Black (DATA) Main body ECU Parking Light White 30 pin 30 Black Main body ECU Black 10 pin 01 Green PTS button U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 9 09 GREEN - PARKING LIGHT (-) OUTPUT GREEN 10 PURPLE/WHITE (NC) IMPORTANT: 1- NO TAKEOVER AVAILABLE. UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN. 2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 10 Main body ECU White 30 pin 25 Blue (DATA) Main body ECU Parking Light White 30 pin 30 White Main body ECU Gray 31 pin 17 Purple Power management module U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 11 09 GREEN - PARKING LIGHT (-) OUTPUT GREEN 10 PURPLE/WHITE (NC) IMPORTANT: 1- NO TAKEOVER AVAILABLE. UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN. 2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 12 Main body ECU White 30 pin 25 Blue (DATA) Main body ECU Parking Light White 30 pin 30 White Main body ECU Black 10 pin 01 DkGreen PTS button U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 13 09 GREEN - PARKING LIGHT (-) OUTPUT GREEN 10 PURPLE/WHITE (NC) IMPORTANT: 1- NO TAKEOVER AVAILABLE. UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN. 2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 14 25 Empty (DATA) Main body ECU, bottom of fusebox Parking Light White 30 pin 30 White Main body ECU, bottom of fusebox Black 10 pin 01 Black PTS button U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 15 09 GREEN - PARKING LIGHT (-) OUTPUT GREEN 10 PURPLE/WHITE (NC) IMPORTANT: 1- NO TAKEOVER AVAILABLE. UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN. 2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 16 Main body ECU White 30 pin 25 Blue (DATA) Main body ECU Parking Light White 30 pin 30 White Main body ECU Black 10 pin 01 DkGreen PTS button U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 17 09 GREEN - PARKING LIGHT (-) OUTPUT GREEN 10 PURPLE/WHITE (NC) IMPORTANT: 1- NO TAKEOVER AVAILABLE. UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN. 2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 18 30 pin 30 White Main body ECU, bottom of fusebox Black 10 pin 01 DkGreen PTS button Starter G173 White 18 pin 07 LtBlue Certifi cation ECU, behind glove box U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 19 AFTERMARKET HOOD SWITCH IMPORTANT: 1- NO TAKEOVER AVAILABLE. AFTERMARKET HOOD SWITCH (-) UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN. 2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 20 30 pin 25 Blue (DATA) Main body ECU Parking Light White 30 pin 30 White Main body ECU White 30 pin 30 Purple Certifi cation ECU, behind glove box U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 21 09 GREEN - PARKING LIGHT (-) OUTPUT GREEN 10 PURPLE/WHITE (NC) IMPORTANT: 1- NO TAKEOVER AVAILABLE. UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN. 2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 22 Main body ECU White 30 pin 25 Black (DATA) Main body ECU Parking Light White 30 pin 30 Black Main body ECU Black 10 pin 01 Green PTS button U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 23 09 GREEN - PARKING LIGHT (-) OUTPUT GREEN 10 PURPLE/WHITE (NC) IMPORTANT: 1- NO TAKEOVER AVAILABLE. UPON OPENING VEHICLE DOOR ENGINE WILL SHUTDOWN. 2- ALL DOORS MUST BE CLOSED TO REMOTE START VEHICLE. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 24 Within 5 seconds, LED will fl ash GREEN rapidly. Push start button once [1x] to OFF position. STOP ACC STOP ON START ENGINE START STOP Press unlock button once [1x] on OEM keyfob. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 25 ON START ENGINE START STOP Wait, LED 1 will turn solid RED for 2 seconds. Set ignition to OFF position. ON START ENGINE START STOP Valet Mode Programming Procedure completed. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 26 Navigation and redo the Module Navigation vehicle battery. indicates. LED 1 will fl ash GREEN an equal Procedure. amount of times continuously. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 27 08 SEC 10 SEC WAIT TO START DELAY 15 SEC 20 SEC 25 SEC 30 SEC 10-12 N/A 02-07 Technical Support only *Vehicle will shutdown when a door is opened. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 28 II After a remote starter failure, the parking lights will fl ash [X] number times to indicate an error code. See table. System is in Valet Mode. Vehicle is moving (VSS). Glow plug timeout error. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 29 Flashing GREEN False ground when running status from remote starter. WITH IGNITION OFF Solid GREEN then OFF Reset in progress. Module at rest and ready for a remote start sequence. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 30 BLACK 4-PIN connector. DTC or a CHECK ENGINE error message. Wait, LED 1 will flash RED. RELEASE programming button. LED 1 will turn RED for 2 seconds. Module RESET completed. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
- Page 31 NO: The module does NOT detect the brake pedal signal. Press LOCK button three times [3x] rapidly on the OEM keyfob to shut down, check the brake connection as illustrated in the wiring diagram, if applicable, and call technical support. Exit vehicle. Installation checklist completed. U.S. Patent No. 8,856,780 Automotive Data Solutions Inc. © 2016 OEM-AL(RS)-TL6-[OL-MDB-ALL]-EN...
