Parameter Description - Siemens 6ES7134-4JB00-0AB0 Manual

Distributed i/o 2ai tc st analog electronic module.

Parameters

2.2 Parameter description

2.2

Parameter description

Smoothing

The individual measured values are smoothed by digital filtering. The smoothing can be

adjusted in four steps, in which the smoothing factor k multiplied with cycle time of the

electronic module equals the time constant of the smoothing filter. The greater the

smoothing, the greater the time constant of the filter.

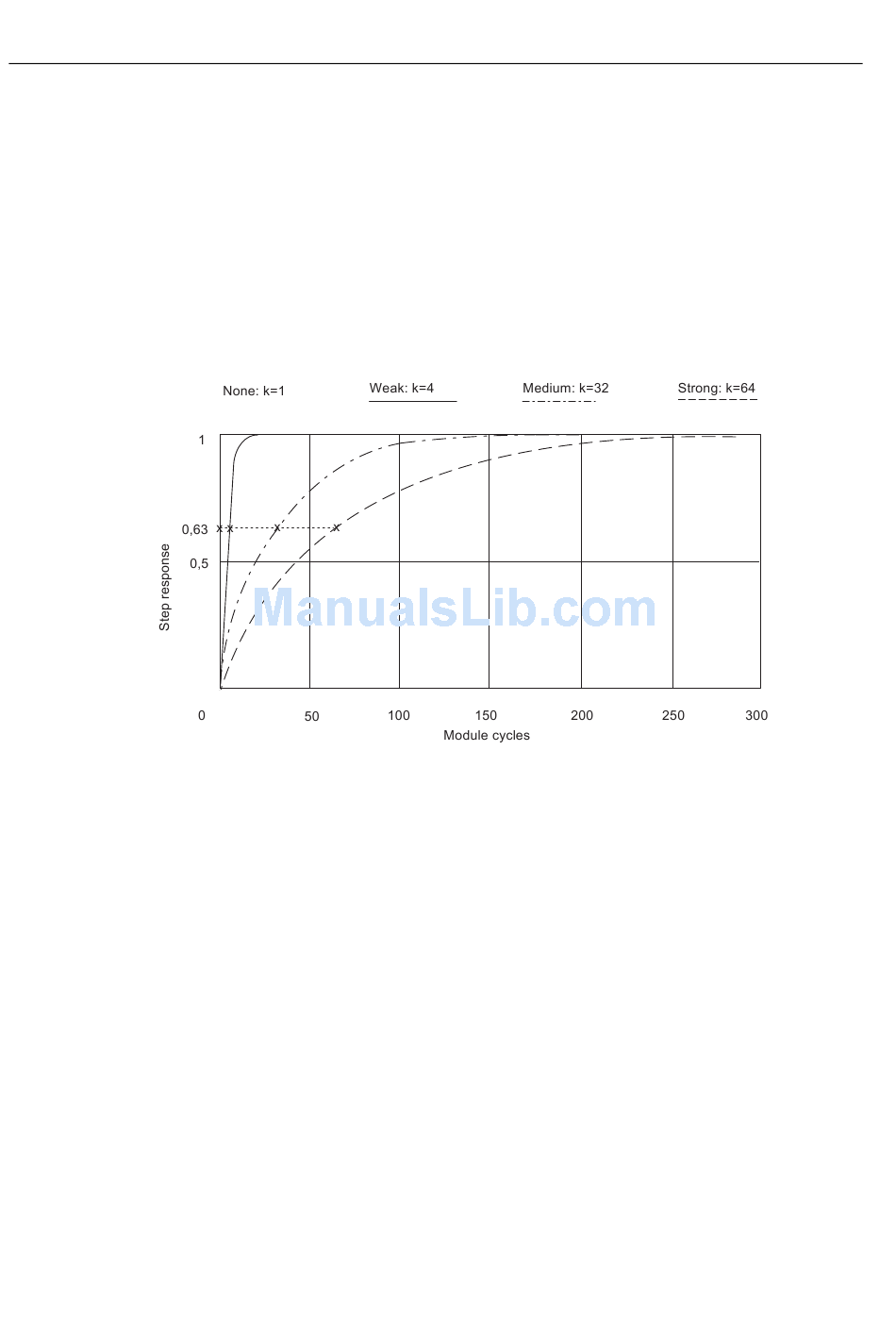

The following diagrams show the step response with the various smoothing factors in

relation to the number of module cycles.

Figure 2-1

Smoothing with the 2AI TC ST

2AI TC ST analog electronic module (6ES7134-4JB00-0AB0)

Manual, 04/2007, A5E01076883-01
