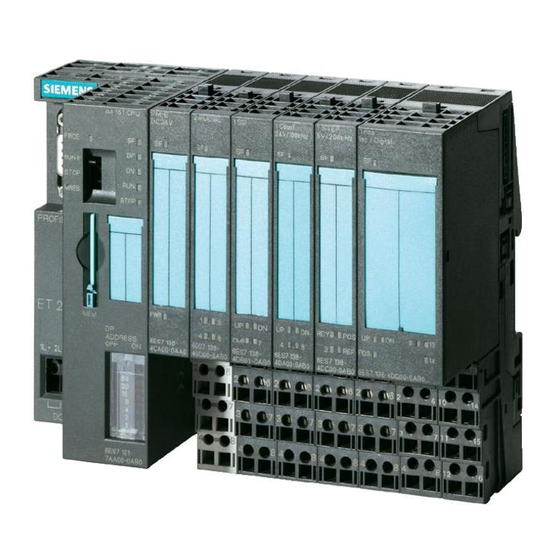

Siemens SIMATIC ET 200S Manual

Distributed i/o digital electronic module 4do dc24v/2a hf
Hide thumbs Also See for SIMATIC ET 200S:

Advertisement

Quick Links

Download this manual
Digital electronic module 4DO DC24V/2A
HF
(6ES7132-4BD30-0AB0)
SIMATIC
ET 200S distributed I/O
Digital electronic module
4DO DC24V/2A HF
(6ES7132-4BD30-0AB0)
Manual
10/2009
A5E02515335-02
___________________
Properties
___________________
Parameters
___________________
Diagnostics
1
2
3

Advertisement

loading

Related Manuals for Siemens SIMATIC ET 200S

Summary of Contents for Siemens SIMATIC ET 200S

  • Page 1 ___________________ Digital electronic module 4DO DC24V/2A Properties ___________________ Parameters (6ES7132-4BD30-0AB0) ___________________ Diagnostics SIMATIC ET 200S distributed I/O Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) Manual 10/2009 A5E02515335-02...
  • Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 3: Table Of Contents

    Table of contents Properties ..............................5 Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) ........5 Parameters .............................. 11 Parameters ........................... 11 Diagnostics .............................. 13 Diagnostics by means of LED display ..................13 Error types ............................ 14 Index ................................ 15 Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) Manual, 10/2009, A5E02515335-02...
  • Page 4 Table of contents Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) Manual, 10/2009, A5E02515335-02...

  • Page 5: Properties

    Properties Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) Properties ● Digital electronic module with four outputs ● Output current 2 A per output ● Rated load voltage 24 VDC ● Diagnostics: short-circuit ● Short-circuit protection ● Suitable for solenoid valves, DC contactors, and indicator lights ●...
  • Page 6 Properties 1.1 Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) Requirements for operation It is possible to operate the 4DO DC24V 2A HF digital electronic module with the following interface modules, as of the specified order numbers: Interface module as of order number Firmware version (or higher) IM 151-1 STANDARD...
  • Page 7 Properties 1.1 Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) Usable terminal modules Usable terminal modules for 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) TM-E15C26-A1 TM-E15C24-A1 TM-E15C24-01 TM-E15C23-01 (6ES7193-4CA50- (6ES7193-4CA30- (6ES7193-4CB30- (6ES7193-4CB10- Spring terminal 0AA0) 0AA0) 0AA0) 0AA0) TM-E15S26-A1 TM-E15S24-A1 TM-E15S24-01 TM-E15S23-01 (6ES7193-4CA40- (6ES7193-4CA20- (6ES7193-4CB20- (6ES7193-4CB00- Screw-type terminal...
  • Page 8 Properties 1.1 Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) Block diagram Figure 1-1 Block diagram of the 4DO DC24V/2A HF Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) Manual, 10/2009, A5E02515335-02...
  • Page 9 Properties 1.1 Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) Technical data 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) Dimensions and weight Width (mm) Weight Approx. 40 g Module-specific data Supports isochronous operation Number of outputs Cable length Max. 600 m Unshielded • Max. 1000 m Shielded •...
  • Page 10 Properties 1.1 Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) Output current At signal "1" • – Rated value 7 mA to 2.4 A – Permitted range max. 0.1 mA With signal "0" (leakage current) • Output delay (for resistive load) max.

  • Page 11: Parameters

    Parameters Parameters This table shows the parameters for digital output modules: Table 2- 1 Parameters for digital output modules 4DO 24 VDC/2A HF Range of values Default setting Applicability Response to CPU/master Outputs zero current/voltage Module Outputs zero • STOP current/voltage Retain last value •...
  • Page 12 Parameters 2.1 Parameters Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) Manual, 10/2009, A5E02515335-02...

  • Page 13: Diagnostics

    Diagnostics Diagnostics by means of LED display Digital electronic modules LED displays on digital electronic modules: ① Group error (red) ② Status display for output status (green) Status and error displays by means of LEDs on digital electronic modules The table below shows the status and error displays on the digital electronic modules. Event (LEDs) Cause Remedy...

  • Page 14: Error Types

    Diagnostics 3.2 Error types Error types Digital electronic module error types Table 3- 1 Error types Error type Meaning Remedy 11010: External error Short circuit (at least on one Correct the process wiring channel) Diagnostic message will be output on channel 0. "Short circuit" is only detected in the switched output state.

  • Page 15: Index

    Index Digital electronic module 4DO DC24V/2A HF Block diagram, 8 Properties, 5 Technical data, 9 Terminal assignment, 6 Digital electronic modules, 13 Error types, 14 Parameters for 4DO DC24V/2A HF, 11 Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) Manual, 10/2009, A5E02515335-02...
  • Page 16 Index Digital electronic module 4DO DC24V/2A HF (6ES7132-4BD30-0AB0) Manual, 10/2009, A5E02515335-02...
