- Page 1 INSTALLATION INSTRUCTIONS MODEL MRC44KP MRC44 KEYPAD...
- Page 2 Page 2 Model MRC44KP © 2001 Xantech Corporation...
- Page 3 MRC44 Keypad Physical Location and Mounting ......... 10 MRC44 Keypad Removal..............14 Connections at the Zone Location............16 For additional information on installation of the MRC44 System, refer to the MRC44 Installation Instructions, part no. 08901160. © 2001 Xantech Corporation...

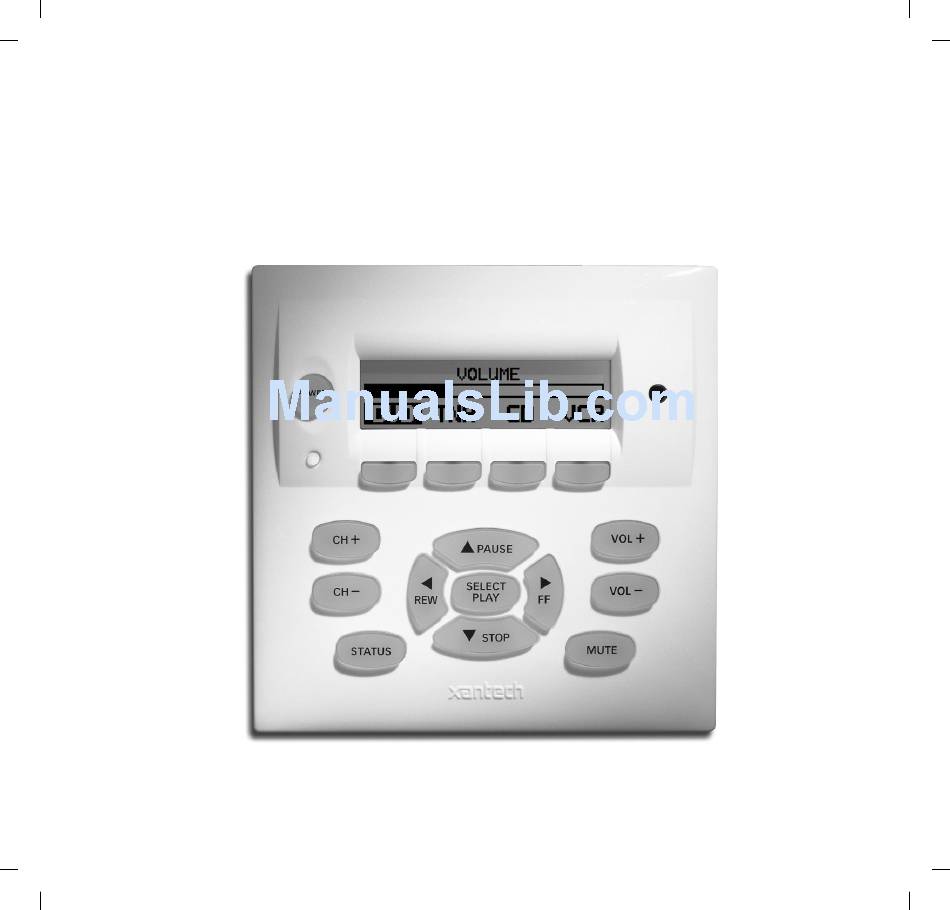

- Page 4 Page 4 Model MRC44KP MRC44 KEYPAD FEATURE DESCRIPTIONS POWER PAUSE SELECT PLAY STOP STATUS MUTE Figure 1 – The Model MRC44 Keypad Front Panel Features and Functions © 2001 Xantech Corporation...
- Page 5 3. IR Sensor. Receives IR from hand-held remotes to control both source components and the MRC44 system. A Programmable Learning Remote such as the Xantech URC2 is recommended for integrating the IR commands of the MRC44 and source components into a single controller.
- Page 6 (if any) to the source 4 and common emitter outputs. Also used in Dynamic Monitor Lockout and Dynamic Zone Link Modes. 10. Vol . Increases zone volume and moves the Volume Bar on the LCD Display to indicate volume level (non-programmable). © 2001 Xantech Corporation...
- Page 7 15. Status. Displays zone and system status (zone/source activity, linked zones, audio setup, etc – non-programmable). 16. Select/Play, Stop, Pause, Rew, FF. Each send IR commands programmed to these buttons to the selected source and common emitter outputs. © 2001 Xantech Corporation...
- Page 8 Page 8 Model MRC44KP Figure 2 – The Model MRC44 Keypad Rear Panel Features and Functions © 2001 Xantech Corporation...
- Page 9 23. LCD Backlight Adjustment. Adjusts brightness of LCD backlight. This adjustment does not affect the backlight level for the buttons. Slowly turn counter-clockwise to reduce brightness. 24. Snap-in Pins. These pins snap into the MRC44 Keypad wall bracket for mounting. © 2001 Xantech Corporation...
- Page 10 Page 10 Model MRC44KP MRC44 KEYPAD PHYSICAL LOCATION AND MOUNTING MRC44 Keypad Ground To Earth Ground Cat 5 Cable RJ45 Connector Figure 3 - Mounting and Installing the MRC44 Keypad © 2001 Xantech Corporation...
- Page 11 Mark the desired mounting location for the center of the keypad. b. Using a level, make proper horizontal and vertical marks on surface to be cut, to properly orient template. Figure 4 – MRC44 Keypad mounting template © 2001 Xantech Corporation...
- Page 12 Any cut outside of the outline by more than ¼” may not be covered by the keypad. Figure 5 – Installing the MRC44 Keypad mounting bracket in the wall © 2001 Xantech Corporation...
- Page 13 3. With the Controller/Amplifier turned off, connect the CAT5 cable to the appropriate RJ45 connector, using Figure 7 as a guide for CAT5 termination. 4. Add or remove jumpers on the rear of the MRC44 keypad-according to Table 1 (Keypad connections). © 2001 Xantech Corporation...
- Page 14 5. Firmly snap the MRC44 Keypad into the bracket that you have just installed (see Figure 3). 6. Confirm all Keypad operations. MRC44 KEYPAD REMOVAL POWER PAUSE SELECT PLAY STOP STATUS MUTE Figure 6 – Removing the MRC44 Keypad from the wall © 2001 Xantech Corporation...
- Page 15 +12V white/brown brown Cat 5 RJ45 Connector Cable at Keypad Wire Color Signal white/orange orange white/green 12V RET blue IR RET white/blue green +12V white/brown brown Figure 7 - CAT5 Pin Assignments (per EIA/TIA 568B) © 2001 Xantech Corporation...
- Page 16 “CONTROLLER” jack on the Secondary Keypad. Set the jumpers according to the above Table 1. 3. When adding an IR receiver in the zone, set the jumpers according to the above table and connect the cables as shown in Figure 8. © 2001 Xantech Corporation...
- Page 17 Sensor enabled Two Keypads in Zone with IR Sensors enabled One Keypad and one separate IR Receiver in Zone Two Keypads and two separate IR Receivers in Zone (Sub-Zone) Table 1 – MRC44 Keypad Jumper Configurations © 2001 Xantech Corporation...
- Page 18 IR Receiver POWER POWER MRC44 POWER PAUSE PAUSE FOUR ZONE - FOUR SOURCE AUDIO/VIDEO CONTROLLER/AMPLIFIER SELECT SELECT PLAY PLAY STOP STOP STATUS MUTE STATUS MUTE 1000 feet max Figure 8 – MRC44 Keypad CAT5 Cable Lengths © 2001 Xantech Corporation...
- Page 19 1000 feet. The Maximum cable run to the external IR receiver in each of the above cases is 250 feet from the keypad. © 2001 Xantech Corporation...
