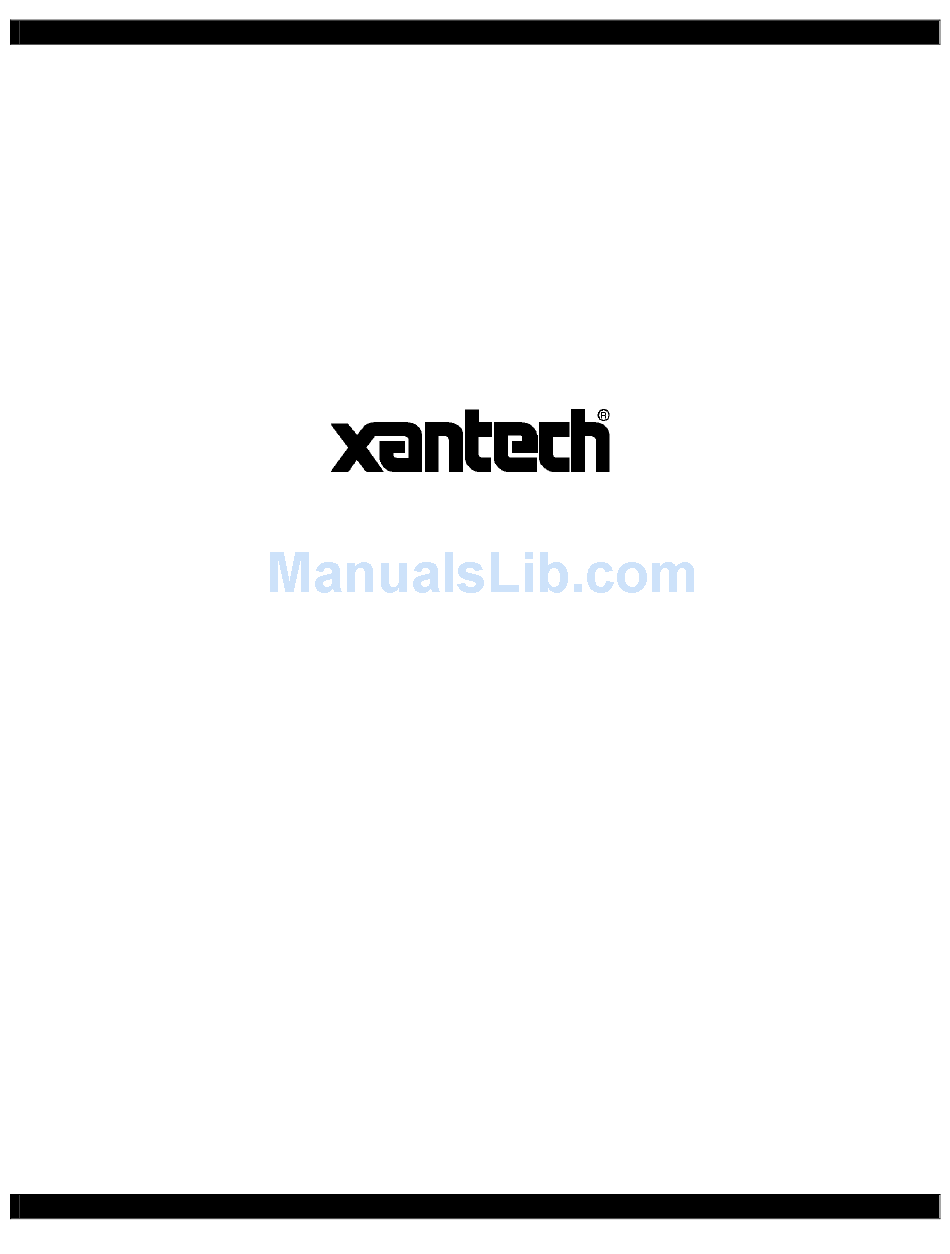

- Page 1 INSTALLATION INSTRUCTIONS D5KP DIGI-5 DDS Digital Distribution System OLED Keypad for 1-source and 4-source systems - 1 -...
-
Page 2: Important Safety Information
Safety Information CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage"... - Page 3 Caring For the D5KP Clean only with a dry soft cloth. It is important to properly care for your D5KP Keypad and Amplifier. Follow these guidelines to ensure your device is preserved and protected. • Do not expose the D5KP to rain, liquids or moisture for an extended period of time.
- Page 4 The D5KP is Xantech’s Amplified OLED Controller for the D5SH, D5SH4, D5RH, and D5XH Digital Audio Hub. The D5KP is required to control each zone of a DIGI-5 Digital Distribution System. It provides Source Selection, Volume, Mute and Power control as well as control of all connected audio sources with its built-in IR receiver.
- Page 5 Planning Before installing the D5KP, it is essential to have a detailed and accurate system design. The first step to a good design is to map the system. It is advisable to mark up a copy of the house floor plan with speaker, keypad and equipment locations, etc.
- Page 6 Pre-Wiring D5RH and D5SH, D5SH4 Digital Audio Distribution Hub to D5KP Amplifier Keypad The D5SH4 and all associated components are wired using CAT-5 terminated to the T-568A Wiring Standard (Figure 2.1). When pre-wiring, run lengths of CAT-5 from the pre-determined R5RH and D5SH, D5SH4 Digital Distribution Hub location (the “head-end”) to each Amplifier Keypad location.
- Page 7 D5RH, D5SH, or D5SH4. Run lengths of CAT-5 from any local (in-room) source to the Amplifier Keypad located in that area. The D5KP must be connected to an external power supply or a distribution hub (for power).
-
Page 8: Item Description
D5KP - FRONT Figure 2.1: Front of D5KP Keypad ITEM DESCRIPTION OLED Screen SOURCE Selection VOLUME Selection MUTE Button IR ‘Eye’ MAIN Button POWER Button VOLUME BAR Indicator - 8 -... - Page 9 D5KP - REAR L+ L- R+ R- Figure 2.2: Front of D5KP Keypad ITEM DESCRIPTION SYSTEM RJ-45 Port Speaker Output Connector AUX Power Connector LOCAL RJ-45 Port External IR Input Jack - 9 -...
-
Page 10: Installation
D5IP (if applicable) into the back of the rough-in box, then connect them to the appropriate RJ-45 connectors on the rear of the D5KP. Connect all 16 AWG 2 conductor speaker wires. If using an IR Receiver, strip the ends of three conductors of the CAT-5 and insert into the screw terminals of the IR Input Jack. - Page 11 T-568A Standard. These connectors carry IR information from the keypad as well as audio information to the D5KP Amplifier Keypad. Status information is also carried between the D5RH chassis and the Amplifier Keypads. While a great deal of information is handled by the ‘ZONE OUT’...
- Page 12 T-568A Standard. These connectors carry IR information from the keypad as well as audio information to the D5KP Amplifier Keypad. Status information is also carried between the D5SH, D5SH4 chassis and the Amplifier Keypads. While a great deal of information is handled by the ‘ZONE OUT’...
- Page 13 300’, 16 AWG/2 conductor wire is required. The maximum wire run using CAT-5 and 16 AWG/2-conductor is 600’. Make all connections between the D5RH and the D5KP Amplifier Keypad as previously described, then make the aux power connections described below.
- Page 14 D5IP Source Input Wall Plate Interconnecting between the D5KP and the D5IP Source Input Plate consists of plugging in a CAT-5 cable terminated to an RJ-45 connector wired to T-568A standard (see Figure 2.0) to the RJ-45 jack on the rear of the D5IP. The other end simply plugs into the LOCAL PORT RJ-45 jack on the rear of the zone’s D5KP Amplified Keypad.
- Page 15 Internal IR Receiver The internal IR receiver is located beneath the ‘X’ button. The internal IR receiver can receive and respond to commands from the D5MR (mini-remote control) and the D5LR (learning remote control). It will also pass-thru IR remote control commands to audio sources via an emitter. An emitter must be connected to the D5IP or the emitter outputs from the D5RH.
- Page 16 DO NOT connect speakers with a rating of less than 6 Ohms! DO NOT connect more than one speaker to either speaker connector of the D5KP. In doing this, damage to the D5KP may occur and will void the products warranty.
- Page 17 4. D5KP Installer Setup The D5KP Installer Setup is defined into two categories, “User Parameters” and “Setup Parameters”. User Parameters allows the end-user to change the keypad functionality to his or her needs. Setup Parameters are for the installer to custom create an installation based on the end-users requirements.
-
Page 18: User Parameters
USER PARAMETERS BASS The “bass” control allows the sound to be adjusted on the lower frequency range. Using the volume bar as an indicator, the central position shows the default position. Moving the indicator to the left side lowers the bass, reducing the volume of the low frequency sound. Moving the indicator to the right side increases the bass, increasing the volume of the low frequency sound. - Page 19 USER PARAMETERS (continued) WHOLE HOUSE MUSIC (WHM) Whole House Music mode links all zones to share source selection functionality so that the whole house listens to the same source. Any Keypad in any zone can initiate WHM model. Volume, Mute, and Tone settings remain independent for each zone, but the source selection remains linked.
-
Page 20: Setup Parameters
The settings for this control can be adjusted from 0 (Off) to 8. PAGE/DOORBELL VOLUME (P/D VOL) This setting determines the Page / Doorbell Volume Level for the zone in which the D5KP is installed. Be sure to activate the page or doorbell audio from the connected communications controller and then adjust the volume to the desired level. - Page 21 The settings for this control can be adjusted from ON to OFF only. SOURCE LOCK-OUT (SRC LCK) This setting determines which sources can be selected in the zone in which the D5KP is installed, allowing for parental control or removing the source selection option if that particular source will not be connected.
-
Page 22: Troubleshooting
5. Troubleshooting Symptom D5KP does not power up No control or IR sources Intermittent IR source control No audio Distorted Audio Possible Cause 1. RJ-45 plug crimped incorrectly; or wiring pin-out of RJ-45 reversed. 2. Break in CAT-5 between Zone and “Head-End”. - Page 23 Covered product must be sent to Xantech together with proof of purchase, RA number, prepaid and insured to Xantech. Freight collect shipments will be refused. Risk of loss or damage in transit is borne by the sender.
-
Page 24: Specifications
Weight This document is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Xantech Corporation. Xantech Corporation shall not be liable for operational, technical, or editorial errors/omissions made in this document.
