Xantech Waterpad WPK1 Installation Instructions Manual

WATERPROOF PROGRAMMABLE KEYPAD SYSTEM
INTRODUCTION
THE WATERPAD™, an adaptation of the original Smart Pad
mounted, fully programmable and configurable waterproof keypad. Now, outdoor, pool side, bathroom,
sauna and other high moisture installations can be handled with confidence. With the ease of the Dragon
Drop-IR™ software system, the Waterpad is fully programmable into four basic keypad configurations. In
addition, a large selection of button icon labels permits configurations to match the IR source and function
commands of virtually any A/V system.
FEATURES
• Operates in high moisture environments in humidities up to 100% over a temperate range of 0° F (-18°C)
to 140° F (60° C).
• Unit is submersible in pure water in depths up to 6 inches or so. (The pressure of additional depths may
close the keys, preventing proper operation). See CAUTION note below.
• To maximize flexibility, the Waterpad is available in one, four, six and eight bank versions.
• A selection of 128 icon labels are included for affixing to source and function button locations.
• The membrane pad has 20 embossed buttons to which the icons are affixed, by the installer, with no
noticeable seam. Icons are peeled off a paper backing exposing an attaching adhesive.
• Icon color is black on white. Volume and Mute are also available in blue, if it is desired to highlight these
basic functions.
• The 4, 6 and 8 memory bank versions have LED indicators on each source button.
INSTALLATION INSTRUCTIONS
WPK1, 4, 6 and 8

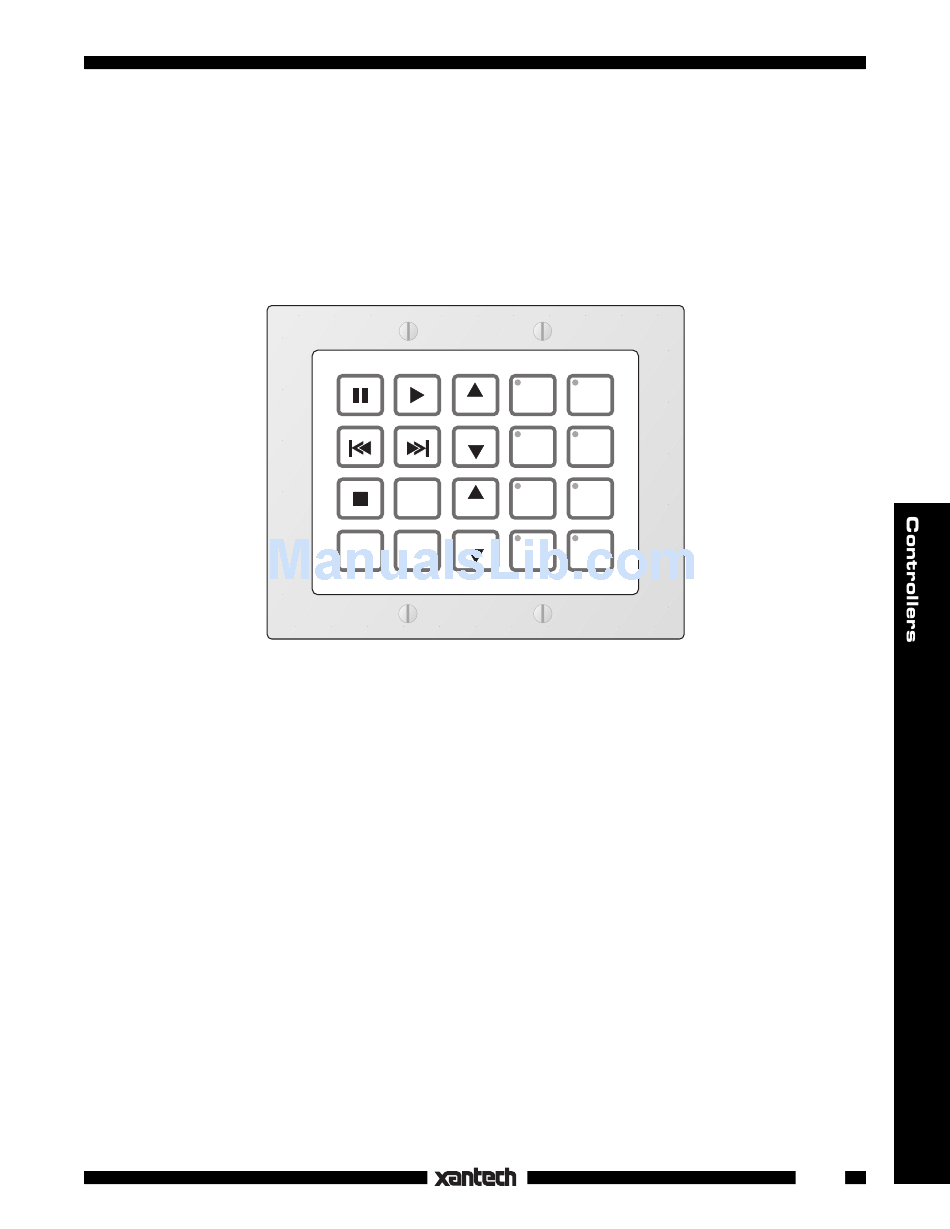

THE WATERPAD™
DISC
+
DISC
OFF
---
CD SAT
TNR
TNR
TUNER CATV
TAPE DVD
VOL
VOL
VCR1 VCR2
™ keypad system, is the world's first wall
