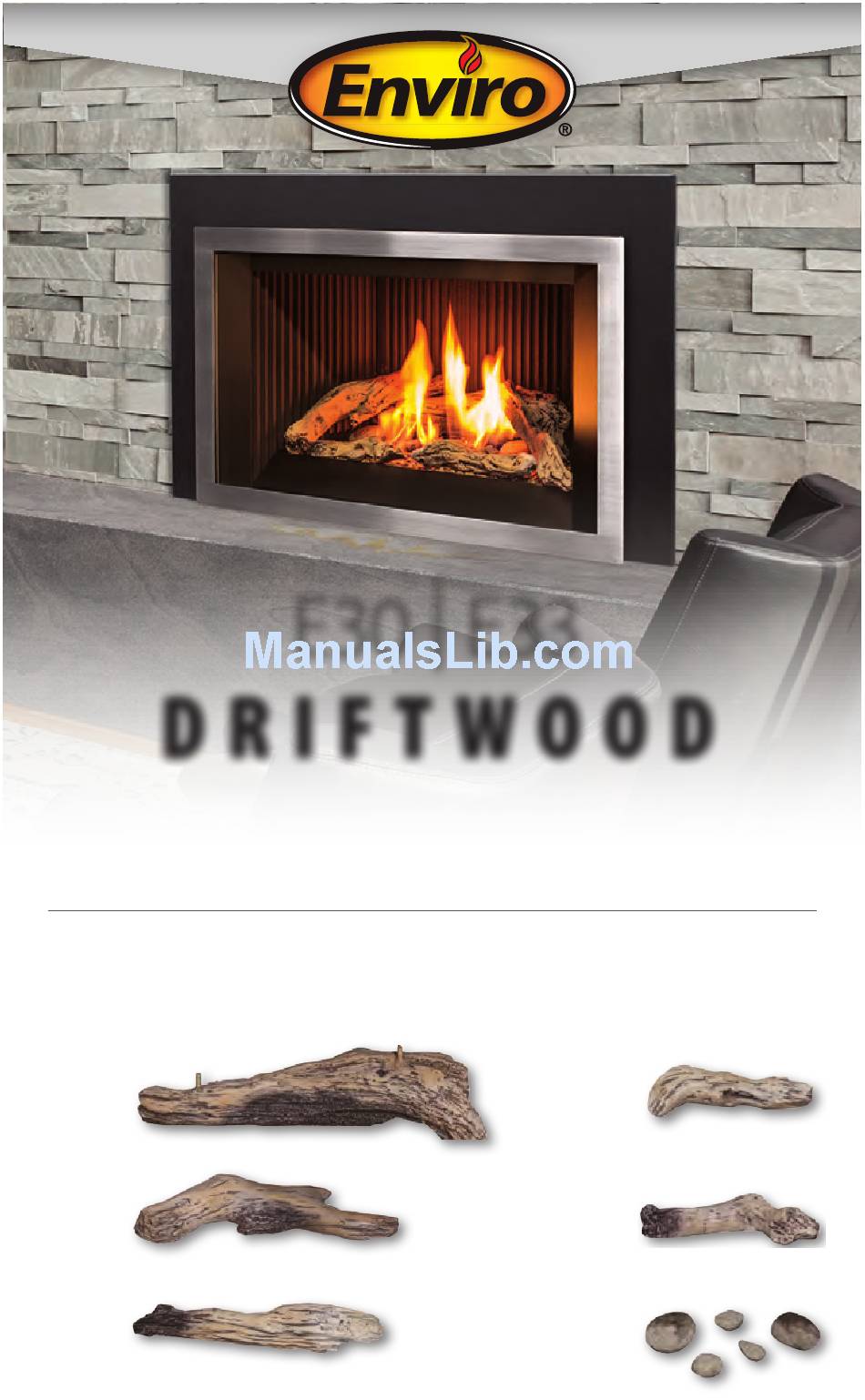

D R I F T W O O D
LOG SET INSTALL ATION GUIDE
Important
The placement of the logs is not arbitrary. If they are positioned incorrectly, the
flames can be impinged and will not burn correctly. NOTE: The logs are fragile and
should be handled gently. Ensure you have all the elements shown below.
Log #1
Log #2
Log #3
|
E30
E33
Log #4
Log #5
Rocks
Advertisement
Related Manuals for Enviro DRIFTWOOD E30
Summary of Contents for Enviro DRIFTWOOD E30
- Page 1 D R I F T W O O D LOG SET INSTALL ATION GUIDE Important The placement of the logs is not arbitrary. If they are positioned incorrectly, the flames can be impinged and will not burn correctly. NOTE: The logs are fragile and should be handled gently.
- Page 2 Step 1 Follow instructions in your owners manual to install liners and burner media. Step 2 Log #1 Place Log #1 in the back towards the back liner panel as shown with both dowels facing up. Step 3 Using a dowel on Log #1 Log #2 position Log #2 as shown.
- Page 3 Step 5 At this stage you can distribute the numbered rocks in the pattern demonstrated above. Step 6 Place Log #4 at the front of the firebox touching Log #3. Log #4 Step 7 Place Log #5 at the front of the firebox touching Log #2.
- Page 4 Visit www.enviro.com/mobile/DriftwoodLSG.html or scan the provided QR code to watch an easy to follow step-by-step video guide on setting up your new Enviro Driftwood log set. enviro.com C-15115...
