2. Hardware Setup

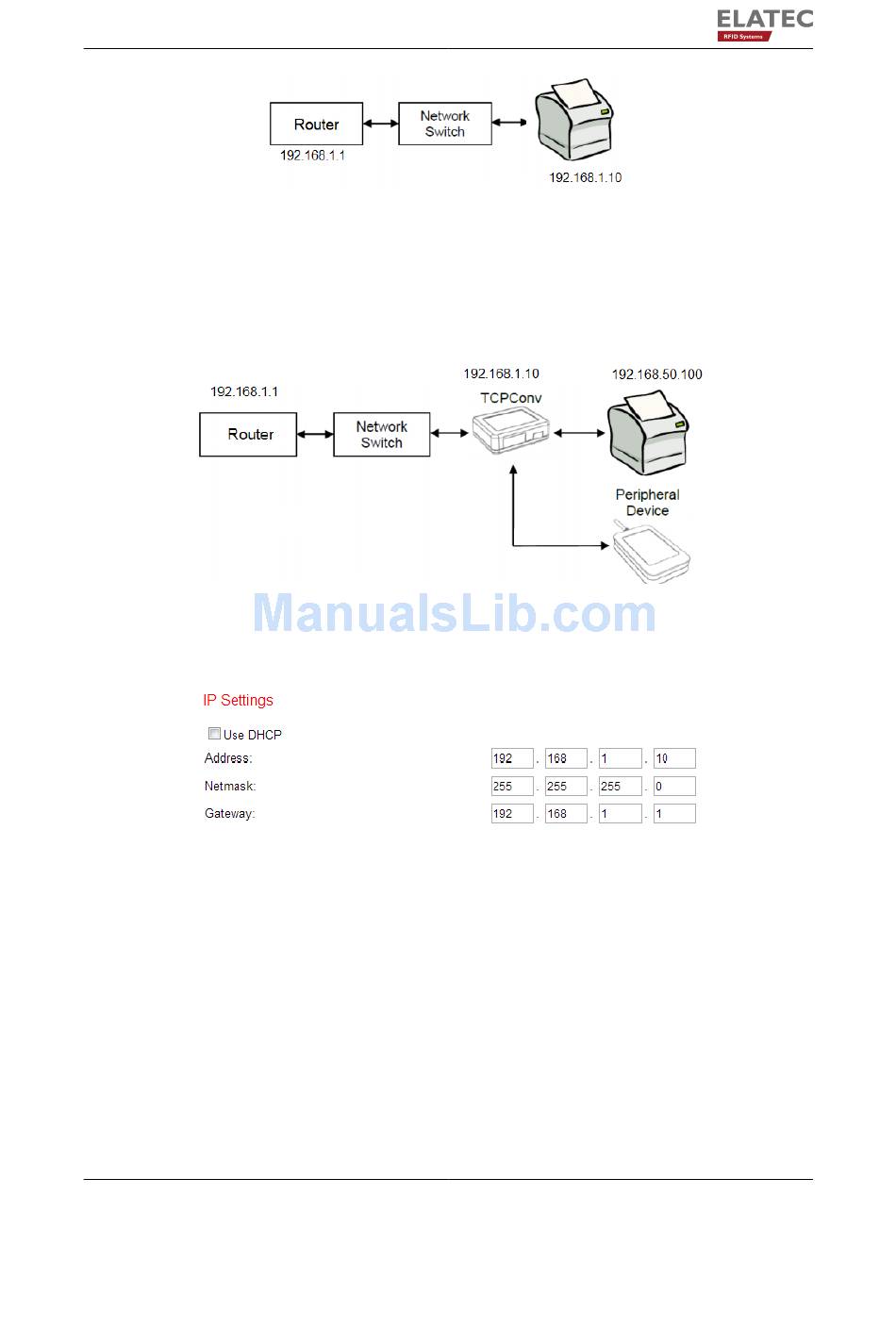

Figure 2.6.: Network Settings without TCPConv
Now a TCPConv is installed between the switch and the printer. The TCPConv 2 should
now be 192.168.1.10 whereas the printer is located in the private network of TCPConv. The
detailed steps of configuration via web front-end can also be found in Chapter 3.
Figure 2.7.: Network Settings for TCPConv and Printer. Note the TCPConv takes the IP
address that the Printer had.
Figure 2.8.: Sample Network Configuration of TCPConv
