ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Refer to the drawings below to identify the parts
used in assembly. Assembly requires the following tools: The included allen wrench
phillips screwdriver
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.

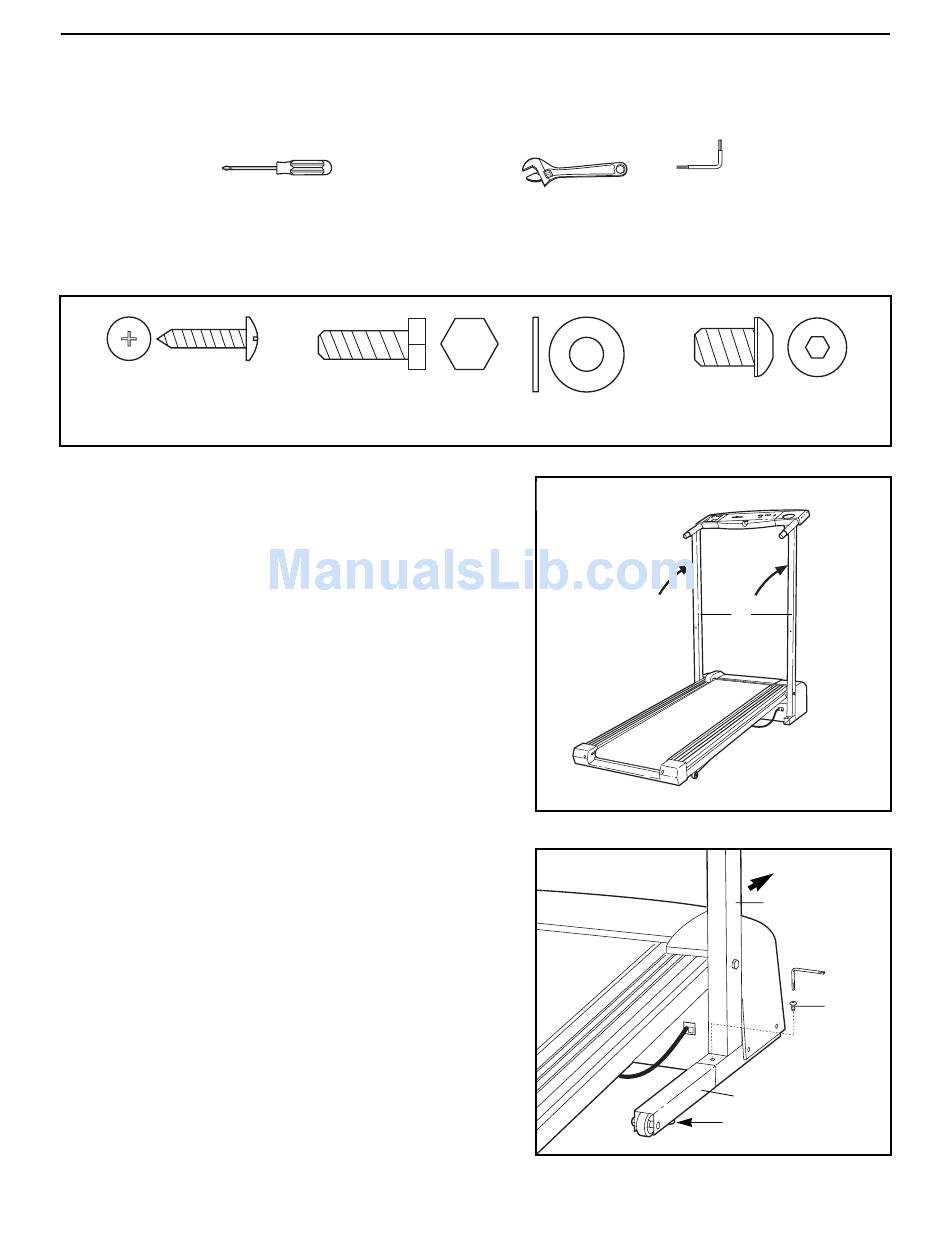

Latch/Handrail Screw (89)–4
1. With the help of a second person, carefully raise the
Uprights (11) until the treadmill is in the position shown.
2. Insert one of the Extension Legs (34) into the treadmill as
shown. Note: It may be helpful to tip the Uprights (11) in
the direction shown by the arrow, as you insert the
Extension Leg. Make sure that the Base Pad (40) is on
the indicated side of the Extension Leg. Attach the
Extension Leg with an Extension Leg Screw (53). Be
sure to push on the head of the Extension Leg Screw
while tightening it.
Next, attach the other Extension Leg (34) in the same way.
and adjustable wrench
Handrail Bolt (88)–2
Handrail Washer (90)–2
5
.
Extension Leg Screw (53)–2
1
2
and your own
11
11
53
34
40
