OVERHAUL MANUAL
FOR

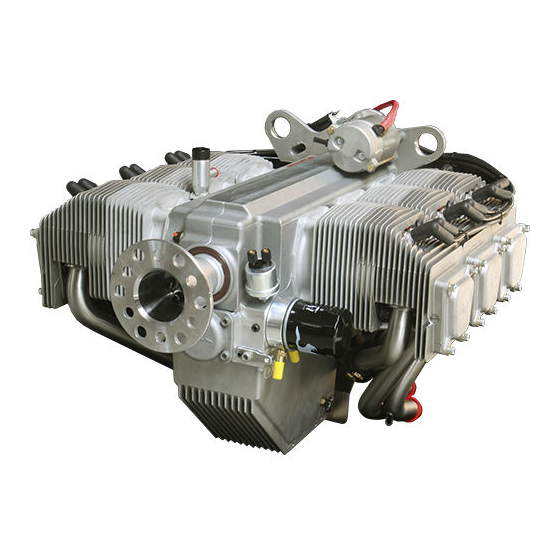

JABIRU 2200 & 3300 AIRCRAFT ENGINES
DOCUMENT No. JEM0001-7
th
Date: 28
October 2014
This Manual has been prepared as a guide to correctly overhaul Jabiru 2200 & 3300 aero engines.
It is the owner's responsibility to regularly check the Jabiru web site at www.jabiru.net.au for
applicable Service Bulletins and have them implemented as soon as possible. Manuals are also
updated periodically with the latest revisions available from the web site. Failure to maintain the
engine or aircraft with current service information may render the aircraft un-airworthy and void
Jabiru's Limited, Express Warranty.
This document is controlled while it remains on the Jabiru server. Once this no longer applies the
document becomes uncontrolled.
Should you have any questions or doubts about the contents of this manual, please contact Jabiru
Aircraft Pty Ltd.
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE
1
2
3
4
5
6
Dated : 26/6/2014
Issued By: DPS
Page: 1 of 201
L:\files\Manuals_For_Products\Engine_Manuals\Overhaul_Manual\JEM0001-7_Overhaul_Manual_DRAFT_(29_10_14).docx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jabiru 2200

Summary of Contents for Jabiru 2200

  • Page 1 Should you have any questions or doubts about the contents of this manual, please contact Jabiru Aircraft Pty Ltd. This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE...
  • Page 2 Tools: ....................................... 23 3.7.3 Equipment: ...................................... 23 3.7.4 General: ......................................24 This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE Dated : 28/10/2014 Issued By: AS Page: 2 of 201...
  • Page 3 5.8.2 High temperature operation ................................57 5.8.3 Bearing surfaces ....................................57 This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE Dated : 28/10/2014 Issued By: AS Page: 3 of 201...
  • Page 4 Ignition Coils ....................................118 7.5.2 Alternator ...................................... 118 7.5.3 Flywheel ......................................118 This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE Dated : 28/10/2014 Issued By: AS Page: 4 of 201...
  • Page 5 .............................. 179 VERHAUL OOKLET 9.10.1 Engine Details ................................... 179 This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE Dated : 28/10/2014 Issued By: AS Page: 5 of 201...
  • Page 6 UMBER ECODE 13.2 ..............................199 PDATE ISTORY ABLE This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE Dated : 28/10/2014 Issued By: AS Page: 6 of 201 L:\files\Manuals_For_Products\Engine_Manuals\Overhaul_Manual\JEM0001-7_Overhaul_Manual_DRAFT_(29_10_14).docx...
  • Page 7 Figure 58 – Split Crankcase ............................49 Figure 59 – Remove Oil Strainer............................. 50 Figure 60 – Remove Con-Rods ............................50 This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE Dated : 28/10/2014...
  • Page 8 Figure 120 – Fit Connecting Rods ..........................102 Figure 121 – Crankcase Assembly Preparation ......................104 This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE Dated : 28/10/2014...
  • Page 9 Figure 181 – Applying Thread Lubricant & Tightening Lower Head Screw ..............144 Figure 182 – Fitting Rockers #1 ............................ 144 This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE...
  • Page 10 Figure 212 – Drilling & Reaming Flywheel – ILLUSTRATION ONLY................197 Figure 213 – Flywheel to crankshaft assembly drawing ....................198 This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE...
  • Page 11 Table 39 – Wear Factors ............................... 189 Table 40 – Mandatory Updates ............................. 190 Table 41 – Update History ............................199 This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE Dated : 28/10/2014...

  • Page 12: General Information

    Jabiru harmless from any injury, loss, damage, or mishap that I, my spouse, heirs, or next of kin may suffer as a result of my use of any Jabiru product, except to the extent due to gross negligence or willful misconduct by Jabiru. I understand that proper skills and training are essential to minimize the unavoidable risks of property damage, serious bodily injury and death that arise from the use of Jabiru products.

  • Page 13: Basi

    Also, if a paragraph says “refer to Section 5.9” – then you can click on the “5.9” and automatically skip to that page. Similarly, if Figures or Tables are referenced. This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE...

  • Page 14: F D Ifficulty

    2 cycles. This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE...
  • Page 15 The overhaul booklets included in Section 9 are to be used for a top end overhaul – using only those pages relevant to the parts of the engine being renewed. This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE...

  • Page 16: Engine Identification

    – i.e. S/No. 200 – 250 use a triple-flexed widget while engines outside that range have double-flexed widgets. This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE...

  • Page 17: Part Identification

    The connecting rods are machined from solid bar 4140 chrome molybdenum alloy steel. They have replaceable bearing inserts in the crankshaft ends (big ends) and the piston ends (small This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE...

  • Page 18: Crankshaft

    Fuel-air mix is distributed from the manifold to the cylinder heads by individual tubes. This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE Dated : 28/10/2014...

  • Page 19: Ignition System

    Jabiru Engines. Guidance material is available in the Jabiru Engine Installation Manuals and Instruction & Maintenance Manuals. This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE Dated : 28/10/2014...

  • Page 20: Bulk Strip

    700 hours will still only have 300 hours left to run after the bulk strip has been This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.

  • Page 21: Propeller Strike Procedures

    Details on removing these screws are included in Section 4.5.4. The procedure to be used for replacing the screws in the propeller flange is the same. This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE...

  • Page 22: Abrupt Engine Stop

    Record – The records of the overhaul must be completed, including lists of parts replaced and the records of the run-in (temperatures, pressures etc). This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE...

  • Page 23: Facilities

     Degree wheel  Dial indicator and magnetic stand, vee blocks This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE Dated : 28/10/2014 Issued By: AS Page: 23 of 201...

  • Page 24: General

     Lubricants: engine oil, Nulon L90  TorqueSeal brand security marking compound This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE Dated : 28/10/2014 Issued By: AS Page: 24 of 201...

  • Page 25: Recommended Sealants Compounds & Lubricants

    Loctite 577 is designed for the locking and sealing of metal threaded pipes and fittings. Used to seal fuel, oil and brake fittings. This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE...

  • Page 26: Figure 6 – Sealants, Compounds & Lubricants #4

    High-temp grease – used to give initial start-up lubrication to many parts of the engine, including the oil seals.  “Cam Honey” (Molybdenum Disulphide) for cam journals and lobes. This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE Dated : 28/10/2014 Issued By: AS Page: 26 of 201 L:\files\Manuals_For_Products\Engine_Manuals\Overhaul_Manual\JEM0001-7_Overhaul_Manual_DRAFT_(29_10_14).docx...

  • Page 27: L Octite 620 & O Ther R Etaining C Ompounds

    A medium-strong threadlock. Typically used for cap screws into castings or Aluminium. This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE...

  • Page 28: Special Tools

    Used to compress the valve springs, allowing the rocker shaft to be removed and the hydraulic valve lifters to be bled. This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE...

  • Page 29: Figure 12 – Valve Leakage Vacuum Tester

    Sizes 7.03 / 7.04 / 7.05 / 7.06 / 7.07 / 7.08 Figure 15 – Valve Guide Size Gauges This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE...

  • Page 30: Figure 16 – Leak Down Tester

    Used during honing with a “Christmas tree” hone to make the base of the cylinder complete. Without the hone helper the hone would catch on the cylinder skirts. 4” “Christmas tree” hone shown at right. This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled. ISSUE...
