ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a phillips screwdriver
wrench , and a rubber mallet

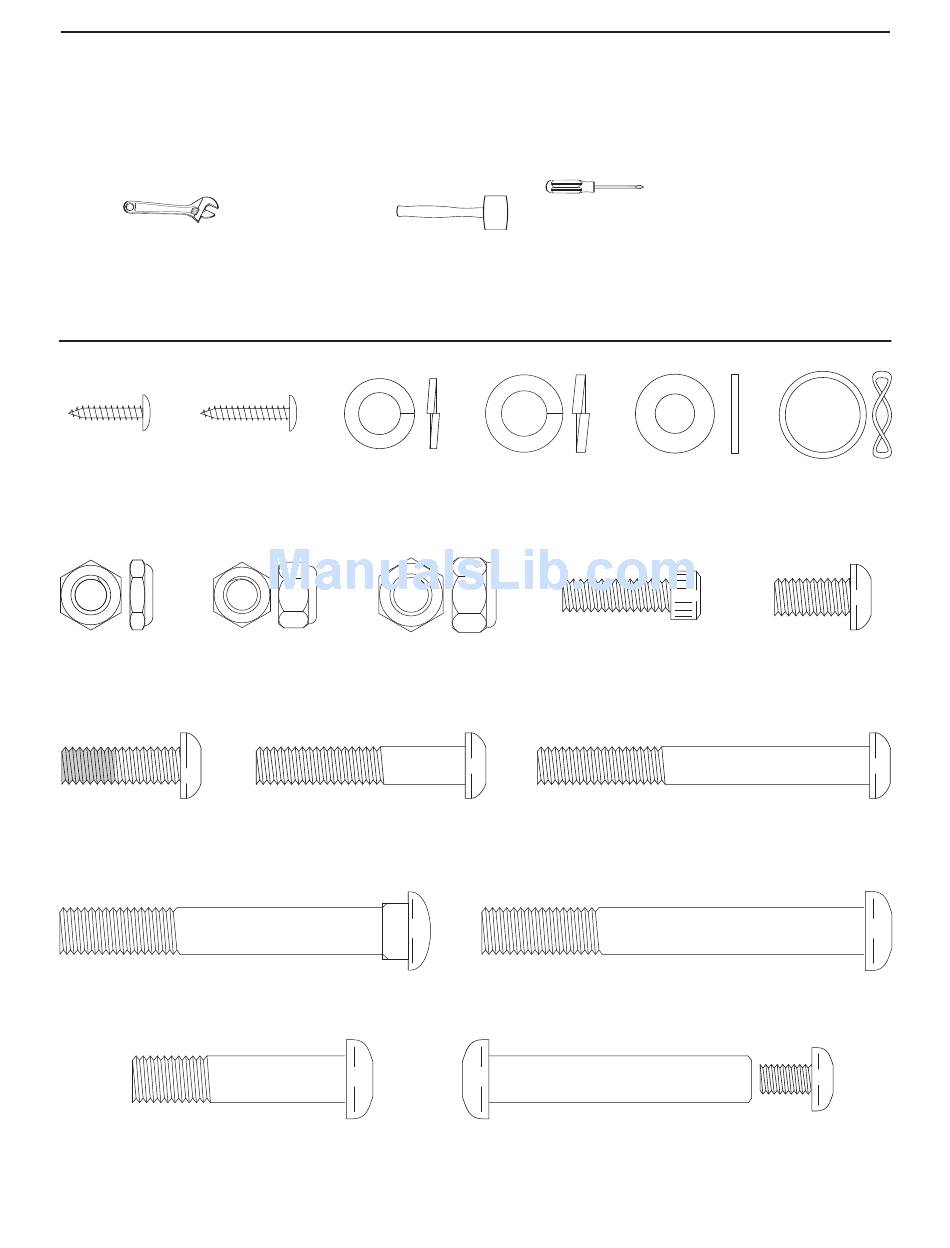

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on page 17. The number following the
parentheses is the quantity needed for assembly. Note: Some small parts may have been preassembled. If a
part is not in the parts bag, check to see if it has been preassembled.
M4 x 16mm M4 x 22mm
Screw (66)–8 Screw (76)–2
M8 Jamnut M8 Nylon
Locknut (46)–6
(101)–4
M8 x 25mm Patch
Screw (22)–2
M10 x 75mm Carriage Bolt (34)–2
M10 x 45mm Button Bolt (33)–2
M8 Split
Washer (83)–2
M10 Nylon
Locknut (29)–4
M8 x 45mm Button
Bolt (50)–4
5
, an adjustable
.
M10 Split M8 Washer
Washer (94)–2 (53)–6
Cover Screw
(82)–4
M8 x 72mm Button Bolt (67)–2
M10 x 83mm Button Screw (63)–2
M10 x 59mm Bolt Set (27)–2
Wave Washer
(91)–2
M8 x 16mm Button
Screw (84)–4
