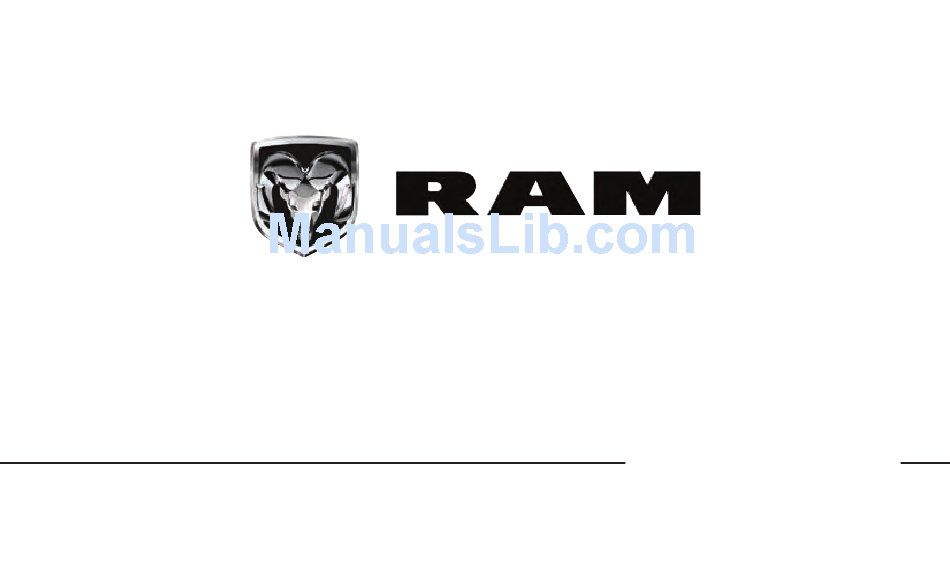

  • Page 1 2 0 1 8 r a m t r u c k 1 5 0 0 S P E C I A L S E R V I C E S U P P L E M E N T...
  • Page 2 VEHICLES SOLD IN CANADA This manual illustrates and describes the operation of With respect to any Vehicles Sold in Canada, the name features and equipment that are either standard or op- FCA US LLC shall be deemed to be deleted and the name tional on this vehicle.
  • Page 3 TABLE OF CONTENTS SECTION PAGE INTRODUCTION ..............3 GETTING TO KNOW YOUR VEHICLE .
  • Page 5 INTRODUCTION CONTENTS INTRODUCTION ......4...
  • Page 6 4 INTRODUCTION INTRODUCTION Following the instructions and recommendations provided herein, will help assure safe and reliable operation of your This booklet is a supplement to the Owner’s Manual vehicle. After you have read the booklet, it should be stored prepared with the assistance of service and engineering in the vehicle for convenient reference and remain with the specialists, and is intended to aid the operators of Special vehicle when sold.

  • Page 7: Getting To Know Your Vehicle

    GETTING TO KNOW YOUR VEHICLE CONTENTS DOOR LOCKS ......6 INTERIOR LIGHTS ......7 ▫...
  • Page 8 6 GETTING TO KNOW YOUR VEHICLE DOOR LOCKS To use the system, open each rear door, use a flat blade screwdriver (or emergency key) and rotate the dial to Modified Rear Door – Locks, Levers, And Window engage and disengage the Protection locks. When the Switches —...
  • Page 9 GETTING TO KNOW YOUR VEHICLE 7 INTERIOR LIGHTS NOTE: If your vehicle is equipped with illuminated ap- proach lights under the outside mirrors, they can be turned Dome Light off through the instrument cluster display or the Uconnect The special service dome light has three positions. Position radio.
  • Page 11 GETTING TO KNOW YOUR INSTRUMENT PANEL CONTENTS ▫ Vehicle Info (Customer Information Features) ..12 INSTRUMENT CLUSTER DISPLAY LOCATION AND CONTROLS ......10...
  • Page 12 10 GETTING TO KNOW YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER DISPLAY LOCATION AND CONTROLS Instrument Cluster Display — Premium The instrument cluster display features a driver-interactive display that is located in the instrument cluster. Instrument Cluster Display — Base This system allows the driver to select a variety of useful information by pushing the switches mounted on the steering wheel.
  • Page 13 GETTING TO KNOW YOUR INSTRUMENT PANEL 11 • Trip B The system allows the driver to select information by pushing the following buttons mounted on the steering • Stop/Start Info (If Equipped) wheel: • Trailer Tow • Audio • Stored Messages •...
  • Page 14 12 GETTING TO KNOW YOUR INSTRUMENT PANEL • DOWN Arrow Button Vehicle Info (Customer Information Features) Push and release the DOWN arrow button to Push and release the UP or DOWN scroll downward through the main menu and row button until the Vehicle Info icon is high- submenus (Fuel Economy, Trip A, Trip B, Audio, lighted in the Instrument Cluster Display.
  • Page 15 SAFETY CONTENTS ▫ Air Bag Deployment Zones....15 OCCUPANT RESTRAINTS ....14...
  • Page 16 14 SAFETY OCCUPANT RESTRAINTS WARNING! (Continued) Driver and Passenger Advanced Front Air Bags, Supple- • The area where the Supplemental Side Curtain Air mental Side Curtain Air Bags (SABIC), and Seat-Mounted Bags (SABIC) is located should remain free from any Side Air Bags (SAB) affect the way special service equip- obstructions.
  • Page 17 SAFETY Air Bag Deployment Zones There are four zones to be aware of: 1. Driver Air Bag Deployment Zone (Figure 1), and Driver Air Bag/Steering Wheel Specifications (Figure 2) 2. Passenger Air Bag Deployment Zone (Figure 3) and (Figure 4) 3.
  • Page 18 16 SAFETY 1. Vertical Plane Passing Through Center of Steering DRIVER AIR BAG/STEERING COLUMN SPECIFICA- Wheel TIONS DRIVER AIR BAG CUSHION POSITION 2. 13 inches (330 mm) DAB Diameter When 26 inches (661 mm) 3. Vertical Plane Passing Through Maximum Rearward Deployed (Full) Point that the Driver Air Bag Cushion Reaches DAB Depth When...
  • Page 19 SAFETY Figure 2 - Driver Air Bag Lateral Deployment Zone, depicts the following. 1. Driver Seating Reference 2. Driver Air Bag Cushion Lateral Deployment Zone, 27 inches (686 mm). Figure 2...
  • Page 20 18 SAFETY Figure 3 - Passenger Air Bag Deployment Zone, depicts the following. 1. Passenger Air Bag Cushion 2. Vertical Plane from Point of Instrument Panel 3. Passenger Air Bag Module 4. Instrument Panel 5. Vertical Plane Passing Through the Maximum Rearward Point that the Passenger Air Bag Cushion Reaches 6.
  • Page 21 SAFETY Figure 4 - Passenger Air Bag Lateral Deployment Zone, depicts the following. 1. 4.70 inches (119 mm) 2. Passenger Air Bag Cushion Deployment Zone 3. 29.8 inches (756 mm) 4. Reference Point Figure 4...
  • Page 22 20 SAFETY Figure 5...
  • Page 23 SAFETY Figure 5 - Crew Cab Supplemental Side Air Bag Inflatable Curtain Air Bag Deployment Zone, depicts the following. 1. Cross-Sectional Area Side View 2. 4.85 inches (123 mm) 3. 4.29 inches (109 mm) 4. 19.92 inches (506 mm) 5. 36.81 inches (935 mm) 6.
  • Page 24 22 SAFETY Figure 6...
  • Page 25 SAFETY Figure 6 - Supplemental Seat Mounted Side Air Bag Deployment Zone, depicts the following. 1. Front Driver’s Seat 2. 18.5 inches (470 mm) 3. 6.3 inches (160 mm) 4. 11.8 inches (300 mm) 5. Seat-Mounted Air Bag...
  • Page 27 SERVICING AND MAINTENANCE CONTENTS DEALER SERVICE ......26...
  • Page 28 26 SERVICING AND MAINTENANCE DEALER SERVICE Special Service vehicles are equipped with heavy-duty parts that are designed specifically for the varying de- mands and unique requirements under which they are operated. This booklet illustrates and describes the opera- tion of unique features and equipment that are either standard or optional on this vehicle.
  • Page 29 INDEX...
  • Page 30 28 INDEX Door Locks ....... .6 Interior And Instrument Lights ....7 Interior Lights .
  • Page 31 INSTALLATION OF RADIO TRANSMITTING The antenna cable should be as short as practical and EQUIPMENT routed away from the vehicle wiring when possible. Use Special design considerations are incorporated into this only fully shielded coaxial cable. vehicle’s electronic system to provide immunity to radio Carefully match the antenna and cable to the radio to frequency signals.
