- Page 1 SMO FORCED AIR OVENS 230 Voltage Installation - Operation Manual SMO14-2 SMO28-2 SMO28G-2...

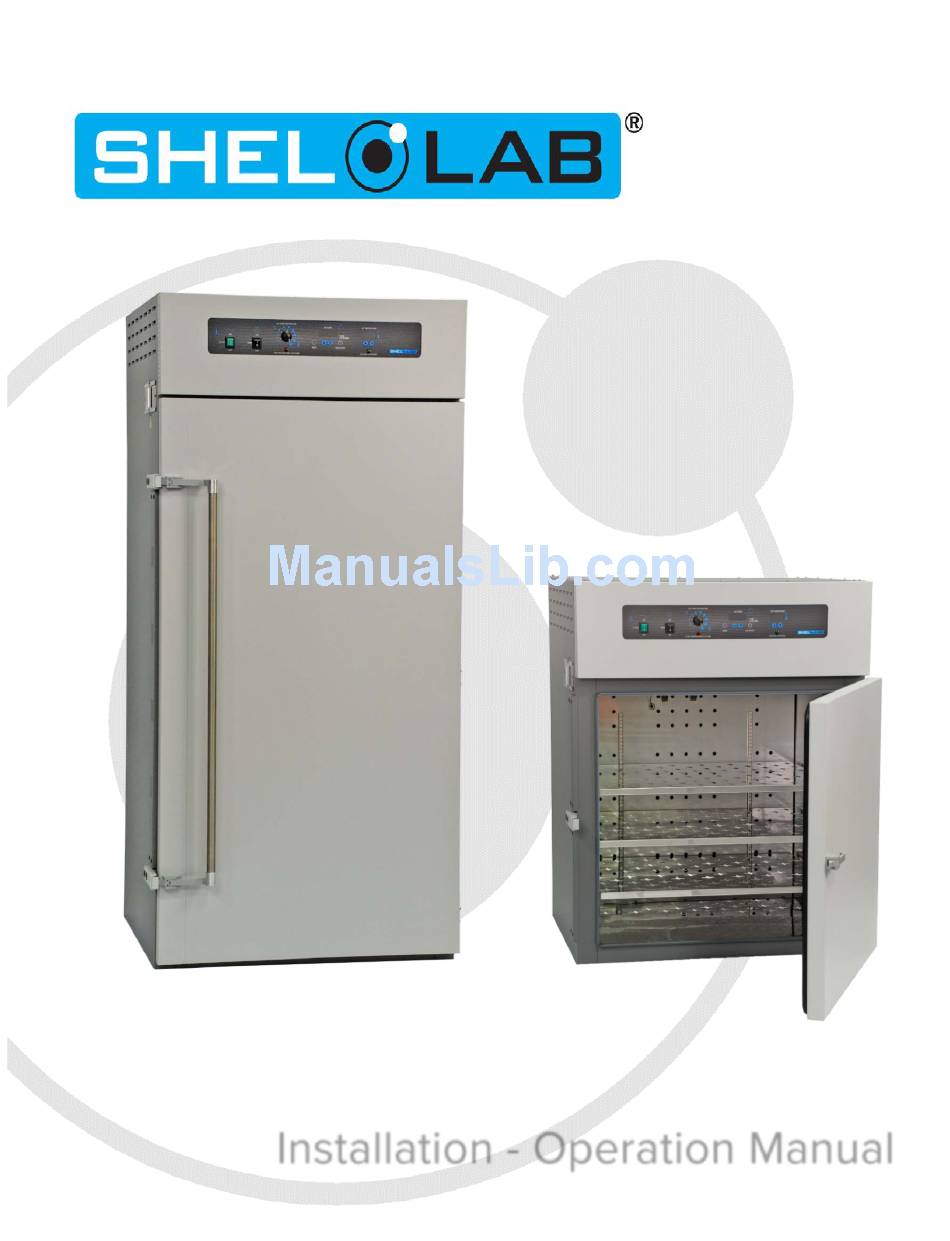

- Page 2 These ovens require permanent connect wiring (also known as a hardwiring) to a power source Pictured on Cover: Left to right SMO14-2 and SMO28-2 P a g e...
- Page 3 SMO Forced Air Ovens 230 Voltage Part Number (Manual): 4861581 Revision: January 30, 2018 Note: The SMO28G-2 ships with two wire shelves typically used in curing applications. The SMO28G-2 is identical to the SMO28-2 in all other respects. SHEL LAB is a brand of Sheldon Manufacturing, INC. Safety Certifications These units are CUE listed by TÜV SÜD as forced air ovens for professional, industrial, or educational use where the preparation or testing of materials is done at an ambient air pressure...
- Page 4 TABLE OF CONTENTS INTRODUCTION ................................ 5 Read this Manual ..................................5 Safety Considerations and Requirements ........................5 Contacting Assistance ................................6 Temperature Reference Sensor Device .......................... 6 Engineering Improvements..............................6 RECEIVING YOUR UNIT ............................7 Inspect the Shipment ................................7 Orientation....................................
-
Page 5: Introduction
INTRODUCTION Thank you for purchasing a SHEL LAB oven. We know you have many choices in today’s competitive marketplace when it comes to constant temperature equipment. We appreciate you choosing ours. We stand behind our products and will be here if you need us. EAD THIS ANUAL Failure to follow the guidelines and instructions in this user manual may create a protection... - Page 6 INTRODUCTION ONTACTING SSISTANCE Phone hours for Sheldon Technical Support are 6 am – 4:30 pm Pacific Coast Time (west coast of the United States, UTC -8). Please have the following information ready when calling or emailing Technical Support: the model number and the serial number (see page 11). EMAIL: support@sheldonmfg.com PHONE: 1-800-322-4897 extension 4, or (503) 640-3000 FAX: (503) 640-1366...
-
Page 7: Receiving Your Unit
4. The unit should come with an Installation and Operation Manual. 5. Verify that the correct number of accessory items have been included. Included Components: Model Shelves Shelf Clips Leveling Feet SMO14-2 SMO28-2 Model Shelf Clips Leveling Feet Shelves SMO28G-2 6. -
Page 8: Orientation
RECEIVING YOUR UNIT Power Panel (Back) RIENTATION Permanent Connect Wire Braid 10 gauge, 6 inches (15 cm) Figure 1: SMO28-2 Vent Port with Sliding Dampener Vent Port with Sliding Dampener Control Panel Door Liner Gasket Door Latch Chamber Door Handle Main Temperature and OTL Sensor Shelf Standard Rail... - Page 9 RECEIVING YOUR UNIT Power Panel (Back) Figure 2: SMO28G-2 Permanent Connect Wire Braid 10 gauge, 6 inches (15 cm Vent port with Sliding Dampener Vent Port with Sliding Dampener Control Panel Door Liner Gasket Chamber Door Handle Main Temperature and OTL Sensor Probes Shelf Standard Rail Door Latch...
- Page 10 RECEIVING YOUR UNIT Power Panel (Back) Figure 3: SMO14-2 Permanent Connect Wire Braid 14 gauge, 6 inches (15 cm) Vent Port with Sliding Dampener Vent Port with Sliding Dampener Control Panel Door Liner Gasket Chamber Door Handle Main Temperature and...
- Page 11 RECEIVING YOUR UNIT ECORDING LATE NFORMATION Locate the data plate on the back of the oven below the power braid inlet. The data plate contains the oven model number and serial number. Technical support and your distributor will need these numbers in order to assist you in the future.
- Page 12 RECEIVING YOUR UNIT 12 | P a g e...
-
Page 13: Installation
INSTALLATION ARDWIRE EQUIREMENT The oven requires permanent connect wiring (commonly known as hardwiring). Wiring to the power source must be performed by a qualified electrical technician. All other Installation steps may be performed by the end user. NSTALLATION HECKLIST Carry out the procedures and steps listed below to install the oven in a new workspace location and prepare it for use. - Page 14 INSTALLATION EQUIRED MBIENT ONDITIONS This oven is intended for use indoors, at room temperatures between 15°C and 40°C (59°F and 104°F), at no greater than 80% Relative Humidity (at 25°C / 77°F). Operating the unit outside of these conditions may adversely affect its temperature range and stability.
- Page 15 IRING The oven comes provided with an integral 6 inch (15 cm) wire braid of: SMO14-2 – Two 14-gauge high-temperature (300°C) hot wires and a 14-gauge earth ground. • SMO28-2 SMO28G-2 -- Two 10-gauge high-temperature (300°C) hot wires and a 10-gauge •...
-
Page 16: Leveling
INSTALLATION IFTING AND ANDLING The oven is heavy. Use appropriate lifting devices that are sufficiently rated for these loads. Follow these guidelines when lifting the oven: Lift the oven only from its bottom surface. • Doors, handles, and knobs are not adequate for lifting or stabilization. •... - Page 17 INSTALLATION NSTALL THE Place the unit in a workspace location that meets the criteria discussed in the previous entries of the Installation section. Verify that the oven stands level and does not rock. Adjust the leveling feet as needed. • Power: The oven may now be hardwired to its power source •...
- Page 18 INSTALLATION 18 | P a g e...
-
Page 19: Graphic Symbols
GRAPHIC SYMBOLS The oven is provided with multiple graphic symbols on its exterior. The symbols identify hazards and the functions of the adjustable components, as well as important notes in the user manual. Symbol Definition Consult the user manual. Consulter le manuel d'utilisation Indicates Temperature Repère température Indicates the Over Temperature Limit system... - Page 20 GRAPHIC SYMBOLS Symbol Definition Indicates the timer Indique le minuterie Start or Stop the Timer Lancer ou arrêter le minuteur Reset the Timer Réinitialisation de la Minuterie Caution hot surface Attention surface chaude 20 | P a g e...
-
Page 21: Control Panel Overview
CONTROL PANEL OVERVIEW Figure 6: Control Panel Power Switch The green Power Switch controls overall power to the oven. When in the ON ( I ) position the switch illuminates and the oven will heat to and maintain the currently programmed temperature set point. Timer Switch The black Timer Switch controls power to the timer system. - Page 22 CONTROL PANEL Main Temperature Display and Control Marked SET TEMPERATURE, this display shows the current oven chamber air temperature accurate to 1°C. The display can also show an adjustable temperature set point in the display’s set point mode, as well as an adjustable offset while in calibration mode. The arrow buttons can be used to adjust the temperature set point or place the unit in its calibration mode, and then enter a calibration offset value.
-
Page 23: Operation
OPERATION Safe operation of the oven is dependent on the actions and behavior of the oven operators. Operating personnel must read and understand the Operating Precautions in this section prior to operating the oven. The operators must follow these instructions to prevent injuries and to safeguard their health, environment, and the materials being treated in the oven, as well as to prevent damage to the oven. - Page 24 OPERATION HEORY OF PERATION Heating When powered, the SMO oven chamber heats to and then maintains the currently programmed temperature set point. The set point may be adjusted by the end-user using the Set Temperature controls. Heating is controlled by a microprocessor controller board that stores the temperature set point. The microprocessor senses the chamber air temperature via a solid-state probe located in the airstream on the back wall of the chamber.
- Page 25 OPERATION Timed Heating Profile The oven is provided with a Timer subsystem that can run the oven in a steady-state heating profile at the current temperature set point from 1 minute up to 99 hours, 59 minutes. Allow the oven to heat to temperature prior to launching the profile.
-
Page 26: Put The Oven Into Operation
OPERATION Note: Performing a temperature accuracy verification requires a suitable temperature reference device. Please see the Temperature Reference Device entry on page 6 for the device requirements. UT THE VEN INTO PERATION Carry out the following steps and procedures to put the oven into operation after installing it in a new workspace environment. -
Page 27: Set The Temperature Set Point
OPERATION ET THE EMPERATURE OINT Adjust the oven temperature set point to that of your application. 1. Set OTL control to its maximum setting, if not already set to max. Turning the OTL all the way to the right (clockwise) prevents the heating •... -
Page 28: Set The Over Temperature Limit
OPERATION ET THE EMPERATURE IMIT This procedure sets the Over Temperature Limit heating cutoff to approximately 5˚C above the current temperature set point. Perform the steps below once the oven has been stabilized at your application temperature set point for at least a 30 minutes. 1. - Page 29 OPERATION ETTING THE IMER This procedure enters a heating profile duration in the Timer system. When launched, the profile runs the oven for the duration at the present temperature set point. Turn on the Timer System Set Timer The Timer Display will illuminate, showing •...
-
Page 30: Setting The Timer
OPERATION Setting the Timer Continued Set the Tens-of-Minute parameter Set Timer 1 Hour, 51 Minutes Adjust Advance to the Minutes parameter Set Timer The flashing decimal point will advance to • between the third and fourth numbers, saving the new Tens-of-Minutes parameter setting Push Minutes Selected Set the Minutes parameter... - Page 31 OPERATION AUNCH A EATING ROFILE The oven can be run in a timed steady-state heating profile at the current temperature set point. Allow the oven to come up to temperature prior to launching a profile. See the Setting the Timer procedure on page 29 for how to set the length of the profile.
- Page 32 OPERATION RYING ACKS AND OTHER CCESSORIES Make sure that any accessories used inside the oven chamber, such as drying racks, are suitable for your application and will not suffer damage when brought to temperature. Always set the OTL cutoff system to approximately 5°C above your application temperature set point in order to safeguard accessories against over temperature events.
-
Page 33: User Maintenance
USER MAINTENANCE Warning: Prior to maintenance or service on this unit, disconnect the power feed from the power supply. Avertissement: Avant d'effectuer toute maintenance ou entretien de cet appareil, débrancher le cordon secteur de la source d'alimentation. LEANING AND ISINFECTING If a hazardous material or substance has spilled in the oven, immediately initiate your site Hazardous Material Spill Containment protocol. -
Page 34: Electrical Components
USER MAINTENANCE Disinfecting Disinfect the oven if algae, mold, bacteria, or other biological contaminants are an issue. For maximum effectiveness, disinfection procedures are typically performed after cleaning. Keep the following points in mind when disinfecting the oven: Turn off and disconnect the unit to safeguard against electrical hazards. •... - Page 35 USER MAINTENANCE ALIBRATING THE EMPERATURE ISPLAY Note: Please see the Reference Sensor Device entry on page 6 for the minimum device requirements. Temperature calibrations match the temperature display to the actual air temperature inside the oven chamber. The actual air temperature is supplied by a reference sensor device. Calibrations compensate for software drifts in the controller as well as deviations caused by the natural material evolution of the sensor probe in the heated chamber space.
- Page 36 USER MAINTENANCE 5 ) Heat up and stabilization period. The oven chamber must be stable at temperature in order to perform an accurate • calibration. The temperature is considered stabilized when the oven chamber has operated at your • calibration temperature for at least 30 minutes with no fluctuations of ±0.2°C or greater. 30 Minute Minimum Stability Period 150°C...
- Page 37 USER MAINTENANCE Calibration continued Place the oven in temperature calibration mode. Set Temperature a. Press and hold both the UP and DOWN arrow buttons simultaneously. The Temperature Display will show the letters “C O”, • Set Temperature then begin flashing the current temperature value. Note: If an arrow key is not pressed for five seconds, the Temperature Display will cease flashing, and store the last displayed value as the new Current Temp.
- Page 38 USER MAINTENANCE Calibration continued After the oven has achieved the set point, wait for Reference Device the oven chamber temperature to stabilize. The chamber temperature is stabilized when • no fluctuations of 1°C or greater have been detected with the reference device for a minimum of 30 minutes.
-
Page 39: Unit Specifications
We reserve the right to alter technical specifications at all times. EIGHT Model Shipping Net Weight SMO14-2 361 lbs. / 164 kgs 280.0 lbs. / 127.3 kgs SMO28-2 513 lbs. / 233 kgs 390.0 lbs. / 177.3 kgs SMO28G-2 513 lbs. - Page 40 UNIT SPECIFICATIONS HELF APACITY BY EIGHT Model Per Shelf Total SMO14-2 75.0 lbs / 34.0 kg 225.0 lbs / 102.0 kg SMO28-2 75.0 lbs / 34.0 kg 450.0 lbs / 204.0 kg SMO28G-2 30.0 lbs* / 13.6 kg 60.0 lbs / 27.2 kg *30lbs with the weight evenly distributed across the shelf.
-
Page 41: Temperature
UNIT SPECIFICATIONS EMPERATURE Model Range Uniformity Stability SMO14-2 Ambient +15 to 260°C + 3.0° @ 150°C ± 0.4°C SMO28-2 Ambient +15 to 260°C + 3.5° @ 150°C ± 0.2°C SMO28G-2 Ambient +15 to 260°C + 3.5° @ 150°C ± 0.2°C Model Heat Up Time to 150°... - Page 42 UNIT SPECIFICATIONS 42 | P a g e...
-
Page 43: Parts List
Description Parts Number Adjustable Feet 2700506 Shelf Clip 1250512 Shelf, Stainless Steel, SMO14-2 SMO28-2 995-00006 Shelf, Wire, SMO28G-2 6800537NCF Ordering If you have the Part Number for an item, you may order it directly from Sheldon Manufacturing by calling 1-800-322-4897 extension 3. If you are uncertain that you have the correct Part Number, or if you need that specific item, please contact Sheldon Technical Support for help at 1-800-322-4897 extension 4 or (503) 640-3000. - Page 44 P.O. Box 627 Cornelius, OR 97113 support@sheldonmfg.com sheldonmanufacturing.com 1-800-322-4897 (503) 640-3000 FAX: 503 640-1366...
