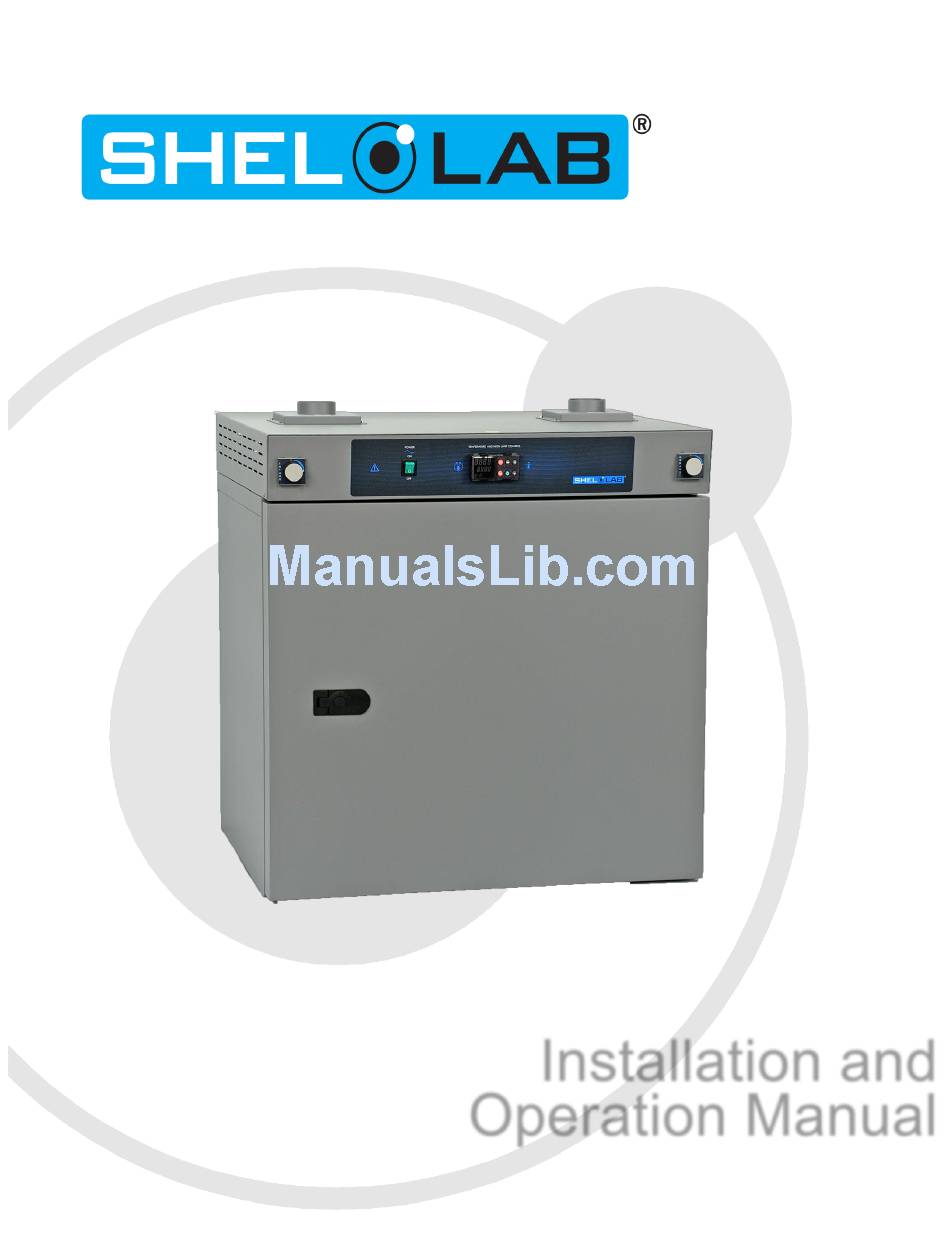

shelolab SMO5HP-2 Installation And Operation Manual

High-performance oven 220 - 240 voltage

Advertisement

High-Performance Oven
220 - 240 Voltage
Installation and
Operation Manual
SMO5HP-2
Previously designated as
HF4-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMO5HP-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for shelolab SMO5HP-2

  • Page 1 High-Performance Oven 220 - 240 Voltage Installation and Operation Manual SMO5HP-2 Previously designated as HF4-2...
  • Page 2: Installation And Operation Manual

    Purge Valve The SMO5HP-2 can be built with a purge valve located on the back of the unit. The valve can be connected to a cylinder of nitrogen (N ) or other neutral gas to purge the oven chamber. This option must be ordered prior to the construction of the oven.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ............................4 General Safety Considerations ......................... 4 Engineering Improvements ........................5 Contacting Assistance ..........................5 Temperature Reference Sensor Device ....................5 RECEIVING YOUR OVEN ..........................6 Inspecting the Shipment ..........................6 Recording Data Plate Information ......................6 Orientation ..............................
  • Page 4: Introduction

    INTRODUCTION Thank you for purchasing a Sheldon Manufacturing High Performance Oven. We know that in today’s competitive marketplace, customers have many choices when it comes to constant temperature equipment. We appreciate you choosing ours. Our continued reputation as a leading laboratory product manufacturer rests with your satisfaction.
  • Page 5: Engineering Improvements

    INTRODUCTION (CONTINUED) NGINEERING MPROVEMENTS Sheldon Manufacturing continually improves all of its products. As a result, engineering changes and improvements are made from time to time. Therefore, some changes, modifications, and improvements may not be covered in this manual. If your unit’s operating characteristics or appearance differs from those described in this manual, please contact your Shel Lab dealer or customer service representative for assistance.
  • Page 6: Receiving Your Oven

    RECEIVING YOUR OVEN Before leaving our factory, all High Performance Ovens are packaged in high-quality shipping materials to provide protection from transportation-related damage. When an oven leaves our factory, safe delivery becomes the responsibility of the carrier. Damage sustained during transit is not covered by the oven’s warranty.
  • Page 7: Orientation

    Intake Vent Valve Control Door Latch Left wall Chamber Liner Chamber Exhaust Vent Gasket Valve Control Figure 2: Orientation Photo Door Latch Chamber Ceiling Liner Outer Door Gasket Figure 1: SMO5HP-2 Oven Right Wall Chamber Liner P a g e...
  • Page 8 GRAPHIC SYMBOLS (CONTINUED) This page left blank P a g e...
  • Page 9: Installation

    INSTALLATION Installation of an SMO5HP-2 requires permanent connect wiring (commonly known as hardwiring), and must be performed by a qualified electrical technician. All other installation steps can be performed by the end user. EQUIRED MBIENT ONDITIONS This oven is intended for use indoors, at room temperatures between 15C and 40C (59F and 104F), at no greater than 80% Relative Humidity (at 25C / 77F).
  • Page 10: Power Source Requirements

    INSTALLATION (CONTINUED) OWER OURCE EQUIREMENTS When selecting a location for the oven, check that each of the following requirements are satisfied:  The oven must be positioned so that all operators have access to the power feed disconnect in case of emergencies. The Disconnect must be in close proximity to the equipment and within easy reach of the operator.
  • Page 11: Lifting And Handling

    INSTALLATION (CONTINUED) IFTING AND ANDLING The oven is heavy. Use appropriate lifting devices that are sufficiently rated for these loads. Follow these guidelines when lifting the oven:  Lift the oven only from its bottom surface.  Doors, handles, and knobs are not adequate for lifting or stabilization. ...
  • Page 12: Shelving Installation

    INSTALLATION (CONTINUED) HELVING NSTALLATION The horizontal airflow within the chamber moves from the air duct on the right-hand side of the chamber, to the large holes on the left side. Place the shelves so they do not obstruct the duct duct holes in order to maximize airflow across the shelf space.
  • Page 13: Graphic Symbols

    GRAPHIC SYMBOLS The oven is provided with multiple graphic symbols on its external and internal surfaces. The symbols identify hazards and the functions of the adjustable components, as well as important notes found in the user manual. Symbol Definition Indicates that you should consult your user manual for further instructions. Indique que l'opérateur doit consulter le manuel d'utilisation pour y trouver les instructions complémentaires.
  • Page 14: Control Panel Overview

    A small flashing “1” indicates internal communications functions within the controller. Vent Valves The SMO5HP-2 comes provided with two vent valve controls on its front control panel. These open or close the intake and exhaust valves located on the top of the unit. 14 |...
  • Page 15: Operation

    OPERATION PERATING RECAUTIONS Warning : This SMO oven is not an explosion-proof unit! Avertissement : Ce sont des fours pas résistants aux explosions. 1. The oven is not designed to safely contain combustible gasses. 2. Do not place explosive, combustible, or flammable materials into the chamber. 3.
  • Page 16: Theory Of Operations

    OPERATION (CONTINUED) HEORY OF PERATIONS To achieve the oven’s stated operation specs, the vents must be fully closed. Operating the oven with the vents open impacts the oven chamber temperature uniformity and stability. This may or may not speed drying rates, depending on the nature of your samples or product. During normal operations the vents are intended to be opened only while the product or samples are cooling.
  • Page 17 OPERATION (CONTINUED) Heating Profiles The Watlow controller can store up to four heating profiles, each with ten steps. Please see the Programed Operations section on page 24, and the Watlow EZ-Zone Profile Programing Guide for more details. A profile can be launched whenever the unit is running in manual mode. Heating profiles should allow adequate time for the oven chamber to heat to the first temperature in the profile, prior to continuing to the second step of the profile.
  • Page 18: Preparing The Oven For Use

    OPERATION (CONTINUED) REPARING THE VEN FOR Preform the following steps to prepare the oven for use after installing it in a new workspace environment. Optional: If you will be performing a temperature display accuracy verification as part of your set up, Sheldon Manufacturing recommends introducing the temperature probe of Home Page your temperature reference device into the oven chamber now, prior to powering the oven.
  • Page 19: Set The Over Temperature Limit

    OPERATION (CONTINUED) ET THE EMPERATURE IMIT This procedure sets the Over Temperature Limit backup system. Normally the system is set 5°C above the highest set point temperature you will be using during your current application or process. Always set at least 5°C above the hottest temperature of a heating profile. Note: If this is the first use of the oven, set the Over Temperature Limit to 325°C or higher to prepare to help ensure the OTL system will not interfere with the Burn-In procedure.
  • Page 20: First Use Burn In

    OPERATION (CONTINUED) IRST The steps below help eliminate smoking from protective coatings on the heating elements, when running above 150°C. Perform the burn-in at the highest temperature the oven will be used at. 1. Open the intake and exhaust vents. Oven exhaust should be positively vented outside of the oven’s workspace during the Burn-In.
  • Page 21: Temperature Accuracy Verification

    OPERATION (CONTINUED) EMPERATURE CCURACY ERIFICATION Note: Performing an accuracy verification of the temperature display requires a temperature reference device. Please see the Reference Sensor Devices entry on page 5 for device requirements. Optional: A verification of the temperature display accuracy may be carried out when preparing the oven for use, if required by your laboratory or production protocol.
  • Page 22 OPERATION (CONTINUED) Note: If not already set to maximum, set the OTL limit to its max setting (325°C) to prevent the OTL cutoff from interfering with the verification process. Please see the Set The Over Temperature procedure on page 19. Verifying the Temperature Display Accuracy Reference Device 1.
  • Page 23: Closed Vents

    OPERATION (CONTINUED) LOSED ENTS The unit is intended to be run with both vents closed in ordered to achieve its stated operating temperature specifications. The unit can be run with one or both vents open, however, the oven may not achieve its stated chamber uniformity, stability, or heating or recovery times. Drying times are dependent on the nature of your product or samples, as well as the volume placed in the oven chamber.
  • Page 24: Programmed Operations

    OPERATION (CONTINUED) ROGRAMMED PERATIONS The Watlow controller can hold four (4) ten-step heating profiles. Additionally, profiles may be combined by programing profile steps sequentially to run as a single profile of between two (2) and forty (40) steps. Please see the Programing Guide – Watlow EZ-Zone Controller Heating Profiles document that comes included with the oven for instructions on how to program heating profiles.
  • Page 25 OPERATION (CONTINUED) Activating and Deactivating the Power Exhaust To activate the power exhaust as part of a heating profile step, do the following: 1. While selecting the parameters for the step, choose Event 1 On (“Ent1” “on”). a. The Event 1 parameter is located after the Time parameter when scrolling through a step menu using the green Advance Key.
  • Page 26: User Maintenance

    USER MAINTENANCE Warning : Prior to maintenance or service on this unit, disconnect the power feed from the power supply. Avertissement : Avant d'effectuer toute maintenance ou entretien de cet appareil, débrancher le cordon secteur de la source d'alimentation. LEANING AND ISINFECTING If a hazardous material or substance has spilled in the oven, immediately initiate your site’s Hazardous Material Spill Containment protocol.
  • Page 27: Door Latch And Electronics

    USER MAINTENANCE (CONTINUED) ATCH AND LECTRONICS Periodically, inspect the door latch, trim, catch, and gasket for signs of deterioration. Failure to maintain the integrity of the door system shortens the life span of the Oven. Electrical components do not require maintenance. If the oven fails to operate as specified, please contact your Shel Lab distributor or Sheldon Manufacturing Technical Support for assistance.
  • Page 28: Removing The Chamber Liner

    USER MAINTENANCE (CONTINUED) EMOVING THE HAMBER INER This procedure removes the ceiling liner and the side wall air ducts. The liner and ducts should be removed periodically and cleaned, and the surfaces beneath them cleaned. 1, 2, 3) Remove Note: Door removed in illustrations for clarity. Do not remove the door from Shelves, the oven.
  • Page 29 USER MAINTENANCE (CONTINUED) This page left blank 29 | P a g e...
  • Page 30: Calibrate The Temperature Display

    USER MAINTENANCE (CONTINUED) ALIBRATE THE EMPERATURE DISPLAY Note: Performing a temperature display calibration requires a temperature reference device. Please see the Reference Sensor Devices entry on page 5 for device requirements. Temperature calibrations are performed to match the temperature display to the actual air temperature inside the oven chamber.
  • Page 31 USER MAINTENANCE (CONTINUED) Temperature Calibration Reference Device 1. Once the chamber has stabilized with no fluctuations of 0.2˚C or greater, compare the reference temperature device and chamber temperature display readings. a. If the readings are the same, or the difference between the two (2) falls within the acceptable range of your protocol, the display is accurately showing the chamber temperature.
  • Page 32 USER MAINTENANCE (CONTINUED) Temperature Calibration (Continued) 4. Advance through the Operations menu to the Temperature Calibration page. a. Push the green Advance button repeatedly unit “i.CA” appears in the green middle display and a number value in the red top display. Temperature Calibration Page Adjust the number value in the top display to match the offset...
  • Page 33 USER MAINTENANCE (CONTINUED) Temperature Calibration (Continued) Reference Device 8. Once the chamber has stabilized (no fluctuations of 0.2˚C or greater) for a half hour, compare the reference temperature device and oven temperature display readings. a. If the readings are the same, or the difference between the two (2) falls within the acceptable range of your protocol, the display is now accurately showing the chamber temperature.
  • Page 34: Unit Specifications

    UNIT SPECIFICATIONS The SMO5HP-2 is a 220 - 240 voltage unit. Please refer to the oven’s data plate for individual electrical specifications. Technical data specified applies to ovens with standard equipment at an ambient temperature of 25°C and a voltage fluctuation of ±10%. The temperatures specified are determined in accordance to factory standard following DIN 12880 respecting the recommended wall clearances of 10% of the height, width, and depth of the inner chamber.
  • Page 35: Temperature

    UNIT SPECIFICATIONS (CONTINUED) EMPERATURE All temperature performance data for 25°C ambient conditions Range Uniformity Stability Ambient + 15 to 0.1°C + 1.7C @ 110 300C Heat Up Time to 110°C Heat Up Time to 180°C* 10 minutes 35 minutes Recovery to 110°C* 4 minutes after closing the door IRFLOW ERFORMANCE...
  • Page 36: Replacement Parts

    5121189 Chamber Gasket Shelf SMO5HP-2 Silicone (unit of sales is per foot, requires 11 feet) 5121195 3450546 Door Gasket SMO5HP-2 Silicone (unit of sales is per foot, requires 11 feet) 3450587 Optional: Fuse 20 Amp Power Exhaust Blower Unit 220 - 240 Volt...
  • Page 37 37 | P a g e...
