Quick Guide

1. Introduction
This guide is an interim for approval test. It is not a final user's guide. It covers installation guide and
telephone operation only.
2. Installation
2.1 Before you begin
Make sure your package includes the items listed here.
1 Base
1 Frame
1 Handset
1 AC power adaptor for Handset
2 AC power adaptors for Frame or Base
1 Battery for Frame
1 Battery for Handset
1 charging cradle for Handset
1 charging cradle for Frame
1 Telephone line for connecting between Base and telephone wall jack (RJ11)
1 Ethernet line for connecting between Base and DSL/Cable router (RJ45)
2.2 Layout for devices
2.2.1 Base layout

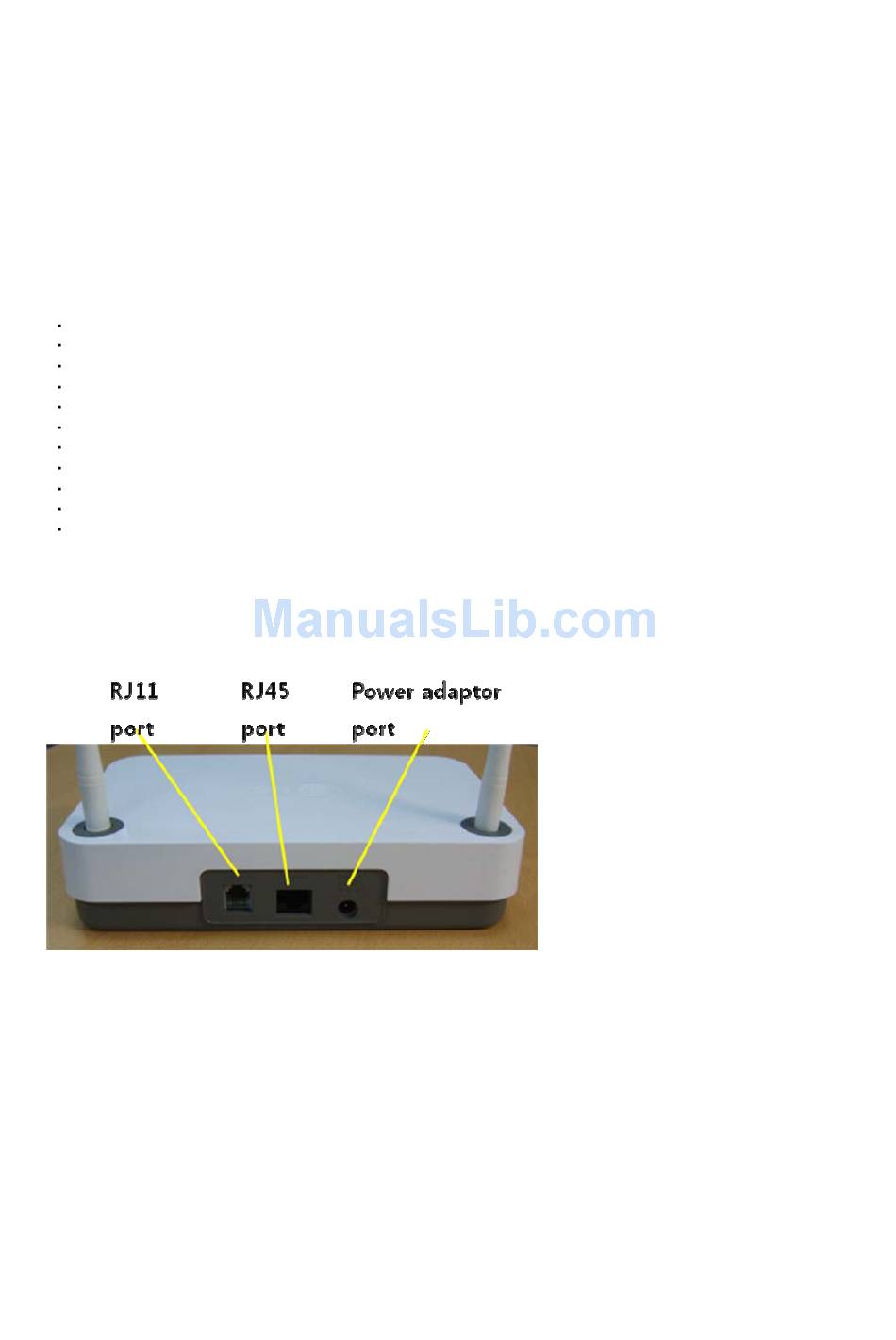

- Rear view

Advertisement

loading

Related Manuals for Samsung SMT-i8100

Summary of Contents for Samsung SMT-i8100

  • Page 1: Quick Guide

    Quick Guide 1. Introduction This guide is an interim for approval test. It is not a final user’s guide. It covers installation guide and telephone operation only. 2. Installation 2.1 Before you begin Make sure your package includes the items listed here. 1 Base 1 Frame 1 Handset...
  • Page 2 - Front view 2.2.2 Handset layout - Front view - Right view...
  • Page 3 - Rear view 2.2.3 Frame layout - Front view - Left view...
  • Page 4 - Right view - Rear view...
  • Page 5 2.2.4 Charging cradle for Handset - Rear view...
  • Page 6 2.2.5 Charging cradle for Frame - Rear view 2.3 Installing devices 2.3.1 Installing Base 1. Choose an area near an electrical outlet, a telephone wall jack (RJ11), and a DSL/Cable modem router (RJ45). 2. Plug one end of the telephone line cord into TEL LINE jack on the rear panel of the Base and other end into a modular jack.

  • Page 7: Telephone Operation

    3. Telephone Operation 3.1 Make a call 3.1.1 Make a call with Handset 3.1.1.1 Make a call with Handset (Overlap mode) 1. Press Green button. 2. Then you can hear dial tone. 3. Press digits to make a call. (E.g. 12135431234) 3.1.1.2 Make a call with Handset (Enbloc mode) 1.
  • Page 8 3.1.2.2 Make a call with Frame (Enbloc mode) 1. Press “Keypad” button in the following touch screen. 2. Then pop up the call screen. 3. Press digits to make a call. (E.g. 12135431234) 4. Press Green button. 5. Then you can hear DTMF tones. 3.2 Answer calls 3.2.1 Answer calls with Handset - When the phone rings, press Green button or “Answer”...

  • Page 9: Consumer Information

    Consumer Information This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the back of this equipment is a label that contains, among other information, a product identifier in the format US:A3LW400BSMT-i8130. If requested, this number must be provided to the telephone company.
