AAD
USER GUIDE
October 2016
For Technical Assistance
Please Phone: (07) 5596 5128

Advertisement

loading
Need help?

Need help?

Do you have a question about the AAD and is the answer not in the manual?

Questions and answers

Related Manuals for NatComm AAD

Summary of Contents for NatComm AAD

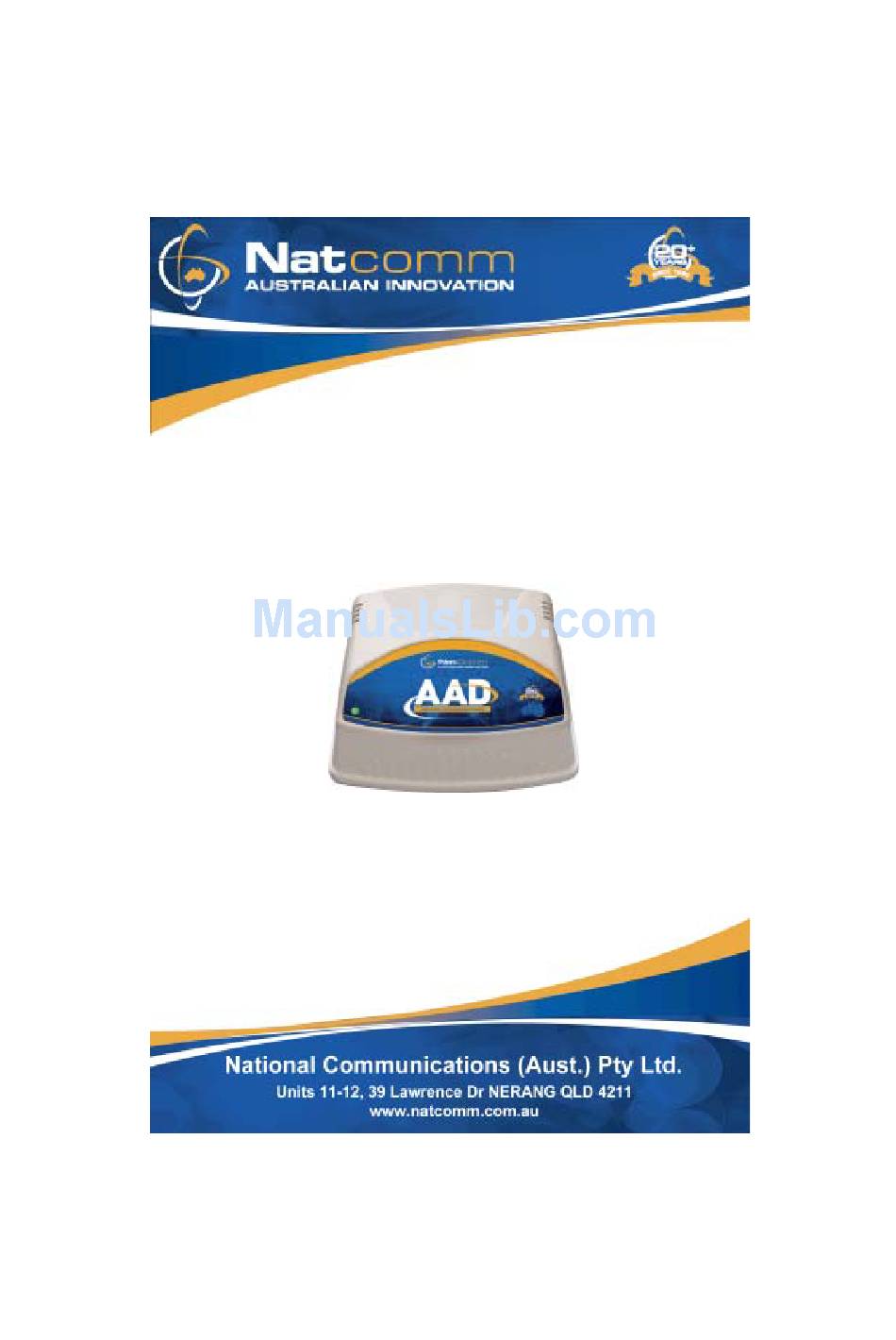

  • Page 1 USER GUIDE October 2016 For Technical Assistance Please Phone: (07) 5596 5128...

  • Page 2: Product Description

    - Play the Message and then Ring the attached Telephone(s). Mode 3 - Play the Message, Hook Flash and then Hang Up. AAD can be used on both PSTN Lines and also a PABX system. PSTN Lines : AAD is ideal for applications where you need to make an announcement to all incoming callers and then either Re-Ring the Telephone Line or Hang Up after the Message.
  • Page 3 AAD. The message can be of any length. Only One message should be loaded onto the card. Messages for AAD must be created in MP3 format. AAD can play MP3 Messages of any sampling rate. SD Flash Cards are completely non volatile, which means that your message is not lost in transport or when power is lost.
  • Page 4 AAD will then play your Announcement Message to your caller. Your Announcement Message can be of any duration. A sample announcement is pre-loaded onto your SD card named : Recording Announcement.MP3 At the completion of the announcement message, AAD will then HANG UP. Page 4 National Communications...
  • Page 5 You can then answer any telephone connected to AAD in order to speak to your caller. AAD will HANG UP if you do not answer any telephone connected to it within 20 rings (60 seconds). You can increase this time up to 5 minutes (99 Rings).
  • Page 6 Group. If the programmed Extension or Extension Group does not Answer the call by a preset number of rings, the call will be sent back to the AAD and the full process will repeat until the call is answered. Page 6 National Communications...
  • Page 7 Messages used with AAD should be copied to the supplied Flash card, which should then be inserted into the SD Card slot on the rear of AAD. Messages are transferred to your Flash card, using your PC’s SD Flash card programmer.

  • Page 8: Installation Diagram

    INSTALLATION DIAGRAM AAD can connect to : 1) A Stanadard PSTN Extension (see page 9) Mode 1 operation : A telephone does not need to be connected to the LIne Out port. Mode 2 operation : A telephone SHOULD be connected to the Line Out port.
  • Page 9 : 2) TELEPHONE(s) CONNECTION Connect all of your telephone(s) direct to the LINE OUT port of AAD. If more than one telephone socket is used on this same line, then your unit will need to be installed by a qualified telephone technician, in order for AAD to work correctly with these additional sockets.Please...
  • Page 10 Page 10 National Communications...
  • Page 11 2) TELEPHONE LINE OUTPUT CONNECTION Leave the Telephone Line Out connection Empty. PSTN LINE - Set AAD to operate in Mode 1 or Mode 2 as required 1) TELEPHONE LINE INPUT CONNECTION In this situation AAD should be connected in SERIES fashion ahead of the telephone system controller.

  • Page 12: Programming Overview

    AAD is programmed by DTMF Touch Tones. You need to connect a standard analogue telephone (or telephone buttinski) to the LINE OUT port of AAD to enter the DTMF Touch Tones. There are 3 separate Programming Areas : 1. SET OPERATING MODE You MUST enter the required OPERATING MODE.
  • Page 13 PROGRAMMING PROCEDURE You need to connect a standard analogue telephone (or telephone buttinski) to the LINE OUT port of AAD2 and then follow the procedure below : 1. TURN OFF POWER TO YOUR UNIT 2. SWITCH ON POWER AND PRESS # on the attached telephone 3.
  • Page 14 Please wait for confirmation beep before proceeding. DELAY BEFORE HANGING UP After generating a Hook Flash, AAD will PAUSE for a short time before hanging up. This time can be changed to suit. To enter a new DELAY BEFORE HANG UP press #6xx...
  • Page 15 To adjust your message volume : 1) Call your line from a mobile telephone or another telephone line. 2) After AAD has answered the call, adjust the volume to the desired level, by turning the blue volume knob, located on the rear of AAD.

  • Page 16: Specifications

    SPECIFICATIONS Dimensions 165w x 150d x 60h mm Weight 415g Power Supply 240VAC to 12VAC/500mA Power Consumption Idle - 100mA Ringing - 230mA Ringer Equivalence 0.3 REN Connectors RJ 11 6 pin (2 centre) 2.5mm barrel connector RCM Supplier Number : E4927 WARRANTY This device is guaranteed against defects from workmanship for a period...
