Summary of Contents for Smeg SIM580B
- Page 1 Instructions for use Instrucciones de uso Bedienungsanleitung Instruções de utilização Notice d'utilisation Istruzioni per l'uso Gebruiksaanwijzing Bruksanvisning Brugsanvisninger Інструкції з використання Инструкция по эксплуатации Instrukcja obsługi Пайдалану нұсқаулығы...
- Page 3 ENGLISH Installation Page 4 Instructions for use Page DEUTSCH Installation Seite 13 Bedienungsanleitung Seite FRANÇAIS Installation Page 22 Mode d’emploi Page NEDERLANDS Installatie Pagina 31 Gebruiksaanwijzing Pagina ESPAÑOL Instalación Página 40 Instrucciones de uso Página PORTUGUÊS Instalação Página 49 Instruções de utilização Página ITALIANO Installazione...
- Page 4 R = Min. 6,5 mm Max. 8 mm Min. 50 mm 483 mm...
- Page 5 Min. 10 cm Min. 5 mm Min. 5 mm Min. 3 cm Max. 6 cm...
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT This manual and the appliance itself provide important safety messages, to be read and always observed. This is the danger symbol, regarding safety, warning of potential risks to users and others. All safety messages will be preceded by the danger symbol and the following words: DANGER Indicates a hazardous situation which, if not avoided, will result in serious injury. -
Page 7: Safeguarding The Environment
SAFEGUARDING THE ENVIRONMENT Disposal of packing The packing material is 100% recyclable and marked with the recycling symbol ( ). The various parts of the packing must not be dispersed in the environment, but disposed of in compliance with local regulations. Disposal This appliance is marked in conformity with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). - Page 8 RECOMMENDED POT BOTTOM WIDTHS Ø Ø Ø Ø 17 cm min. 28 cm max. 12 cm min. 18 cm max. 28 cm 18 cm Ø Ø Ø Ø 21 cm 10 cm min. 14.5 cm max 15 cm min. 21 cm max. 14.5 cm Max.
-
Page 9: Electrical Connection
ELECTRICAL CONNECTION Disconnect the appliance from the power supply. WARNING Installation must be carried out by qualified personnel who know the current safety and installation regulations. The manufacturer declines all liability for injury to persons or animals and for damage to property resulting from failure to observe the regulations provided in this chapter. -
Page 10: Instructions For Use

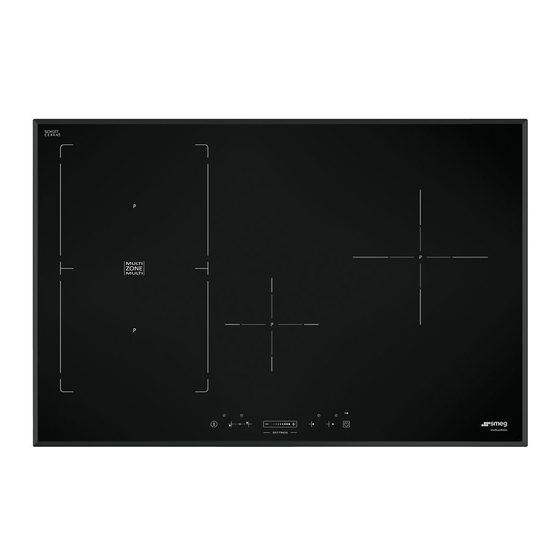

INSTRUCTIONS FOR USE Control Panel Description Control panel Quick access “Flexicook model” (when available) On/Off Control panel lock Slider ECO-logic/Timer/Lock function button Cooking zone controls and corresponding display Switching the hob ON/OFF To switch the hob on, press the button for approx. 2 seconds until the cooking zone displays light up. To switch off, press the same button until the displays switch off. -
Page 11: Control Panel Lock
Control panel lock This function locks the controls to prevent accidental activation of the hob. To activate the control panel lock, switch the hob on and press the Timer button for three seconds; an acoustic signal and a luminous indicator near the padlock symbol signal activation. The control panel is locked except for the switching off function. To deactivate the control lock, repeat the activation procedure. - Page 12 Multizone Where present, this function allows the cooking zone to be used as two separate zones or as a single extra large zone. It is perfect for oval, rectangular and elongated pans (with maximum base dimensions of 38x23 cm) or more than one standard pan in the same time. In order to activate the flexicook function, switch on the hob, press simultaneously the 2 selecting buttons of the zones as shown in the picture below: the two cooking zone displays show level “0”;...
-
Page 13: Troubleshooting Guide
CLEANING Do not use steam cleaners. WARNING Before cleaning, make sure the cooking zones are switched off and that the residual heat indicator (“H”) is not displayed. IMPORTANT: Do not use abrasive sponges or scouring pads. Their use could eventually ruin the glass. •... -
Page 14: Power Level Table
POWER LEVEL TABLE Power level Type of cooking Level use (indicating cooking experience and habits) Ideal for rapidly increasing the temperature of food to fast boiling in the case of water or rapidly Boost Fast heating heating cooking liquids Max. power Ideal for browning, starting to cook, frying deep frozen products, fast boiling Frying - boiling Ideal for sautéing, maintaining a lively boil, cooking and grilling (for a short period of time,... - Page 16 400010827178 Made in Italy 08/15 Сделано в Италии Италияда жасалған Зроблено в Італії...
