  • Page 1 Quick Start Guide Reader and Sensor Demo Kit...
  • Page 2 Contents Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 System Overview .

  • Page 3: Intended Use

    System . The Reader also has a non-functional test strip port that is intended to help simulate the blood testing process . The FreeStyle Libre Demo Kit is not intended for diabetes management . Do not use with commercial FreeStyle Libre system .
  • Page 4 When opening your FreeStyle Libre Demo Kit, check that the contents are undamaged and that you have all parts listed . If any parts are missing or damaged, contact Customer Service . The FreeStyle Libre Demo Kit includes: • FreeStyle Libre Demo Reader •...

  • Page 5: Reader

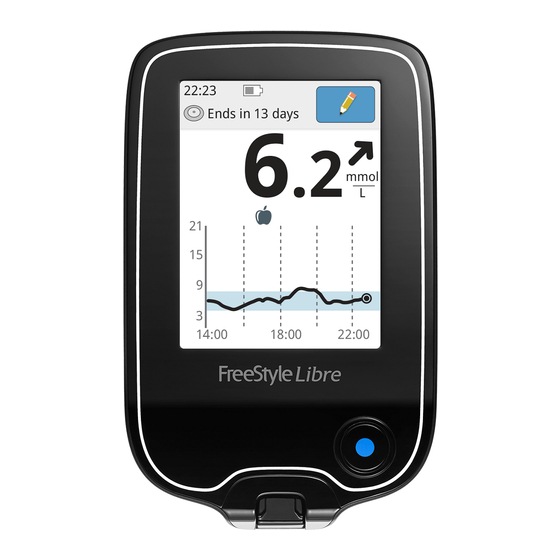

    Home Button Turns the Reader on/o and returns to the Home Test Strip Port screen from any other screen. Non-functional test strip port for demonstrations only. Sensor FreeStyle Libre Sensor Placed in a clear display case .

  • Page 6: Home Screen

    The Reader Home Screen provides access to information about glucose and the System . Press the Home Button to get to the Home Screen . Home Screen Time Battery Level Current time set on Battery charge remaining. the Reader. 22:23 Ends in 14 days Sensor Status Settings...

  • Page 7: Sensor Glucose Readings

    The Sensor Glucose Readings screen appears after the Reader scans the Sensor . The Reading includes Current Glucose, a Glucose Trend Arrow indicating which way glucose is going, and a graph of current and stored glucose readings . Sensor Glucose Readings Message Add Notes Touch for more...

  • Page 8: Checking Glucose

    Checking Glucose Use the Reader to wirelessly scan the Demo Sensor and get a sample reading . The Demo Reader will cycle through 10 different pre-loaded readings screens in sequential order upon each successful scan . Powering- off the Reader will not affect the order of display . The demo Reader will not read a Sensor that has been applied to a body .
  • Page 9 Step Action The Reader displays the current glucose reading along with a glucose graph and an arrow Glucose Going indicating the direction glucose is going . mmol 14:00 18:00 22:00 72 mg/dL...

  • Page 10: Reviewing History

    Reviewing History The Reader has several ways to review past glucose readings, notes, and other information . The demo Reader has been pre-loaded with 90 days of historic data . This data will be time stamped at each power up so that the current time is used for the most recent value .

  • Page 11: Disposal

    This product must not be disposed of via standard waste collection . Separate collection for electrical and electronic equipment waste per Directive 2012/19/EC in the European Union is required . Contact Customer Service for further information on the appropriate disposal of the FreeStyle Libre Demo Kit .

  • Page 12: Demo System Specifications

    Demo System Specifications Demo Sensor Specifications Sensor size 5 mm height and 35 mm diameter Sensor power source One silver oxide battery Operating and storage 10 °C to 45 °C temperature Operating and storage 10-90%, non-condensing relative humidity Operating and storage -381 metres (-1,250 ft) to altitude 3,048 metres (10,000 ft)

  • Page 13: Demo Reader Specifications

    Demo Reader Specifications Reader size 95 mm x 60 mm x 16 mm Reader power source One lithium-ion rechargeable battery Reader operating 10 °C to 45 °C temperature Reader storage -20 °C to 60 °C temperature Operating and storage 10-90%, non-condensing relative humidity Reader moisture Keep dry...
  • Page 14 13 . 5 6 MHz RFID; ASK Modulation; Radio Frequency 124 dBuV/m Data port Micro USB Abbott Diabetes Care PRT25612 Power Adapter Operating temperature: 10 °C to 40 °C Abbott Diabetes Care PRT21373 USB Cable Length: 94 cm (37 inches)

  • Page 15: Labelling Symbols

    Labelling Symbols Environmentally friendly use Manufacturer period of 10 years CE Mark Serial number Keep dry Non-ionising radiation This product must not be disposed of via standard waste collection . Separate collection for electrical and electronic equipment waste per Directive 2012/19/EC in the European Union is required .
  • Page 16 Hereby, Abbott Diabetes Care Ltd ., declares that the radio equipment type FreeStyle Libre Demo Kit is in compliance with Directive 2014/53/EU . The full text of the EU declaration of conformity is available at the following internet address: www .diabetescare .abbott/doc...
  • Page 17 FreeStyle, Libre and related brand marks are trademarks of Abbott Diabetes Care Inc. in various jurisdictions. Other trademarks are the property of their respective owners. Patent: https://www.abbott.com/patents Manufacturer: ©2017 Abbott ART38932-005 Rev-A 08/17...
