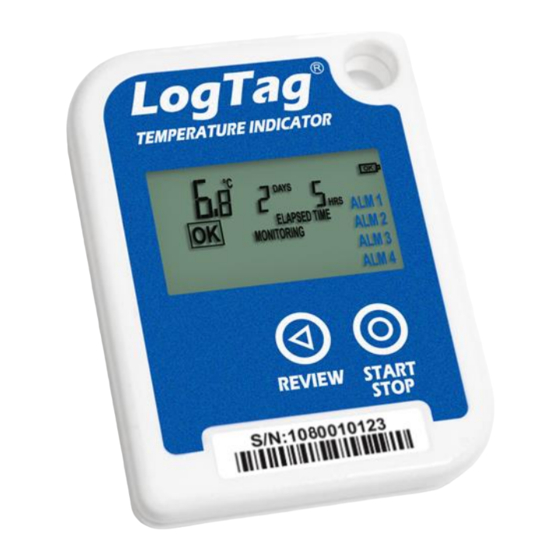

- Page 1 LogTag ® 20 Day Transit Temperature Indicator with display DOCUMENT REVISION 1.3, 16 Apr 2013 © Copyright 2013, LogTag Recorders Limited...
- Page 2 Date Author Details Initial TIC10 10day device 3/8/2011 Mod to TIC20, 20 day device. Updated LCD images and added the four WHO types 7/12/2011 Updated LCD images to include triggered ALARM temperature points during MONITORING and STOPPED modes. 13/1/2012 Change entering Review mode to push and release within 1 second.
-
Page 3: Introduction
Two push buttons allow starting and stopping the Indicator and can also be used to navigate the various display screens. Controls The TIC20 has two buttons, which allow starting and stopping the Indicator and can also be used to navigate the various display screens. Press and hold for 5 seconds to activate and START the Indicator. -
Page 4: Display Overview
24 hours Alarms of recording. and one or more temperature limit markers may also be displayed. © Copyright 2013, LogTag Recorders Limited page 4 of 17... -
Page 5: Display Elements When Reviewing Statistics
ALM4, an alarm occurred covers the first 24 hours of recording. at this level. When reviewing, the arrow next to a temperature limit marker indicates this limit’s statistics are being displayed. © Copyright 2013, LogTag Recorders Limited page 5 of 17... -
Page 6: Operation
The indicator has now started its 60 minute START DELAY countdown. It should be immediately placed in the load to be monitored so that the temperature is stable and within specification once the monitoring begins. © Copyright 2013, LogTag Recorders Limited page 6 of 17... -
Page 7: Monitoring Display Mode
Both screens show ‘MONITORING’ to indicate that temperatures are still being recorded and that the unit is still active. © Copyright 2013, LogTag Recorders Limited page 7 of 17... -
Page 8: Stopping The Indicator
Stopped Display – Monitoring is complete The indicator has now stopped recording. The trip duration was 6 days and 1 hour. An ALARM occurred on The load should be rejected as indicated by the symbol. © Copyright 2013, LogTag Recorders Limited page 8 of 17... -
Page 9: Battery Indication
An Indicator should not be used if it shows the low battery symbol at the beginning of a trip. Indicators with a low battery not yet recording cannot be started. © Copyright 2013, LogTag Recorders Limited page 9 of 17... -
Page 10: Alarm Settings
Alarm settings ® LogTag TIC20 indicators are purchased with one of a number of different factory configuration profiles pre-installed (see TIC20 Factory Pre-sets on page 16). The following pages are based on these sample Alarm settings. Alarm levels Temperature alarm limit... -
Page 11: Reviewing Statistic Data
Max 36°C,14 hrs, 2 hr trigger < 0.5deg > 45 deg DAY 9 > 30 deg Max 33°C, 4.5 hrs duration < 0.5deg > 45 deg DAY 10 > 30 deg < 0.5deg © Copyright 2013, LogTag Recorders Limited page 11 of 17... -
Page 12: Review Walk-Through
►next to Temperatures remain below 30°C and above -0.5°C during all of day 2, therefore no statistics are being displayed, and no alarms have yet been triggered. © Copyright 2013, LogTag Recorders Limited page 12 of 17... - Page 13 The first temperature reading below -0.5°C was recorded after 17 hours on day 5, and after 18 hours on that day the alarm condition was met, which is shown as the alarm trigger time. © Copyright 2013, LogTag Recorders Limited page 13 of 17...
- Page 14 Temperatures above 45°C were recorded for a time of 1 hour with a maximum reading of 48.5°C. This triggered a single event alarm at 19 hours, indicated by the ► next to © Copyright 2013, LogTag Recorders Limited page 14 of 17...
- Page 15 The Indicator was stopped on Day10. Pressing the REVIEW button again will display the statistics for Pressing the START STOP button at any time will show the STOPPED display © Copyright 2013, LogTag Recorders Limited page 15 of 17...
-
Page 16: Tic20 Factory Pre-Sets
If a default configuration does not suit, customers can compile their own profile by specifying the parameters in the table below when ordering. Please note that minimum order quantities apply for TIC20 units with profiles not stocked by ®... -
Page 17: Product Specifications
Alarms are displayed on a custom LCD. Alarms function & display Display is static allowing photocopying. This product is designed to meet or exceed the WHO PQS performance specification E06/TR07.x © Copyright 2013, LogTag Recorders Limited page 17 of 17...
