Dukane 6235W Installation Manual

6235W Installation Guide
Ceiling Mounted and Desktop
Contents

Product Description, Lens Specs, Notes and Formulas

Diagrams & Distance Charts
Cabinet Dimensions
Ceiling Mount Dimensions
Input Panel and Control Codes

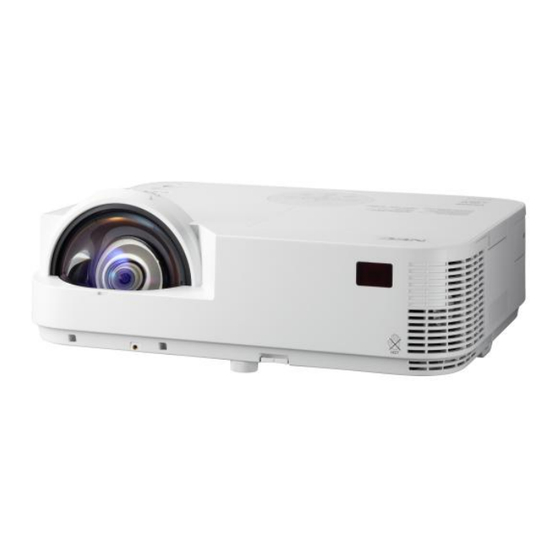

Product Description
Type: 1 Chip DLP Projector
0.65" DMD
Resolution: 1280 x 800
Brightness: 3500 Lumens
BTU's:
1208 BTU/hour
Lens Specifications
0.48:1 (for 100" diagonal)
Throw Ratio:
40.8° (for 100" diagonal)
Offset Angle:
60" - 150" diagonal (16:10)
Screen Sizes:
Notes

For screen sizes not indicated on the projection tables, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table.

All calculations are based on a 16:10 aspect ratio.

Distances are in inches, for millimeters multiply by 25.4.
 Distances may vary 5%.
Formulas
The Projection Formulas use the image width for calculation. For proper projection placement, determine the image width
for the desired screen size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the width for "W" in
the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2:
Definitions:
W = Image Width
H = Image Height (size)
B = Vertical distance between lens center and screen center
C = Throw distance
D = Vertical distance between lens center and screen top
(screen bottom for desktop application)
α = Throw Angle
Projection Formulas:
B = 0.4051W
C = 0.48W (wide)
D = 0.0926W
-1
α = tan
(B/C)
www.dukaneav.com
Pg 1
Pg 2
Pg 3-4
Pg 5
Pg 6
Dimensions:
Weight:
Fan Noise:
Power Consumption: 354W (max)
Focal Length:
F/#:
Manual Focus
16:10 Screen Formulas:
W = H x 16/10
H = W x 10/16
Screen Diagonal = W x 18.868/16
6235W Installation Guide-00
Dukane AV Division
14.5" (W) x 5.3" (H) x 11.5" (D)
8.2 lbs
39 dB / 33dB @ 1 meter
17.5mm – 29.0mm
1.7 - 2.1
Page 1 0f 6
Rev 1
