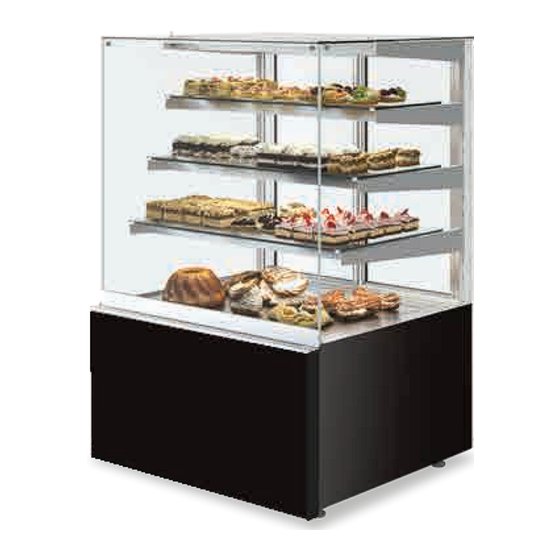

- Page 1 Instruction Manual Pastry Display Cases Models: CURP series CURLP CURP CURHP 124 Norfinch Dr. Toronto, ON. M3N 1X1 Tel : 416-663-3051 Fax : 416-663-5793 REFRIGERATION LTD. Toll Free : 1-888-408-8819...
- Page 2 REFRIGERATION LTD Contents Contents ................................2 1 UNLOADING ..............................3 2 PROPERTIES OF THE UNIT..........................3 2.1. Purpose ..............................3 2.2. Description of the unit..........................3 2.3. Technical data ............................4 3. PREPARING THE DEVICE FOR START UP ......................5 3.1.
-
Page 3: Unloading
REFRIGERATION LTD 1 UNLOADING The unit should be transported in vertical position and properly secured and packed. 2 PROPERTIES OF THE UNIT 2.1. Purpose “CURP” series display cases are universal cooling devices that are aimed to display and are used for short-term storage for confectionery goods (such as cakes, cookies, desserts…... -
Page 4: Technical Data
4 – LED lamp 10 – Leveling legs 5 – Inner frame (made of metal plates) 11 – Serial plate 6 – Sliding doors (CURP3 and CURP4) or swing door 12 – Control panel (thermostat, switches) (CURP2) Other CURP series... -
Page 5: Preparing The Device For Start Up
Never plug in more than one unit per electric circuit. • If in doubt, call an electrician. IGLOO will not warranty any equipment that is connected to an extension cord or adapter plug. The equipment may be turned on after confirmation of the fire protection efficiency with results of measures performed according to binding regulations! ■... -
Page 6: Connection And Start-Up
REFRIGERATION LTD 3.3. Connection and start-up • Unpack the equipment. • Place the unit on an even and hard base. Then level the unit with the levelling legs. Remove the protection foil from display case elements. • • To securely transport the equipment, the unit may be shipped partially disassembled. If the user received the unit partially disassembled, perform the following operations: 1. -
Page 7: Figure 3 Hook Height Control
REFRIGERATION LTD Figure 3 Hook height control 1 – Hook 2 – Protective pipe covering lamp cord 3 – PVC profile hiding the vertical frame post When changing the height position of the hook, draw the PVC profile aside slightly and pull the protective pipe to the desired position. -
Page 8: Unit Start Up
REFRIGERATION LTD Figure 5 Control panel 1 – Main switch (turns on/off the unit) 2 – Light switch 3 – Thermostat (temperature regulator) panel (Service details in Chapter 4 4. UNIT START UP Temperature of the cooled space and aggregate operating cycle may fluctuate. This depends on numerous factors, such as amount and temperature of products placed in the device and temperature of the surroundings. -
Page 9: Temperature Regulation
REFRIGERATION LTD 4.1. Temperature regulation The thermostat is to obtain the set temperature within the equipment and maintain it within the determined temperature ranges. The manufacturer enters all settings of temperature regulators required for normal functioning of the equipment. Before primary actuation the user should control and possibly set the required temperature inside the equipment on the control panel. -
Page 10: Table 2 Table Of Alarms And Signals
REFRIGERATION LTD SETTING THE DESIRED TEMPERATURE - Press the set button for 1 second leading value shall be displayed on the screen - Increase or decrease the leading value by means of , until the desired value shall be obtained; - Press the set button once again in order to confirm the new value of the setting point. -
Page 11: Table 3 Table Of Easy Compact Parameters
REFRIGERATION LTD Table 3 Table of easy compact parameters for CURP, CURLP and CURHP Par. Description Def. UOM. set point °C password probe measurement stability select probe displayed select °C/°F 0(°C) 1(°F) disable decimal point probe 1 offset °C -50.0 50.0 probe 2 offset °C... -
Page 12: Maintenance
REFRIGERATION LTD ID code (read-only) +199 restore the Default settings 5. MAINTENANCE Before you start Maintenance on the unit, Power it OFF. • • Do not use steel wool, abrasive cleaners, bleach or cleaners containing chlorine or sodium to clean the unit. Do not use pressure washer or water-jet to clean the unit. -
Page 13: Figure 8 Cleaning The Condenser
REFRIGERATION LTD Do not use mechanical agents to quicken the defrosting process! It is recommended to make a break in the operation once a month in order to clean the interior, naturally defrost the evaporator and clean the condenser, and evaluate the condition for door seal (CURP2) Figure 8 Cleaning the condenser It is essential to keep the condenser of the device clean. -
Page 14: Service
REFRIGERATION LTD 6. SERVICE 6.1. Faults identification and repair In case of any difficulties during actuation of the equipment or during its operation, please return to the chapters in this manual, which explain the performed operation. This aims to ensure the equipment is properly operated. If you still experience difficulties, the following will help you solve the problems. -
Page 15: Service
Telephone number: 416-663-3051 or (toll free) 1-888-408-8819 E-mail: service@igloo400.com If after checking points described in chapter 6.1 “Faults identification and repair” and the equipment still does not work properly, Please contact Technical Service @ IGLOO Refrigeration. Pastry Display Cases | www.igloorefrigeration.com...
