  • Page 1 Instruction Manual Pastry Display Cases Models: JOR series JORPP JORWP JORTP 124 Norfinch Dr. Toronto, ON. M3N 1X1 Tel : 416-663-3051 Fax : 416-663-5793 REFRIGERATION LTD. Toll Free : 1-888-408-8819...
  • Page 2: Table Of Contents

    REFRIGERATION LTD Contents 1 UNLOADING ..............................3 2 PROPERTIES OF THE UNIT..........................3 2.1. Purpose ..............................3 2.2. Description of the unit..........................3 2.3. Technical data ............................4 3. PREPARING THE DEVICE FOR START UP ......................5 3.1. Installation requirements .......................... 5 3.2.
  • Page 3: Unloading

    REFRIGERATION LTD 1 UNLOADING The unit should be transported in vertical position and properly secured and packed. 2 PROPERTIES OF THE UNIT 2.1. Purpose “JOR” series display cases are universal cooling devices aimed to display and short-term storage for confectionery goods (such as cakes, cookies, desserts…...
  • Page 4: Technical Data

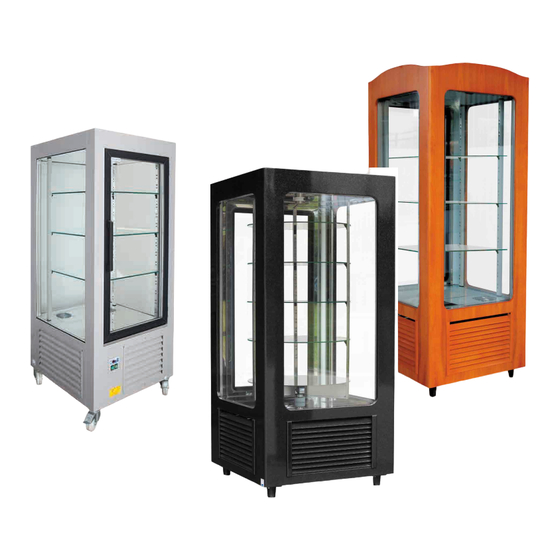

    REFRIGERATION LTD Figure 1 "JOR" series overview 5 - Door hinge 6 – Control panel 1 - Glass shelves (rotating or fixed) 7 – Serial plate 2 - Door handle 8 – Side, left air louver (access to condenser) 3 – Casing (metal/wooden/trand) 9 –...
  • Page 5: Preparing The Device For Start Up

    Never plug in more than one unit per electric circuit.  If in doubt, call an electrician. IGLOO will not warranty any equipment that is connected to an extension cord or adapter plug. The equipment may be turned on after confirmation of the fire protection efficiency with results of measures performed according to binding regulations! ■...
  • Page 6: Connection And Start-Up

    REFRIGERATION LTD  High ambient temperatures will cause the compressor to overwork.  Humidity may cause rust, condensation around glass or stainless steel and decrease the efficiency of the unit. 3.3. Connection and start-up  To securely transport the equipment, the unit may be shipped partially disassembled. If the user received the unit partially disassembled, perform the following operations: 1.
  • Page 7: Figure 3 Mounting Glass Shelves

    REFRIGERATION LTD Figure 4 Install the door handle Figure 3 Mounting glass shelves 1 – Glass shelf 2 – Shelf fixing grip 3 – Perforated frame strip 4 – Silicon glass protective pads (glue to the shelf grip to prevent movement) Figure 5 Control panel 1 –...
  • Page 8: Figure 6 Ventilation Holes Of The Device

    REFRIGERATION LTD 4. UNIT START UP The temperature of the cooled space and aggregate operating cycle may fluctuate. This depends on numerous factors, such as the amount and temperature of products placed in the device and temperature of the surroundings. The equipment should be placed in a dry and well-ventilated place, ensuring proper air exchange (distance between the wall and the equipment–...
  • Page 9: Unit Start Up

    REFRIGERATION LTD Remarks and indications  After transporting the equipment, wait about 2 hours before the start up.  To ensure proper conditions for the stored products, do not load the shelves completely. Ensure even load of shelves and not to exceed the maximum load. ...
  • Page 10: Figure 7 "Carel" Thermostat Control Panel

    REFRIGERATION LTD Do not interfere with systemic parameters of the thermostat, as this can lead to serious consequences, including damages to the cooling unit! Figure 7 “Carel” thermostat control panel QuickFinder for CAREL WHAT DO DIODES ON CONTROL PANEL SIGNIFY Diode 1 - Compressor: This symbol is visible when the compressor is working.
  • Page 11: Table 2 Table Of Alarms And Signals

    REFRIGERATION LTD SETTING THE DESIRED TEMPERATURE - Press the set button for 1 second leading value shall be displayed on the screen - Increase or decrease the leading value by means of , until the desired value shall be obtained; - Press the set button once again in order to confirm the new value of the setting point.
  • Page 12: Table 3 Table Of Easy Compact Parameters

    REFRIGERATION LTD MODIFYING THE PARAMETERS Parameter navigation The operating parameters, modifiable using the keypad, are divided into two types: frequent (type F) and configuration (type C). Access to the latter is protected by password (default= 22) to prevent accidental or unauthorized modifications.
  • Page 13: Maintenance

    REFRIGERATION LTD compressor on time with duty setting continuous cycle duration temperature alarm bypass after continuous cycle type of defrost interval between defrosts end defrost temperature set point 12.0 °C maximum defrost duration defrost when switching the instrument on defrost delay on power-up or when enabled by digital input freeze control temperature display during defrost dripping time alarm bypass time after defrost...
  • Page 14: Cleaning And Maintenance

    REFRIGERATION LTD 5.1 Cleaning and maintenance  All maintenance services need to be performed after disconnecting the equipment from power supply!  Protect electric installation against any damage or water spillage.  Do not use water stream to clean the equipment, only a wet cloth. ...
  • Page 15: Service

    REFRIGERATION LTD Elements of device can corrode when improper used and maintenance. To avoid that please follow the rules: • Do not allow contact of the surface of the device with substances containing chlorine and / or baking soda in different varieties, which destroy the protective layer and components of the device (also includes various stainless steel)! 6.
  • Page 16: Service

    Telephone number: 416-663-3051 or (toll free) 1-888-408-8819 E-mail: service@igloo400.com If after checking points described in chapter 6.1 “Faults identification and repair” the equipment still does not work properly, Please contact Technical Service of the IGLOO Refrigeration. Refrigerated Pastry Display Case | www.igloorefrigeration.com...
