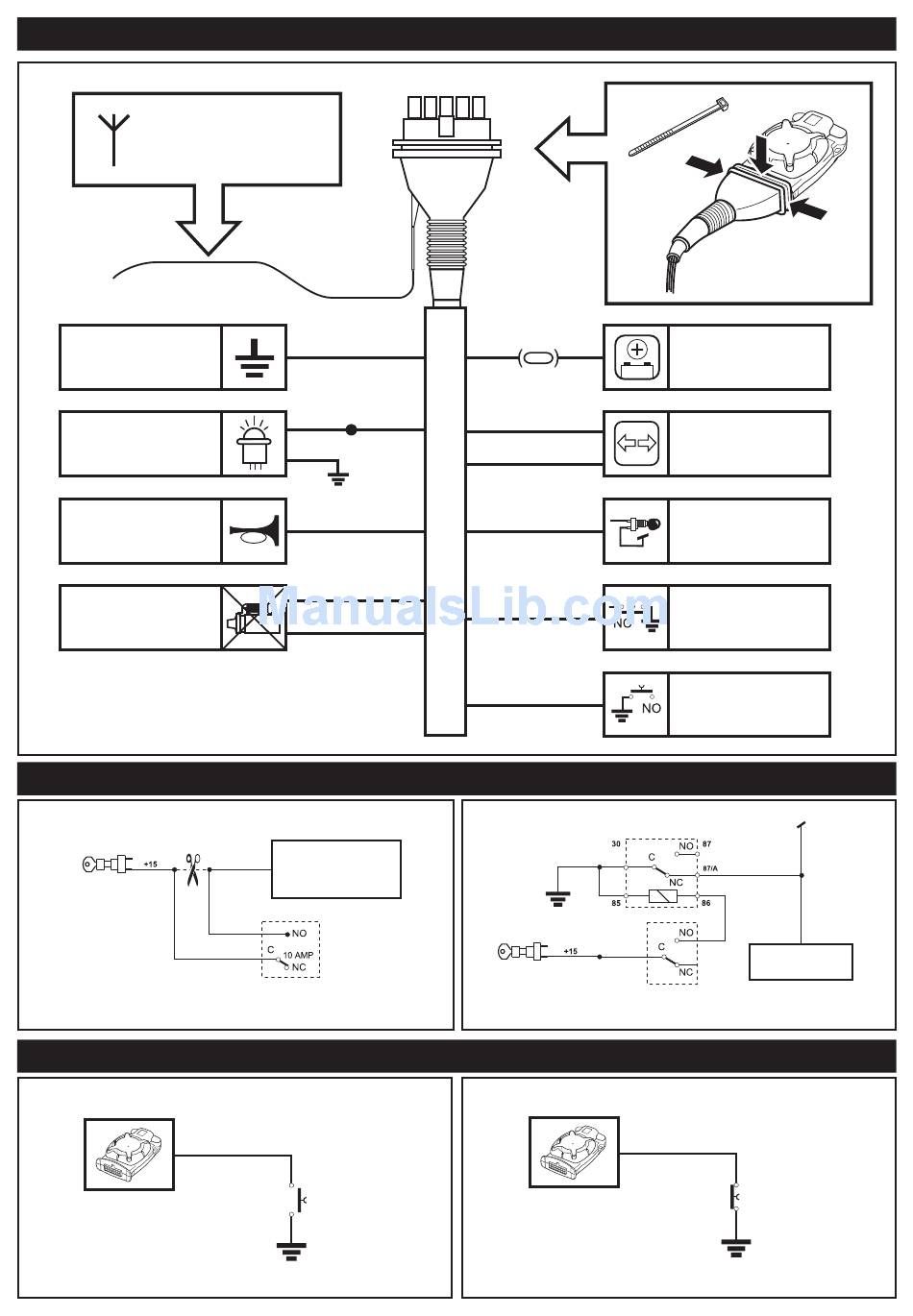

ALARM CONTROL UNIT: GENERAL DIAGRAM
ANTENNA
(do not cut and do not tape
with the rest of the wiring)
BATTERY
NEGATIVE
(-)
LED
HORN RELAY
NEGATIVE COMMAND
IGNITION
BLOCK
ALARM CONTROL UNIT: IGNITION BLOCK (FAIL SAFE SYSTEM)
IGNITION
KEY
BLOCK
GREY
BLUE
ALARM CONTROL UNIT: PERIPHERAL PROTECTION
PURPLE
BLACK
RED WHITE
BLACK
BROWN
BLUE (C)
GREY (NO)
IGNITION CONTROL UNIT,
COIL, FUEL PUMP...
DEFCOM 30
CONTROL UNIT
RELAY
BUTTON TO
BE INSTALLED
Install
15A fuse
RED
LIGHT BLUE
LIGHT BLUE
ORANGE
YELLOW/GREEN
PURPLE
BLUE
IGNITION
KEY
BLOCK
CONTROL UNIT RELAY
4
BATTERY
POSITIVE
(+12V)
TURN
SIGNALS
IGNITION KEY
POSITIVE POLE
(+15)
PROTECTION AGAINST CUT-
OFF OF EXPOSED CONDUCTIVE
PARTS (CONNECT TO CONDUCTI-
VE PARTS IF NOT USED)
PROTECTION FOR
CONTACT WITH
EXPOSED CONDUCTIVE
PARTS
ADDITIONAL
RELAY
GREY
COIL
DEFCOM 30
YELLOW/GREEN
BUTTON TO
BE INSTALLED
FROM THE
MAGNET
