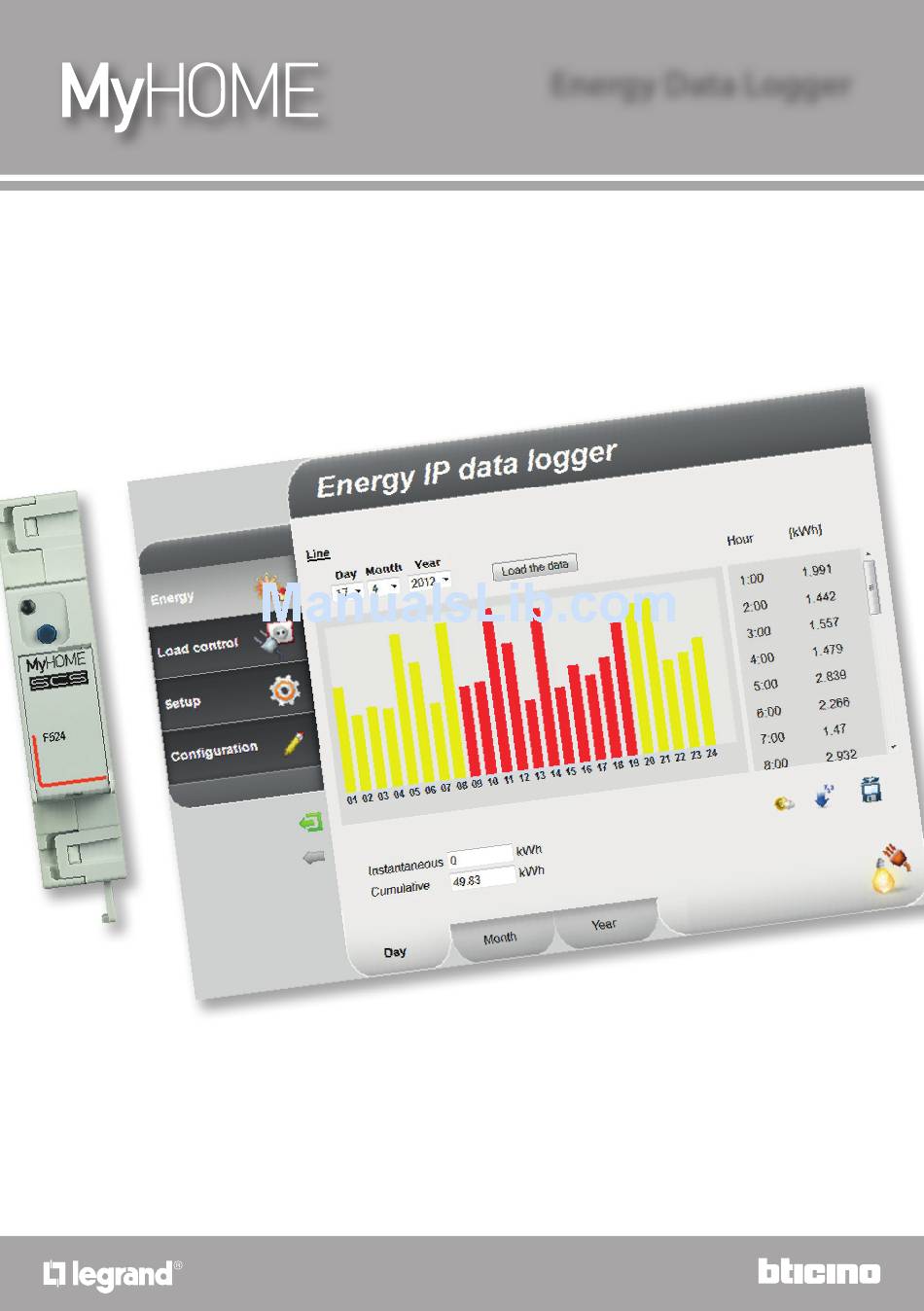

- Page 1 F524 003566 Energy Data Logger Installation manual www.legrand.com...
- Page 2 Energy Data Logger Installation manual...
- Page 3 Energy Data Logger Contents Installation manual 1 Description Warnings and recommendations Main functions Legend 2 Connection Wiring diagrams 3 Configuration Procedure with Windows Vista, 7 or 8 operating system Procedure for Tablet and Smartphone Troubleshooting 4 Appendix Technical data...
-
Page 4: Description
Energy Data Logger Installation manual 1 Description Warnings and recommendations Before proceeding with the installation we recommend that you read the content of this manual very carefully. The warranty will automatically become void in case of negligence, improper use, and tampering by unauthorised personnel. -
Page 5: Legend
Energy Data Logger Installation manual Legend 1 - User interface LED: see table 2 - MicroSD memory card slot (optional) 3 - Connection to the SCS BUS 4 - Ethernet connection 5 - Reset key: – press and hold for 10 seconds to restart the Energy Data Logger; –... -
Page 6: Connection
Energy Data Logger Installation manual 2 Connection Wiring diagrams To put the device into operation, this must be connected following the diagrams below. Diagram with direct or crossover cable Diagram with switch Switch / router Check that your PC is set for automatic acquisition of the IP address (network parameters); then select the Energy Data Logger device among the network resources. -
Page 7: Configuration
Energy Data Logger Installation manual 3 Configuration Procedure with Windows Vista, 7 or 8 operating system If the connection is correct, it will be possible to display the device in the My Network Places window, with the name “Energy Data Logger”. Double click on the icon to open the configuration WEB page. - Page 8 Energy Data Logger Installation manual 3 Configuration If the device is not automatically recognised by the PC, follow the instructions below. To access the configuration page, and display the device IP address, the following parameters must be set: From the Start / Control panel menu 1 - Click "Windows Firewall".
- Page 9 Energy Data Logger Installation manual From the Start / Control panel menu 4 - Click “Network and Sharing Center” 5 - Click "Change advanced sharing settings" 6 - Turn on “Network discovery”...
- Page 10 Energy Data Logger Installation manual 3 Configuration From the Start / Control panel menu 7 - Click “Administrative Tools” 8 - Click “Services”.
- Page 11 Energy Data Logger Installation manual 9 - Set Automatic Startup Type for item "UPnP Device Host" and ensure that it has actually been enabled. 10 - Click “Start”. 11 - Click.
- Page 12 Energy Data Logger Installation manual 3 Configuration 12 - Set Automatic Startup Type for item “SSDP Discovery” and ensure that it has actually been enabled. 13 - Click “Start”. 14 - Click.
-
Page 13: Procedure For Tablet And Smartphone
Energy Data Logger Installation manual Procedure for Tablet and Smartphone If viewing the pages using a Tablet or a Smartphone, it is recommend to set fixed IP and IP mask; in alternative, use an application for the identification of UPnP devices. Troubleshooting Problem Solution... -
Page 14: Appendix
30 mA (max) Operating temperature 5 – 45 °C TECHNICAL AFTER-SALES SERVICE Legrand SNC only accepts responsibility for perfect device operation if it is installed to the state of the art respecting the indications of the product installation manual. www.legrand.com... - Page 16 87045 Limoges Cedex - France 20154 Milano - Italy www.legrand.com www.bticino.com Legrand SNC reserves at any time the right to modify the contents of this booklet and to communicate in any form and modality, the changes brought to the same.
