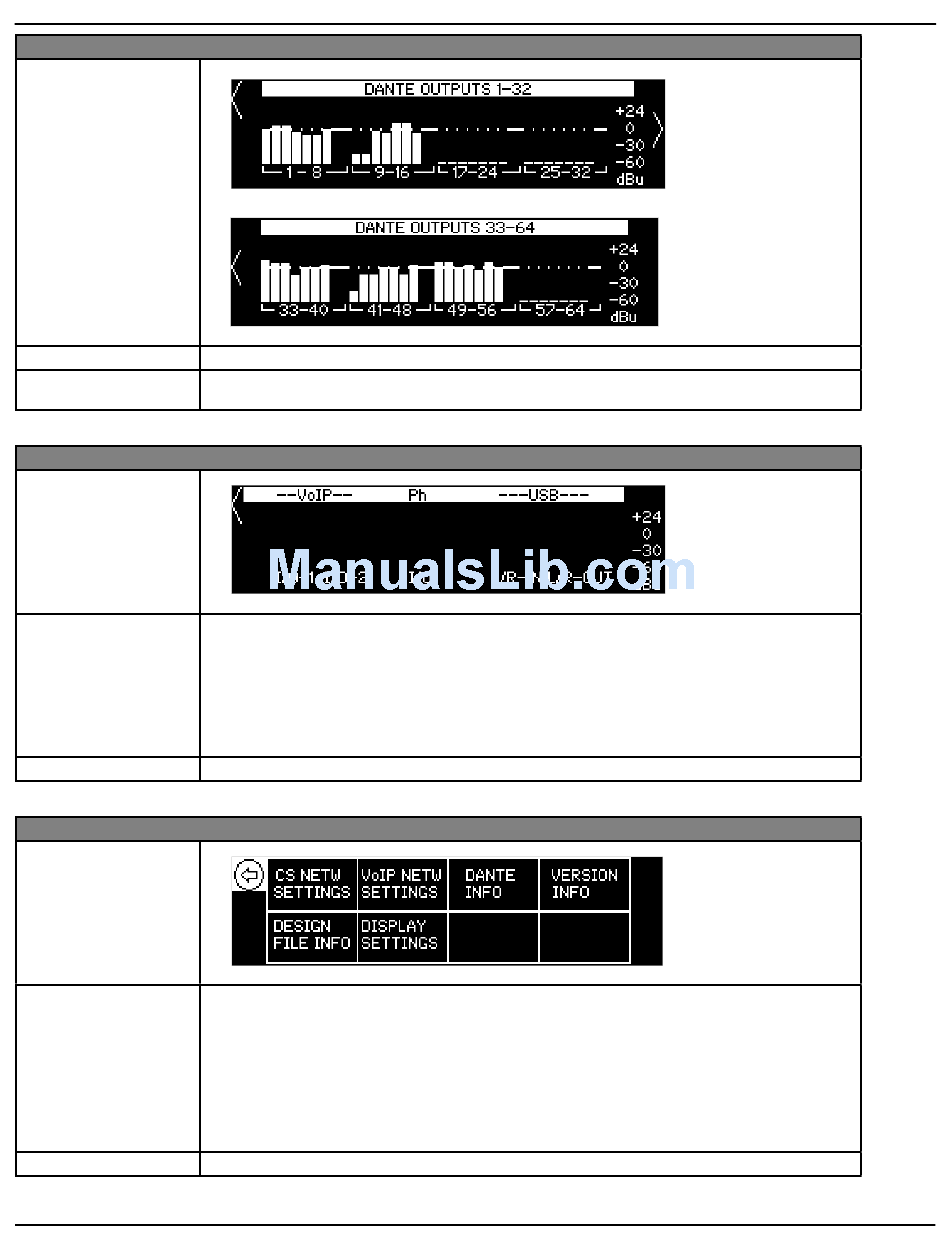

DANTE OUTPUT
DANTE OUTPUT displays audio levels (-60 dBu to +24 dBu) for each Dante input channel 1-64.
Channels 1-32 appear on the first screen. Turn the knob clockwise to view Channels 33-64. To return
to the MAIN MENU, turn the knob counter-clockwise.
VoIP Phone USB
VoIP Phone USB displays audio levels (-60 dBu to +24 dBu) for the following:
• VoIP Input/Output channel 1
• VoIP Input/Output channel 2
• Phone Input/Output
• USB Left/Right In
• USB Left/Right Out
To return to the MAIN MENU, turn the knob counter-clockwise.
The CONFIG menu offers seven options:
• CS NETW SETTINGS
• VoIP NETW SETTINGS
• DANTE INFO
• VERSION INFO
• DESIGN FILE INFO
• DISPLAY SETTINGS
Turn knob until desired menu item is highlighted. To open that item, press the knob.
CONFIG
