SonicWall™ SonicWave 432o Getting Started Guide IMPORTANT: This device must be professionally installed using either the supplied antennas, or with other approved antennas available from SonicWall. Regulatory Model Numbers: APL42‐0C1 (SonicWave 432o)
Page 3
Introduction In this Guide This Getting Started Guide provides instructions for basic installation and configuration of the SonicWall™ SonicWave 432o wireless access points in single‐unit or multi‐unit wireless deployments. For the latest product documentation, visit https://www.sonicwall.com/en‐us/support/technical‐documentation. Chapter 1 Topics Introduction on page 3 • In this Guide on page 3 • Professional Installation Validation on page 6 • SonicWave 432o Wireless Overview on page 7 SonicWall SonicWave 432o Getting Started Guide...
Page 4
Chapter 2 Topics Initial Setup on page 13 • Check Package Contents on page 14 • Performance Requirements on page 14 • Deployment Requirements on page 14 • Ground Connection on page 15 • Mounting the SonicWave 432o Appliance on page 15 • Installing SonicWave 432o Antennas on page 17 • Connecting Ethernet Cables on page 19 • SonicWave 432o Available Ports/Status LEDs on page 20 • Wireless Access Point Placement Considerations on page 22 Chapter 3 Topics Configuring SonicOS for Wireless Access on page 25 • Configuring SonicOS for SonicWave 432o on page 25 • Verifying SonicWave Operation on page 30 • Troubleshooting Tips on page 31 Chapter 4 Topics Support and Product Registration on page 33 • Registration and Support on page 33 • Online Support and Training on page 34 SonicWall SonicWave 432o Getting Started Guide...
Page 5
Chapter 5 Topics Product Safety and Regulatory Information on page 35 • Safety Instructions for the SonicWave 432o Appliances on page 36 • Sicherheitsanweisungen on page 38 • EU and EFTA on page 40 • Simplified EU/CE Declaration of Conformity on page 40 For general support information, see SonicWall Support on page 45. SonicWall SonicWave 432o Getting Started Guide...
Page 6
Professional Installation Validation to other systems. Because of the unique market and functionality targeted by SonicWall Inc. hereby declares that this product is distributed this product, the SonicWave 432o requires specially trained through our controlled distribution channel and requires that professionals to configure and install the product. Also, trained professionals are to install this product, and we will not according to FCC rules (similar rules in other regulatory sell this product directly to the general public through retail domains), you are required to consult with an experienced stores. professional RF installer/dealer/technician to conduct the WARNING: Electrical Hazard: Only qualified personnel installation, conform to the regulation, and correct the should perform installation procedures. Within the interference from the standard industry measures. The FCC context of the safety notes in this documentation requires you to be notified that any changes or modifications qualified persons are defined as persons who are made to the device that are not expressly approved by authorized to commission, ground and label devices, SonicWall could void your authority to operate the equipment. systems, and circuits in accordance with established A professional installer is responsible for the proper installation safety practices and standards. A qualified person and configuration of the outdoor SonicWave. The installer needs understands the requirements and risks involved with to understand and prepare for operating near any Terminal installing outdoor electrical equipment in accordance Doppler Weather Radar (TDWR) locations based on the FCC with national codes. Memorandum and comply with all its requirements. Restricted Access location. This product is not intended The professional installer needs to choose the correct antenna to be installed and used in a home or public area type and its gain should be so chosen that the equivalent accessible to the general population. When installed in isotropically radiated power (EIRP) is not more than that ...
Page 7

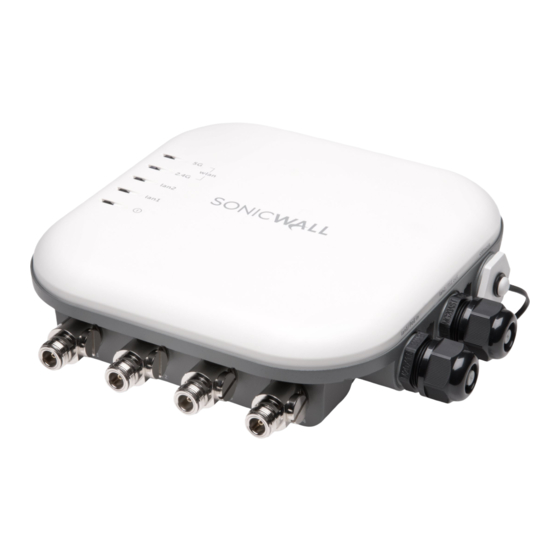

SonicWave 432o Wireless Overview The SonicWall SonicWave 432o is the latest generation in SonicWall’s evolutionary wireless access points. The SonicWave 432o extends your wireless LAN past the traditional boundaries of indoor locations. With state of the art design and construction, it is resistant to harsh outdoor environments and extreme temperature changes. The unit is designed specifically for outdoor use and should be attached to either a pole or post. Waterproof connectors are supplied to ensure watertight seals for connecting the Ethernet cables to the device. The SonicWave 432o also provides physical layer enhancements for higher throughput with a maximum data rate of 1730 Mbps for 5GHz and 800Mbps for 2.4GHz. To achieve this, the SonicWave 432o uses: • More antennas—four antennas for the 5 GHz radio, and four more for the 2.4 GHz radio. • Wider channels—80 MHz‐wide channels for the 802.11ac radio module, while continuing to support 20/40 MHz channels. This allows for dynamic per packet negotiation of channel widths so that when there is interference, the SonicWave can temporarily fall back to 40 or 20MHz channels. • More spatial streams—4X4 multiple‐input and multiple‐output, (MU‐MIMO) for the 802.11ac radio module, where the capacity of a radio link is multiplied using multipath propagation. Frequency Bands and Channels Currently five standards for 802.11 wireless network types have been widely adopted: a, b, g, n, and ac. 802.11n and 802.11ac are the newest and highest capacity standards, but older client devices might not be able to utilize the newer standards. SonicWall SonicWave 432o Getting Started Guide...
Page 8
Wireless Standards 802.11 (x) Frequency Standard Maximum Data Rate 802.11a 5 GHz 54 Mbps 802.11b 2.4 GHz 11 Mbps 802.11g 2.4 GHz 54 Mbps 802.11n 2.4 GHz and 5 GHz 450 Mbps 802.11ac 5 GHz + MU‐MIMO 2.34 ‐ 3.47 Gbps Different frequency bands provide varying signal strength and quality over different distance ranges. Signals in the 2.4 GHz range tend to pass through physical barriers better and carry farther than those in the 5 GHz range, but they do not provide as high a data rate. Signals in the 5 GHz range provide faster data rates for better throughput, but the signal attenuates faster and is best suited for open spaces. Strengths and Weaknesses of 5 GHz and 2.4 GHz Signals 5 GHz 2.4 GHz Strength Higher speed, more channels Longer range, stronger signal penetration Weakness Limited penetration of walls, client compatibility More sources of interference Refer to Radio Frequency Barriers on page 23 and RF Interference on page 23 for detailed information about RF barriers and interference. To allow multiple separate wireless networks in a shared and confined space, the RF medium is divided into channels. For devices in the 5 GHz range (802.11a/n/ac), this means the possibility of up to 23 discrete channels. SonicWall SonicWave 432o Getting Started Guide...
Page 9
For devices using the 2.4 GHz range (802.11b/g/n), the wireless space is limited to a maximum of 14 overlapping channels. As a result of these overlapping channels, 2.4 GHz technology provides only a total of three discrete channels. 802.11 Signal Comparison Chart 802.11 Signal Characteristics 802.11a 802.11b 802.11g 802.11n 802.11ac # of Channels in USA # of Channels in EU # of Channels in Japan Frequency Band 5 GHz 2.4 GHz 2.4 GHz 2.4/5 GHz 5 GHz Max. Data Rate 54 Mbps 11 Mbps 54 Mbps 800 Mbps (For 1.7 Gbps (For QAM‐ 4X4 MU‐MIMO) 64, MU‐MIMO 4X4, and 80 MHz channels) Radius (Range) 90ft/25m 120ft/35m 120ft/35m 300ft/90m 120ft/35m NOTE: Although 802.11b/g/n standards provide between 11 and 14 channels, only three of those channels are fully discrete (non‐overlapping) channels. SonicWall SonicWave 432o Getting Started Guide...
Page 10
Professional Installation use the dedicated tool provided by SonicOS to complete the antenna option configuration. Antenna Configuration Managed Mode Configuration The available configuration methods for professional installers include: Follow the steps in the SonicOS Connectivity Administration • Managed Mode Configuration on page 10 documentation to connect the SonicWave to the SonicWall • Configuring Optional Sector or Panel Antennas on page firewall and configure the SonicWave in the Managed mode. After the SonicWave is discovered, contact SonicWall for Perform the initial configuration without the SonicWall firewall additional information on updating necessary internal settings. controller, attach a serial cable to the console port, and run the individual commands to configure the external antenna Configuring Optional Sector or options. To manage the SonicWave from the SonicOS management UI Panel Antennas remotely, the SonicWave first needs to be connected to a SonicWall firewall over a layer 2 or layer 3 network, then you Follow the steps included in the SonicOS Connectivity can log in to the SonicOS management interface and configure Administration documentation to boot the SonicWave and the external antennas for each SonicWave. then connect the serial console cable to start the For a managed mode scenario, the SonicWave can be configuration. automatically discovered by SonicWall within the layer 2 After logging in to the console, enter the “proinstall” command network boundary. For a layer 3 deployment, refer to the to gain the access. SonicWave shows a prompt banner and SonicOS Connectivity Administration documentation to requests a passcode. understand how a management tunnel is established and how to properly provision the network device along the network ...
Page 11
-- Apply changes The following is an example configuration: exit -- Leave the professional install #./proinstall mode Welcome to SonicWall SonicWave PRO->show Professional Install Mode. By entering the all-antennas -- Show all available passcode, you accept and agree to the terms antennas which can be selected...
Page 12
6 - P254-09 (2.4GHz / 5GHz) PRO-> 7 - P254-13 (2.4GHz / 5GHz) PRO-> PRO->set radio 1 antenna 3 PRO->set radio <cr> Available Radios: PRO->set radio 1 antenna 3 0 -- radio 0 (5GHz) PRO->commit 1 -- radio 1 (2.4GHz) PRO->exit PRO->set radio 0 SonicWall SonicWave 432o Getting Started Guide...
Page 13
Initial Setup This section provides a basic checklist of materials, hardware information, and describes how to connect and configure physical aspects of the SonicWall SonicWave 432o including LEDs, antennas, cabling, placement, and mounting. • Check Package Contents on page 14 • Performance Requirements on page 14 • Deployment Requirements on page 14 • Ground Connection on page 15 • Mounting the SonicWave 432o Appliance on page 15 • Installing SonicWave 432o Antennas on page 17 • Connecting Ethernet Cables on page 19 • SonicWave 432o Available Ports/Status LEDs on page 20 • Wireless Access Point Placement Considerations on page 22 SonicWall SonicWave 432o Getting Started Guide...
Page 14
Check Package Contents Performance Requirements Before continuing, ensure that your SonicWave 432o package The user browser needs to include HTML5 support to properly contains the following materials: access the SonicOS management user interface. For browser specifications; use Chrome 50 and higher, Firefox 50 and SonicWave 432o Appliance Checklist higher, or IE Edge 15 and higher. SonicWave 432o Appliance Other browsers that do not support HTML5 might result in Antennas: 4 x 5GHz, 4 x 2.4GHz display issues or poor response times. Mounting hardware: Getting Started Guide Deployment Requirements SERI Guide SonicWall console cable Use these instructions as guidelines to mount and connect the Grounding Cable, Grounding Screw SonicWave 432o easily and safely. The installation of the SonicWave 432o should be performed by a professional Any Items Missing? installer to ensure proper operation and compliance with local safety guidelines. If any of the items corresponding to your product are missing SonicOS Firmware from the package, contact Technical Support at: https:// www.sonicwall.com/support/contact‐support. A listing of the • SonicWall SonicWave 432o access points are centrally most current support documents are available online at: managed by SonicWall network security appliances https://www.sonicwall.com/support/technical‐documentation running the following versions of SonicOS: • SonicOS 6.5 or higher SonicWall SonicWave 432o Getting Started Guide...
Page 15
Power Source SonicWave. The wire should be as close to the SonicWave bottom as possible. • Use a multi‐gigabit 802.3at compliant PoE injector or a PoE switch to provide power to each SonicWave 432o. 2 Tighten the screw securely. Internet Connectivity Mounting the SonicWave 432o • An active Internet connection is required for your firewall to download the latest SonicWave firmware. Appliance Gigabit Ethernet Connectivity IMPORTANT: This device must be professionally • The SonicWave 432o hardware requires more installed. bandwidth than a 1 Gigabit Ethernet connection can handle. SonicWall recommends connecting your SonicWave (through a PoE device) to a 2.5 Gbps Attach the SonicWave 432o to a surface that can support it and interface to take full advantage of the SonicWave 432o withstand its environment. It can be mounted to a post or data throughput capability. pole, and the surface material can be concrete, brick, wood, metal, or plastic. See Product Safety and Regulatory Information on page 35. Ground Connection The ground connection for the SonicWave 432o is located on the back of the device. Attach the green ground to earth cable to the grounding terminal. 1 Use the ground screw assembly, with the star washer, to attach the ground wire’s ring terminal to the SonicWall SonicWave 432o Getting Started Guide...
Page 16
Mounting the SonicWave 432o on a Pole or Post IMPORTANT: This device must be professionally installed using either the supplied antennas or with approved alternate antennas available from SonicWall. To mount the SonicWave 432o unit on a pole or post: 1 Fasten the mounting base securely to the back of the SonicWave 432o using the provided mounting screws. 2 Attach the pole‐mount bracket to the mounting base using the provided screws. The pole‐mount bracket can be attached either vertically or at a tilt of up to 30 degrees, depending on your requirements. 3 Loop the provided pole strap through the slots on the pole‐mount bracket and then around the pole. 4 Tighten the strap with an appropriate screw driver and ensure that the device is firmly in place. SonicWall SonicWave 432o Getting Started Guide...
Page 17
Installing SonicWave 432o 3 Carefully finger‐tighten the fittings being cautious not to over‐tighten them. Antennas 4 Repeat with the remaining antennas. IMPORTANT: This device must be professionally installed using either the supplied antennas or with approved alternate antennas available from SonicWall. Install the external antennas (or approved alternates) intended for area coverage. The SonicWave 432o features dual concurrent radio signals. Use the 2.4 GHz antennas to access Radio 1 (802.11 b/g/n at 600 Mbps) signals, and the 5 GHz antennas to access Radio 2 (802.11 a/n/ac at 1733 Mbps) signals. You should use all eight WiFi antennas to utilize both radio frequencies concurrently. CAUTION: To prevent damage to the SonicWave 432o, all RF output ports must be attached to an approved antenna before the radios are enabled. To install the antennas on your SonicWave 432o: 1 Remove all eight antennas from their bags and place one on each of the appropriate connectors, matching the radio signals marked on the antennas to those marked above the connectors. 2 Insert the antenna base firmly into the antenna mount. SonicWall SonicWave 432o Getting Started Guide...
Page 18
Sector 120° S154‐15† 15dBi Sector 120° P124‐10‡ 2.4G 10dBi Panel 70° P154‐12‡ 12dBi Panel 70° P254‐07 2.4/5G 5dBi/7dBi Panel 90° P254‐09 2.4/5G 8dBi/9dBi Panel 60° P254‐13 2.4/5G 12dBi/13dBi Panel 40° * Default antennas provided with appliance. † S124‐12 and S154‐15 must be used together. ‡ P124‐10 and P154‐12 must be used together. CAUTION: To prevent damage to the SonicWave 432o, all RF output ports must be attached to an approved antenna before the radios are enabled. For details regarding these alternately approved antennas (including important safety information) refer to the respective antenna guides. Some antennas might not be offered for sale in all countries. Contact SonicWall for purchasing information. The SonicWave default antenna configuration only supports Omni/Dipole antennas as shipped from the factory. When any other antenna or antenna pair is installed, the professional installer must correctly configure the SonicWave for the new antennas before SonicWall SonicWave 432o Getting Started Guide...
Page 19
3 Secure the seal nut onto the main assembly body. this guide and with each antenna. 4 Tighten the assembly by hand (finger‐tight). 5 Repeat using a second Ethernet cable, connecting to Connecting Ethernet Cables the Data & Power out port on the SonicWall PoE Midspan injector to the LAN1/PoE port on your SonicWave 432o. Provide adequate grounding to the SonicWave 432o and the PoE injector. The grounding screw and wire are provided for IMPORTANT: Be sure cables are connected this purpose. Consult a certified electrician to ensure that all correctly. grounding and cabling is installed in compliance with local 6 Plug the power cord of the SonicWall PoE injector into electrical codes. The SonicWave 432o is powered through an appropriate power outlet. Power over Ethernet (PoE), and should be cabled with CAT5e Ethernet cabling. 7 Wait for the LAN1 LED on the SonicWave 432o to illuminate green. This indicates an active connection. When using PoE, a SonicWall 802.3at compliant midspan PoE line injector (sold separately), or an 802.3at compliant switch is See Product Safety and Regulatory Information on page 35. required to power each SonicWave 432o. NOTE: To maximize the SonicWave 432o’s power CAUTION: A multi‐gigabit 802.3at compliant PoE capabilities, connect the PoE to a 2.5Gb port on the injector or PoE‐capable switch is required to provide firewall. power to each SonicWave 432o. To connect PoE to a SonicWave 432o: To maintain power to the SonicWave 432o, the maximum length of CAT 5e cable from the 802.3at PoE ...
Page 20
SonicWave 432o Available Ports/Status LEDs Available Ports lan2/PSE out port. Provides an additional Ethernet connection. Refer to the SonicOS Connectivity Administration documentation for use cases. lan1/PoE in port. console port. Provides Ethernet and Power over Provides a management connection Ethernet (PoE) connections. using the SonicWall console cable (RJ45 to DB9) (for command line management only). SonicWall SonicWave 432o Getting Started Guide...
Page 21
Status LEDs LED (5G) ‐ On (solid green, 5 GHz radio link) ‐ Blinking green (5 GHz radio activity) LED (2.4G) ‐ On (solid green, 2.4 GHz radio link) ‐ Blinking (2.4 GHz radio activity) LED (lan2) ‐ On (solid yellow or green, Ethernet link) ‐ Blinking yellow (1G Ethernet activity) ‐ Blinking green (10/100M Ethernet activity) LED (lan1) ‐ On (solid yellow or green, Ethernet link) ‐ Blinking yellow (2.5G Ethernet activity) ‐ Blinking green (1G/100M Ethernet activity) LED (Power) ‐ On (solid blue, power) ‐ Blinking (booting/FW upgrade) LED (safe mode) ‐ On (solid blue, power) with 4 ‐ Blinking (green) SonicWall SonicWave 432o Getting Started Guide...
Page 22
Physical placement of the SonicWave 432o wireless access • Hubs / Switches – Your wireless deployment has to tie point has a measurable effect on who can and cannot access back into your network security appliance and LAN your wireless signal. resources. Consider where your key networking devices are deployed and how they will connect efficiently with Access points should be kept clear of Radio Frequency (RF) your wireless appliances. What speed is needed for interference sources. RF barriers can be circumvented by your Ethernet connection to accommodate the number deploying multiple access points. of access points you are installing? A Gigabit Ethernet A site survey can help find the optimum wireless access point interface is recommended when connecting a placement, but you can find usable locations without it. SonicWave 432o to your SonicWall network security appliance. Considerations include: • Legacy Clients ‐ Older laptops and mobile devices might • Number of Access Points Versus User Density – If too not support 802.11ac. Although clients with 802.11a/g/ many users are serviced by a single access point, b hardware are supported by the SonicWall SonicWave maximum transfer rates are reached and that access 432o, the presence of these legacy clients within range point may become a bottleneck for the whole system. of your wireless network could affect the connection • Bandwidth – How much data is moving upstream and speed of your 802.11ac clients. downstream for a given type of user? For example, an 802.11b device authenticated to the • Ethernet Cabling – Where are you running the powered SonicWave 432o could limit all clients connected to that ...
Page 23
Barrier Type RF Signal Blocking Open air Very Low Interference Possible Range Bands Affected Source Glass, wood, drywall, cube partitions 2.4 GHz phones 100 feet 2.4 GHz Floors and outer walls, aquariums Medium (802.11 b/g/n) (brick/marble/granite/water) Bluetooth devices 30 feet 2.4 GHz Concrete, security glass, wire mesh, High (802.11 b/g/n) stacked books/paper Microwave oven 10‐20 feet 2.4 and 5 GHz, Metal partitions, desks, reinforced Very High depending on concrete shielding Scientific and Short distance, 2.4 and 5 GHz, medical varies depending on equipment shielding SonicWall SonicWave 432o Getting Started Guide...
Page 24
SonicWall SonicWave 432o Getting Started Guide...
Page 25
Configuring SonicOS for Wireless Access This section provides instructions for configuring SonicOS on your SonicWall network security appliance to connect your SonicWave 432o to the WLAN zone and manage it as a Layer 2 device. For more advanced configurations, including Layer 3 management of your SonicWave 432o on a LAN zone, refer to the SonicOS Connectivity Administration documentation available on the Support Portal. • Configuring SonicOS for SonicWave 432o on page 25 • Verifying SonicWave Operation on page 30 • Troubleshooting Tips on page 31 Configuring SonicOS for SonicWave 432o You only need to complete three simple configuration tasks in SonicOS to prepare your SonicWave 432o to provide secure wireless access. 1 Configure the network interface to which the SonicWave 432o is connected. 2 Configure the WLAN zone for trust and security services. 3 Configure the SonicWave 432o entry for the desired radio frequency, mode, and authentication type. SonicWall SonicWave 432o Getting Started Guide...
Page 26
Configuring the Network Interface 7 Use the default settings or select appropriate settings for the other fields and then click OK. Each SonicWave or group of SonicWaves must be connected to CAUTION: Allowing Management and User Login to the a physical network interface that is configured in a wireless appliance from a wireless zone can pose a security threat zone. SonicOS provides a standard wireless zone (WLAN) which if you or your users have not set strong passwords. can be applied to any available interface. SonicOS 6.5 Interface Settings To configure the network interface in SonicOS: 1 Log into SonicOS as an administrator (default: admin / password). 2 In the MANAGE view, navigate to the System Setup | Network > Interfaces page and click Configure for the interface to which your SonicWave is connected. 3 Select WLAN zone for the Zone type. 4 Select Static IP Mode for the Mode/IP Assignment. 5 In the IP Address field, type in any private IP address that does not interfere with the IP address range of any other interfaces on the appliance. 6 Enter a Subnet Mask. The default is 255.255.255.0. SonicWall SonicWave 432o Getting Started Guide...
Page 27
Configuring the WLAN Zone To configure the WLAN zone in SonicOS: 1 In the MANAGE view on the System Setup | Network > Zones page, click the Edit icon in the Configure column of the WLAN row. 2 On the General page, under General Settings, select the Allow Interface Trust option to automate the creation of Access Rules to allow traffic to flow between the interfaces within the zone, regardless of the interfaces to which the zone is applied. For example, if the WLAN zone has both the X2 and X3 interfaces assigned to it, selecting Allow Interface Trust creates the necessary access rules to allow hosts on 3 Select the checkboxes to enable security services on these interfaces to communicate with each other. this zone. Minimally, you would select Enable Gateway Anti‐Virus Service, Enable IPS, and Enable Anti‐ Spyware Service. If your wireless clients are all running SonicWall Client Anti‐Virus, select Enable Client AV Enforcement Service. 4 In the Guest Services page, optionally configure guest Internet access. For information about Guest Services, SonicWall SonicWave 432o Getting Started Guide...
Page 28
| Access Points > Base Settings page in the MANAGE SonicWave to allow only traffic from SonicPoints/ view. In System Setup | Network > Zones page, you can SonicWaves to enter the WLAN zone interfaces, edit the WLAN zone and specify this profile on the providing maximum security. Wireless page. Any SonicWaves connecting to an interface in the WLAN zone can then be provisioned with 6 When finished, click OK. the assigned profile. Configuring the SonicWave 432o You might want to use the new Floor Plan View and Topology View features as well. See the SonicOS Settings for more Connectivity Administration documentation information. When a SonicWave 432o is initially connected to an interface, the firewall uses a default provisioning profile to create a To modify the SonicWave 432o entry in SonicOS: SonicWave 432o entry. It can take up to five minutes for the entry to be created. 1 In the MANAGE view, navigate to Connectivity | Access Points > Base Settings. You can modify the SonicWave 432o entry to configure the access point name, radio frequency mode, authentication 2 In the SonicPoint/SonicWave Objects table, click the type, and other settings specific to your SonicWave 432o. Configure icon in the row for the SonicWave 432o entry you wish to modify. General page settings: 1 On the General page, select Enable SonicPoint. SonicWall SonicWave 432o Getting Started Guide...
Page 29
2 In the Name field, optionally type in a new name for 4 Under Wireless Security, select the Authentication this SonicWave 432o. The existing name is assigned by Type for your wireless network. SonicWall recommends the provisioning profile based on the name prefix in the using WPA2 as the authentication type if all client profile with a unique number appended. devices support it. TIP: PSK uses a personal passphrase for This is the access point name that appears in clients’ authentication, EAP uses an Enterprise RADIUS lists of available wireless connections. server. 3 Verify the Country Code for the area of operation. 5 Select the Cipher Type. When using WPA and WPA2, 4 Configure the remaining options as necessary. For more SonicWall recommends AES for maximum security. information, see the SonicOS Connectivity Administration documentation NOTE: Older client devices might not support AES. Radio 0 Basic / Radio1 Basic Settings: 6 Fill in the fields specific to the authentication type that you selected. The remaining fields change depending 1 Click Radio 0 Basic, or Radio 1 Basic. on the selected authentication type. The configuration is very similar for both Radio 0 Basic 7 Optionally, under ACL Enforcement, select Enable MAC and Radio 1 Basic. The main differences are the radio Filter List to enforce Access Control by allowing or frequencies: denying traffic from specific devices. Select a MAC ...
Page 30
NOTE: If this option is selected, Access Point or Virtual General page. Access Point(s) functionality is disabled automatically. The Virtual Access Point Encryption Settings section of both 1 Select Enable WIDF sensor to have the SonicWave Radio 0 Basic and Radio 1 Basic are the same for the 802.11n operate as a dedicated WIDP sensor. This option is not Radio. selected by default. 2 From the drop‐down menu, select the schedule for Radio 0 Advanced / Radio1 Advanced Settings: when the SonicWave operates as a WIDP sensor or 1 Click Radio 0 Advanced or Radio 1 Advanced. select Create new schedule... to specify a different time; default is Always on. The configuration is very similar for Radio 0 Advanced and Radio 1 Advanced. For most advanced options, the default settings give optimum performance. For a full Verifying SonicWave Operation description of the fields on this page, see the SonicOS Connectivity Administration documentation. To verify that the SonicWave is provisioned and operational, in 2 Optionally select the Hide SSID in Beacon checkbox. the MANAGE view, navigate to the Connectivity |Access The SSID refers to the access point name that appears Points > Base Settings page in SonicOS. In the SonicPoint/ in clients’ lists of available wireless connections. SonicWave Objects table, the Status column displays the SonicWave 432o status. It should say Operational. Hiding the SSID provides additional security because it requires that you know the access point name before connecting. 3 When finished configuring all options, click OK. SonicWall SonicWave 432o Getting Started Guide...
Page 31
To verify Internet connectivity through the SonicWave: • Ensure that the SonicWave 432o is properly connected by Ethernet cable to an 802.3at compliant PoE device or 1 Connect a client device to the SonicWave by selecting to the supplied power adaptor. the appropriate access point name (SSID). • If an 802.3at compliant PoE injector is being used, verify that the SonicWave 432o is connected to the PoE port 2 Ensure that the client device is not connected to any labeled Data & Power Out. other network connections (wired LAN, 3G/4G WWAN). If the SonicWave 432o has an entry in the table, but reboots 3 In a browser, enter “https://www.SonicWall.com/” in frequently or seems non‐functional: the address bar and press Enter. The SonicWall website displays. If you are unable to browse to a website, refer • Verify that your PoE switch/injector is 802.3at to Troubleshooting Tips. compliant and rated to deliver sufficient power to each PoE port. 802.3af compliant PoE devices do not provide sufficient power to properly run current generation Troubleshooting Tips 802.11 devices. A multi‐gigabit 802.3at compliant PoE injector or switch is required to power the SonicWall When the SonicWave 432o is connected to a SonicWall SonicWave 432o over Ethernet. network security appliance, the two units perform an • Click Synchronize Access Points on the Connectivity | encrypted exchange, and an entry for the SonicWave 432o is Access Points > Base Settings page in MANAGE view to automatically created in the SonicPoint/SonicWave Objects force SonicOS to download a new SonicWave firmware table. In the MANAGE view, navigate to the Connectivity | ...
Page 32
SonicWall SonicWave 432o Getting Started Guide...
Page 33
Support and Product Registration This section provides information about registering your SonicWall SonicWave 432o, requirements for receiving technical support, and other online support and training options. • Registration and Support on page 33 • Online Support and Training on page 34 Registration and Support All SonicWave 432o wireless access points include an initial subscription to SonicWall 24x7 Support. SonicOS automatically registers your SonicWave 432o on MySonicWall, if connected to the Internet. It could take up to 24 hours for your SonicWave 432o to be automatically registered. Optionally, you can manually register the SonicWave 432o on MySonicWall by logging into your account at: http://www.MySonicWall.com. The SonicWave 432o is also associated in MySonicWall with the registered SonicWall network security appliance to which it is connected. See the Associated Products section at the bottom of the appliance Service Management page in MySonicWall. SonicWall SonicWave 432o Getting Started Guide...
Page 34
For the access point to operate, and to receive technical For more information, visit: https:// support, your SonicWave 432o must have a current “Activation www.sonicwall.com/support/knowledge‐base‐category and Support” license. • Training IMPORTANT: If the license expires, the access point will SonicWall offers an extensive sales and technical cease to function until the license is renewed. training curriculum. SonicWall Training provides the E‐ Training, instructor‐led training, custom training, technical certification, and uses authorized training Online Support and Training partners. For more information, visit: https:// SonicWall offers a variety of online support and training www.sonicwall.com/support/sonicwall‐training‐ options for your convenience. certification • Customer Support • Related Documentation SonicWall offers telephone, email and Web‐based • SonicOS Connectivity Administration support to customers who have a valid Warranty or documentation who purchased a Support Contract. Review our Warranty Support Policy for product coverage. • SonicOS Release Notes SonicWall also offers a full range of consulting services • SonicOS Configuration or Deployment Guides to meet your needs. For more information, visit: https:// For more information, visit: https:// www.sonicwall.com/support/technical‐documentation www.sonicwall.com/support...
Page 35
Product Safety and Regulatory Information This section provides product safety and regulatory information. • Safety Instructions for the SonicWave 432o Appliances on page 36 • Sicherheitsanweisungen on page 38 • EU and EFTA on page 40 • Simplified EU/CE Declaration of Conformity on page 40 SonicWave 432o complies with FCC U‐NII New Rules. Regulatory Model/Type Product Name APL42‐0C1 SonicWave 432o SonicWall SonicWave 432o Getting Started Guide...
Page 36
• Route cables away from power lines, fluorescent NOTE: Additional regulatory notifications and lighting fixtures, and sources of noise such as radios, information for this product can be found online at: transmitters, and broadband amplifiers https://www.sonicwall.com/support/technical‐ • Ensure that no water or excessive moisture can enter documentation the unit. • Allow unrestricted airflow around the unit. A minimum Safety Instructions for the of 1 inch (25.44mm) clearance is recommended. SonicWave 432o Appliances • Consideration must be given to the connection of the equipment to the supply circuit and that the effect of overloading the circuits has minimal impact on • Installation Requirements on page 36 overcurrent protection and supply wiring. Appropriate • Approved Alternate Antennas on page 37 consideration of equipment nameplate ratings must be used when addressing this concern. • Professional Installation Notice on page 37 • This equipment is not intended for use at workplaces with • Cable Connections on page 37 visual display units, in accordance with §2 of the German • Power Supply Information on page 38 ordinance for workplaces with visual display units. To avoid incommoding reflections at visual display workplaces, this device must not be placed in the direct Installation Requirements field of view...
Page 37
Approved Alternate Antennas Professional Installation Notice Alternate antennas used with the SonicWave 432o must be To comply with FCC part 15 rules in the United States, the approved and certified before use. However, in order to SonicWave 432o must be professionally installed to ensure comply with the local laws and regulations, an approval might compliance with the Part 15 certification. It is the be required by the local regulatory authorities. responsibility of the operator and professional installer to ensure that only certified systems are deployed in the United The included antennas have been tested and approved for use States. The use of the system in any other combination (such with the SonicWave 432o model. as co‐located antennas transmitting the same information) is To reduce potential radio interference to other users, the expressly forbidden. antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p) is not more Cable Connections than that required for successful communication. Contact SonicWall for a list of antennas approved for use with WARNING: the SonicWave 432o. RS232 (Console) cables are designed for intra‐building connection to other equipment. Do not connect these ports RF Safety Distance directly to communication wiring or other wiring that exits the building where the appliance is located. The antennas used for this transmitter must be installed to provide a separation distance of at least 58 cm (based on 150cm for the SonicWave 432o) from all persons and must not be co‐located or operating in conjunction with another antenna or transmitter. This requirement applies to the SonicWave 432o. SonicWall SonicWave 432o Getting Started Guide...
Page 38
2” or “LPS” with an output rated 48 VDC, minimum 0.6 A, Tma: minimum 40 degrees C. • Wählen Sie für die Montage einen Ort, der keinem direkten Sonnenlicht ausgesetzt ist und sich nicht in der If PoE output on LAN2 is used to power an 802.3af compliant Nähe von Wärmequellen befindet. Die device, the PoE source should only be UL listed marked “Class Umgebungstemperatur darf nicht mehr als 60 °C 2” or “LPS,” with an output rated 48 VDC, minimum 1.26 A, betragen. Tma: minimum 40 degrees C. • Führen Sie die Kabel nicht entlang von Stromleitungen, LAN2 PSE output is 48 VDC, maximum 0.3 A. Leuchtstoffröhren und Störquellen wie Funksendern oder Breitbandverstärkern. Sicherheitsanweisungen • Das im Lieferumfang enthaltene bzw. die im Lieferumfang enthaltenen Netzkabel sind nur für die Verwendung in bestimmten Ländern und Regionen • Anforderungen an die Installation on page 38 zugelassen. Überprüfen Sie bitte vor der Verwendung • Verwarnung Kabelverbindungen on page 39 eins Netzkabels, ob es für die Verwendung in Ihrem Land oder Ihrer Region zugelassen ist und den • Informationen zur stromversorgung SonicWave 432o geforderten Normen entspricht. on page 39 • Stellen Sie sicher, dass das Gerät vor Wasser und hoher Luftfeuchtigkeit geschützt ist. • Stellen Sie sicher, dass die Luft um das Gerät herum zirkulieren kann und die Lüftungsschlitze an der Seite SonicWall SonicWave 432o Getting Started Guide...
Page 39
Verwarnung Kabelverbindungen des Gehäuses frei sind. Hier ist ein Belüftungsabstand von mindestens 26 mm einzuhalten. RS232‐C‐Kabel eignen sich für die Verbindung von Geräten in • Prüfen Sie den Anschluss des Geräts an die Innenräumen. Schließen Sie an die Anschlüsse der SonicWall Stromversorgung, damit der Überstromschutz sowie keine Kabel an, die aus dem Gebäude herausgeführt werden, die elektrische Leitung nicht von einer eventuellen in dem sich das Gerät befindet. Überlastung der Stromversorgung beeinflusst werden. Prüfen Sie dabei sorgfältig die Angaben auf dem Aufkleber des Geräts. Überlasten Sie nicht den Informationen zur stromversorgung Stromkreis. SonicWave 432o • Dieses Gerät ist nicht zur Verwendung an Arbeitsplätzen mit visuellen Anzeigegeräten gemäß § 2 Die Stromversorgung durch das Ethernet‐Kabel in die “LAN1”‐ der deutschen Verordnung für Arbeitsplätze mit Anschluss angeschlossen vorgesehen ist, wird dies als “Power visuellen Anzeigegeräten vorgesehen. Um störende over Ethernet” oder “PoE.” Dieses Produkt darf nur in Reflexionen am Bildshirmarbeitsplatz zu vermeiden, Verbindung mit einem für den Europäischen Markt darf dieses Produkt nicht im unmittelbaren genehmigten und mit dem Logo „LPS.“ Ausgang: 48 VDC Gesichtsfeld platziert verden. Gleichsspannung, mind. 0,6 A, mindest TMA mindestens 40° Grad C, betrieben werden. • Dieses Produkt ist nicht dafür entwickelt, um in Bereichen mit öffentlichem Zugang betrieben zu Wenn PoE‐Ausgang auf LAN2 verwendet wird, um ein 802.3af‐ werden. Wenn es in Schulen betrieben wird, stellen Sie kompatibles Gerät zu versorgen, dieses Produkt darf nur in sicher, dass das Gerät in einem abgeschlossenen Raum Verbindung mit einem für den Europäischen Markt ...
Page 40
Gleichsspannung, mind. 1,26 A, mindest TMA mindestens 40° SonicWave 432o RF Transmitter Bands and Power Grad C, betrieben werden. Frequency LAN2 PSE Ausgang ist 48 VDC Gleichsspannung, maximal 0,3 A. Maximum Radio‐Frequency Power Transmitted Band dBm EIRP EU and EFTA 2412 ‐ 2472 19.76 5260 ‐ 5320 Not currently enabled in the SonicWave software This SonicWall appliance contains radio equipment to provide 5500 ‐ 5700 29.47 2.4 GHz and 5 GHz RLAN/WLAN. To maintain Radio Equipment Directive 2014/53/EU compliance, use only SonicOS software and accessories provided with this appliance and by SonicWall. Simplified EU/CE Declaration of Diese SonicWall Appliance enthält Funkanlagen zur Conformity Bereitstellung von RLAN/WLAN im Frequenzbereich von 2,4 GHz und 5 GHz. Verwenden Sie zur Einhaltung der A “Declaration of Conformity” in accordance with the Funkanlagenrichtlinie 2014/53/EU (Radio Equipment Directive directives and standards has been made and is on file at: – RED) ausschließlich SonicOS Software und Zubehör, das mit SonicWall International Limited, City Gate Park, Mahon, Cork, dieser Appliance und von SonicWall bereitgestellt wird. Ireland. To maintain safe exposure levels to electromagnetic fields, Hereby, SonicWall Inc. declares that the radio equipment type place appliance a minimum of 58 cm from all persons and 2.4 GHz and 5 GHz RLAN/WLAN is in compliance with Directive domestic animals. 2014/53/EU. The full text of the EU declaration of conformity is Zur Einhaltung unbedenklicher Expositionswerte durch available at the following Internet address: https:// elektromagnetische Felder sollte sich die Appliance ...
Page 41
Hierbij verklaar ik, SonicWall Inc., dat het type radioapparatuur Tímto SonicWall Inc. prohlašuje, že typ rádiového zařízení 2.4 2.4 GHz and 5 GHz RLAN/WLAN conform is met Richtlijn 2014/ GHz and 5 GHz RLAN/WLAN je v souladu se směrnicí 2014/53/ 53/EU. De volledige tekst van de EU‐conformiteitsverklaring kan Úplné znění EU prohlášení o shodě je k dispozici na této worden geraadpleegd op het volgende internetadres: https:// internetové adrese: https://www.SonicWall.com/Support www.SonicWall.com/Support Hermed erklærer SonicWall Inc., at radioudstyrstypen 2.4 GHz Hiermit erklärt SonicWall Inc., dass der Funkanlagentyp 2.4 and 5 GHz RLAN/WLAN er i overensstemmelse med direktiv GHz and 5 GHz RLAN/WLAN der Richtlinie 2014/53/EU 2014/53/EU. entspricht. EU‐overensstemmelseserklæringens fulde tekst kan findes på følgende internetadresse: https://www.SonicWall.com/Support Der vollständige Text der EU‐Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: https:// Με την παρούσα ο/η SonicWall Inc., δηλώνει ότι ο www.SonicWall.com/Support ραδιοεξοπλισμός 2.4 GHz and 5 GHz RLAN/WLAN πληροί την οδηγία 2014/53/ΕΕ. Le soussigné, SonicWall Inc., déclare que l'équipement radioélectrique du type 2.4 GHz and 5 GHz RLAN/WLAN est Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται conforme à la directive 2014/53/UE. στην ακόλουθη ιστοσελίδα στο διαδίκτυο: https:// www.SonicWall.com/Support Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante: https:// Por la presente, SonicWall Inc. declara que el tipo de equipo www.SonicWall.com/Support radioeléctrico 2.4 GHz and 5 GHz RLAN/WLAN es conforme con la Directiva 2014/53/UE. С настоящото SonicWall Inc. декларира, че този тип радиосъоръжение 2.4 GHz and 5 GHz RLAN/WLAN е в El texto completo de la declaración UE de conformidad está съответствие с Директива 2014/53/ЕС.
Page 42
Käesolevaga deklareerib SonicWall Inc., et käesolev Il testo completo della dichiarazione di conformità UE è raadioseadme tüüp 2.4 GHz and 5 GHz RLAN/WLAN vastab disponibile al seguente indirizzo Internet: https:// direktiivi 2014/53/EL nõuetele. www.SonicWall.com/Support ELi vastavusdeklaratsiooni täielik tekst on kättesaadav Aš, SonicWall Inc., patvirtinu, kad radijo įrenginių tipas 2.4 GHz järgmisel internetiaadressil: https://www.SonicWall.com/ and 5 GHz RLAN/WLAN atitinka Direktyvą 2014/53/ES. Support Visas ES atitikties deklaracijos tekstas prieinamas šiuo SonicWall Inc. vakuuttaa, että radiolaitetyyppi 2.4 GHz and 5 interneto adresu: https://www.SonicWall.com/Support GHz RLAN/WLAN on direktiivin 2014/53/EU mukainen. Ar šo SonicWall Inc. deklarē, ka radioiekārta 2.4 GHz and 5 GHz EU‐vaatimustenmukaisuusvakuutuksen täysimittainen teksti RLAN/WLAN atbilst Direktīvai 2014/53/ES. on saatavilla seuraavassa internetosoitteessa: https:// Pilns ES atbilstības deklarācijas teksts ir pieejams šādā www.SonicWall.com/Support interneta vietnē: https://www.SonicWall.com/Support SonicWall Inc. ovime izjavljuje da je radijska oprema tipa 2.4 B'dan, SonicWall Inc., niddikjara li dan it‐tip ta' tagħmir GHz and 5 GHz RLAN/WLAN u skladu s Direktivom 2014/53/EU. tar‐radju 2.4 GHz and 5 GHz RLAN/WLAN huwa konformi Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj mad‐Direttiva 2014/53/UE. internetskoj adresi: https://www.SonicWall.com/Support It‐test kollu tad‐dikjarazzjoni ta' konformità tal‐UE huwa SonicWall Inc. igazolja, hogy a 2.4 GHz and 5 GHz RLAN/WLAN disponibbli f'dan l‐indirizz tal‐Internet li ġej: https:// típusú rádióberendezés megfelel a 2014/53/EU irányelvnek. www.SonicWall.com/Support Az EU‐megfelelőségi nyilatkozat teljes szövege elérhető a SonicWall Inc. niniejszym oświadcza, że typ urządzenia következő internetes címen: https://www.SonicWall.com/ radiowego 2.4 GHz and 5 GHz RLAN/WLAN jest zgodny z Support dyrektywą 2014/53/UE.
Page 43
Prin prezenta, SonicWall Inc. declară că tipul de echipamente radio 2.4 GHz and 5 GHz RLAN/WLAN este în conformitate cu Directiva 2014/53/UE. Textul integral al declarației UE de conformitate este disponibil la următoarea adresă internet: https://www.SonicWall.com/ Support SonicWall Inc. týmto vyhlasuje, že rádiové zariadenie typu 2.4 GHz and 5 GHz RLAN/WLAN je v súlade so smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: https://www.SonicWall.com/Support SonicWall Inc. potrjuje, da je tip radijske opreme 2.4 GHz and 5 GHz RLAN/WLAN skladen z Direktivo 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: https://www.SonicWall.com/Support Härmed försäkrar SonicWall Inc. att denna typ av radioutrustning 2.4 GHz and 5 GHz RLAN/WLAN överensstämmer med direktiv 2014/53/EU. Den fullständiga texten till EU‐försäkran om överensstämmelse finns på följande webbadress: https://www.SonicWall.com/ Support NOTE: Additional regulatory notifications and information for this product can be found online at: https://www.sonicwall.com/support/technical‐ documentation SonicWall SonicWave 432o Getting Started Guide...
Page 44
SonicWall SonicWave 432o Getting Started Guide...
Page 45
SonicWall Support Technical support is available to customers who have purchased SonicWall products with a valid maintenance contract and to customers who have trial versions. The Support Portal provides self‐help tools you can use to solve problems quickly and independently, 24 hours a day, 365 days a year. To access the Support Portal, go to https://www.sonicwall.com/support. The Support Portal enables you to: • View knowledge base articles and technical documentation • View video tutorials • Access MySonicWall • Learn about SonicWall professional services • Review SonicWall Support services and warranty information • Register for training and certification • Request technical support or customer service To contact SonicWall Support, visit https://www.sonicwall.com/support/contact‐support. SonicWall SonicWave 432o Getting Started Guide...
Page 46
SonicWall SonicWave 432o Getting Started Guide...
Page 47
SonicWave 432o Getting Started Guide Updated ‐ September 2017 232‐004037‐51 Rev A...
