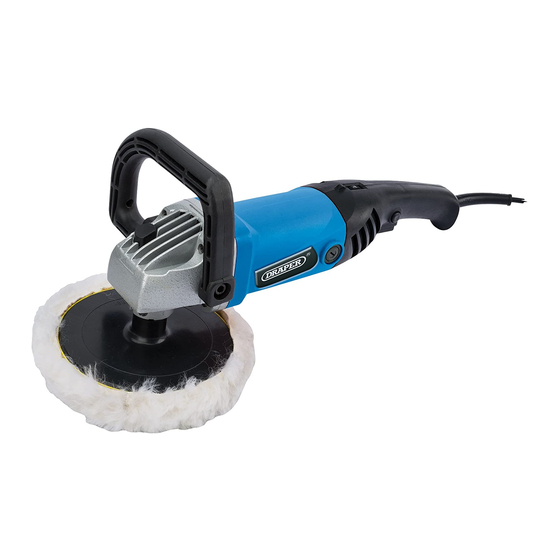

230v 1200w angle polisher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTIONS FOR
230V 1200W
Angle Polisher
Stock No.53016
Part No.PT1200
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.

GENERAL INFORMATION

These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 53016 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper 53016

Summary of Contents for Draper 53016

  • Page 1: General Information

    AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS 2.1 CONTENTS Page content Page TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY................... 2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ..................... 4 INTRODUCTION SCOPE ....................... 5 SPECIFICATION ....................5 HANDLING & STORAGE ................... 5 HEALTH &...

  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction

    This hand held power tool uses polishing mops and foam polishing sponges in order to finish painted surfaces. Intended for DIY and light commercial use only. Any other application is considered mis-use. 4.2 SPECIFICATION Stock no ..........................53016 Part no ..........................PT1200 Rated voltage: ......................230V~50Hz Rated input: ........................1200W ø...

  • Page 6: Health & Safety Information

    HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully.
  • Page 7 HEALTH & SAFETY INFORMATION Wear personal protective equipment (PPE). Dust, noise, vibration and swarf can all be dangerous if not suitably protected against. If the work involving the power tool creates dust or fumes; wear a dust mask. Vibration to the hand, caused by operating some tools for longer periods must be protected against.

  • Page 8: Connection To The Power Supply

    (i.e. red). Fuse covers are available from your Draper Tools stockist. If the fitted plug is not suitable, it should be cut off and destroyed. *The end of the cable should now be suitably prepared and the correct type of plug fitted.

  • Page 9: Technical Description

    TECHNICAL DESCRIPTION On/off trigger switch. Spindle lock button. Switch lock button. Threaded spindle. Variable speed control. Hook and loop backing pad. BS moulded plug and cable. Polishing bonnet. Hand grip. Hex. key. Brush cover. Auxiliary handle.

  • Page 10: Unpacking & Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 11: Preparing The Polisher

    PREPARING THE POLISHER 8.1 PREPARING THE POLISHER NOTE: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. FITTING THE AUXILIARY HANDLE (FIG.1) Choose the best orientation to suit operator comfort and application in hand. Pass the two hex. head bolts through the FIG.

  • Page 12: Operating The Polisher

    Read the manufacturers instructions regarding this. No responsibility or liability is accepted by Draper Tools regarding the setting of the correct speed for the job to be done. The speed settings are approximately as per table below.

  • Page 13: Maintenance

    10. MAINTENANCE 10.1 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. For this reason avoid blocking the air inlets. If replacement of the supply cord is necessary this has to be done by the manufacturer or his agent in order to avoid a safety hazard.

  • Page 14: Explanation Of Symbols/Pictograms 13.1 Disposal

    13. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS Warning! Read the instruction manual Warning! Ejection hazards. Wear safety goggles Warning! Noise. Wear ear defenders Warning! Wear dust mask. Class II construction (Double insulated). WEEE Do not dispose of Waste Electrical &...

  • Page 15: Notes

    NOTES...

  • Page 16: Contacts

    - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST RDMC0716...
