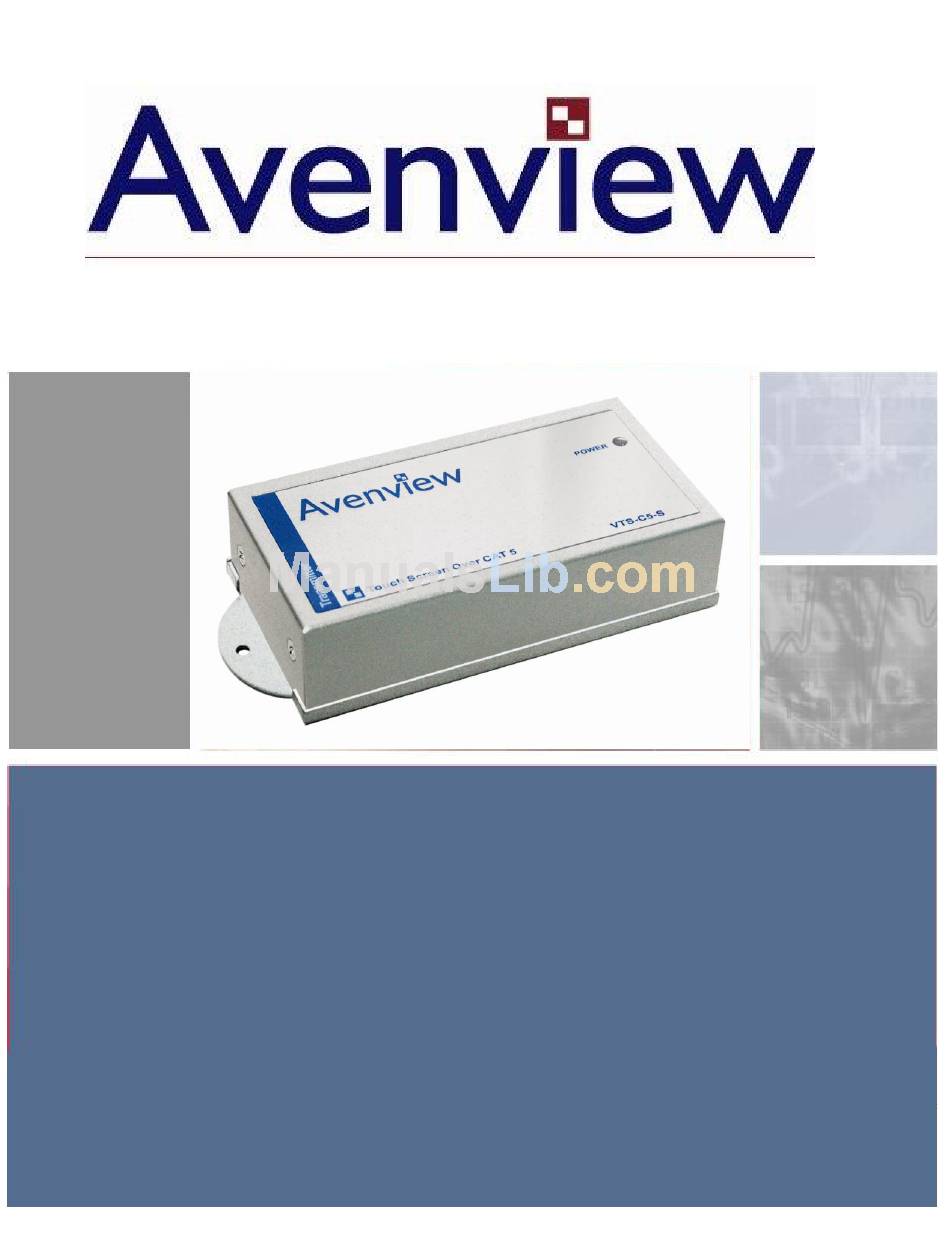

- Page 1 V TS -C5 Se ries Part #: VTS-C5-R Part #: VTS-C5-S...
- Page 2 Bi-directional Serial RS-232 control Remote and Local monitors can display simultaneously Plug & Play Supports VGA, SVGA, XGA, TFT_LCD, with DDC2B function Equipped with magnetic pad and metal plate for easy installation Compact size www.avenview.com...
-
Page 3: System Devices And Functions
Built-in one RJ45 port for system output which can be connected by Cat5/5e/6 cable and send signal to System Receiver Receiver VTS-C5-R Built-in one set of VGA (DB15) and Data (DB9) output for Touch Screen Maximum VGA resolution of up to 2048x1536 @ 300m (1000ft) ... -
Page 4: Cable And Accessories
RS232 Cable 1.8m Female AC 7.5V 1000mA User Manual Touch Screen 1 Port Receiver VGA Cable 1m RS232 Cable 1.8m Male VTS-C5-R Receiver RS232 Cable 1.8m Female AC 7.5V 1000mA User Manual www.avenview.com... -
Page 5: Specifications
1920 x 1440 @ 200m (650ft) 2048 x 1536 @ 50m (165ft) AC 7.5V 62 x 113 x 29 0 - 50°C -20 - 60°C 10 – 90% www.avenview.com VGA-C5-R 1 Port Receiver RJ45 DB15 / DB9 Gain & Focus DC 5V... - Page 6 Copyright 2007, Avenview® Inc. All rights reserved. Features, availability and specifications are subject to change without notice. Avenview Inc. info@avenview.com www.avenview.com...
