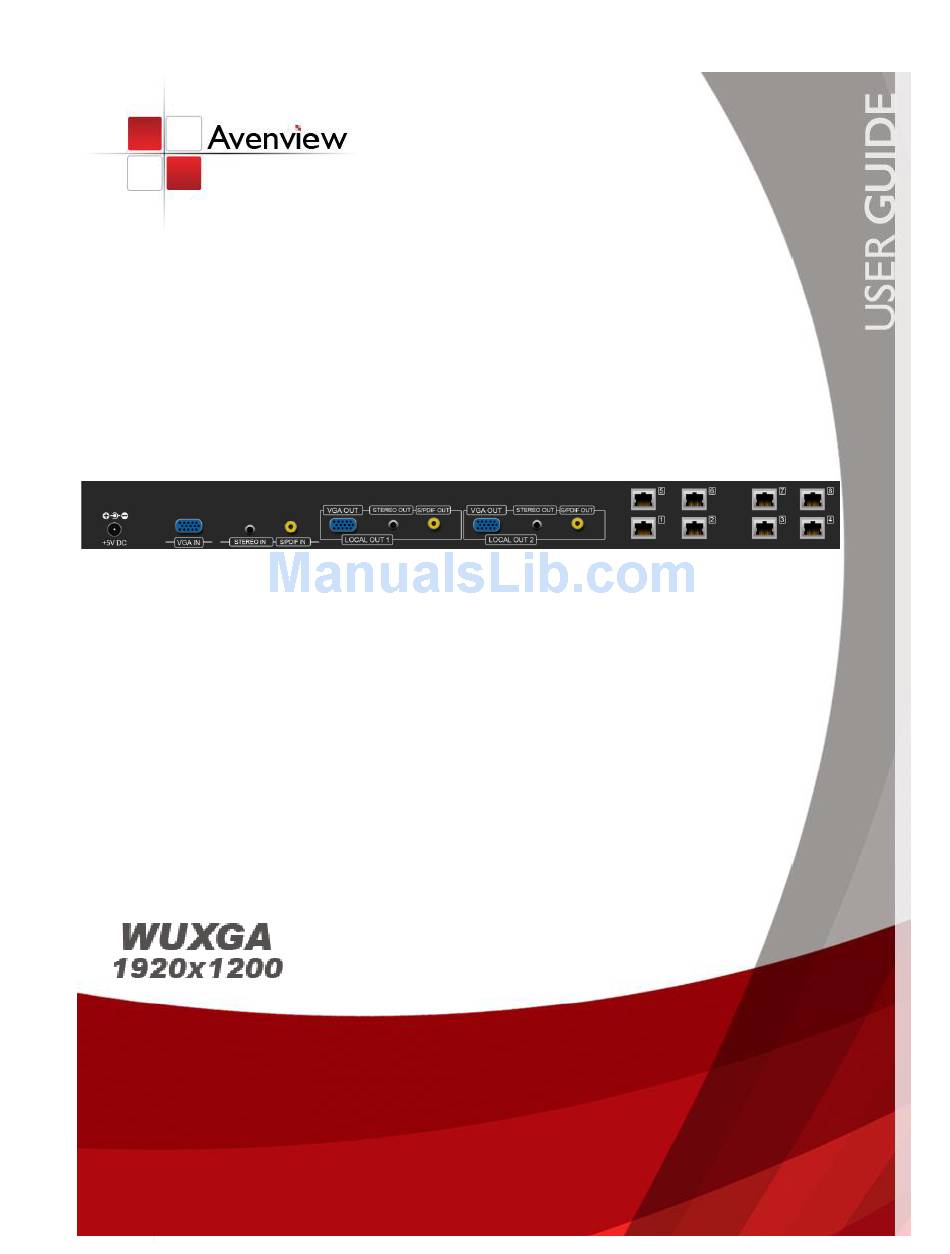

Instruction Manual
4, 8, 16 Port VGA and Audio Extender
/ Splitter with Audio over Single CAT5
Model #: VGA-C5SP-4, VGA-C5SP-8, VGA-C5SP-16
© 2010 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. ("Avenview") products. Avenview makes no representations or warranties with
respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any
time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in
Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products
including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.
www.avenview.com
1
Advertisement
Table of Contents
Related Manuals for Avenview VGA-C5SP-4
Summary of Contents for Avenview VGA-C5SP-4
- Page 1 No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
-
Page 2: Table Of Contents
Section 1: Getting Started ........................3 Important Safeguards ......................3 Safety Instructions ......................... 3 Regulatory Notices Federal Communications Commission (FCC) ......... 4 Introduction ........................... 4 Package Contents ........................6 Before Installation........................6 Panel Description ........................7 Installation ..........................8 Section 2: Specifications ......................... 9 www.avenview.com... -
Page 3: Section 1: Getting Started
Removal, installation, and set-up service charges. Safety Instructions The Avenview VGA-C5-SP-4, VGA-C5-SP-8, VGA-C5-SP-16, VGA & Audio Extender/Splitter over Single CAT5 has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment’s, the VGA-C5-SP-XX should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 4: Regulatory Notices Federal Communications Commission (Fcc)
Introduction The Avenview VGA-C5-SP-4, VGA-C5-SP-8, VGA-C5-SP-16, VGA and Audio over CAT5 Transmitter / Splitter provides the most flexible solution by which the high resolution PC video and high quality stereo audio can be transmitted to different locations over super long distances. Built with 2 VGA and digital/analog audio loop outs, local A/V receivers can provide extra video and audio fan-outs through typical VGA, SPDIF, and analog audio cables. - Page 5 www.avenview.com...
-
Page 6: Package Contents
Use the DC power adapter with correct specifications. If inappropriate power supply is used then it may cause a fire. Do not twist or pull by force ends of the optical cable. It can cause malfunction. www.avenview.com... -
Page 7: Panel Description
Panel Description FRONT PANEL (Transmitter, VGA-C5SP-8) 1. Power Connector 2. VGA Input 3. Stereo Audio Input 4. S/PDIF Input 5. Local Video and Audio Output 6. Local Video and Audio Output 7. RJ45 Outputs www.avenview.com... -
Page 8: Installation
To setup Avenview VGA-C5SP-4, VGA-C5SP-8, VGA-C5SP-16 follow these steps for connecting to a device: 1. Switch off all devices, including monitors 2. Connect a VGA and Audio source to VGA and Audio In on VGA-C5SP-4, or VGA-C5SP-8, or VGA-C5SP-16 3. Connect to the Receiver Unit VGA-C5AV-R through CAT5 / CAT6 cable to VGA-C5-SP-4, or VGA-C5SP-8, or VGA-C5SP-16 4. -
Page 9: Section 2: Specifications
Power Supply 5V 4A DC Power Consumption 10 Watt (max) 15 Watt (max) 25 Watt (max) Environmental Operating Temperature 32˚ ~ 104˚F (0˚ to 40˚C) Storage Tempearture -4˚ ~ 140˚F (-20˚ ~ 60˚C) Relative Humidity 20~90% RH (no condensation) www.avenview.com... - Page 10 4. Because the quality of the LAN cables has the major effects in how long transmission distance will be made and how good is the received display, the actual transmission length is subject to your LAN cables. For resolution greater than 1080i or 1280x1024, a CAT-6 cable is recommended.. www.avenview.com...
- Page 11 Disclaimer While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of...
