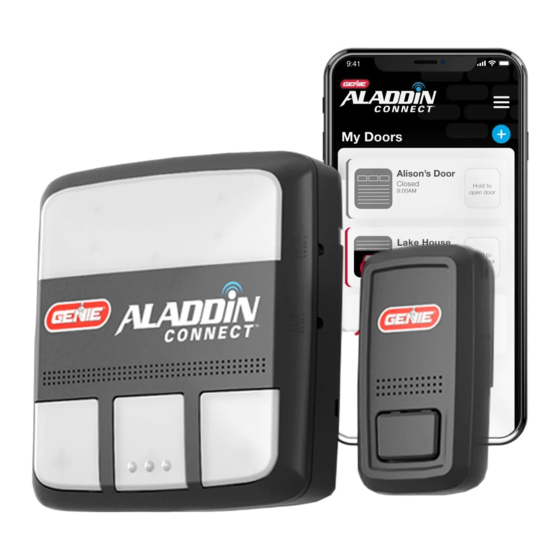

Genie Aladdin Connect Installation Manual
Hide thumbs
Also See for Aladdin Connect:
- Quick setup manual (12 pages) ,
- Programming manual (7 pages) ,
- Instruction manual (2 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Genie Aladdin Connect
Summary of Contents for Genie Aladdin Connect

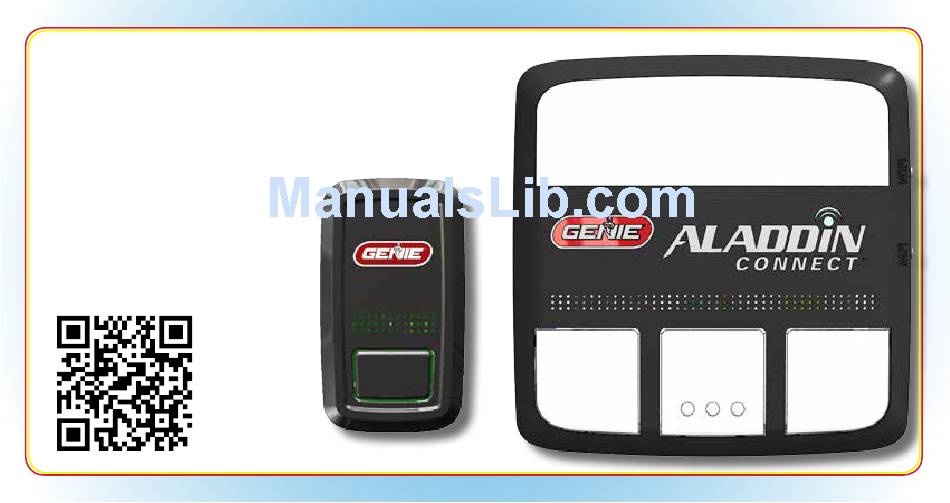

- Page 1 Installation Manual Download the app here...
- Page 2 Table of Contents Important Safety Information ................1-3 Included Parts ......................4 Downloading the App ..................5 Initial Programming ..................6-7 Installation Variables ..................8-11 Installation & Wiring ..................12-13 Final Programming and Testing ..............14 Adding Additional Doors .................. 15 Terms of Use ....................16-19 Troubleshooting ....................
- Page 3 The door could move for unattended operation. The door could move unexpectedly. unexpectedly. DO NOT install Aladdin Connect™ on garage door DO NOT install Aladdin Connect™ on garage door openers manufactured prior to 1993 without photocell openers manufactured prior to 1993 without photocell non-contact safety sensors.
- Page 4 Included Parts. DPS Mounting Mounting Adheasive Strip Bracket (Door Control Module) (Door Position Sensor) DPS Mounting Screws Insulated DCM Mounting Screws Staple x30 Wire Spool DCM Mounting Screw Anchors Hardware Bag PowerPack...
- Page 5 FCC/IC Statement: Getting Started. This device complies with FCC Part 15 rules This should be some text to introduce and with Industry Canada license-exempt the homeowner to this product. RSS standard(s). Operation is subject to the Something from marketing perhaps? following two conditions: (1) This device may not cause interference, (2) This device must accept any interference,...
- Page 6 In the Home close to WiFi Router: Prepare Aladdin Connect™ by first scanning the QR code™ on this instruction or on the back of the DCM (Door Control Module) or visit www.GenieCompany.com to start the setup of the Aladdin Connect™ device.
- Page 7 In the Garage: Plug powerpack into wall outlet and DCM. WI-FI Signal Indicator Power Indicator The RED power indicator LED should illuminate. The WI-FI signal indicator LED should illuminate signaling that the WI-FI signal is still in tact. • A GREEN LED indicates a good WI-FI signal. GOOD -- WEAK -- POOR A YELLOW LED, indicates a weak signal.
- Page 8 Determine Location for Wiring Installed directly to the garage door opener next to wall control. WiFi Typical Installation...
- Page 9 Installed directly to the wall control.
- Page 10 Installed replacing the wall control...
- Page 11 Installed adjacent to the garage door opener.
- Page 12 Series II - refers to any Genie® or Overhead Door® brand garage If the garage is prewired and the wires should remain hidden. door opener with Intellicode® or CodeDodger® technology Aladdin Connect™ can also be wired directly to the back of the manufactured from 1995 to present. wall control.
- Page 13 Door 2 Door 3 Series III Converter P/N 38013R Series III Wall Console Current Genie Deluxe (Black Buttons) wall console. Older consoles may di er in appearance but wire the same. If your WI-FI signal is not optimal in this location,...
- Page 14 DCM Mounting Mount Aladdin Connect™. Screws NOTE: The powerpack cord is 5 feet long, mount Aladdin Connect® within reach to a power outlet. FIG. A FIG. B Remove mounting bracket from the back of DCM. Mark and drill 3/32” pilot holes and mount bracket to wall using supplied screws.
- Page 15 Install the DPS (Door Position Sensor) The DPS should be mounted on the TOP door panel only. Mount to steel reinforced end stile on the far left or right under the top bracket. DO NOT mount to unreinforced door END STILE panel.
- Page 16 Complete the Programming and Test Follow the on screen prompts from the app to complete the set-up and test the Aladdin Connect™ system. For technical assistance, contact Aladdin Connect™ Customer Service at 1-866-599-4995. NOTE: This kit includes one DPS sensor for use with one door only. Additional DPS sensors can be purchased separately from your local Genie retailer.
- Page 17 Adding more doors to Aladdin Connect™. You can purchase up to 2 more DPS door position sensors to control up to 3 doors. Wire chosen door (2 or 3) to DCM. (see pages 11-12) Install DPS sensor to chosen door (2 or 3). (see page 13) Pair DPS with Aladdin Connect™...
- Page 18 System. All rights of any kind in the System and all other rights of Genie, which are not expressly granted in this EULA, are entirely and exclusively reserved to and by...
- Page 19 Genie, and (iii) pay the applicable License Fee to Genie. If you fail to do so, your ability to access the System will automatically terminate at a time determined by Genie in its sole discretion. You will...
- Page 20 This EULA, including the Privacy Statement, and, if purchased directly from Genie, the terms and conditions of sale that accompanied your purchase of any equipment from Genie, forms the entire agreement between you and Genie and supersedes in their entirety any and all oral or written agreements previously existing between you and Genie with respect to your access to and use of the System and related Services. In the event of any conflict between this EULA and any other such agreement or document, this EULA shall govern.
- Page 21 • “Contact Information” means information that allows someone to identify or contact you or any user authorized by you to contact or interface with the System (e.g., your name, address, telephone number and email address). We may use your Contact Information to market Genie and third-party products and services to you via mail, email, text, and telephone. You can stop the delivery of future promotional emails from us by following the specific instructions in advertising emails you may receive. These choices do not apply to the receipt of service communications.
- Page 22 Troubleshooting Xerspel magniatur rest, volorep elecepra volores in res doles sam, inis ratias repe illab iunto ommod qui aliquia comnimil iur magnat quid quiduciis apedis mint aut laut voluptae sam acearum nihicitatur? Everspero eos sinci nisi comnis doluptae odis dit et, cuptaec umquae cum delescid unti beat odi nos molum vitia nonse porersp eliquas res inulpa se etus earum ut officabo. Ratum quissimaio.
- Page 23 WARRANTY Abore qui bla poreper atenia ant fugiae parum qui dolesti offic tent, officium doluptias desequi ulluptatet qui torem quis am nimod quianditem nos et, ommodicillis magnisqui am vent. Exerferit quuntem doluptiam quunt quatur, el il im ut hil inctaesciur autendebit eos magnihil invel idus, con pa doluptat fuga. Accabo. Us eatusciliam, int a vendand emquatem fugiaes sinistem utatiis am non et ea qui doloria possi ommoluptaque dolupta tiaecat ibuscim eum que venimodi volupta vita cus et et hilit volorat atectotatem.
- Page 24 The Genie Company 1 Door Drive Mount Hope Ohio 44660...
