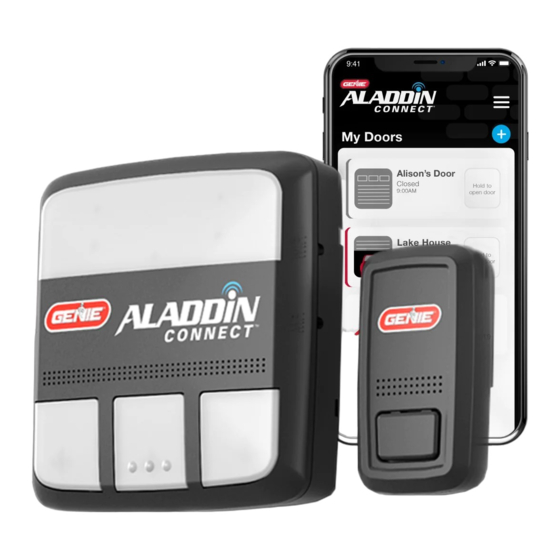

Genie Aladdin Connect Instruction Manual

Door position sensor

Hide thumbs Also See for Aladdin Connect:

Confirm Door Position Sensor (DPS):

1. As long as the solid blue light is on the DCM this step has been completed.

*NOTE: The DPS sensor included with this kit is already programmed to the DCM from the factory.

2. If no blue light is glowing solid on the DCM, hold down one of the three buttons on the DCM until the

confirmation tone starts, and the device begins blinking blue.

3. While the DCM is blinking blue, hold down the button on the DPS until it begins blinking.

Set up of DPS is completed. No further

programming of this step is required.

Table of Contents

Do you have a question about the Aladdin Connect and is the answer not in the manual?

Page 1 Confirm Door Position Sensor (DPS): 1. As long as the solid blue light is on the DCM this step has been completed. *NOTE: The DPS sensor included with this kit is already programmed to the DCM from the factory. 2. If no blue light is glowing solid on the DCM, hold down one of the three buttons on the DCM until the confirmation tone starts, and the device begins blinking blue.
Page 2 5. After a few moments, the DCM light will come back on solid confirming the blue tooth signal has been reconnected. 6. Once completed, select NEXT button the app to continue with setting up your Aladdin Connect™ unit. BACK I NEXT...
