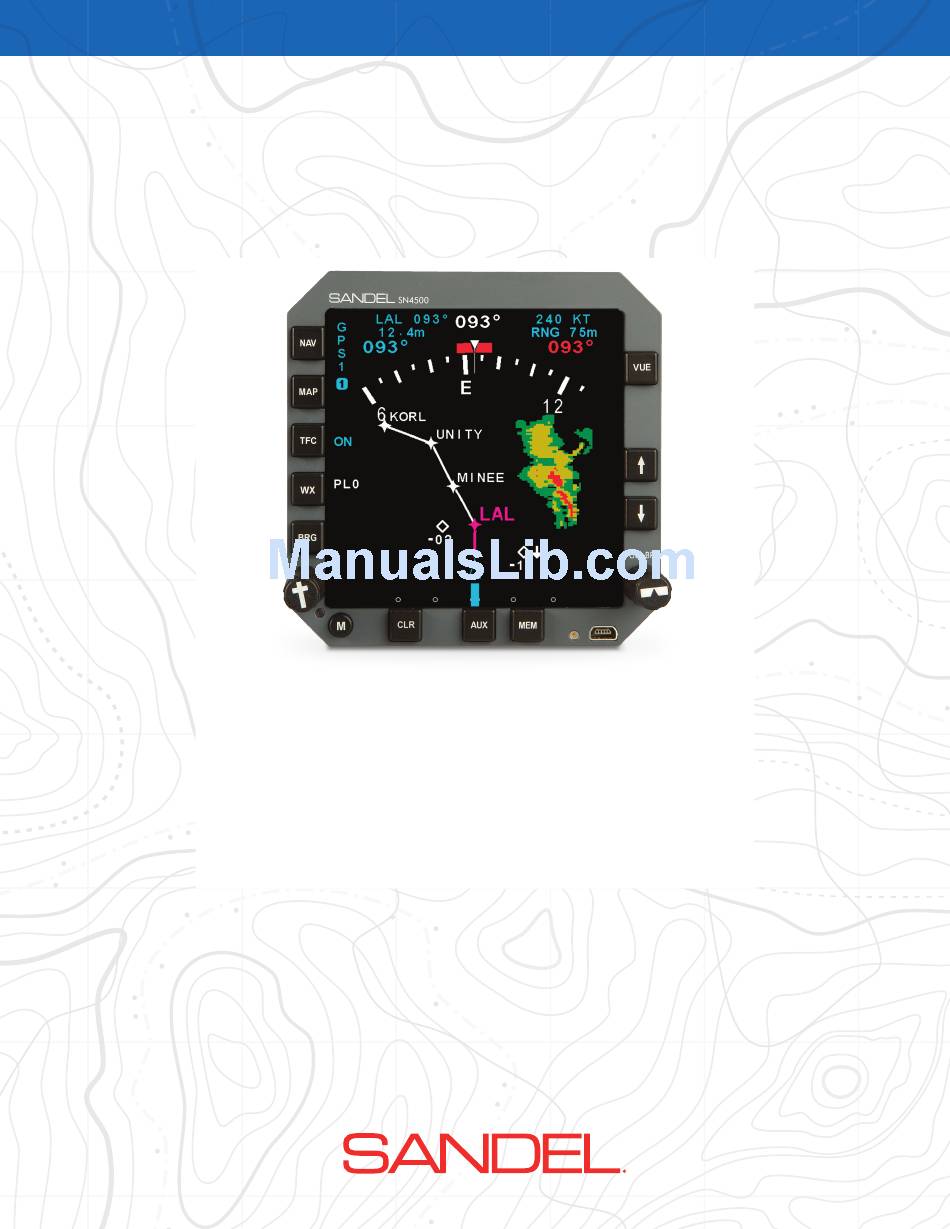

SN4500

4-ATI PRIMARY NAVIGATION DISPLAY

Offering modular convenience and flexibility, Sandel's SN4500 Primary Navigation

Display is the standard in NAV displays. Incorporating patented LED backlight

technology, the SN4500 is an ideal replacement for aging 4-in. and 5-in.

electromechanical HSIs. It gives your cockpit unmatched resolution, unbelievable

color, and a state-of-the-art technology update.

The SN4500 boasts a MTBF greater than of 10,000 hours. With Sandel's patented

display engine generating a resolution of 200 pixels per inch—unmatched in the

industry for brightness clarity, readability and color fidelity—you'll find the SN4500

transforms your panel as it gives you a better view of the airspace around you.

S e e what 's nex t

Need help?

Do you have a question about the SN4500 and is the answer not in the manual?

Page 1 HSIs. It gives your cockpit unmatched resolution, unbelievable color, and a state-of-the-art technology update. The SN4500 boasts a MTBF greater than of 10,000 hours. With Sandel’s patented display engine generating a resolution of 200 pixels per inch—unmatched in the industry for brightness clarity, readability and color fidelity—you’ll find the SN4500...
Page 2 (with bezel): 9.77 in (24.82 cm) 9.45 in (24.00 cm) from panel to FAA-certified as a primary navigation back of unit display, the SN4500 even incorporates Body 3.975 in x 3.975 in (10.10 cm x 10.10 cm) overlaid weather, along with traffic Bezel 4.060 in x 4.060 in (10.312 cm x 10.312 cm)
