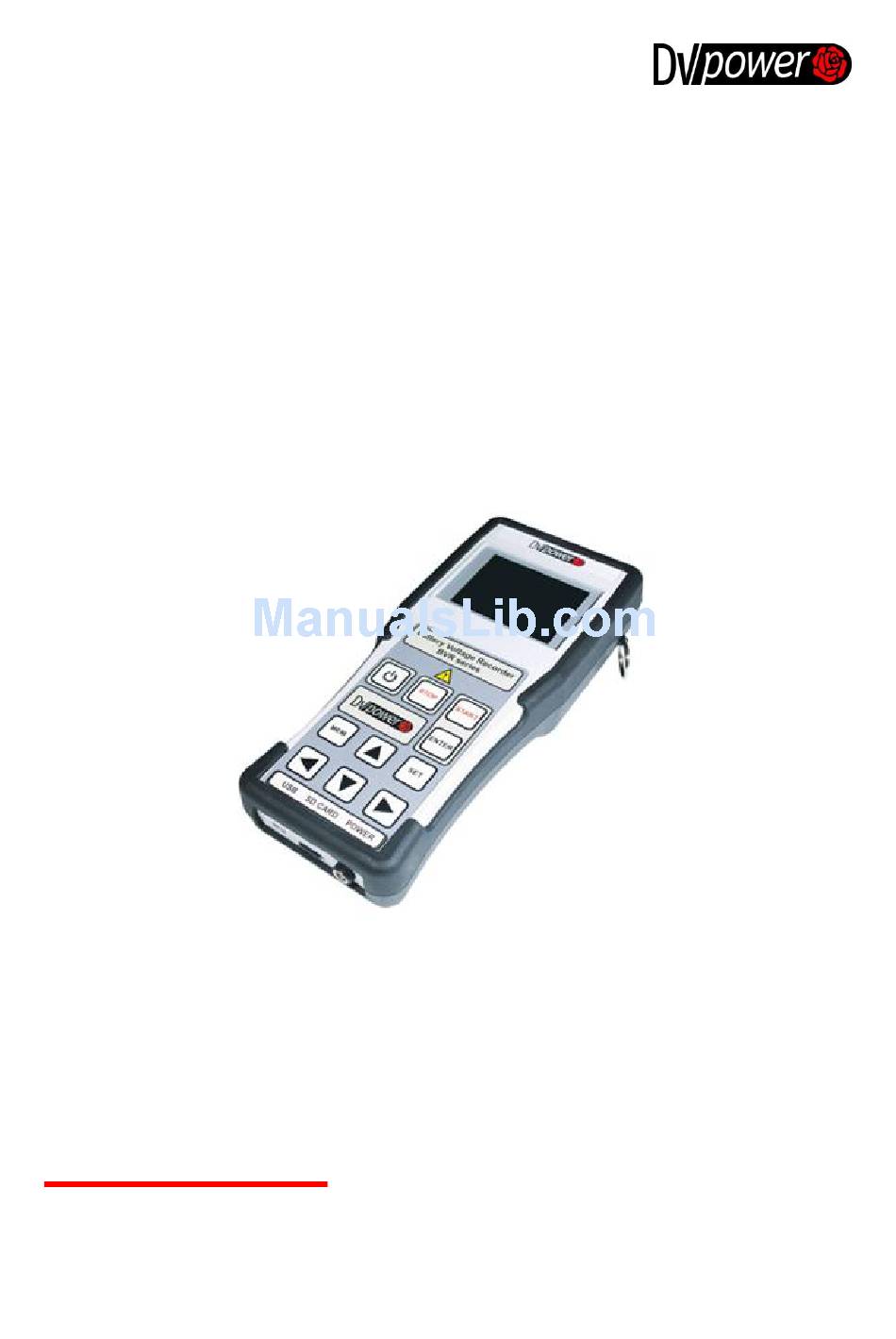

- Page 1 BATTERY VOLTAGE RECORDER BVR11 Manual Manual Version: M-B011VR-202-EN This Manual refers to the firmware version 1.14 Publishing date: 2016-08-08...
- Page 2 Battery Voltage Recorder BVR11 Contents Introduction ............................3 1.1........................ 3 AFETY NSTRUCTIONS 1.1.1. Terms of Use......................... 3 1.1.2. Orderly Practices and Procedures ..................3 1.1.3. Instrument Maintenance ......................3 1.1.4. Operator‟s Qualifications ....................... 3 1.1.5. Safe Operating Procedures ....................4 1.1.6.
-
Page 3: Introduction
1.1.1. Terms of Use The BVR11 shall be used only if it is in good technical condition. Its use shall be in accordance with local safety and industrial regulations. Adequate precautions must be taken to avoid any risks related to high voltages associated with this equipment and nearby objects. -
Page 4: Safe Operating Procedures
• Protection and control systems. The BVR11 can be used as an individual device, and also in a combination with the BLU series of devices. In this case, the BVR11 serves as an efficient support tool for a battery capacity testing process, offering cell voltage and ambient temperature measurement during the discharge process. -
Page 5: Description
Battery Voltage Recorder BVR11 2. Description Front Panel Components 2.1. Figure 2-1: BVR11 Front Panel 1. Operator Control 3,1„‟ color display Displays the settings during the device test mode selection as well as the measured values during and after a test operation. - Page 6 Battery Voltage Recorder BVR11 Figure 2-2: Voltage sense terminals 4. Interface The BVR11 is equipped with a Bluetooth and USB serial interface to connect to an external computer, if required. Figure 2-3: Mains power supply connector 5. SD Card To store the test results the BVR11 is equipped with a removable 2 GB Mini SD Card.
-
Page 7: Getting Started
Connecting BVR11 to a Test Object 3.1. Before the BVR11 has been connected to a test object (e.g. a battery), the following steps must be taken: • The test object should be examined in case of any visual damages or leakages. -
Page 8: S Etting M Easurement P Arameters
Battery Voltage Recorder BVR11 Setting Measurement Parameters 3.2. The Start message appearing on the BVR11 screen after turning on the device is shown in the Fig. 3-3. Figure 3-3: BVR11 Initial screen display 3.2.1. Main Menu Immediately following the first (initial) message on the display shown in the Figure 3-2, the BVR11 automatically changes the display to the Main Menu. -
Page 9: Measurement Menu
Voltage Recorder Mode. It enables the measured voltage value to be previewed, and stored in the BVR11 internal memory (Figure 3-5). Data is recorded in the Scan ID device memory location. If already used Scan ID is selected a message: "Memory location is already used" will be displayed. The user can decide to keep the same scan ID in which case the previously recorded data will be overwritten. - Page 10 3.2.2.4. String voltage measurement When the BVR11 detects voltage values within the range of a user selected string limit values in the Settings menu (Section 3.2.3), the BVR11 automatically enters in the String measurement mode. In this mode, the BVR11 stores measurement results in a special memory location assigned to the String values set of measurements.
-
Page 11: Memory Menu
Battery Voltage Recorder BVR11 3.2.2.5. Ambient temperature measurement The Measurement menu supports the ambient temperature measurement mode, as well. A temperature is measured automatically with every voltage measurement. Temperature results will be automatically saved in the Memory Menu under the same ID number as the scan number. -
Page 12: Settings Menu
The BVR11 automatically sorts all measurements by a date. A single scan recorded under the test name 1.2.3. represents the recorded voltage value for the cell Nb. 3 in the String Nb. 1, acquired during the Scan Nb. - Page 13 Auto: No. of cells field. In this way, the BVR11 calculates String limits as: String Min voltage: No. Of cells x Cell Min voltage String Max voltage: No.
- Page 14 Battery Voltage Recorder BVR11 Figure 3-16: Limits screen – Automatic calculation of String limits based on entered number of cells In case the value in the field “Auto: No. of cells” is equal to 0, the user should provide the string and cell limit values by his/her choice.
- Page 15 Battery Voltage Recorder BVR11 Figure 3-18: Bluetooth selection If the user is satisfied with the selected options, all the selections can be confirmed by pressing ENTER. M-B011VR-202-EN...
-
Page 16: Sd Card Initialization Error Messages
Battery Voltage Recorder BVR11 SD Card Initialization Error Messages The BVR11 device has one 2 GB Micro SD card installed. It is used to store internal device information, test data and it enables data export. 4.1. Initialization failure during startup of the BVR11 The SD card is initialized during the device startup stage. -
Page 17: Troubleshooting
100 mV Table 5.1: Resolution and full scale for each measurement range Typical accuracy of BVR11 is ± (0,1% rdg + 0,1% F.S) for voltage, with the full scale values shown in the Table 5.1. If suspected the device is presenting inaccurate results, the following tests should be performed: 5.1. -
Page 18: Customer Service
Battery Voltage Recorder BVR11 6. Customer Service Before calling or sending an e-mail to Customer Service for assistance, please perform the following steps: 1. Check all cable connections. 2. Try the test on another instrument, if available. 3. Perform the troubleshoot procedure 4. -
Page 19: Packing The Instrument For Shipment
Battery Voltage Recorder BVR11 7. Packing the Instrument for Shipment If you need to send the instrument to DV Power for servicing, please contact the DV Power Customer Service for return instructions at: Local support (Sweden): +46 8 731 78 24... -
Page 20: Technical Data
Battery Voltage Recorder BVR11 8. Technical Data Mains Power Supply Battery 1 Cell – 2 600 mAh Li-Ion Type Voltage 3,7 V Charge time 6 hours AC Adapter 90 – 264 V AC, 50/60 Hz Input voltage 127- 370 V DC ... - Page 21 Battery Voltage Recorder BVR11 Environmental conditions Temperature: -10 °C - +45 °C / 14 °F - +113 °F Maximum relative humidity 95 % for temperatures up to 31 °C/88 F, decreasing linearly to 40 % relative humidity at 55 °C/ 131 Dimensions and Weight ...
-
Page 22: Accessories
Battery Voltage Recorder BVR11 9. Accessories Instrument with included accessories Article No Battery Voltage Recorder BVR11 DV-B-Win software including mini USB cable BVR11X-NN-00 Transport bag and carrying belts Mains power adapter Recommended Article No Sense cables S2-0122-BPBP CACL-0300-08 Current clamp 30/300 A with internal battery supply and extension 5... -
Page 23: Manufacturer Contact Information
Battery Voltage Recorder BVR11 IBEKO Power AB 2016 This Manual is a publication of IBEKO Power AB, 181 50 Lidingö, Sweden.These documents are protected by Swedish Copyright law and international contracts as intellectual property of the IBEKO Power AB. The documents contain confidential information of IBEKO Power AB which is protected by patent, copyright, trademarks or otherwise as inventions, trademarks or creations of IBEKO Power AB.
