Ocean Signal MOB1 User Manual

LIFE JACKET INSTALLATION FOR WELDED-IN BLADDERS
Note: For description of parts mentioned below please refer to page 6 in the User Manual available on
line at http://oceansignal.com/wordpress/wp-content/uploads/MOB1-user-manual.pdf
If your rescueME MOB1 is not already pre-installed into the lifejacket, please follow the
instructions below carefully. The diagrams below assume that the life jacket inflation tube
is on the left hand side (as viewed). If the tube is on the right hand side then the activation
tape should be fitted on the opposite sides shown
•

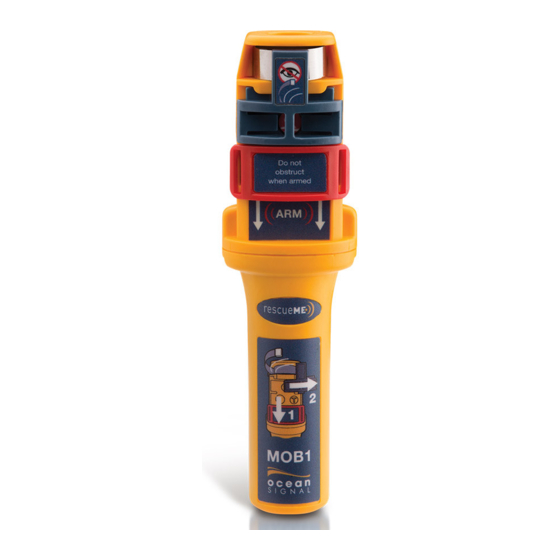

Slide the red Arming Slide down.
Carefully move the grey Activation
Slide to just expose the slot at the
edge of the slide. Do not move it too
far otherwise the antenna will be
released.
•
Pass the loop at the end of the Activation Tape through
the slot in the Activation Slide
and pass the tape back through
the loop. Return the Activation
Slide to the centre and move
the red Arming Slide back to
lock the slide in place.
•
Take the lifejacket Fixing Buckle (Supplied) and pass the tape through the slots as
shown below, making sure that tape does not get twisted.
•
Peel the protective backing off the
back of the Fixing Buckle Patch.
•
Stick the fixing Buckle to the buckle patch as shown.
MOB1 USER MANUAL Supplement
