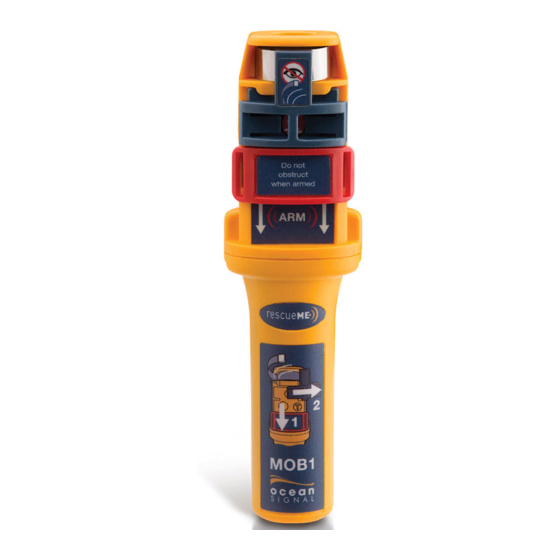

Ocean Signal rescureME MOB1 User Manual
Maritime survivor locating device
Hide thumbs
Also See for rescureME MOB1:
- User manual (8 pages) ,
- Quick start manual (4 pages) ,
- User manual (20 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ocean Signal rescureME MOB1
Summary of Contents for Ocean Signal rescureME MOB1

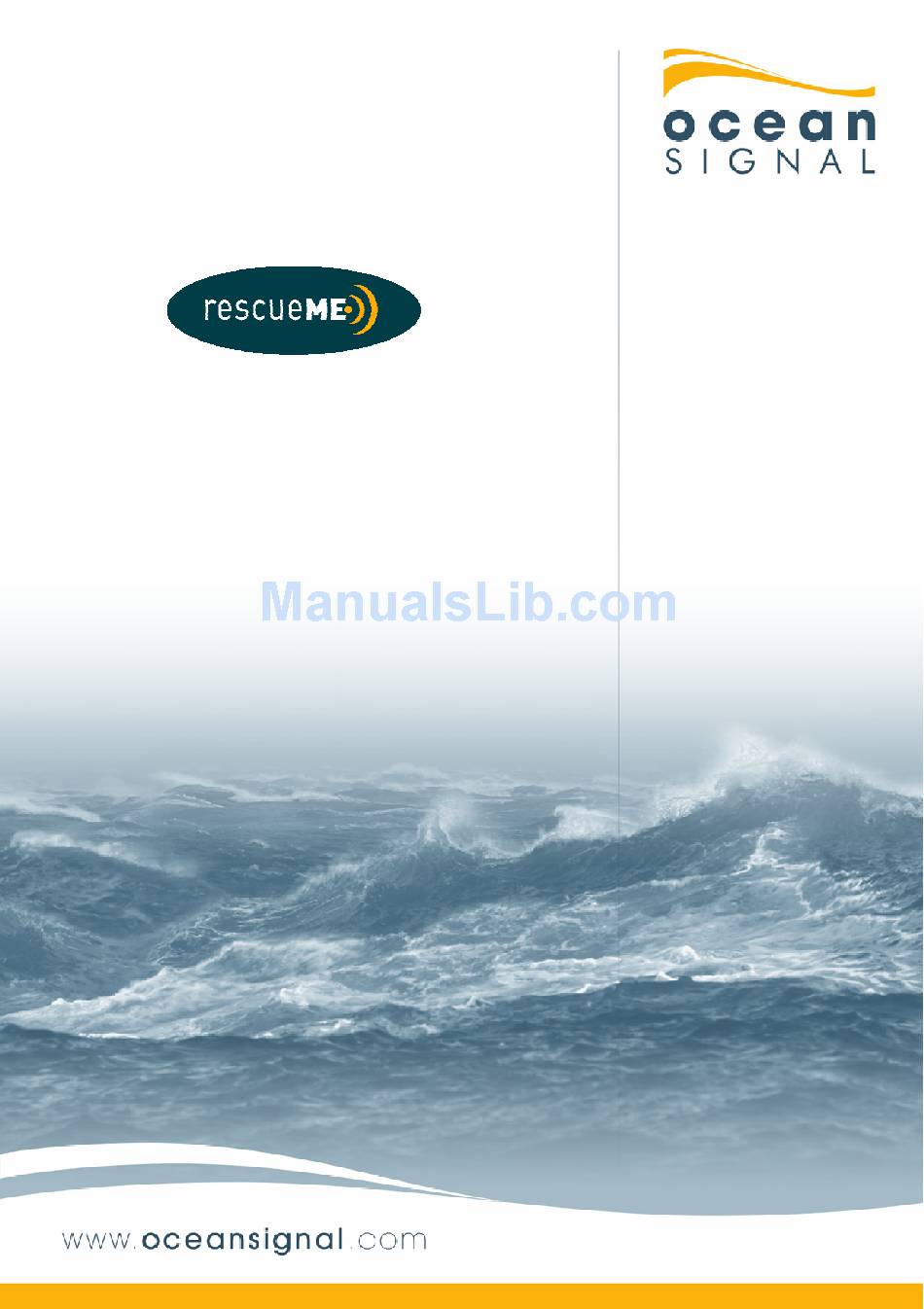

- Page 1 User Manual MOB1 Maritime Survivor Locating Device English...
- Page 2 The technical data, information and illustrations contained in this manual were believed to be correct at the time of print. Ocean Signal Ltd reserve the right to change specifications and other information contained in this manual as part of our continual improvement process.
-
Page 3: In Case Of Emergency
MOB1 USER MANUAL IN CASE OF EMERGENCY Use only in situations of grave or imminent danger NOTE: Refer to section 5.4 for deactivation instructions. Version 00.03 08/10/2014... -
Page 4: Table Of Contents
MOB1 USER MANUAL CONTENTS IN CASE OF EMERGENCY ..........................3 GENERAL ............................5 Introduction......................... 5 Exposure to RF Electromagnetic Energy ..............5 Warnings........................5 Lifejacket Installation .........................5 MMSI configuration ........................7 Self Identification......................7 User MMSI ........................7 MOB1 OVERVIEW ........................9 OPERATION ..........................10 Automatic Activation.................... -
Page 5: General
MOB1 USER MANUAL GENERAL Introduction The rescueME range of products provides the user with the latest technology specifically designed for compact size and ease of operation. Exposure to RF Electromagnetic Energy This product also complies with EN62479 (EU) and RSS-102 (Canada). This product has been evaluated for compliance with the FCC RF exposure limits given in CFR 47 part 1.307(b) at a distance of greater than 2cms. -
Page 6: Lifejacket Installation
MOB1 USER MANUAL Lifejacket Installation If your rescueME MOB1 is not already pre-installed lifejacket, please follow the instructions below carefully. • Loop the strap through the operating clip. • Clip the bracket to the MOB1 so that the MOB will be on the outside of the inflation tube. -
Page 7: Mmsi Configuration
MOB1 USER MANUAL • Arm the MOB. Once the MOB is fully attached to the life-jacket, you are ready to arm the device. • Testing • MOB Installation sticker MMSI configuration Self Identification The MOB1 is supplied with the self identification number pre programmed. This number is specific to each MOB1 and cannot be changed. - Page 8 MOB1 USER MANUAL entered, a second box for a group MMSI will appear. Enter you group MMSI here if available. On completion press the Update Device button to proceed. A new screen with further instructions will appear. Slide the arming key down to the armed position and fit the black rubber programming adaptor so that the push button is over the test key and the aperture is over the clear indicator window.
-
Page 9: Mob1 Overview
MOB1 USER MANUAL MOB1 OVERVIEW Antenna behind activation slide Activation slide Manual Activation Button Arming Slide (in safe position) Strobe and Indicator LED Test (and Off) button Arming Slider (in armed position) MOB1 Controls shown in activated condition Version 00.03 08/10/2014... -
Page 10: Operation
MOB1 USER MANUAL OPERATION WARNING: Use only in situations of grave and imminent danger. Misuse may result in a severe penalty. Ensure that your MOB1 is always fitted with an unused battery that is within the marked expiry date. Failure to do so may result in reduced operating time when used in a real emergency. -
Page 11: Deactivation
MOB1 USER MANUAL • Press and hold the ON key for over 5 seconds to transmit a single DSC All Ships Distress Alert. This should only be done in a dire emergency, if it is obvious that your alert is not being acted upon by you own vessel. -
Page 12: Testing
MOB1 USER MANUAL TESTING Routine testing of your MOB1 is recommended to ensure it is in good working order if needed, but please follow the guidance notes below on the frequency that tests should be carried out. Please remember that each test will reduce the battery capacity slightly and reduce the operation time of your MOB1 during an emergency. - Page 13 MOB1 USER MANUAL The AIS/GPS test should only be attempted with a clear view of the sky. Version 00.03 08/10/2014...
-
Page 14: Appendix
The MOB1 contains Lithium batteries for long operating life. Your battery must be replaced either after the expiry date or after the MSLD has been activated, even if only for a short period of time. Battery replacement must be done at an Ocean Signal authorised battery replacement centre. -
Page 15: Specifications
MOB1 USER MANUAL Specifications AIS transmission Transmit Power (EIRP .......................1Watt Frequency .................... 161.975/162.025MHz ±500Hz Baud rate ..........................9600baud Synchronisation ........................... UTC DSC Transmission Transmit Power (EIRP) ......................1Watt Frequency ........................156.525MHz Messages ....................Individual Distress Relay* ........................All Ships Distress Alert* Baud rate .......................... -
Page 16: Approvals
Con la presente Ocean Signal Ltd dichiara che questo MOB1 è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE Por medio de la presente Ocean Signal Ltd declara que el MOB1 cumple con Spanish los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE Portuguese Ocean Signal Ltd declara que este MOB1 está... - Page 17 MOB1 USER MANUAL Version 00.03 08/10/2014...
-
Page 18: Limited Warranty
Ocean Signal will at its discretion, repair or replace faulty product free of charge excluding the cost of shipping. Proof of purchase shall be required in order for a warranty claim to be valid from the original purchaser. All claims shall be made in writing to Ocean Signal or an approved service dealer. - Page 19 MOB1 USER MANUAL Version 00.03 08/10/2014...
