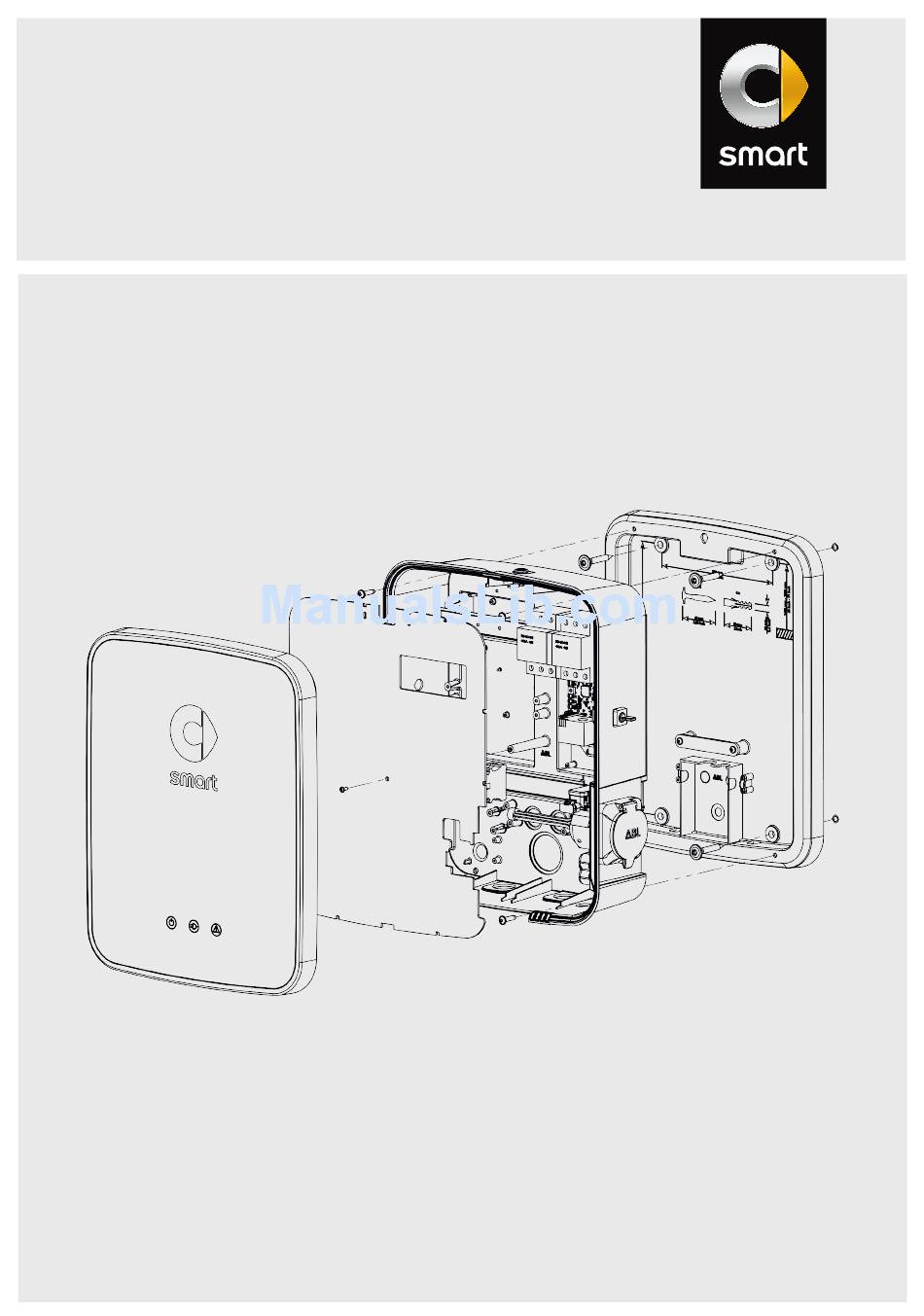

- Page 1 Wallbox >> Installation manual for specialist electrical contractors...
- Page 2 Mercedesstraße 137 70327 Stuttgart, Germany In case of technical questions, please contact your local smart technical support. This manual, in its entirety or in parts, must not be reproduced, stored electronically or otherwise transmitted electronically, electrically, mechanically, optically, chemically, by photocopy or as an audio recording without express written permission.
- Page 3 Contents. ii Important addresses. 1 Important information. 1 Preface. 1 About this manual. 1 Safety notices in this manual. 2 Safety notices on the device. 2 General safety information. 3 General product information. 4 Notes regarding installation. 5 Preparations, installation and taking into operation. 5 Introducing the product.
-
Page 5: Important Information
The model variants of the smart Wallbox can be identified by the product labels on the wallbox. These labels state the smart product identification number (exterior underside) as well as the ABL model num- ber (interior electronic components cover), but are identical regarding technical specifications. -
Page 6: Safety Notices On The Device
> Heed all warnings. > Follow all instructions. > The smart Wallbox is available with a range of country-specific specifications. Please use the iden- tification on the product label located on the underside of the wallbox to check whether the wallbox has been approved to be installed and operated in your country. -
Page 7: General Product Information
> Only use accessories intended and sold for the device by the manufacturer. > Do not operate this wallbox in close vicinity to running water or water jets: However, the smart Wall- box is sufficiently protected against water splashes and sprays according to IP54. -
Page 8: Notes Regarding Installation
(in the following called MCB(s), see also “Glossary & Definitions.” on page 27) in your domestic power supply and the RCCB: No further use of the wallbox is permitted in this case! Please contact your local smart tech- nical support! Notes regarding installation. -
Page 9: Preparations, Installation And Taking Into Operation
LED error code without having to open the housing. After be- ing taken into operation by a specialist contractor, the smart Wallbox is ready for charging at any time, while each charging process must be separately authorized via the integrated key switch. -
Page 10: Identifying Your Model Variant
Identifying your model variant. The smart Wallbox is available in a range of model variants that are mechanically and electrically tai- lored to different usage patterns. An additional product label with the specific smart product iden- tification number for the wallbox is located on the underside of the wallbox. -
Page 11: Requirements For The Power Supply
> The mounting area must have an even surface that provides sufficient sta- bility for installing the wallbox. > The required mounting area for the smart Wallbox is at least 512 x 429 mm (H x W). All of the mounting plate of the wallbox must be in contact with the 120 to mounting surface. -
Page 12: Mechanical Installation Of The Mounting Plate
> The power supply for the wallbox must always be protected by its own MCB and RCCB (at least Type A): Please always observe current national regulations regarding the selection of MCB and RCCB. Depending on the country, an RCCB with a different tripping type (e.g. Type B) may be prescribed. >... - Page 13 Wallbox Preparations, installation and taking into operation 9 Proceed as follows to drill the holes using the mounting plate: 1. Ensure that a sufficiently dimensioned power supply is available at the desired installation site. Otherwise, a power supply must be installed especially.
- Page 14 6. For the cable to enter from the top, you must in- stall the power supply such that it is inserted into the connection area from above and can be fixed using its allocated strain relief. PLEASE NOTE: The strain relief is not required if the power supply enters from the rear.
- Page 15 2.5 to 3 Nm. The wiring sequence is shown in the fol- lowing diagram and table. The supply cable for the single phase model variant A0009069106 is connected as follows: Designation Wire colors...
-
Page 16: Taking The Wallbox Into Operation
PLEASE NOTE! The smart Wallbox is preset for a charging current of 16 A by the factory. Should your domestic power supply provide a lower or higher charging current, you must reset the preset current for the wallbox accordingly before you replace the electronic com- ponents cover and then take the wallbox into operation. - Page 17 Wallbox Preparations, installation and taking into operation 13 LED display Description Then, the blue LED and the green LED flash to indicate the cur- rent version of the software (not relevant for operation). On completion the blue LED flashes every 5 seconds, the green LED and the red LED go out.
-
Page 18: Error Detection And Solutions
‡ Error detection and solutions. Should a malfunction occur during operation of the smart Wallbox, this is shown by the indicator LEDs on the lower part of the housing cover as an error code. To indicate certain operating states, the LEDs may... -
Page 19: Error Codes And Solutions
Wallbox Error detection and solutions 15 PLEASE NOTE! Should the power supply be faulty, please take the wallbox out of operation (see “Taking the product out of and back into operation.” on page 21) and contact your local smart technical support. Error codes and solutions. - Page 20 Solution: The wallbox automatically reinitiates the charging procedure every 60 seconds: If the error continues to occur, please contact your local smart technical support. Charging vehicles that require ventilation during the charging procedure is not possible with the smart Wallbox.
- Page 21 If the wallbox continues to or permanently displays error messages, take the wallbox out of operation (see “Taking the product out of and back into operation.” on page 21) and contact your local smart technical support. Repairs may have to be carried out before charging procedures can resume.
-
Page 22: Setup And Testing Modes
If a lower or higher charging current is provided by the domestic power supply, the factory preset for the smart Wallbox (16 A) can be altered in setup mode via the internal rotary encoders. However, the rated current indicated on the product label must not be exceeded under any circumstances. - Page 23 In both cases, please continue with step 6 in order to then restart the wallbox for normal operations. Testing mode During initial setup and during later operation, you can check the settings of the smart Wallbox in test- ing mode if there is no vehicle available. To do so, proceed as follows:...
- Page 24 Working step LED status Note 4. The wallbox will now start up in test- ing mode. DANGER! During testing mode, dangerous currents are applied to the charging contacts of the wall- box, which present a danger to life and limb: do not touch these contacts under any cir- cumstances and proceed with the following actions using extreme caution.
-
Page 25: Taking The Product Out Of And Back Into Operation
Wallbox Error detection and solutions 21 Position Description Explanation 10 A 13 A 16 A Setting the maximum 20 A charging current 30 A 32 A 64 A Return to factory setting (16 A) Testing mode See position 2... -
Page 26: Returning Your Wallbox
Should your wallbox display error messages permanently during installation or subsequent operation, or if it does not function properly, contact your local smart technical support. If the error can still not be resolved, repairs must be carried out. For this purpose, you must take the wallbox out of operation, uninstall it and return it via smart technical support. -
Page 27: Technical Specifications
Wallbox Appendix 23 ‡ Appendix. Technical specifications. Model Variant A0009069106 Compliance IEC 61851-1 / 61439-7 Grid connection for supply cable sizes of max. 3 x 16 mm² Rated voltage see product sticker Rated current 32 A, single phase Rated frequency 50 Hz Max. -
Page 28: Scale Drawings And Dimensions
Scale drawings and dimensions. The smart Wallbox is delivered fully assembled and quality checked. All dimensions as well as the mounting points are indicated in the scale drawings below. Mounting plate. Plan and elevation (all dimensions in mm) -
Page 29: Contact Chart Type 1/Type 2
Wallbox Appendix 25 Wallbox with fixed charging cable. Plan and elevation (all dimensions in mm) Contact chart Type 1/Type 2. L2/N Type 2 Type 1... -
Page 30: Guidelines & Norms
Guidelines & Norms. The smart Wallbox complies with the following standards and protection ratings: General guidelines. Guideline Explanation 2014/30/EU EMC Guideline 2011/65/EU RoHS 2 guideline 2012/19/EU WEEE Guideline 2014/35/EU Low voltage directive ElektroG Electrical and Electronic Device Statute Device safety standards. -
Page 31: Ce Certification And Compliance Declaration
Wallbox Appendix 27 CE certification and compliance declaration. The smart Wallbox carries the CE mark. The associated declaration of compliance is available for download in electronic format at www.yourwallbox.de. Glossary & Definitions. In the following, important abbreviations and terms used in this manual are explained. -
Page 32: Disposal Advice
Disposal advice. For the preservation and protection of the environment, the prevention of pollution and in order to improve the recycling of resources, the European Commission has is- sued a guideline (WEEE-Guideline 2002/96/EC and EAG-VO) according to which elec- trical and electronic devices are taken back by the manufacturer in order to have them properly disposed of or recycled. -
Page 33: Mains Connection Schemes
Wallbox Appendix 29 Mains Connection Schemes. Local voltage Country Local frequency Phase L1 Phase L2 Phase L3 Neutral 1-ph 3-ph (domestic applications) Albania 50 Hz 230 / 400 V Argentina 50 Hz 220 / 380 V Australia 50 Hz... - Page 34 Local voltage Country Local frequency Phase L1 Phase L2 Phase L3 Neutral 1-ph 3-ph (domestic applications) 110 / 220 V Taiwan 60 Hz 220 / 440 V Thailand 50 Hz 220 / 380 V Ukraine 50 Hz 230 / 400 V 220 / 380 V United Arab Emirates 50 Hz...
- Page 35 Wallbox...
- Page 36 The manufacturer may have made minor technical modifications to the product after publication of this installation manual. This may also have led to minor discrepancies in the appearance of the product. Any color differences are a result of the printing process. www.smart.com smart – a Daimler Brand Daimler AG, smart/MM, H336, Mercedesstr. 137, 70327 Stuttgart...
