CONNECTING THE GEOMAGIC TOUCH DEVICE
In this section you will setup the Geomagic Touch and plug in all of the cables. The following steps detail the Geomagic recommended
connection (Connection Setup below). The device requires certified Category 5 or higher ethernet cables.
NOTE: Exact appearance of your equipment may vary from that shown in the figures.
1.
Position the Geomagic Touch device in your workspace, using both hands to grasp the covers and base of the device. See
"PROPER HANDLING AND POSITIONING OF THE GEOMAGIC TOUCH DEVICE" on page 10
handle the device to reduce the risk of damage.
For a computer with no internet connection, follow the Driver Installation instructions found on page 2 of the Ethernet Adapter
manual (that came with your adapter).
2.
Connect the Ethernet Adapter, if you have not already installed the driver – wait a few minutes for the driver to be automatically
installed (you must have an internet connection).
3.
Connect the Geomagic Touch Device (Ethernet cable and power supply) as shown below. Connect the Ethernet cable to the
Adapter and then to either the
3D Systems, Inc.

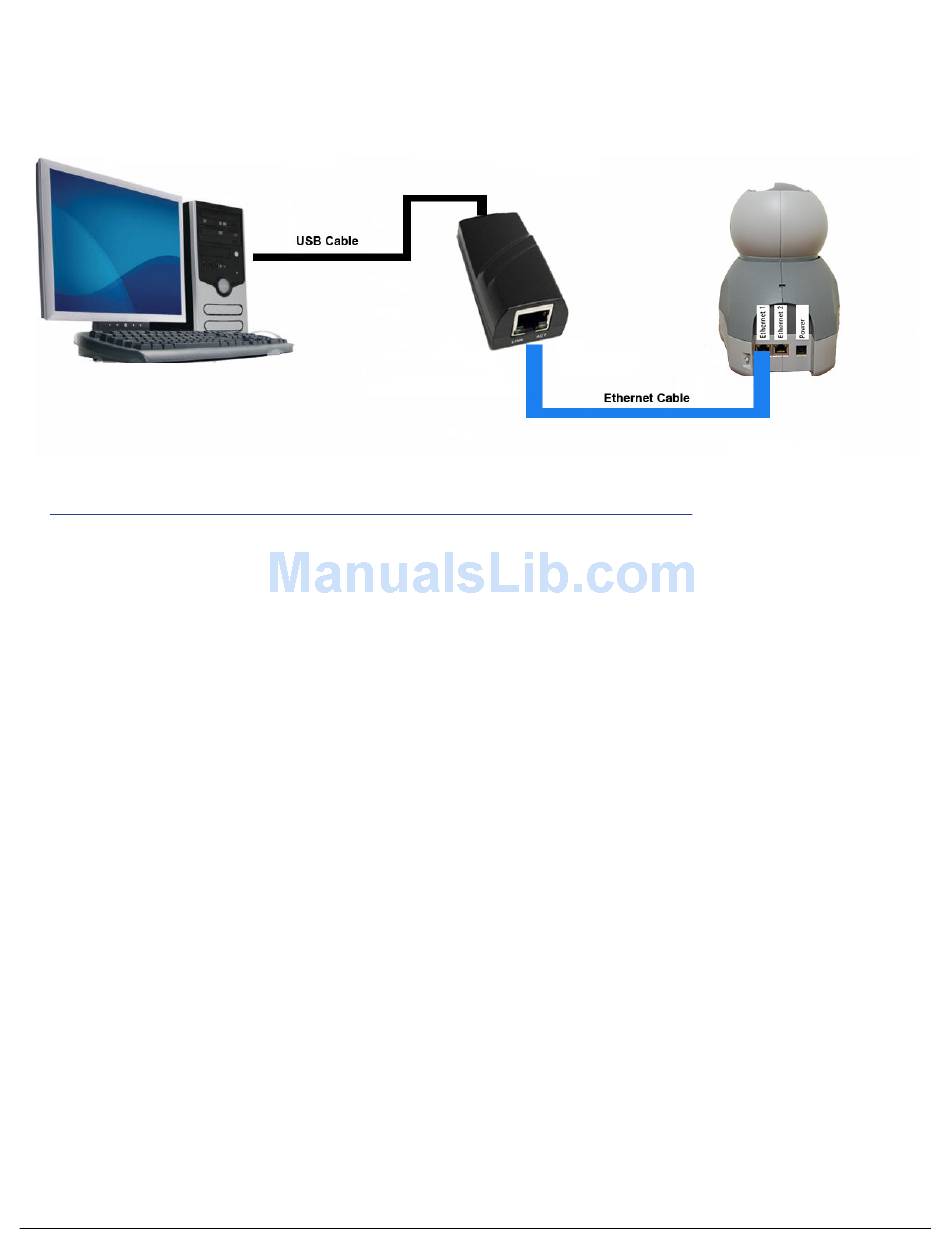

Connection Setup
ETH 1
ETH 2
or
ports on the device.
6
for instructions on how to
