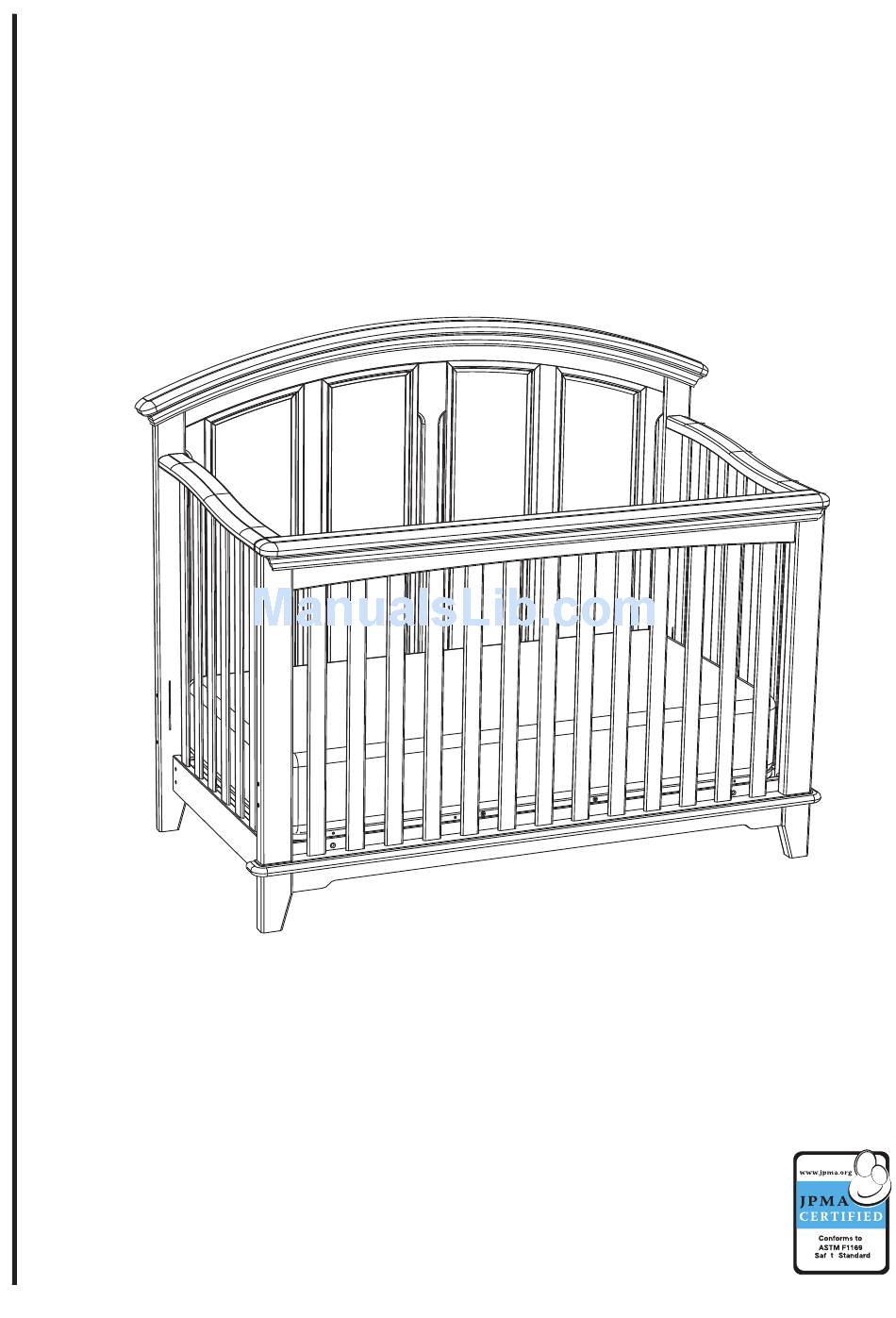

- Page 1 Assembly Instructions Jonesport Convertible Crib...
- Page 3 Congratulations on your purchase of a Westwood product. We take great pride in the quality and design of our furniture. The safety of your child is our highest priority. It is important that you read these instructions carefully and completely to ensure that this product functions as it was designed. After opening the package, check to see that all the parts are present.
- Page 4 Hardware (Enclosed in Bag): 8 x Barrel Nut 8 x Allen Bolt, 3-1/8” Long 8 x Wing Nut 8 x Phillips Screw, 1-3/8” Long 6 x Allen Bolt, 2” Long 6 x Allen Bolt, 3” Long 6 x Allen Bolt, 1-1/8” Long 6 x Cap Nut Allen Wrench...
- Page 5 Step 1 A. Position the stabilizer bars so that the four large holes face the inside of the crib. The two smaller holes for the spring deck should be at the top. B. Place a barrel nut (I) in the hole, with the slot aligned horizontally. C.
- Page 6 Step 2 A. Open all 4 support arms on the spring platform as shown in the drawing. B. Place a screw through the stabilizer bar as shown, then through the support arm on the spring. Thread on a wing nut and tighten securely. C.
- Page 7 Step 3 A. Thread the allen bolt (N) through the back of the headboard into the fitting on the back of the crib side. Tighten securely using the allen wrench. B. Repeat for the other 5 holes. Required Hardware 6 x Allen Bolt, 3” Long (N) Allen Wrench (R) Allen Bolt (N)
- Page 8 Step 4 A. Thread the allen bolt (O) through the back of the corner post on the crib side into the fitting on the back of the footboard. Tighten securely using the allen wrench. B. Repeat for the other 5 holes. Required Hardware 6 x Allen Bolt, 2”...
- Page 9 Mattress Height Adjustment As the child grows and becomes more mobile, the mattress support should be adjusted to a lower position. By the time the child can stand, the mattress should be in its lowest position. A. Carefully tip the crib onto its back. B.
- Page 10 Day Bed Conversion A. Remove the 6 bolts attaching the footboard to the crib, and remove the footboard. Save all hardware for future reassembly of your crib. B. Insert the allen bolt (P) through the hole in the corner post, and thread it into the cap nut as shown.
- Page 11 Do not use any toxic stripping methods to remove the old finish. November 29, 2010 westwood design 635 N. Billy Mitchell Rd., Ste. B Salt Lake City, UT 84116 Phone: 1-908-719-4707...
