Summary of Contents for Kiyo D ULTIMATE

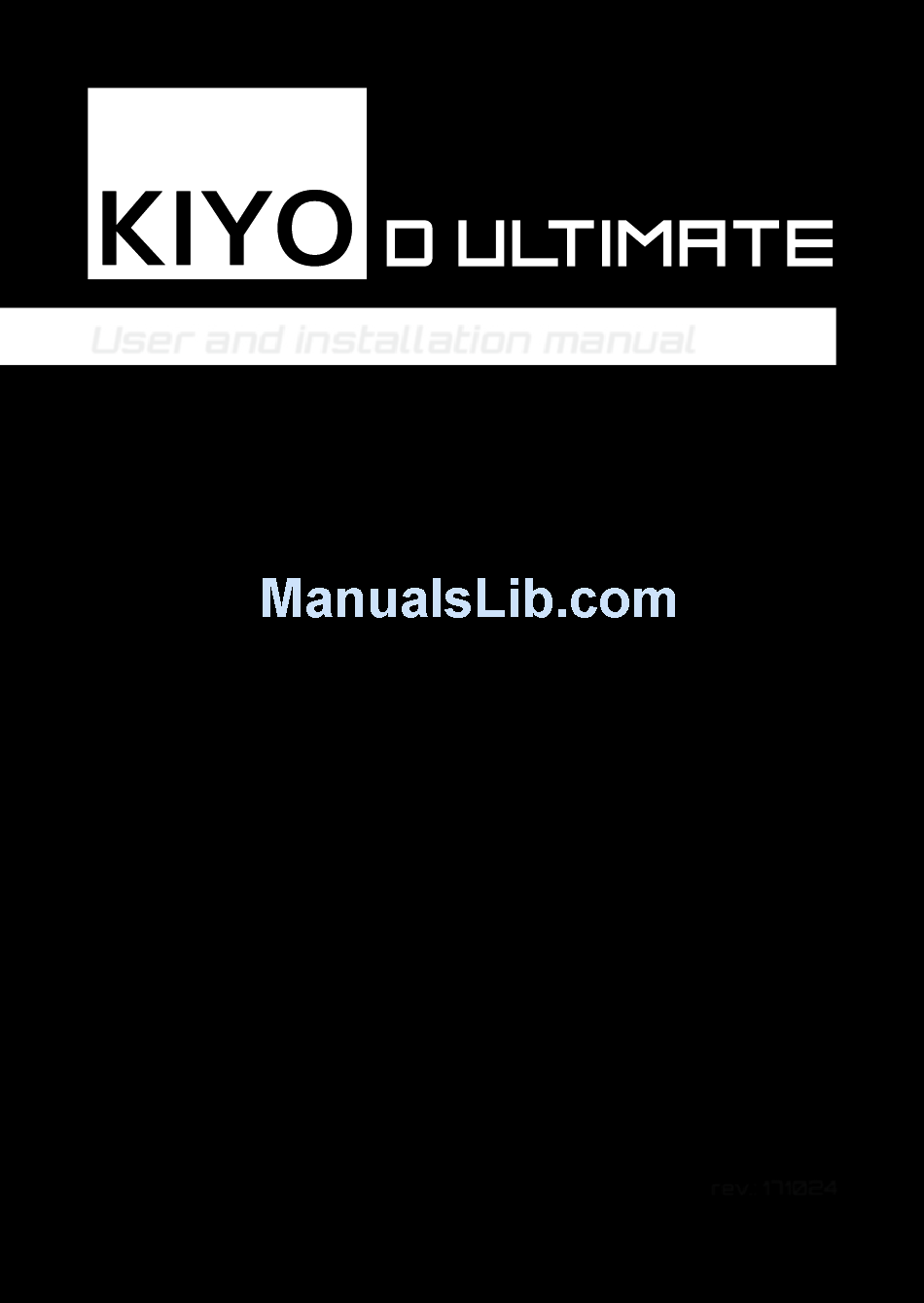

- Page 1 User and installation manual rev.: 171024...
- Page 3 Complete Speed Capture Defense System COMPLETE SPEED CAPTURE DEFENSE SYSTEM – ALL IN ONE PACKAGE The KIYO D Ultimate system ensures safe driving conditions by detecting all types of speed enforcement cameras that may occur in traffic. With the help of its radar antenna, laser sensors and updatable GPS database, it warns the driver to fixed- and mobile cameras, LIDAR speedcams, average speed cameras and to many other dangers.
- Page 4 COMPONENTS OF THE KIYO D ULTIMATE SYSTEM For the best efficiency of the KIYO D Ultimate system, it is recommended to trust experienced professionals with the installation of the system. For the proper operation and efficiency of the laser unit, the different components must be installed precisely, furthermore, the number and position of the required sensors may vary in each vehicle.
- Page 5 6. Central unit of the D Ultimate laser module: The D Ultimate laser module connects to the GPS U1 unit with the Communication cable included in the set. The power supply of the whole system in ensured by the laser module, therefore it must be connected into the electrical system of the vehicle.
- Page 6 KIYO GPS U1 Short product description The KIYO GPS U1 is a device that can detect fixed speed cameras. In order to create a complete defense system against speed cameras, it can be connected with a radar- and a laser detector module. It receives and processes all of the other modules’ signals and warns the driver to imminent dangers.
- Page 7 Communication cable and other accessories Installation and operational information To establish a complete system, the KIYO GPS U1 and the KIYO D Ultimate devices must be connected with the Communication cable included in the package. KIYO D Ultimate KIYO GPS U1...
- Page 8 Laser Module User and installation manual The KIYO D Ultimate is an active laser detector, developed and manufactured in Hungary, especially for European markets. With its laser sensors (hidden into the special license plate frame), it is able to detect most of the European speed cameras and it can be installed quickly and easily.
- Page 9 COMPONENTS OF THE KIYO D ULTIMATE LASER DETECTOR: Central unit Sensor (2 / 4 pieces) USB extension cable Pendrive Plastic card Hex key License plate frame (1 / 2 pieces) Power cable...
- Page 10 INSTALLATION OF THE LASER UNIT: The operation and efficiency of the laser detector depend on the number of sensors used, their precise installation and proper aligning. The structure and size of the vehicle determine the number of the required sensors. One central unit can handle up to 4 sensors, however, bigger vehicles and the detection of special speed cameras may require 6-8 sensors.
- Page 11 If the license plate frame of the vehicle is angled, then for the best efficiency, the sensors have to be aligned to be parallel with the road. The angle of the sensors can be adjusted with the screw on the side of the mounting bracket. Sensor ►...
- Page 12 c) If the license plate frame of the vehicle is angled, then for the best efficiency, the sensors have to be aligned to be parallel with the road. The angle of the sensors can be adjusted with the screw on the side of the mounting bracket. Remove the sensors from the special frame and fasten it to the vehicle.
- Page 13 f) Lead the sensor cables into the cabin, but pay attention that they cannot touch any rotating, moving or sharp parts, or hot surfaces (radiator, fan, engine block, etc.)! Do not stretch the cables too much, but they cannot be too loose either. Fasten the cables with cable ties or with electrical tape! Never knot or break the cables, because damaged cables may lead to malfunction of the device and to the loss of warranty! g) Connecting the sensors to the central unit:...
- Page 14 Connecting the power cable 4. Mode switch: Install the mode switch on- or under the dashboard, where you can reach it while driving. If the size of the switch is right, tt is recommended to place the switch into an empty slot on the dashboard.
- Page 15 CONFIGURATION AND SOFTWARE UPDATE OF THE LASER UNIT: The KIYO D Ultimate laser unit can be configured and its software updated with the help of a pendrive and a computer. The setup and update software can be downloaded from the website of the manufacturer: https://kiyotechnology.com.
