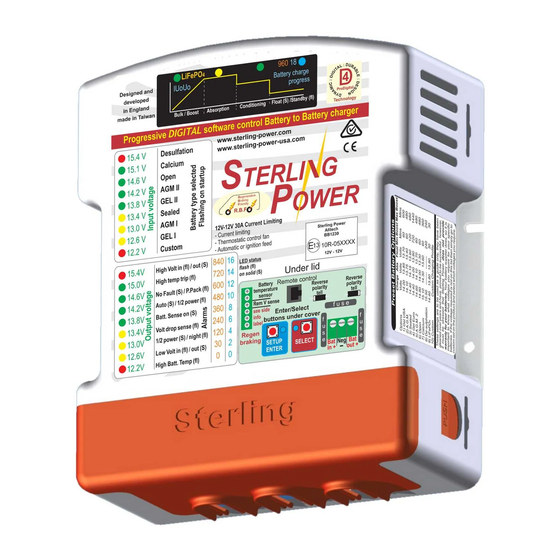

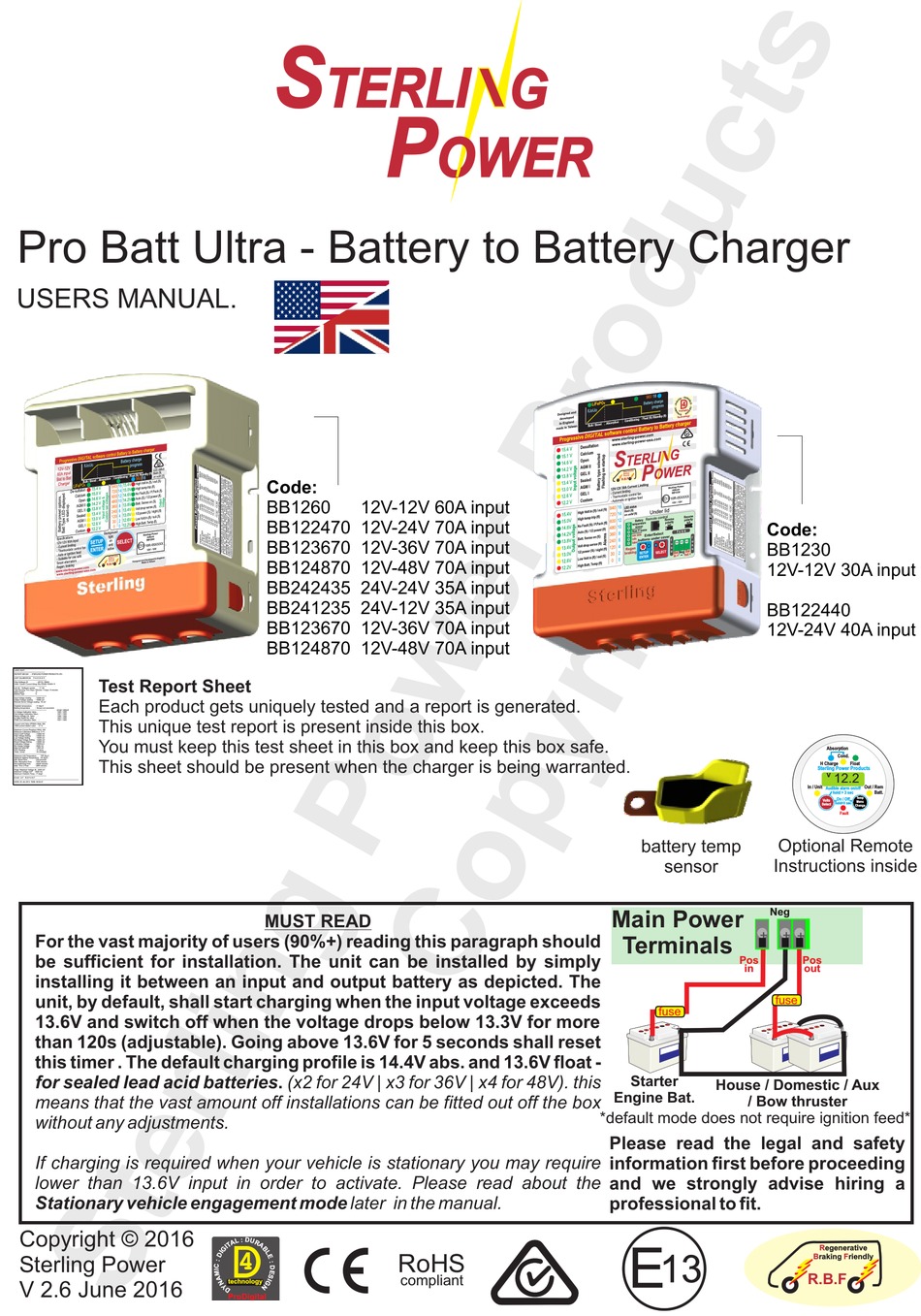

Pro Batt Ultra - Battery to Battery Charger
USERS MANUAL.

Test Report Sheet

Each product gets uniquely tested and a report is generated.
This unique test report is present inside this box.
You must keep this test sheet in this box and keep this box safe.
This sheet should be present when the charger is being warranted.
For the vast majority of users (90%+) reading this paragraph should
be sufficient for installation. The unit can be installed by simply
installing it between an input and output battery as depicted. The
unit, by default, shall start charging when the input voltage exceeds
13.6V and switch off when the voltage drops below 13.3V for more
than 120s (adjustable). Going above 13.6V for 5 seconds shall reset
this timer . The default charging profile is 14.4V abs. and 13.6V float -
for sealed lead acid batteries. (x2 for 24V | x3 for 36V | x4 for 48V). this
means that the vast amount off installations can be fitted out off the box
without any adjustments.
If charging is required when your vehicle is stationary you may require
lower than 13.6V input in order to activate. Please read about the
Stationary vehicle engagement mode later in the manual.
Copyright © 2016
Sterling Power
V 2.6 June 2016
S
TERLI G
P
Code:
BB1260
12V-12V 60A input
BB122470 12V-24V 70A input
BB123670 12V-36V 70A input
BB124870 12V-48V 70A input
BB242435 24V-24V 35A input
BB241235 24V-12V 35A input
BB123670 12V-36V 70A input
BB124870 12V-48V 70A input
MUST READ
4
RoHS
compliant
technology
ProDigital
OWER
*default mode does not require ignition feed*
Please read the legal and safety
information first before proceeding
and we strongly advise hiring a
professional to fit.
Code:
BB1230
12V-12V 30A input
BB122440
12V-24V 40A input
Optional Remote
battery temp
Instructions inside
sensor
Neg
Main Power
+
+ +
Terminals
Pos
in
fuse
fuse
Starter
House / Domestic / Aux
Engine Bat.
/ Bow thruster
Absorption
Cond.
H Charge
Float
Sterling Power Products
V
12.2
In / Unit
Out / Rem
Audible alarm on/off
hold > 3 sec
Batt.
Temp
On / Off
Volts
Menu
hold>3 sec
Select
Change
Fault
Pos
out
Regenerative
B
raking riendly
F
R.B.F
