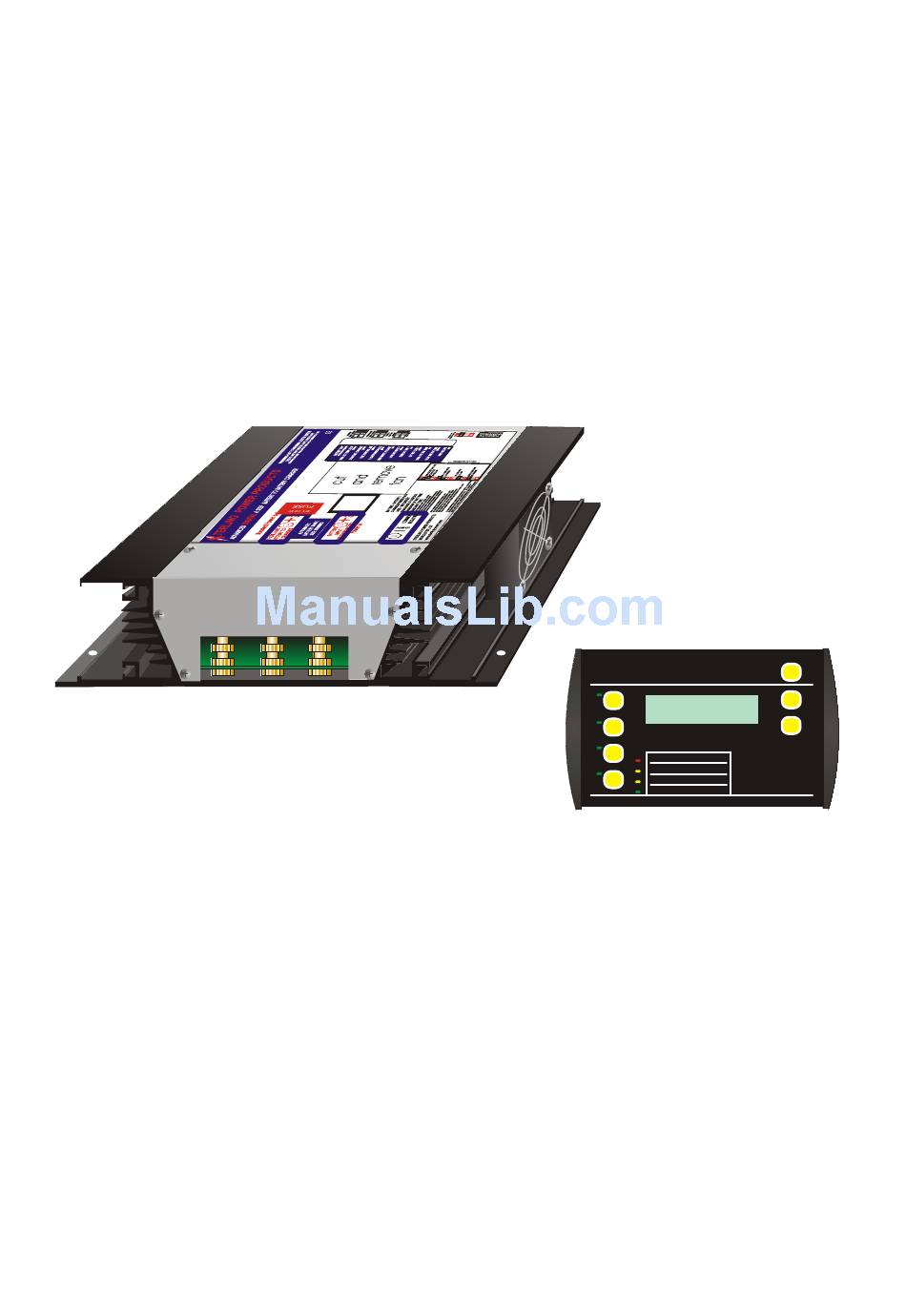

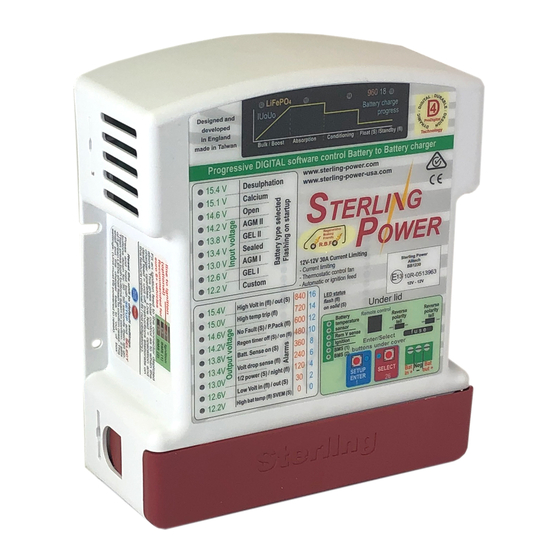

BATTERY - to - BATTERY CHARGER
Advanced charging technology
Installations Instructions
& manual
Installations- und
Bedienungsanleitung
REMOTE CONTROL
Battery-Battery
Charger
1
14.4 V
timer
40.2 A
134 min
2
3
1
Alarm shutdown
2
System disengaged
4
3
Low input voltage
4
System o.k.
Sterling power products
ORDER NO: BBDRC
BB121250
BB122430
(OPTION)
on/off
alarm
alarm
light
CE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sterling Power Products BB121250
Summary of Contents for Sterling Power Products BB121250
- Page 1 TERLING POWER PRODUCTS BATTERY - to - BATTERY CHARGER Advanced charging technology Installations Instructions Bedienungsanleitung & manual Installations- und BB121250 BB122430 REMOTE CONTROL (OPTION) Battery-Battery Charger on/off alarm alarm 14.4 V timer 40.2 A 134 min light Alarm shutdown System disengaged Low input voltage System o.k.
- Page 2 Full System wiring.(including optional remote kit if used) Remote control and information panel ( optional remote kit ) Power Management Battery-Battery Charger with AMP Hr Counter Bat 14.4v Timer 14.35 v m Pos 4 37amps 435 a/hrs Alt 15.4v 134m System Amps System Trip...
- Page 5 By now I hope most people understand that the best way to charge a battery is using a 4 step battery charging curve, which cannot be achieved from a standard alternator . This system enables one to simply attach the unit to a standard engine battery and it will fool the alternator into working at its maximum ability in order to ensure all its surplus power, utilised to charge the auxiliary battery bank to its maximum.
- Page 6 Program the battery type into the unit, go to the battery type program dip switches on the unit and set the battery type accordingly. There are 3 main battery types, Non sealed lead acid or sealed lead acid, where you can unscrew the lid of the battery and are able to top it up with water, these are by far the best type for fast charging and long life.
- Page 7 If on start up nothing happens, test the battery voltage. It should be above 11 volts, to see the unit working start up the engine and ensure you are getting at least 13.5 volts at the battery. Auto pause switch off. The units has a automatic program cycle which works 3 minuets off and 20 minuets on etc etc until the batteries are charger, this cycle is to ensure the engine start system is well looked after and is bias in the engine starter battery's favour.
- Page 8 BATTERY OUTPUT OVER TEMPERATURE: Red : This shows that the battery temperature sensor has picked up a temperature in excess of 50 deg C at its source ( where ever you have fitted it ) this will trip the unit until it has been reset.
- Page 9 Push button marked 2 again: screen E/b battery you are charging. ( a less current but higher voltage ) Screen F/a: Push button marked 3 information depending on the system cycle, it is informing you., WET OPEN= wet open lead acid cell batteries, this shows that the system battery type dip switches are set for wet cell batteries,( 14.8 v max setting ) Bulk charge refers to the initial charge rate, this could change to a timer, then adventually change to float ( float charger 14 volts )
