Saveo Scan M22D-BH User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

info@saveoscan.com

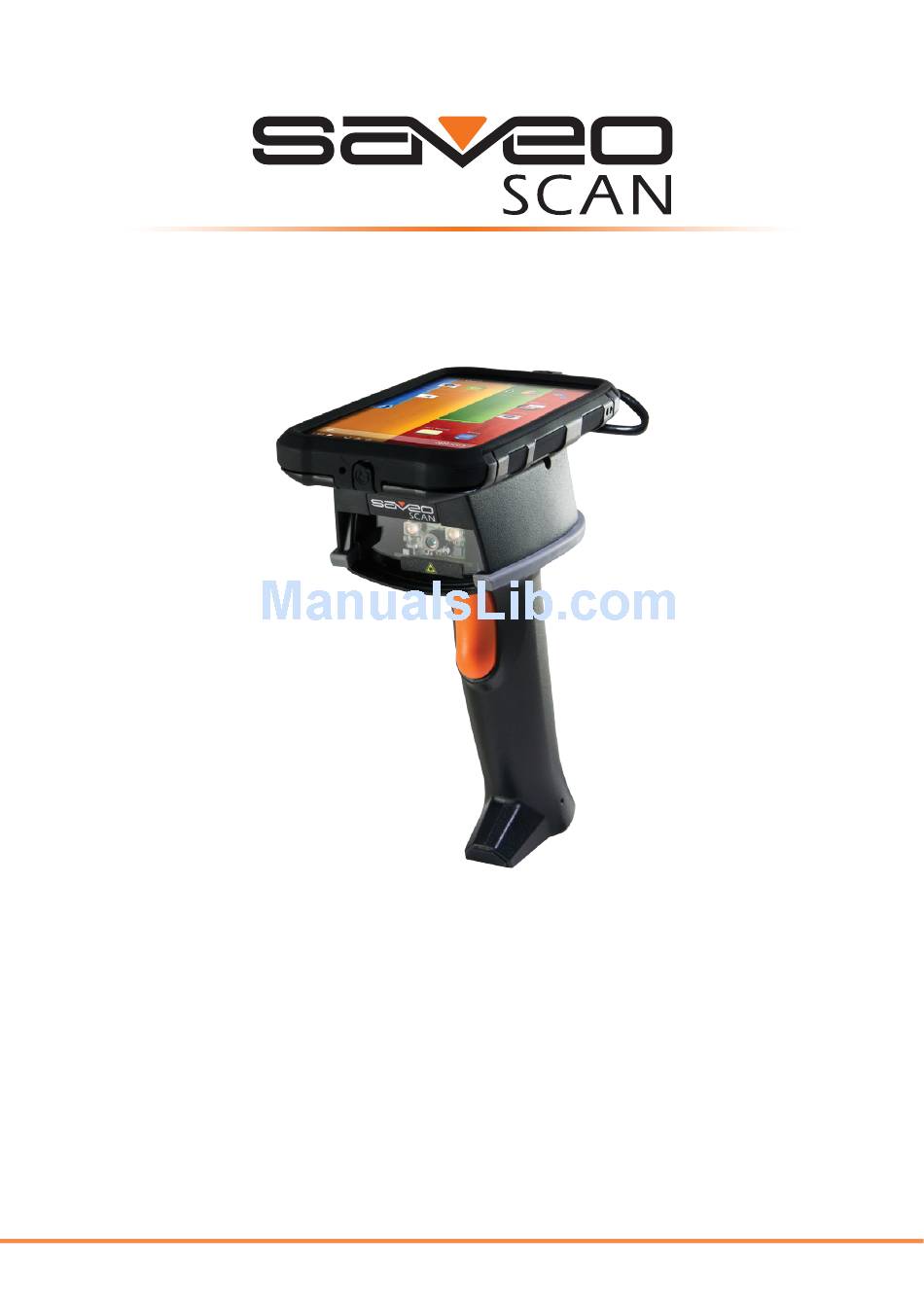

www.saveoscan.com
Scanning with Simplicity
SAVEO-SCAN-M22D-BH
User Guide
* shown with Motorola MOTO G
US PH: +1 847 448 0412
UK PH: +44 208 0998071

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M22D-BH and is the answer not in the manual?

Questions and answers

Related Manuals for Saveo Scan M22D-BH

Summary of Contents for Saveo Scan M22D-BH

  • Page 1 Scanning with Simplicity SAVEO-SCAN-M22D-BH User Guide * shown with Motorola MOTO G info@saveoscan.com US PH: +1 847 448 0412 www.saveoscan.com UK PH: +44 208 0998071...
  • Page 2 Contents Introduction Introduction General Information Product Information Getting Started Operating Elements LED Indicator Attaching your phone to the scanner Connecting via wired USB OTG Connecting to iOS via Bluetooth Connecting to Android via Bluetooth Unpairing your device User Preferences Operating Modes Reset to Defaults Battery Level Status Power Saving Mode...
  • Page 3 Contents PDF417 MicroPDF417 Data Matrix Maxicode QR Code Redundancy Level Security Level Intercharacter Gap Size Macro PDF Features Inverse 1D barcodes Miscellaneous Scanner Options Introduction Miscellaneous Scanner Parameter Defaults Transmit Code ID Character Prefix/Suffix Values Data Transmission Format Transmit “No Read” Message Appendix Appendix A : Standard Default Parameters Appendix B : Symbol Code Identifiers...

  • Page 4: Introduction

    Introduction Introduction This document provide an easy way to program the decoding options and interface selections by scanning bar codes listed in this guide. Important Notice When printing barcodes for programming, the use of a high-resolution laser printer is strongly suggested for the best scan result. The settings shall be updated periodically without prior notice.

  • Page 5: General Information

    Introduction General Information Thank you for purchasing this barcode scanner with an advanced and versatile decoder. The decoder works with variety of barcode types,reading devices, and interfaces. It discriminates over twenty different symbologies automatically. This menu provides an easy way to configure the decoding options and interface selections by scanning barcodes listed in the menu.

  • Page 6: Product Information

    1 x Micro USB cable 1 x Quick Guide Limited Warranty Saveo Scan provides a one year limited warranty. This warranty does not cover any product which has been subject to improper use, neglect or unauthorized repair or installation. This warranty does not cover consumable parts. (Cables & batteries are consumables.)

  • Page 7: Operating Elements

    If you want to charge smartphone and scanner simultaneously, please switch scanner to C (Charge Mode) before placing it in the cradle. Power on Saveo Scan On the underside of the scanner you will find a small recessed button. Use a pen or paper clip to push the button until you hear a notification sound.
  • Page 8 Getting Started Operating Elements *Please remove the protective sticker from window before use Universal Holder Exit Window Trigger/Power On button Wrist Strap Micro USB Cable Use Micro USB cable to connect to smartphone/tablet Switch for O (Operation Mode) and C (Charge Mode) LED indicator Charging Cradle Table of Contents...

  • Page 9: Led Indicator

    Getting Started LED Indicator Please refer to the table below for information regarding LED status indicator. LED Indicator Information Orange LED ON Full charged Orange LED (Flashing) Charging / Low battery Red LED ON Offline / Out of Range Green LED ON Good read Orange LED ON Good read (Batch mode)

  • Page 10: Attaching Your Phone To The Scanner

    Getting Started Attaching your phone to the scanner Attaching your smartphone to scanner using the universal holder Extend the retractable arm before placing phone in holder and then pushing it firmly back against the phone. You can view a video deomonstration here: http://youtu.be/-x-n6RMleUY Extend retractable arm Press button and slide outwards to...
  • Page 11 Getting Started Attaching your phone to the scanner Attaching your phone to scanner using the smartphone ruggediser The ruggedised case can be attached directly to the top of the scanner. The case has two components, an inner silicone cover and an outer layer of hardened polycarbonate, offering excellent protection while also allowing the phone to be removed with ease.
  • Page 12 Getting Started Attaching your phone to the scanner Connect phone to scanner with Micro-USB cable As USB connection locations vary on different models of smartphone, the cable can be configured for your specific model. Please Note: The Micro USB connection supports charging on all connected devices and data transfer on USB OTG capable devices only.

  • Page 13: Connecting Via Wired Usb Otg

    Getting Started Connecting via wired USB OTG Switch scanner to O (Operation Mode) You can view a video deomonstration here: http://youtu.b e/FjAGjhohgpA Switch to left: O (Operation Mode) Scan the Wired USB OTG Communication barcodes below in order (A1 -> A2). Demo %E%R%A Demo...
  • Page 14 Connecting via wired USB OTG Confirm scanner is connected Saveo Scan is detected by your smartphone as an external keyboard. A message will appear on screen to notify you that a USB device has been connected. You are now connected. Start scanning.

  • Page 15: Connecting To Ios Via Bluetooth

    Getting Started Connecting to iOS via Bluetooth Switch scanner to C (Charge Mode) You can view a video deomonstration here: http://youtu.be/61lcqrMzJ5c Switch to right: C (Charge Mode) Scan the Wireless Bluetooth Communication barcodes below in order (B1 -> B2). Please Note: When Bluetooth is enabled, the LED will remain red until the scanner has been paired with a Bluetooth device.
  • Page 16 Getting Started Connecting to iOS via Bluetooth Enable Bluetooth on your device Go to your phone’s homescreen and find “Settings”, then “Bluetooth” and turn Bluetooth on. Scan Bluetooth Profile barcodes below in order (B3 -> B4) After you scan the Bluetooth profile barcodes, your scanner will become visible to Bluetooth enabled devices within range.
  • Page 17 Getting Started Connecting to iOS via Bluetooth Search for devices Your phone will automatically search for devices, Saveo Scan will appear as an external keyboard with a unique identifier number (R-xxxxxx). Select R-xxxxxx to connect Select scanner from “Available Devices” and wait for pairing process to complete.

  • Page 18: Connecting To Android Via Bluetooth

    Getting Started Connecting to Android via Bluetooth Switch scanner to C (Charge Mode) You can view a video deomonstration here: http://youtu.be/BVcYJ9eTXWs Switch to right: C (Charge Mode) Scan the Wireless Bluetooth Communication barcodes below in order (B1 -> B2). Please Note: When Bluetooth is enabled, the LED will remain red until the scanner has been paired with a Bluetooth device.
  • Page 19 Getting Started Connecting to Android via Bluetooth Enable Bluetooth on your device Go to your phone’s homescreen and click on the menu button to find “Settings”, then “Bluetooth” and switch bluetooth on. Scan Bluetooth Profile barcodes below in order (B3 -> B4) After you scan the Bluetooth profile barcodes, your scanner will become visible to Bluetooth enabled devices within range.
  • Page 20 Getting Started Connecting to Android via Bluetooth Search for devices Click “Search for Devices” at the bottom of the screen and Saveo Scan will appear as an external keyboard with a unique identifier number (R-xxxxxx). Select R-xxxxxx to connect Select scanner from “Available Devices”...

  • Page 21: Unpairing Your Device

    Getting Started Unpairing your device Go to the Bluetooth menu on your phone and select the option menu for scanner from list of paired devices. Choose “Forget this Device”/”Unpair”. Table of Contents...

  • Page 22: Operating Modes

    User Preferences Operating Modes There are two operating modes on the scanner, Data Transmission Mode and Data Storage Mode. Scan the appropriate barcodes when switching between these two modes. Please note: Switching between modes will wipe the scanner’s internal memory. Data Transmission Mode (Default) Our Default setting is Data Transmission Mode.
  • Page 23 User Preferences Operating Modes There are two operating modes on the scanner, Data Transmission Mode and Data Storage Mode. Scan the appropriate barcodes when switching between these two modes. Please note: Switching between modes will wipe the scanner’s internal memory. Data Storage Mode In this mode, data will be saved directly to scanner’s memory.
  • Page 24 User Preferences Operating Modes There are two operating modes on the scanner, Data Transmission Mode and Data Storage Mode. Scan the appropriate barcodes when switching between these two modes. Please note: Switching between modes will wipe the scanner’s internal memory. Transmit Memory Data Scan the following barcode to receive data stored in the scanner’s internal memory.

  • Page 25: Reset To Defaults

    User Preferences Reset to Defaults To reset configuration to default scan the barcodes below in order (E1 -> E4) Demo %E%R%A Demo Demo %D%F%T Table of Contents...

  • Page 26: Battery Level Status

    User Preferences Battery Level Status Scan the barcode below to send battery level information to your device. The format is outlined in the table below. Current Battery Level Scan to receive the current battery level. %^4^% 80% - 100% %^3^% 55% - 80% %^2^% 30% - 55%...

  • Page 27: Power Saving Mode

    User Preferences Power Saving Mode Power saving mode is enabled by default and will put the scanner to sleep after one minutes inactivity. To wake the scanner press the trigger. Below are the barcodes to disable/enable power saving mode. Demo Disable Scan to disable power saving mode %P%D%T00...

  • Page 28: Sound Settings

    User Preferences Sound Settings Scan the barcodes to select whether or not the decoder issues a “beep” tone after a good decode. If selecting “Disable”, beeper signals are issued during parameter menu scanning and to indicate errors. Enable (default) Disable Table of Contents...

  • Page 29: Reading Mode

    User Preferences Reading Mode The default reading mode is “Single Scan”. To activate the scanner automatically scan “Motion Sensor: Full Auto Mode” below. Single Scan (Default) In this mode the scanner attempts to decode when the scan button is pressed. Demo Demo Motion Sensor: Full Auto Mode...

  • Page 30: Mobile Phone/Display Mode

    User Preferences Mobile Phone/Display Mode This mode improves barcode reading performance with target barcodes displayed on mobile phones and electronic displays. Disable (default) Enable Table of Contents...

  • Page 31: Transmission Speed

    User Preferences Transmission Speed Transmission speed is dependent on your device. In order not to lose data please choose the correct speed. “Mid Speed” is the default. High Speed Transmission %B%T%H Demo Mid Speed Transmission (default) Demo Low Speed Transmission %B%T%L Table of Contents...

  • Page 32: Keyboard Country

    User Preferences Keyboard Country Scan the appropriate country code as below to program the keyboard for your country or language. As a general rule, the following characters are not supported by the scanner for countries other than the United States: @ | $ # { } [ ] = / ‘ \ < > ~ USA (Original setting) Italy Norway...
  • Page 33 User Preferences Keyboard Country Sweden Spain Denmark Portugal Switzerland Hungary Table of Contents...
  • Page 34 Symbologies Introduction This chapter describes symbology features and provides the programming barcodes for selecting these features. The device is shipped with the settings shown in the Symbology Default Table If the default values suit requirements, programming is not necessary. Scan the appropriate barcodes in this guide. These new values replace the standard default values in memory.

  • Page 35: Symbology Parameter Defaults

    Symbologies Symbology Parameter Defaults Table below lists the defaults for all symbologies parameters. To change any option, scan the appropriate barcode(s) provided in the Symbologies Parameters section. See Appendix A, Standard Default Parameters for all user preferences, hosts, and miscellaneous default parameters. Parameter Default UPC/EAN...
  • Page 36 Symbologies Symbology Parameter Defaults Parameter Default Code 128 Code 128 Enabled UCC/EAN-128 Enabled ISBT 128 Enabled Code 39 Code 39 Enabled Trioptic Code 39 Disabled Bookland EAN Disabled Convert Code 39 to Code 32 (Italian Pharmacy Code) Disabled Code 32 Prefix Disabled Set Length(s) for Code 39 2 to 55...
  • Page 37 Symbologies Symbology Parameter Defaults Parameter Default Discrete 2 of 5 (DTF) Discrete 2 of 5 Disabled Set Length(s) for D 2 of 5 Codabar (NW - 7) Codabar Disabled Set Lengths for Codabar 5 to 55 CLSI Editing Disabled NOTIS Editing Disabled Disabled Set Length(s) for MSI...
  • Page 38 Symbologies Symbology Parameter Defaults Parameter Default Composite Composite CC-C Disabled Composite CC-A/B Disabled Composite TLC-39 Disabled UPC Composite Mode Always Linked Beep As Each Code Type Composite Beep Mode is Decoded NOTIS EditingUCC/EAN Code 128 Emulation Mode Disabled for UCC/EAN Composite Codes 2D Symbologies PDF417 Enabled...

  • Page 39: Upc/Ean

    Symbologies UPC/EAN UPC-A To enable or disable UPC-A, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 40 Symbologies UPC/EAN UPC-E To enable or disable UPC-E, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 41 Symbologies UPC/EAN UPC-E1 UPC-E1 is disabled by default. To enable or disable UPC-E1, scan the appropriate bar code below. Please Note: UPC-E1 is not a UCC (Uniform Code Council) approved symbology. Enable Disable Table of Contents...
  • Page 42 Symbologies UPC/EAN EAN-8/JAN-8 To enable or disable EAN-8/JAN-8, scan the appropriate bar code below. Enable Disable Table of Contents...
  • Page 43 Symbologies UPC/EAN EAN-13/JAN-13 To enable or disable EAN-13/JAN-13, scan the appropriate bar code below. Enable Disable Table of Contents...
  • Page 44 Symbologies UPC/EAN Bookland EAN To enable or disable Bookland EAN, scan the appropriate bar code below. Enable Disable Table of Contents...
  • Page 45 Symbologies Symbologies UPC/EAN Decode UPC/EAN/JAN Supplementals Supplemental are bar codes appended according to specific format conventions (e.g., UPC A+2, UPC E+2, EAN 13+2). Six options are available. If Decode UPC/EAN/JAN Only With Supplemental is selected, UPC/EAN/JAN symbols without supplemental are not decoded. If Ignore Supplemental is selected, and the decoder is presented with a UPC/EAN/JAN with a supplemental, the UPC/EAN/JAN is decoded and the supplemental bar code is ignored.
  • Page 46 Symbologies UPC/EAN Decode UPC/EAN/JAN Only With Supplemental lgnore Supplemental Auto discriminate UPC/EAN/JAN Supplemental Enable 378/379 Supplemental Mode Enable 978 Supplemental Mode Enable Smart Supplemental Mode Table of Contents...
  • Page 47 Symbologies UPC/EAN UPC/EAN/JAN Supplemental Redundancy With Auto discriminate UPC/EAN/JAN Supplemental selected, this option adjusts the number of times a symbol without supplemental is decoded before transmission. The range is from two to thirty times. Five or above is recommended when decoding a mix of UPC/EAN/JAN symbols with and without supplemental, and the auto discriminate option is selected.
  • Page 48 Symbologies UPC/EAN Transmit UPC-A Check Digit The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate barcode below to transmit the barcode data with or without the UPC-A check digit. It is always verified to guarantee the integrity of the data. Enable Disable Table of Contents...
  • Page 49 Symbologies UPC/EAN Transmit UPC-E Check Digit The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate barcode below to transmit the barcode data with or without the UPC-E check digit. It is always verified to guarantee the integrity of the data. Enable Disable Table of Contents...
  • Page 50 Symbologies UPC/EAN Transmit UPC-E1 Check Digit The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate barcode below to transmit the barcode data with or without the UPC-E1 check digit. It is always verified to guarantee the integrity of the data. Enable Disable Table of Contents...
  • Page 51 Symbologies UPC/EAN UPC-A Preamble Preamble characters are part of the UPC symbol, and include Country Code and System Character. There are three options for transmitting a UPC-A preamble to the host device: transmit System Character only, transmit System Character and Country Code (“0”...
  • Page 52 Symbologies UPC/EAN UPC-E Preamble Preamble characters are part of the UPC symbol, and include Country Code and System Character. There are three options for transmitting a UPC-E preamble to the host device: transmit System Character only, transmit System Character and Country Code (“0”...
  • Page 53 Symbologies UPC/EAN UPC-E1 Preamble Preamble characters are part of the UPC symbol, and include Country Code and System Character. There are three options for transmitting a UPC-E1 preamble to the host device: transmit System Character only, transmit System Character and Country Code (“0”...
  • Page 54 Symbologies UPC/EAN Convert UPC-E to UPC-A Enable this to convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit). When disabled, UPC-E decoded data is transmitted as UPC-E data, without conversion.
  • Page 55 Symbologies UPC/EAN Convert UPC-E1 to UPC-A Enable this to convert UPC-E1 decoded data to UPC-A format before transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit). When disabled, UPC-E1 decoded data is transmitted as UPC-E1 data, without conversion. Enable Disable Table of Contents...
  • Page 56 Symbologies UPC/EAN EAN-8/JAN-8 Extend When enabled, this parameter adds five leading zeros to decoded EAN-8 symbols to make them compatible in format to EAN-13 symbols. When disabled, EAN-8 symbols are transmitted as is. Enable Disable Table of Contents...
  • Page 57 Symbologies UPC/EAN UCC Coupon Extended Code When enabled, this parameter decodes UPC-A bar codes starting with digit ‘5’, EAN-13 bar codes starting with digit ‘99’, and UPCA/EAN-128 Coupon Codes. UPCA, EAN-13, and EAN-128 must be enabled to scan all types of Coupon Codes. Please Note: Use the Decode UPC/EAN Supplemental Redundancy parameter to control auto discrimination of the EAN128 (right half) of a coupon code.

  • Page 58: Code 128

    Symbologies Code 128 Code 128 To enable or disable Code 128, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 59 Symbologies Code 128 UCC/EAN-128 To enable or disable UCC/EAN-128, scan the appropriate bar code below. Enable Disable Table of Contents...
  • Page 60 Symbologies Code 128 ISBT 128 ISBT 128 is a variant of Code 128 used in the blood bank industry. Scan a barcode below to enable or disable ISBT 128. If necessary, the host must perform concatenation of the ISBT data. Enable Disable Table of Contents...
  • Page 61 Symbologies Code 39 Code 39 To enable or disable Code 39, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 62 Symbologies Code 39 Trioptic Code 39 Trioptic Code 39 is a variant of Code 39 used in the marking of computer tape cartridges. Trioptic Code 39 symbols always contain six characters. To enable or disable Trioptic Code 39, scan the appropriate bar code below. Please Note: Trioptic Code 39 and Code 39 Full ASCII cannot be enabled simultaneously.
  • Page 63 Symbologies Code 39 Convert Code 39 to Code 32 Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar code below to enable or disable converting Code 39 to Code 32. Please Note: Code 39 must be enabled for this parameter to function. Enable Disable Table of Contents...
  • Page 64 Symbologies Code 39 Code 32 Prefix Scan the appropriate bar code below to enable or disable adding the prefix character “A” to all Code 32 bar codes. Please Note: Convert Code 39 to Code 32 must be enabled for this parameter to function.
  • Page 65 Symbologies Code 39 Set Lengths for Code 39 The length of a code refers to the number of characters (i.e., human readable charac- ters), including check digit(s) the code contains. Set lengths for Code 39 to any length, one or two discrete lengths, or lengths within a specific range. If Code 39 Full ASCII is enabled, Length within a Range or Any Length is the preferred options.
  • Page 66 Symbologies Code 39 One Discrete Length Two Discrete Lengths Length Within Range Any Length Table of Contents...
  • Page 67 Symbologies Code 39 Code 39 Check Digit Verification When this feature is enabled, the decoder checks the integrity of all Code 39 symbols to verify that the data complies with specified check digit algorithm. Only Code 39 symbols which include a modulo 43 check digit are decoded. Enable this feature if the Code 39 symbols contain a Modulo 43 check digit.
  • Page 68 Symbologies Code 39 Transmit Code 39 Check Digit Scan appropriate barcode below to transmit Code 39 data with or without the check digit. Please Note: Code 39 Check Digit Verification must be enabled for this parameter to function. Enable Disable Table of Contents...
  • Page 69 Symbologies Code 39 Code 39 Full ASCII Conversion Code 39 Full ASCII is a variant of Code 39 which pairs characters to encode the full ASCII character set. To enable or disable Code 39 Full ASCII, scan the appropriate barcode below. Please Note: Trioptic Code 39 and Code 39 Full ASCII cannot be enabled simultaneously.
  • Page 70 Symbologies Code 39 Code 39 Buffering (Scan & Store) This feature allows the decoder to accumulate data from multiple Code 39 symbols. Selecting the Scan and Store option (Buffer Code 39) temporarily buffers all Code 39 symbols having a leading space as a first character for later transmission. The leading space is not buffered.
  • Page 71 Symbologies Code 39 Buffer Data To buffer data, Code 39 buffering must be enabled and a Code 39 symbol must be read with a space immediately following the start pattern. Unless the data overflows the transmission buffer, the decoder issues a lo/hi beep to indicate successful decode and buffering (For overflow conditions, see Overfilling Transmis- sion Buffer).
  • Page 72 Symbologies Code 39 Transmit Buffer There are two methods to transmit the Code 39 buffer. Scan the Transmit Buffer barcode below. Only a start character, a plus (+), and a stop character. The decoder transmits and clears the buffer. The decoder issues a Lo/Hi beep. Please Note: The Transmit Buffer contains only a plus (+) character.
  • Page 73 Symbologies Code 93 Code 93 To enable or disable Code 93, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 74 Symbologies Code 93 Set Lengths for Code 93 The length of a code refers to the number of characters (i.e., human readable charac- ters), including check digit(s) the code contains. Set lengths for Code 93 to any length, one or two discrete lengths, or lengths within a specific range. One Discrete Length - Select this option to decode only Code 93 symbols containing a selected length.
  • Page 75 Symbologies Code 93 One Discrete Length Two Discrete Lengths Length Within Range Any Length Table of Contents...
  • Page 76 Symbologies Code 11 Code 11 To enable or disable Code 11, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 77 Symbologies Code 11 Set Lengths for Code 11 The length of a code refers to the number of characters (i.e., human readable charac- ters), including check digit(s) the code contains. Set lengths for Code 11 to any length, one or two discrete lengths, or lengths within a specific range. One Discrete Length - Select this option to decode only Code 11 symbols containing a selected length.
  • Page 78 Symbologies Code 11 One Discrete Length Two Discrete Lengths Length Within Range Any Length Table of Contents...
  • Page 79 Symbologies Code 11 Code 11 Check Digit Verification This feature allows the decoder to check the integrity of all Code 11 symbols to verify that the data complies with the specified check digit algorithm. This selects the check digit mechanism for the decoded Code 11 barcode. The options are to check for one check digit, check for two check digits, or disable the feature.
  • Page 80 Symbologies Code 11 Transmit Code 11 Check Digit Scan appropriate barcode below to transmit Code 11 data with or without the check digit(s). Please Note: Code 11 Check Digit Verification must be enabled for this parameter to function. Enable Disable Table of Contents...

  • Page 81: Interleaved 2 Of 5 (Itf)

    Symbologies Interleaved 2 of 5 (ITF) Interleaved 2 of 5 To enable or disable Interleaved 2 of 5, scan the appropriate bar code below and select an Interleaved 2 of 5 length from the following pages. Enable Disable Table of Contents...
  • Page 82 Symbologies Interleaved 2 of 5 (ITF) Set Lengths for Interleaved 2 of 5 The length of a code refers to the number of characters (i.e., human readable charac- ters), including check digit(s) the code contains. Set lengths for I 2 of 5 to any length, one or two discrete lengths, or lengths within a specific range.
  • Page 83 Symbologies Interleaved 2 of 5 (ITF) One Discrete Length Two Discrete Lengths Length Within Range Any Length Table of Contents...
  • Page 84 Symbologies Interleaved 2 of 5 (ITF) Interleaved 2 of 5 Check Digit Verification When this feature is enabled, the decoder checks the integrity of all I 2 of 5 symbols to verify the data complies with either the specified Uniform Symbology Specification (USS), or the Optical Product Code Council (OPCC) check digit algorithm.
  • Page 85 Symbologies Interleaved 2 of 5 (ITF) Transmit Interleaved 2 of 5 Check Digit Scan appropriate barcode below to transmit I 2 of 5 data with or without the check digit. Enable Disable Table of Contents...
  • Page 86 Symbologies Interleaved 2 of 5 (ITF) Convert Interleaved 2 of 5 to EAN-13 Enable this parameter to convert 14-character I 2 of 5 codes to EAN-13, and transmit to the host as EAN-13. To accomplish this, the I 2 of 5 code must be enabled, and the code must have a leading zero and a valid EAN-13 check digit.

  • Page 87: Discrete 2 Of 5 (Dtf)

    Symbologies Discrete 2 of 5 (DTF) Discrete 2 of 5 To enable or disable Discrete 2 of 5, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 88 Symbologies Discrete 2 of 5 (DTF) Set Lengths for Discrete 2 of 5 The length of a code refers to the number of characters (i.e., human readable charac- ters), including check digit(s) the code contains. Set lengths for D 2 of 5 to any length, one or two discrete lengths, or lengths within a specific range.
  • Page 89 Symbologies Discrete 2 of 5 (DTF) One Discrete Length Two Discrete Lengths Length Within Range Any Length Table of Contents...
  • Page 90 Symbologies Codabar (NW - 7) Codabar To enable or disable Codabar, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 91 Symbologies Codabar (NW - 7) Set Lengths for Discrete 2 of 5 The length of a code refers to the number of characters (i.e., human readable charac- ters), including check digit(s) the code contains. Set lengths for Codabar to any length, one or two discrete lengths, or lengths within a specific range.
  • Page 92 Symbologies Codabar (NW - 7) One Discrete Length Two Discrete Lengths Length Within Range Any Length Table of Contents...
  • Page 93 Symbologies Codabar (NW - 7) CLSI Editing When enabled, this parameter strips the start and stops characters and inserts a space after the first, fifth, and tenth characters of a 14-character Codabar symbol. Enable this feature if the host system requires this data format. Please Note: Symbol length does not include start and stop characters.
  • Page 94 Symbologies Codabar (NW - 7) NOTIS Editing When enabled, this parameter strips the start and stop characters from a decoded Codabar symbol. Enable this feature if the host system requires this data format. Enable Disable Table of Contents...
  • Page 95 Symbologies To enable or disable MSI, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 96 Symbologies Set Lengths for MSI The length of a code refers to the number of characters (i.e., human readable charac- ters), including check digit(s) the code contains. Set lengths for MSI to any length, one or two discrete lengths, or lengths within a specific range. One Discrete Length - Select this option to decode only MSI symbols containing a selected length.
  • Page 97 Symbologies One Discrete Length Two Discrete Lengths Length Within Range Any Length Table of Contents...
  • Page 98 Symbologies MSI Check Digits With MSI symbols, one check digit is mandatory and always verified by the reader. The second check digit is optional. If the MSI codes include two check digits, scan the Two MSI Check Digits bar code to enable verification of the second check digit. See MSI Check Digit Algorithm for the selection of second digit algorithms.
  • Page 99 Symbologies Transmit MSI Check Digit(s) Scan a bar code below to transmit MSI data with or without the check digit. Enable Disable Table of Contents...
  • Page 100 Symbologies MSI Check Digit Algorithm Two algorithms are possible for the verification of the second MSI check digit. Select the barcode below corresponding to the algorithm used to encode the check digit. MOD 10/MOD 11 MOD 10/MOD 10 Table of Contents...

  • Page 101: Postal Codes

    Symbologies Postal Codes US Postnet To enable or disable US Postnet, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 102 Symbologies Postal Codes US Planet To enable or disable US Planet, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 103 Symbologies Postal Codes UK Postal To enable or disable UK Postal, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 104 Symbologies Postal Codes Transmit UK Postal Check Digit Select whether to transmit UK Postal data with or without the check digit. Enable Disable Table of Contents...
  • Page 105 Symbologies Postal Codes Japan Postal To enable or disable Japan Postal, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 106 Symbologies Postal Codes Australia Postal To enable or disable Australia Postal, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 107 Symbologies Postal Codes Transmit US Postal Check Digit Select whether to transmit US Postal data with or without the check digit. Enable Disable Table of Contents...

  • Page 108: Gs1 Databar

    Symbologies GS1 DataBar GS1 DataBar types include: - GS1 DataBar Omnidirectional - GS1 DataBar Truncated - GS1 DataBar Stacked - GS1 DataBar Stacked Omnidirectional - GS1 DataBar Expanded - GS1 DataBar Expanded Stacked - GS1 DataBar Limited Scan the appropriate bar codes to enable or disable each type of GS1 DataBar. Table of Contents...
  • Page 109 Symbologies GS1 DataBar GS1 DataBar Scan the barcode below to enable or disable the following GS1 Databar types: - GS1 DataBar Omnidirectional - GS1 DataBar Truncated - GS1 DataBar Stacked - GS1 DataBar Stacked Omnidirectional Enable Disable Table of Contents...
  • Page 110 Symbologies GS1 DataBar GS1 DataBar Expanded Scan the barcode below to enable or disable the following GS1 Databar types: - GS1 DataBar Expanded - GS1 DataBar Expanded Stacked Enable Disable Table of Contents...
  • Page 111 Symbologies GS1 DataBar GS1 DataBar Limited Scan the barcode below to enable or disable GS1 DataBar Limited. Enable Disable Table of Contents...
  • Page 112 Symbologies GS1 DataBar GS1 DataBar Limited Security Level The decoder offers four levels of decode security for GS1 DataBar Limited barcodes. There is an inverse relationship between security and decoder aggressiveness. Increas- ing the level of security may result in reduced aggressiveness in scanning, so only choose the level of security necessary.
  • Page 113 Symbologies GS1 DataBar Security Level 1 Security Level 2 Security Level 3 Security Level 4 Table of Contents...
  • Page 114 Symbologies GS1 DataBar Convert GS1 DataBar to UPC/EAN This parameter only applies to GS1 DataBar and GS1 DataBar Limited symbols not decoded as part of a Composite symbol. Enable this to strip the leading '010' from DataBar and DataBar Limited symbols encoding a single zero as the first digit, and report the barcode as EAN-13.

  • Page 115: Composite

    Symbologies Composite Composite CC-C To enable or disable Composite CC-C, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 116 Symbologies Composite Composite CC-A/B To enable or disable Composite CC-A/B, scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 117 Symbologies Composite Composite TLC-39 To enable or disable Composite Composite TLC-39, scan the appropriate barcode Enable Disable Table of Contents...
  • Page 118 Symbologies Composite UPC Composite Mode UPC symbols can be “linked” with a 2D symbol during transmission as if they were one symbol. There are three options for these symbols: Select UPC Never Linked to transmit UPC bar codes regardless of whether a 2D symbol is detected.
  • Page 119 Symbologies Composite Composite Beep Mode To select the number of decode beeps when a composite barcode is decoded, scan the appropriate barcode below. Single Beep after both are decoded Beep as each code type is decoded Double Beep after both are decoded Table of Contents...
  • Page 120 Symbologies Composite UCC/EAN Code 128 Emulation Mode for UCC/EAN Composite Codes Select whether to enable or disable this mode with the appropriate barcodes below. Enable Disable Table of Contents...

  • Page 121: Pdf417

    Symbologies PDF417 PDF417 To enable or disable PDF417 scan the appropriate barcode below. Enable Disable Table of Contents...

  • Page 122: Micropdf417

    Symbologies MicroPDF417 MicroPDF417 To enable or disable MicroPDF417 scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 123 Symbologies MicroPDF417 Code 128 Emulation When this parameter is enabled, the device transmits data from certain MicroPDF417 symbols as if it was encoded in Code 128 symbols. Transmit AIM Symbology Identifiers must be enabled for this parameter to work. If Code 128 Emulation is enabled, these MicroPDF417 symbols are transmitted with one of the following prefixes: if the first codeword is 903-907, 912, 914, 915 if the first codeword is 908 or 909...

  • Page 124: Data Matrix

    Symbologies Data Matrix Data Matrix To enable or disable Data Matrix scan the appropriate barcode below. Enable Disable Table of Contents...

  • Page 125: Maxicode

    Symbologies Maxicode Maxicode To enable or disable Maxicode scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 126 Symbologies QR Code QR Code To enable or disable QR Code scan the appropriate barcode below. Enable Disable Table of Contents...
  • Page 127 Symbologies QR Code Inverse QR Code This parameter sets the QR inverse decoder setting. The options are: Regular Only - the decoder decodes regular QR barcodes only. Inverse Only - the decoder decodes inverse QR barcodes only. Inverse Autodetect - the decoder decodes both regular and inverse QR barcodes. Regular Only Inverse Only Inverse Autodetect...

  • Page 128: Redundancy Level

    Symbologies Redundancy Level The decoder offers four levels of decodes redundancy. Select higher redundancy levels for decreasing levels of barcode quality. As redundancy levels increase, the decoder’s aggressiveness decreases. Select the redundancy level appropriate for the barcode quality. Redundancy Level 1 The following code types must be successfully read twice before being decoded: Code Type Code Length...
  • Page 129 Symbologies Redundancy Level Redundancy Level 3 Code types other than the following must be successfully read twice before being decoded. The following codes must be read three times: Code Type Code Length Codabar 8 characters or less MSI Plessey 4 characters or less Interleave 2 of 5 8 characters or less Discrete 2 of 5...

  • Page 130: Security Level

    Symbologies Security Level The decoder offers four levels of decode security for delta barcodes, which include the Code 128 family, UPC/EAN, and Code 93. Select increasing levels of security for decreasing levels of barcode quality. There is an inverse relationship between security and decoder aggressiveness, so choose only that level of security necessary for any given application.
  • Page 131 Symbologies Security Level Security Level 0 Security Level 1 Security Level 2 Security Level 3 Table of Contents...

  • Page 132: Intercharacter Gap Size

    Symbologies Intercharacter Gap Size The Code 39 and Codabar symbologies have an intercharacter gap that is typically quite small. Due to various bar code-printing technologies, this gap can grow larger than the maximum size allowed, preventing the decoder from decoding the symbol. If this problem occurs, scan the Large Intercharacter Gaps parameter to tolerate these out-of-specification bar codes.

  • Page 133: Macro Pdf Features

    Symbologies Macro PDF Features Macro PDF is a special feature for concatenating multiple PDF symbols into one file. The decoder can decode symbols that are encoded with this feature, and can store more than 64 kb of decoded data stored in up to 50 Macro PDF symbols. Caution: When printing, keep each Macro PDF sequence separate, as each sequence has unique identifiers.
  • Page 134 Symbologies Macro PDF Features Macro PDF Transmit / Decode Mode Symbols Select one of the options below for handling Macro PDF decoding. In Buffer All Symbols the decoder can handle sets of up to 50 maximum-sized Macro PDF symbols. In all other modes there is no limit to the size of the Macro PDF set. Buffer All Symbols / Transmit Macro PDF When Complete - This transmits all decode data from an entire Macro PDF sequence only when the entire sequence is scanned and decoded.
  • Page 135 Symbologies Macro PDF Features Buffer All Symbols / Transmit Macro PDF When Complete Transmit Any Symbol in Set / No Particular Order Pass through All Symbols Table of Contents...
  • Page 136 Symbologies Macro PDF Features Transmit Macro PDF Control Header When enabled, this activates transmission of the control header, which contains the segment index and the file ID, in Macro PDF symbols. For example, the field may be: \92800000\725\120\343. The five digits after the \928 are the segment index (or block index), and \725\120\343 is the file ID.
  • Page 137 Symbologies Macro PDF Features Escape Characters This enables the backslash (\) character as an Escape character for systems that can process transmissions containing special data sequences. Scan a barcode below to either format special data according to the GLI (Global Label Identifier) protocol, or to disable this parameter.
  • Page 138 Symbologies Macro PDF Features Flush Macro Buffer This flushes the buffer of all decoded Macro PDF data stored to that point, transmits it to the host device, and aborts from Macro PDF mode. Flush Macro PDF Buffer Table of Contents...
  • Page 139 Symbologies Macro PDF Features Abort Macro PDF Entry This clears all currently-stored Macro PDF data in the buffer without transmission and aborts from Macro PDF mode. Abort Macro PDF Entry Table of Contents...

  • Page 140: Inverse 1D Barcodes

    Symbologies Inverse 1D barcodes This parameter sets the decoder setting for Inverse 1D barcodes. The options are: Regular Only - the decoder decodes regular 1D barcodes only. Inverse Only - the decoder decodes inverse 1D barcodes only. Inverse Autodetect - the decoder decodes both regular and inverse 1D barcodes. Regular Only Inverse Only Inverse Autodetect...
  • Page 141 Miscellaneous Scanner Options Introduction This chapter includes commonly used barcodes to customize how data is transmitted to the host device. See Appendix A, Standard Default Parameters for all host device and miscellaneous scanner defaults. If the default values suit requirements, programming is not neces- sary.

  • Page 142: Miscellaneous Scanner Parameter Defaults

    Miscellaneous Scanner Options Miscellaneous Scanner Parameter Defaults The table below lists the defaults for miscellaneous scanner options parameters. To change any option, scan the appropriate barcode(s) provided in the Miscellaneous Scanner Parameter section. Note- See Standard Default Parameters for all user preferences, hosts, symbologies, and miscellaneous default parameters.

  • Page 143: Transmit Code Id Character

    Miscellaneous Scanner Options Transmit Code ID Character A Code ID character identifies the code type of a scanned bar code. This is useful when the decoder is decoding more than one code type. In addition to any single character prefix already selected, the Code ID character is inserted between the prefix and the decoded symbol.

  • Page 144: Prefix/Suffix Values

    Miscellaneous Scanner Options Prefix/Suffix Values A prefix and/or one or two suffixes can be appended to scan data for use in data editing. To set a value for a prefix or suffix, scan a prefix or suffix barcode below, then scan a four-digit number (i.e., four barcodes from Appendix D, Numeric Bar Codes) that corresponds to that value.

  • Page 145: Data Transmission Format

    Miscellaneous Scanner Options Data Transmission Format To change the scan data format, scan one of the following eight bar codes correspond- ing to the desired format. If using this parameter do not use ADF rules to set the prefix/suffix. To set values for the prefix and/or suffix, see Prefix/Suffix Values. Note- If you need the prefix or suffix under “Data Storage Mode”...
  • Page 146 Miscellaneous Scanner Options Data Transmission Format <DATA> <SUFFIX 1> <SUFFIX 2> <PREFIX> <DATA > <PREFIX> <DATA> <SUFFIX 1> <PREFIX> <DATA> <SUFFIX 2> <PREFIX> <DATA> <SUFFIX 1> <SUFFIX 2> Table of Contents...

  • Page 147: Transmit "No Read" Message

    Miscellaneous Scanner Options Transmit “No Read” Message Transmit “No Read” Message Scan a bar code below to select whether or not to transmit a No Read message. When enabled, the characters NR are transmitted when a bar code is not decoded. When disabled, if a symbol does not decode, nothing is sent to the host.

  • Page 148: Appendix A : Standard Default Parameters

    Appendix Appendix A : Standard Default Parameters Table A-1: User Preferences Parameter Default User Preferences Set Default Parameter All Defaults Parameter Scanning Enabled Beeper Tone Medium Beeper Volume High Handheld/hands-free scanner 5 to 55 Trigger Modes Scan module Presentation Handheld/hands-free scanner Low Power Power Mode Scan module...
  • Page 149 Appendix Appendix A : Standard Default Parameters Table A-2: Imager Preferences Parameter Default Imager Preferences Focus Mode Far Focus Decoding Auto exposure Enabled Decoding Illumination Enabled Decode Aiming Pattern Enabled Image Capture Auto exposure Enabled Image Capture Illumination Enabled Gain Exposure Time 10 ms LED Illumination...
  • Page 150 Appendix Appendix A : Standard Default Parameters Table A-2: Imager Preferences Parameter Default Imager Preferences Signature Capture Width Signature Capture Height Signature Capture JPEG Quality Video View Finder Disabled Target Video Frame Size 2200 bytes Video View Finder Image Size 1700 bytes Event Reporting Decode Event...
  • Page 151 Appendix Appendix A : Standard Default Parameters Table A-3: Serial Host Parameters Parameter Default Serial Host Parameters Serial Host Types SSI Host Baud Rate 9600 Parity Type None Stop Bit Select 1 Stop Bit Data Bits 8-Bit Check Receive Errors Enabled Hardware Handshaking None...
  • Page 152 Appendix Appendix A : Standard Default Parameters Table A-4: Symbologies Parameter Default Symbologies UPC/EAN UPC-A Enabled UPC-E Enabled UPC-E1 Disabled EAN-8/JAN 8 Enabled EAN-13/JAN 13 Enabled Bookland EAN Disabled Decode UPC/EAN/JAN Supplemental Ignore (2 and 5 digits) UPC/EAN/JAN Supplemental Redundancy Transmit UPC-A Check Digit Enabled Transmit UPC-E Check Digit...
  • Page 153 Appendix Appendix A : Standard Default Parameters Table A-4: Symbologies Parameter Default Symbologies Code 39 Code 39 Enabled Trioptic Code 39 Disabled Convert Code 39 to Disabled Code 32 (Italian Pharmacy Code) Code 32 Prefix Disabled Set Length(s) for Code 39 2 to 55 Code 39 Check Digit Verification Disabled...
  • Page 154 Appendix Appendix A : Standard Default Parameters Table A-4: Symbologies Parameter Default Symbologies Discrete 2 of 5 (DTF) Discrete 2 of 5 Disabled Set Length(s) for D 2 of 5 Codabar (NW - 7) Codabar Disabled Set Lengths for Codabar 5 to 55 CLSI Editing Disabled...
  • Page 155 Appendix Appendix A : Standard Default Parameters Table A-4: Symbologies Parameter Default Symbologies RSS (Reduced Space Symbology) RSS 14 Enabled RSS Limited Enabled RSS Expanded Enabled Convert RSS to UPC/EAN Disabled Composite Composite CC-C Disabled Composite CC-A/B Disabled Composite TLC-39 Disabled UPC Composite Mode Always Linked...
  • Page 156 Appendix Appendix A : Standard Default Parameters Table A-4: Symbologies Parameter Default Symbologies Symbology-Specific Security Levels Redundancy Level Security Level Intercharacter Gap Size Normal Convert RSS to UPC/EAN Disabled Report Version Macro PDF Macro PDF Transmit/Decode Mode Symbols Pass-through Mode Transmit Macro PDF Control Header Disabled Escape Characters...

  • Page 157: Appendix B : Symbol Code Identifiers

    Appendix Appendix B : Symbol Code Identifiers Table B-1: Symbol Code Characters Code Character Code Type Symbol Code Characters UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13 Code 39, Code 32 Codabar Code 128 Code 93 Interleaved 2 of 5 Discrete 2 of 5, or Discrete 2 of 5 IATA Code 11 UCC/EAN-128 Bookland EAN...
  • Page 158 Appendix Appendix B : Symbol Code Identifiers Table B-2: Aim Code Characters Aim Code Identifiers Each Aim Code Identifier contains the three-character string ]cm where: ] = Flag Character (ASCII 93) c = Code Character m = Modifier Character Code Character Code Type Aim Code Characters Code 39, Code 39 Full ASCII, Code 32...
  • Page 159 Appendix Appendix B : Symbol Code Identifiers Table B-3: Modifier Characters The modifier character is the sum of the applicable option values based on Table B-3. Parameter Default Modifier Characters No check character or Full ASCII processing. Reader has checked one check character. Reader has checked and stripped check character.
  • Page 160 Appendix Appendix B : Symbol Code Identifiers Table B-3: Modifier Characters Parameter Default Modifier Characters No options specified at this time. Always transmit 0. Code 93 Example: A Code 93 bar code 012345678905 is transmitted as ]G0012345678905 Check digits are sent. No check digit is sent.
  • Page 161 Appendix Appendix B : Symbol Code Identifiers Table B-3: Modifier Characters Parameter Default Modifier Characters Native mode transmission. Note: UPC portion of composite is transmitted using UPC rules. Standard data packet. Data packet containing the data following an encoded symbol separator character. EAN.UCC Data packet containing the data following an escape Composites (RSS,...
  • Page 162 Appendix Appendix B : Symbol Code Identifiers Table B-3: Modifier Characters Parameter Default Modifier Characters ECC 000-140, not supported. ECC 200. ECC 200, FNC1 in first or fifth position. ECC 200, FNC1 in second or sixth position. Data Matrix ECC 200, ECI protocol implemented. ECC 200, FNC1 in first or fifth position, ECI protocol implemented.

  • Page 163: Appendix C : Ascii Character Set

    Appendix Appendix C : ASCII Character Set Table C: ASCII Value Table Full ASCII Code 39 ASCII Value Keystroke Encode Character 1000 CTRL 2 1001 CTRL A 1002 CTRL B 1003 CTRL C 1004 CTRL D 1005 CTRL E 1006 CTRL F 1007 CTRL G...
  • Page 164 Appendix Appendix C : ASCII Character Set Table C: ASCII Value Table Full ASCII Code 39 ASCII Value Keystroke Encode Character 1027 CTRL [ 1028 CTRL \ 1029 CTRL ] 1030 CTRL 6 1031 CTRL 1032 Space Space 1033 1034 "...
  • Page 165 Appendix Appendix C : ASCII Character Set Table C: ASCII Value Table Full ASCII Code 39 ASCII Value Keystroke Encode Character 1054 1055 1056 1057 1058 1059 1060 < 1061 1062 > 1063 1064 1065 1066 1067 1068 1069 1070 1071 1072 1073...
  • Page 166 Appendix Appendix C : ASCII Character Set Table C: ASCII Value Table Full ASCII Code 39 ASCII Value Keystroke Encode Character 1081 1082 1083 1084 1085 1086 1087 1088 1089 1090 1091 1092 1093 1094 1095 1096 ‘ 1097 1098 1099 1100 1101...
  • Page 167 Appendix Appendix C : ASCII Character Set Table C: ASCII Value Table Full ASCII Code 39 ASCII Value Keystroke Encode Character 1108 1109 1110 1111 1112 1113 1114 1115 1116 1117 1118 1119 1120 1121 1122 1123 1124 1125 1126 Table of Contents...

  • Page 168: Appendix D : Numeric Bar Codes

    Appendix Appendix D : Numeric Bar Codes For parameters requiring specific numeric values, scan the appropriately numbered bar code(s). continued overleaf Table of Contents...
  • Page 169 Appendix Appendix D : Numeric Bar Codes Cancel To correct an error or change a selection, scan the bar code below. Cancel Table of Contents...

  • Page 170: Appendix E : Readable Symbologies

    Appendix Appendix E: Readable Symbologies Table E-1: 1D Symbologies Symbology Default EAN/UPC UPC-A Enabled UPC-E Enabled UPC-E1 Disabled EAN-8/JAN 8 Enabled EAN-13/JAN 13 Enabled Bookland EAN Enabled Bookland ISBN Format ISBN-10 Decode UPC/EAN/JAN Supplementals (2 and 5 digits) Ignore UPC/EAN/JAN Supplemental Redundancy Decode UPC/EAN/JAN Supplemental AIM ID Combined Transmit UPC-A Check Digit...
  • Page 171 Appendix Appendix E: Readable Symbologies Table E-1: 1D Symbologies Symbology Default Code 128 Code 128 Enabled Set Length(s) for Code 128 Any Length GS1-128 (formerly UCC/EAN-128) Enabled SBT 128 Enabled ISBT Concatenation Disabled Check ISBT Table Enabled ISBT Concatenation Redundancy Code 39 Code 39 Enabled...
  • Page 172 Appendix Appendix E: Readable Symbologies Table E-1: 1D Symbologies Symbology Default Interleaved 2 of 5 (ITF) Interleaved 2 of 5 (ITF) Disabled Set Lengths for I 2 of 5 1 Length; Length = 14 I 2 of 5 Check Digit Verification Disabled Transmit I 2 of 5 Check Digit Disabled...
  • Page 173 Appendix Appendix E: Readable Symbologies Table E-1: 1D Symbologies Symbology Default Matrix 2 of 5 Matrix 2 of 5 Disabled Matrix 2 of 5 Lengths 1 Length; Length = 14 Matrix 2 of 5 Check Digit Disabled Transmit Matrix 2 of 5 Check Disabled Korean 3 of 5 Korean 3 of 5...
  • Page 174 Appendix Appendix E: Readable Symbologies Table E-1: 1D Symbologies Symbology Default GS1 DataBar GS1 DataBar Enabled GS1 DataBar Omnidirectional Enabled GS1 DataBar Truncated Enabled GS1 DataBar Stacked Enabled GS1 DataBar Stacked Omnidirectional Enabled GS1 DataBar Limited Disabled GS1 DataBar Limited Security GS1 DataBar Expanded Enabled GS1 DataBar Expanded...
  • Page 175 Appendix Appendix E: Readable Symbologies Table E-2: 2D Symbologies Symbology Default GS1 DataBar PDF417 Enabled MicroPDF417 Disabled Code 128 Emulation Disabled Data Matrix Enabled Data Matrix Inverse Regular Decode Mirror Images (Data Matrix Only) Auto Maxicode Disabled QR Code Enabled QR Inverse Regular MicroQR...

  • Page 176: Troubleshooting

    On the underside of the scanner you will find a small recessed button. Use a pen or paper clip to push the button until you hear a notification sound. Ensure power switch remains depressed after you release it. This will power on the Saveo Scan. Please refer Operating Elements in this manual.
  • Page 177 When I put my Saveo Scan into the cradle there is no “beep” to confirm charging has begun? When the scanner is in standby mode the audio is off. The scanner will charge as normal.

  • Page 178: Further Information

    Further Information Contact us at: Email: info@saveoscan.com Phone: US: +1 847 448 0412 UK: +44 208 099 8071 IRE: +353 1 685 4600 or visiit our website: www.saveoscan.com Table of Contents...
