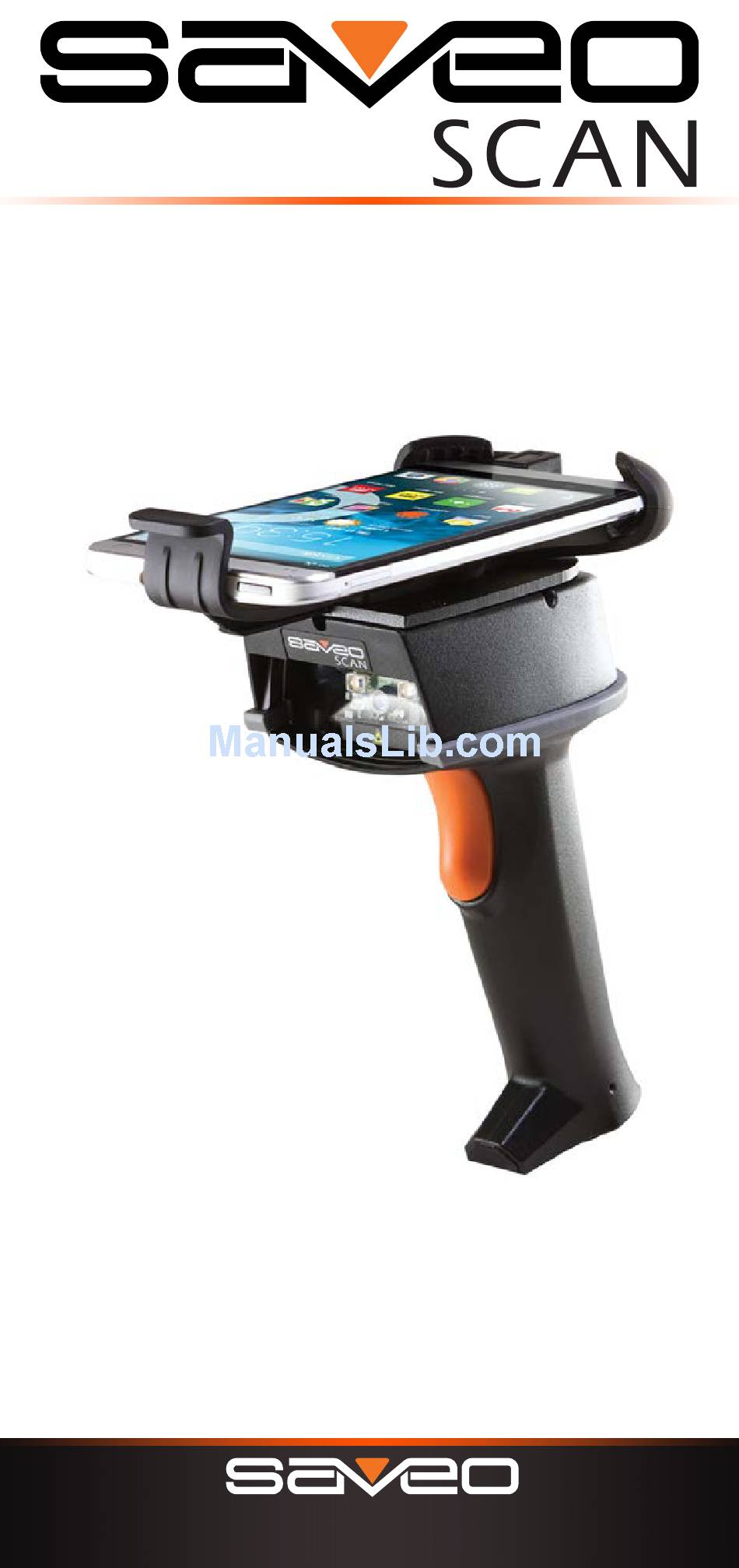

- Page 1 Scanning with Simplicity SAVEO-SCAN-R11D-BH www.saveoscan.com...
-
Page 3: Table Of Contents
Table of Contents Product Information Getting Started Operating Elements Connecting via USB OTG Connecting to iOS via Bluetooth Connecting to Android via Bluetooth Unpairing your device Operating Modes Reset to Defaults LED Indicator Battery Level Status Power Saving Mode Further Information... -
Page 5: Product Information
* Micro USB cable x 1 * Quick instructions x 1 Limited Warranty Saveo Scan provides a one year limited warranty. This warranty does not cover any product which has been subject to improper use, neglect or unauthorized repair or installation. -
Page 6: Getting Started
If you want to charge smartphone and scanner simultaneous- ly, please switch scanner to “Charge Mode” before placing it in the cradle. Power on Saveo Scan On the underside of the scanner you will nd a small recessed button. Use a pen or paper clip to push the button until you hear a noti cation sound. -
Page 7: Operating Elements
Operating Elements *Please remove the protective sticker from window before use Universal Holder Exit Window Trigger/Power On button Wrist Strap Micro USB Cable Use Micro USB cable to connect to smartphone/tablet Switch for Operation Mode and Charge Mode/Bluetooth Mode LED indicator Charging Cradle... - Page 8 Attaching your smartphone to scanner using the universal holder Extend the retractable arm before placing phone in holder and then pushing it rmly back against the phone. Extend retractable Press button and slide outwards to extend the Insert phone Secure phone in holder Retract the arm until phone is held rmly in...
- Page 9 Connect phone to scanner with Micro USB cable As USB connection locations vary on di erent models of smartphone, the cable can be con gured for your speci c model.
-
Page 10: Connecting Via Usb Otg
Scan the Wired OTG Communication barcodes below %E%R%A Con rm scanner is connected Saveo Scan is detected by your smartphone as an external Demo keyboard. A message will appear on screen to notify you that a USB device has been connected. -
Page 11: Connecting To Ios Via Bluetooth
Connecting to iOS via Bluetooth Switch scanner to Charge Mode/Bluetooth Mode Switch to right: Charge Mode/ Demo Scan the Wireless BT Communication barcodes below %E%R%A When Bluetooth is enable, the LED will remain red until the scanner has been paired with a Bluetooth device. Enable Bluetooth on your device Demo Go to your phone’s homescreen and nd “Settings”, then... - Page 12 HID Pro le Demo Demo %H%I%D %B%R%C Search for devices Your phone will automatically search for devices, Saveo Scan will appear as an external keyboard with a unique identi er number (R-xxxxxx). Select R-xxxxxx to connect Select scanner from “Available Devices” and wait for pairing process to complete.
- Page 13 Devices are now paired. Once “Connected” is displayed, your device is paired to the scanner. Your scanner is now ready to use. Please note: devices only need to be paired once. When they are within Bluetooth range they will automatically attempt to connect to each other. If you wish to pair to another device it is recommended you rst unpair this device.
-
Page 14: Connecting To Android Via Bluetooth
Connecting to Android via Bluetooth Switch scanner to Charge Mode/Bluetooth Mode Switch to right: Charge Mode/ Demo Scan the Wireless BT Communication barcodes below %E%R%A When Bluetooth is enable, the LED will remain red until the scanner has been paired with a Bluetooth device. Enable Bluetooth on your device Demo %W%L%T... - Page 15 Bluetooth enabled devices within range. HID Pro le Demo Demo %H%I%D %B%R%C Search for devices Click “Search for Devices” at the bottom of the screen and Saveo Scan will appear as an external keyboard with a unique identi er number (R-xxxxxx).
- Page 16 Select R-xxxxxx to connect Select scanner from “Available Devices” and wait for pairing process to complete. Devices are now paired. Once “Connected” is displayed, your device is paired to the scanner. Your scan- ner is now ready to use. Please note: devices only need to be paired once. When they are within Bluetooth range they will automatically attempt to connect to each other.
-
Page 17: Unpairing Your Device
Unpairing your device Before connecting the scanner to another device it is recom- mended you rst unpair from the current device. Unpairing using your phone Go to the Bluetooth menu on your phone and select the option menu for scanner from list of paired devices. Choose “Forget this Device”/”Unpair”... -
Page 18: Operating Modes
Operating Modes There are two operating modes on the scanner, Data trans- mission mode and Data Storage Mode. Scan the appropriate barcodes when switching between these two modes. Please note: Switching between modes will wipe the scanner’s internal memory. Data Transmission Mode (Default) Our Default setting is Data Transmission mode. - Page 19 Data Storage Mode In this mode, data will be saved directly to scanner’s memory. Scan Transmit Memory Data to receive data stored on scanner’s internal memory. To enter Data Storage Mode please scan the follwing barcodes. Demo Enter Data Storage Mode Green/Orange LED ashes followed by 3 beeps.
-
Page 20: Reset To Defaults
Reset to Defaults Reset Con guration to Defaults (scan from A1to A6) HID Pro le Demo ! " #$%& Demo ! " #$%& Dem o ! " # De m o ! " # Demo Demo ! " #$%& %D%F%T... -
Page 21: Led Indicator
LED Indicator LED Indicator Information Orange LED ON Full charged Orange LED (Flashing) Charging / Low battery Red LED ON O ine / Out of Range Green LED ON Good read Orange LED ON Good read (Batch mode) When the battery power is too low, the Orange LED will ash and beep once. -
Page 22: Power Saving Mode
Power Saving Mode Power saving mode is enabled by default and will put the scanner to sleep after 1 minute’s inactivity. To wake up the scanner press the trigger. Demo Below are the barcodes to disable/enable power saving mode. Disable Scan to disable power saving mode Demo... -
Page 23: Further Information
Further Information Full User Manual and Spec sheet can be downloaded at: www.saveoscan.com/downloads For more information, contact us at: Units 5-6 Ballywaltrin Business Park Boghall Road Bray Co. Wicklow Ireland US PH: +1 847 448 0412 UK PH: +44 208 099 8071 IRE PH: +353 1 685 4600 Email: info@saveoscan.com...
