Nature Power 60032 Owner's Manual

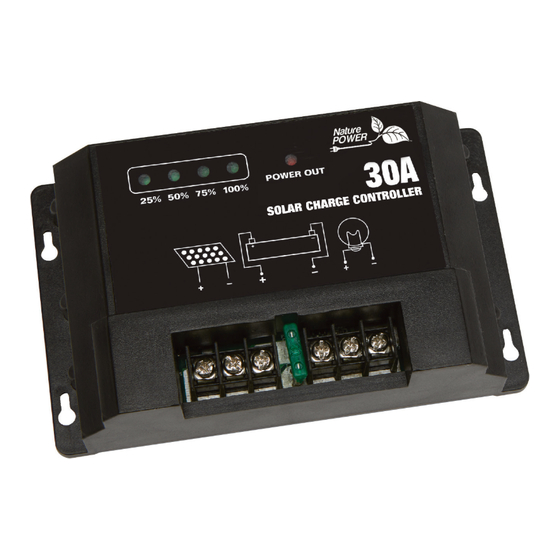

30 amp solar charge controller
Hide thumbs Also See for 60032:
Table of Contents

Advertisement

Quick Links

See also: User Manual
V1.4-M 25Aug2017
30 Amp Solar Charge Controller
Owner's Manual
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item # 60032
SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading

Related Manuals for Nature Power 60032

Summary of Contents for Nature Power 60032

  • Page 1 30 Amp Solar Charge Controller Owner’s Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item # 60032 SAVE THESE INSTRUCTIONS...
  • Page 2 Thank you very much for choosing a Nature Power product! For future reference, please complete the owner’s record below: Model: __________________________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.
  • Page 3 Table of Contents Table of Contents ..........................3 Intended Use ............................4 Technical Specifications ........................4 Important Safety Information ......................5 Specific Operation Warnings ......................6 Assembly ............................. 7 Before Each Use ..........................7 Operating Instructions ........................7 Maintenance ............................8 Parts List ..............................

  • Page 4: Intended Use

    Intended Use This charge controller is used to regulate power from a solar panel, to a 12V battery. The controller handles up to 30 amps and also prevents overcharging, high-voltage surges, short circuit or low voltage discharges, and reverse current. Technical Specifications Property Specification...

  • Page 5: Important Safety Information

    Important Safety Information • Read and understand all instructions. Failure to follow all instructions may result in serious injury or property damage. • The warnings, cautions, and instructions in this manual cannot cover all possible conditions or situations that could occur. Exercise common sense and caution when using this charge controller.

  • Page 6: Specific Operation Warnings

    WORK AREA SAFETY • Inspect the area before each use. Keep it area clean, dry, free of clutter, and well lit. Cluttered, wet, or dark work areas can result in injury. • Do not use the charge controller and solar panels where there is a risk of causing a fire or an explosion;...

  • Page 7: Assembly

    Assembly No assembly required except the connections for operation. See Operating Instructions Before Each Use Check for damaged connectors or indicators on the controller before each use. Replace the controller if damaged. Operating Instructions • Check the ratings of the solar panel, and battery before connecting the charge controller. The controller’s rated voltage is 12 volts and the input current must be less than 30 amps.

  • Page 8: Maintenance

    First: Battery Second: Panel Third: Other Load When the system is connected correctly, the controller’s Power Out indicator illuminates. Note: Do not connect the battery cables directly to the solar panels. Do not connect any power supply directly to the solar panels. 4.

  • Page 9: Parts List

    Parts List The Charge Controller Troubleshooting • If the Power Out indicator does not illuminate soon after connected to the uncovered solar panel, check that the connections are secure. If the indicator still does not illuminate, the voltage may be too low, make corrections to the system as needed.

  • Page 10: Limited Warranty

    Limited Warranty Nature Power warrants our products to the original purchaser that this product is free from defects in materials and workmanship for the period of 2 year from date of purchase In the case of product defect, contact Nature Power customer service to receive troubleshooting. If defective part or unit should be returned, a return Authorization Number must be issued by Nature Power and the defective part or unit should be returned to the authorized location at the purchasers’ expense. A dated proof of purchase is required to receive warranty service. Once received at authorized location and defect proves to be the result of defective material and workmanship, the defective part or unit will be replaced at warrantors’ option and returned to the original purchaser at warrantors’ expense. No refunds will be granted by the warrantor, in the event of buyer’s remorse please contact your point of purchase within and in adherence to their return policy. Refunds are granted at the retailers’ discretions. Dated Proof of Purchase is required. Limitations on the Warranty This limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect, misuse, or as a result of any accident or in any other manner; (c) damage from misapplication, overloading, or improper installation;...
