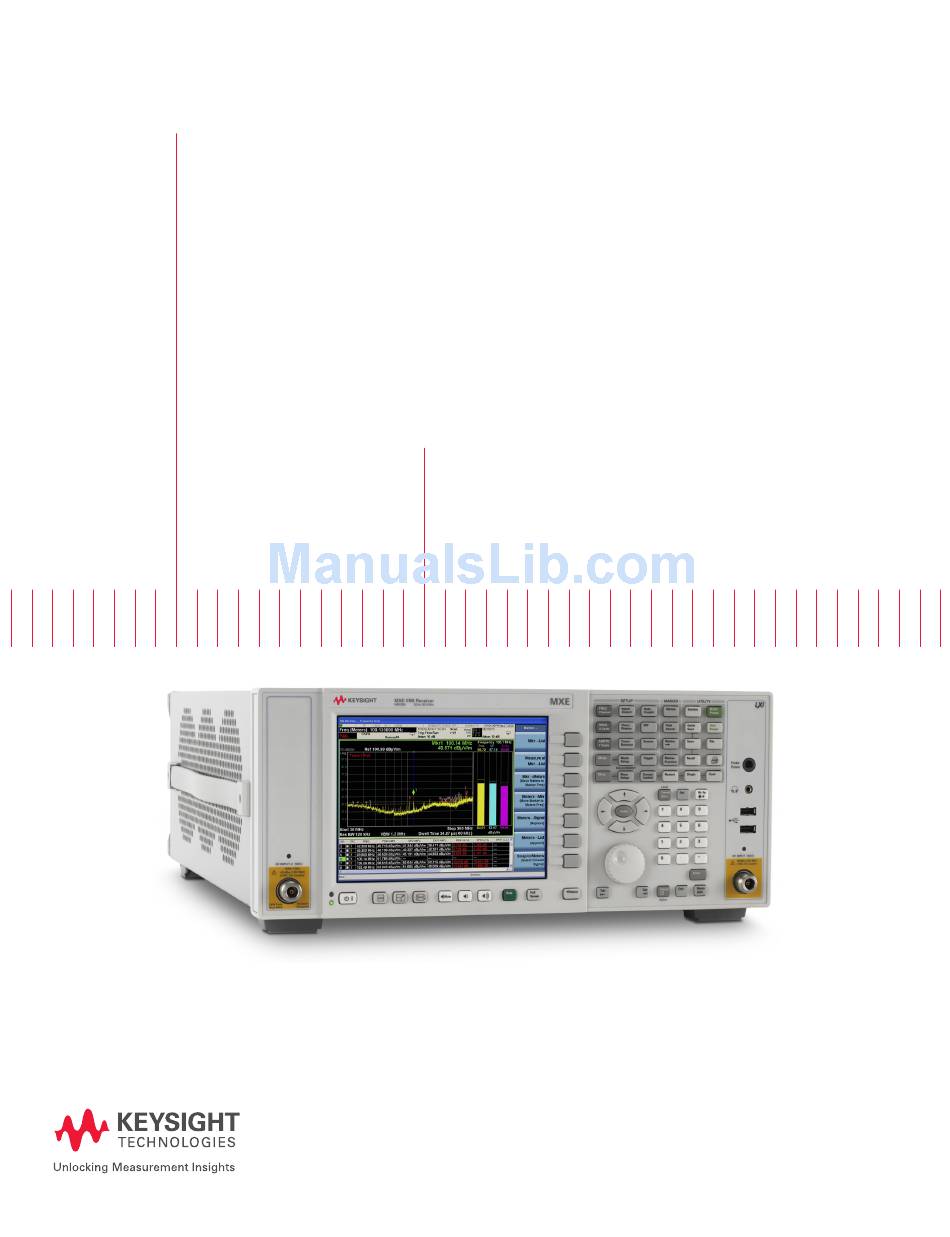

- Page 1 Keysight N9038A MXE EMI Receiver Configuration Guide The MXE configuration guide will help you determine which performance options, measurement applications, accessories, and services to include with your new MXE or to add as upgrades to an existing MXE.
- Page 2 02 | Keysight | N9038A MXE EMI Receiver - Configuration Guide Configure Your Keysight MXE EMI Receiver This step-by-step process will help you configure your new MXE EMI receiver. Tailor the performance to meet your re- quirements. For detailed specifications, refer to the MXE specification guide (N9038-90010). For a summary of specifica- tions, refer to the MXE EMI receiver data sheet (5990-7421EN).
- Page 3 03 | Keysight | N9038A MXE EMI Receiver - Configuration Guide Step 1. Select maximum frequency range (required option) Description Option number Additional information Frequency range, 3 Hz to 3.6 GHz N9038A-503 Includes preamplifier ,100 kHz to 3.6 GHz (N9038A-P03) Frequency range, 3 Hz to 8.4 GHz...
- Page 4 04 | Keysight | N9038A MXE EMI Receiver - Configuration Guide Step 7. Choose measurement application software and license type Note: The last two letters of the ordering numbers indicate the license type—FP stands for fixed perpetual, TP for transportable perpetual;...
- Page 5 05 | Keysight | N9038A MXE EMI Receiver - Configuration Guide Step 10. Add calibration, technical training, support, and upgrade services Description Option number Additional information ANSI Z540-1-1994 calibration N9038A-A6J Commercial calibration N9038A-UK6 Calibration certificate only available at time of purchase;...
- Page 6 Fast license-key upgrades for performance options that do not require addi- tional hardware: Options can be 1. Place an order for the upgrade with Keysight and request to receive the added after your software entitlement certificate through email initial purchase.
- Page 7 07 | Keysight | N9038A MXE EMI Receiver - Configuration Guide Description Upgrade number Additional information Time domain scan N9038AK-TDS LISN control hardware N9038AK-LSN Real-time analysis up to 85 MHz BW, basic detection N9038AK-RT1 Includes frequency mask trigger (FMT) and time qualified trigger (TQT);...
- Page 8 08 | Keysight | N9038A MXE EMI Receiver - Configuration Guide Evolving Since 1939 For more information on Keysight Technologies’ products, applications or Our unique combination of hardware, software, services, and people can help you services, please contact your local Keysight reach your next breakthrough.
