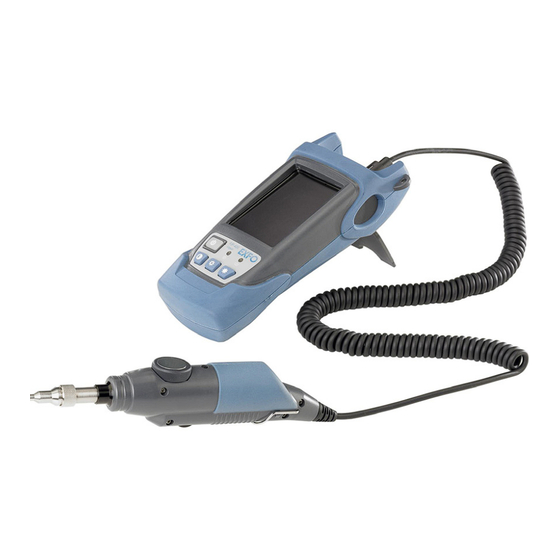

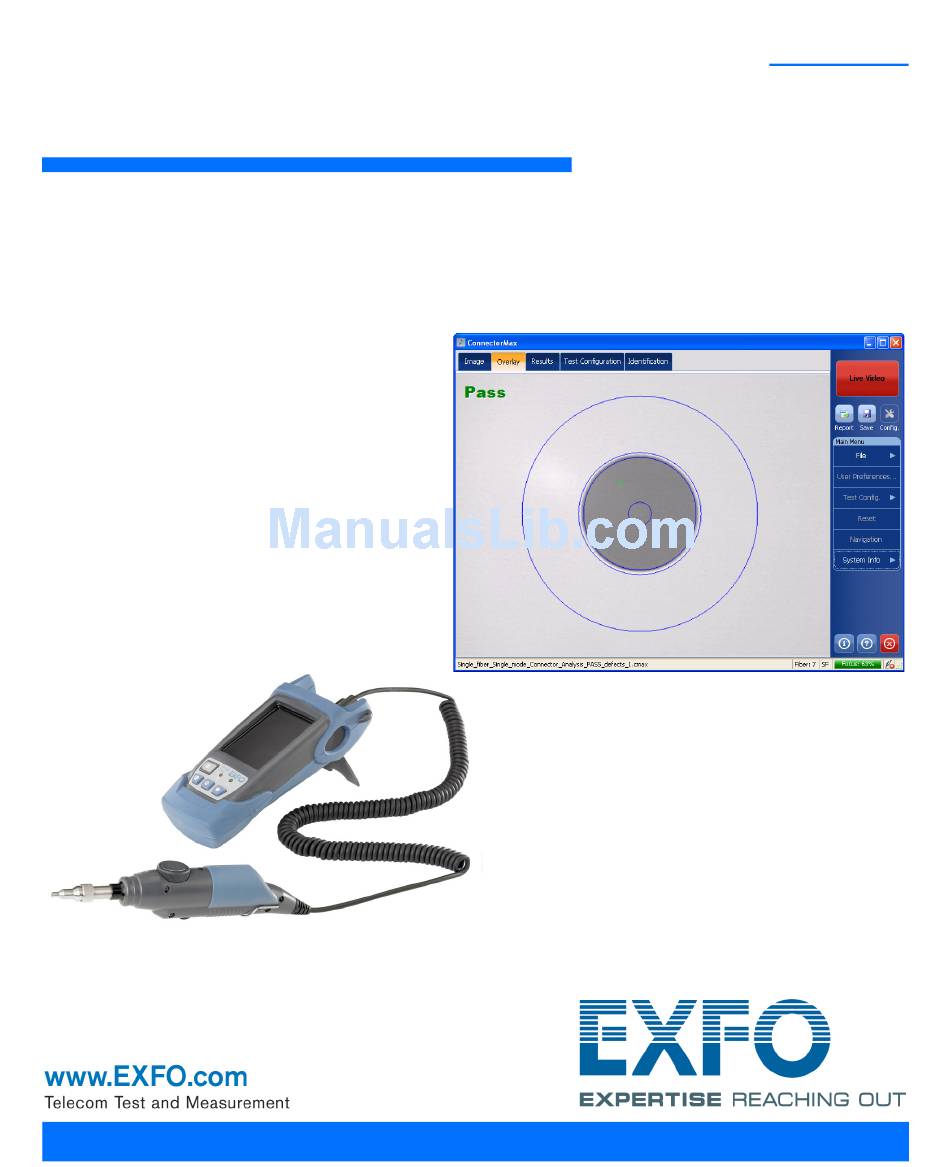

  • Page 1 User Guide FIP-400 Fiber Inspection Probe and ConnectorMax...
  • Page 2 EXFO Inc. (EXFO). Information provided by EXFO is believed to be accurate and reliable. However, no responsibility is assumed by EXFO for its use nor for any infringements of patents or other rights of third parties that may result from its use.

  • Page 3: Table Of Contents

    Contents Certification Information ......................v 1 Introducing the FIP-400 Fiber Inspection Probe and ConnectorMax ..1 Probe ............................1 Probe Tips ..........................2 FIP Viewer (Optional) ......................3 USB Adapter (Optional) ......................5 ConnectorMax Software ......................6 Conventions ..........................7 2 Safety Information ..................9 Other Safety Symbols on Your Unit ..................11 Electrical Safety Information ....................11...
  • Page 4 7 Warranty ......................59 General Information ......................59 Liability ..........................60 Exclusions ..........................60 Certification ..........................60 Service and Repairs .......................61 EXFO Service Centers Worldwide ..................62 A Technical Specifications ................63 Software ..........................63 Video Inspection Probe ......................64 Fiber Probe Viewer ........................64 USB Converter ........................64 B Fiber Inspection Probe Tip Compatibility Chart ........65 Index .........................67...

  • Page 5: Certification Information

    European Community Declaration of Conformity An electronic version of the declaration of conformity for your product is available on our website at www.exfo.com. Refer to the product’s page on the Web site for details. Fiber Inspection Probe...

  • Page 7: Introducing The Fip-400 Fiber Inspection Probe And Connectormax

    Introducing the FIP-400 Fiber Inspection Probe and ConnectorMax The FIP-400 Fiber Inspection Probe is a portable video microscope used to inspect fiber ends. Unlike traditional microscopes, the FIP-400 facilitates the examination of patchcord connectors and also hard-to-reach connectors on the back of patch panels and bulkhead adapters.

  • Page 8: Probe Tips

    Introducing the FIP-400 Fiber Inspection Probe and ConnectorMax Probe Tips Probe Tips The FIP-400 comes with two interchangeable tips but other models are also available. The tips included with the Fiber Inspection Probe are used to inspect flat polish (PC) 2.5 mm connectors. One tip is for inspecting patchcords (pigtails, male connectors) for SC, FC, and ST connectors.

  • Page 9: Fip Viewer (Optional)

    Introducing the FIP-400 Fiber Inspection Probe and ConnectorMax FIP Viewer (Optional) FIP Viewer (Optional) You can use the FIP Viewer with your Fiber Inspection Probe to inspect a fiber end. The unit operates with an AC charger/adapter or a lithium-ion battery.
  • Page 10 Introducing the FIP-400 Fiber Inspection Probe and ConnectorMax FIP Viewer (Optional) The two LEDs located on the front of the FIP Viewer provides you with the status of your unit. Operation status LED Status Green Probe connected Flashing red Probe not connected...

  • Page 11: Usb Adapter (Optional)

    Introducing the FIP-400 Fiber Inspection Probe and ConnectorMax USB Adapter (Optional) USB Adapter (Optional) The USB adapter is used to connect the probe to a computer not equipped with a 8-pin connector. It allows you to view probe images on your computer screen.

  • Page 12: Connectormax Software

    Introducing the FIP-400 Fiber Inspection Probe and ConnectorMax ConnectorMax Software ConnectorMax Software ConnectorMax is the application used to view the fiber inspections. If you have purchased the corresponding option, you can also use specific test configurations and analyze the fibers automatically upon capturing a picture.

  • Page 13: Conventions

    Introducing the FIP-400 Fiber Inspection Probe and ConnectorMax Conventions Conventions Before using the product described in this guide, you should understand the following conventions: ARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Do not proceed unless you understand and meet the required conditions.

  • Page 15: Safety Information

    Use only accessories (such as the car outlet adapter, batteries,  and fiber inspection probe) designed for your unit and approved by EXFO. For a complete list of accessories available for your unit, refer to its technical specifications. When you use the unit outdoors, ensure that it is protected ...
  • Page 16 Make sure to read them carefully when they apply to your situation. AUTION EXFO guarantees the specifications and viability of the products ONLY if they are used with chargers and batteries provided by EXFO. FIP-400...

  • Page 17: Other Safety Symbols On Your Unit

    Safety Information Other Safety Symbols on Your Unit Other Safety Symbols on Your Unit One or more of the following symbols may also appear on your unit. Symbol Meaning Direct current Alternating current Both direct and alternating current The unit is equipped with an earth (ground) terminal. The unit is equipped with a protective conductor terminal.
  • Page 18 Measurement category Not rated for measurement categories II, III or IV Power supply rating 9 V; 1 A Use the external power supply indoors only. Equipment should be normally protected against exposure to direct sunlight, precipitations and full wind pressure. FIP-400...

  • Page 19: Setting Up Your Fiber Inspection Probe And Connectormax

    Changing the Fiber Inspection Probe Tip You can use various tips depending on the type of connector you are inspecting. For more information about tips you can use, visit the EXFO Web site at www.exfo.com. To change a tip: 1.

  • Page 20: Adjusting Brightness And Contrast

    2. Use the contrast and brightness sliders at the bottom of the viewing area to set the levels to suit your needs. 3. Click Video Control again to exit the menu. The menu will close by itself after 10 seconds of inactivity. FIP-400...

  • Page 21: Selecting The Mode Of Operation

    Setting up Your Fiber Inspection Probe and ConnectorMax Selecting the Mode of Operation Selecting the Mode of Operation ConnectorMax can be used to inspect single-fiber (SF) and multiple-fiber (MF) connectors. Depending on which mode of operation you select, different options will be available. Note: The multiple-fiber connector option is only available if you have purchased this option.

  • Page 22: Setting Up Autonaming

    If the Fiber ID item is selected for the autonaming scheme, the file name will display both the start and end fiber number values. FIP-400...
  • Page 23 Setting up Your Fiber Inspection Probe and ConnectorMax Setting up Autonaming To set the autonaming scheme: 1. From the main window, select User Preferences. 2. Select the Filename tab. Fiber Inspection Probe...
  • Page 24 4. Select a separator for the items in the list. 5. Click Apply to confirm your choice and continue working in the User Preference window, or OK to confirm your choice and close the window. The new settings will apply the next time you perform a capture. FIP-400...

  • Page 25: Identifying Fibers

    Setting up Your Fiber Inspection Probe and ConnectorMax Identifying Fibers Identifying Fibers ConnectorMax allows you to add information to your fiber inspection so that your analysis is relevant and complete. Such information can be either preset so that all of the analyses bear the same, or you can edit or add it after the capture for a specific file.
  • Page 26 Setting up Your Fiber Inspection Probe and ConnectorMax Identifying Fibers To add information to the fibers: 1. From the main window, select User Preferences. FIP-400...
  • Page 27 Setting up Your Fiber Inspection Probe and ConnectorMax Identifying Fibers 2. Select the Identification tab. 3. Fill out the boxes with the desired information. The identification will increment the file name automatically using the step size you select. In multiple-fiber connector mode, the start and stop values can be used to indicate the number of fibers in the connector.
  • Page 28 This automated update is active until you save the file and set the few file ID info. Note: The analysis version and the capture platform are indicated at the bottom of the tab. FIP-400...
  • Page 29 C:\Documents and Settings\All Users\Application Data\EXFO\ConnectorMax\Custom Fields. On an FTB-1 or FTB-200 v2 unit: D:\Documents and Settings\All  Users\Application Data\EXFO\ConnectorMax\Custom Fields. In Windows Vista and 7 on a computer:  C:\ProgramData\Exfo\ConnectorMax\Custom Fields 2. Open the file using a text editor that supports Unicode UTF-16 encoding.

  • Page 30: Managing And Selecting Test Configurations (Optional)

    If you create configurations on one unit or computer, and want to transfer them to another unit or computer, you can do so. However, this feature is not included directly in ConnectorMax, and you must proceed outside the application. FIP-400...
  • Page 31 Setting up Your Fiber Inspection Probe and ConnectorMax Managing and Selecting Test Configurations (Optional) To select a test configuration: 1. From the main window, select Test Config, then Select. Click 2. In the list of available test configurations, select the one you want to use and click OK.
  • Page 32 Managing and Selecting Test Configurations (Optional) To create a test configuration: 1. From the main window, select Test Config, then Manage. 2. Select the configuration that is the closest to the one you want to create, then click Duplicate. FIP-400...
  • Page 33 Setting up Your Fiber Inspection Probe and ConnectorMax Managing and Selecting Test Configurations (Optional) 3. In the General tab, modify the criteria as needed. Configuration name: the application suggests a name for the  configuration. You can change it as needed (maximum 100 characters), but if you select a name that already exists, a suffix will automatically be added so as not to overwrite files.
  • Page 34 Note: Zone C, as well as zone dimensions cannot be modified, as they are set as per IEC and IPC recommendations. 5. Click Apply to confirm your choice and continue working in window, or OK to confirm your choice and close the window. FIP-400...
  • Page 35 Setting up Your Fiber Inspection Probe and ConnectorMax Managing and Selecting Test Configurations (Optional) To edit a test configuration: 1. From the main window, select Test Config, then Manage. 2. Select the configuration you want to edit, then click Modify. Note: You cannot edit standard or enlarged adhesive zone configurations.
  • Page 36 Managing and Selecting Test Configurations (Optional) To delete a test configuration: 1. From the main window, select Test Config, then Manage. 2. Select the configuration you want to remove, then click Delete. Note: You cannot delete standard or enlarged adhesive zone configurations. FIP-400...

  • Page 37: Reverting To Factory Settings

    In Windows XP on a computer, or on an FTB-500 platform:  C:\Documents and Settings\All Users\Application Data\EXFO\ConnectorMax\Test configuration files\Custom. In Windows Vista or 7 on a computer: C:\ProgramData\Exfo\  ConnectorMax\Test configuration files\Custom. On an FTB-1 or FTB-200 v2 unit: D:\Documents and Settings\All ...

  • Page 39: Inspecting Fiber Ends

    To start the application: On a computer, double-click the ConnectorMax icon on your desktop  or select Start > Programs > EXFO > ConnectorMax. On an FTB-500, from the main window, select the Fiber Inspection  Probe function tab, or under the Applications tab, select ConnectorMax.

  • Page 40: Inspecting Fiber Ends With The Fip Viewer

    ARNING Never look directly into a live fiber. It could cause serious eye damage. Always use your FIP-400 Fiber Inspection Probe. MPORTANT The battery in the FIP Viewer must be fully charged before the first use. For more information, see Charging the Battery in The FIP Viewer on page 52.

  • Page 41: Inspecting Fiber Ends With Connectormax

    Inspecting Fiber Ends Inspecting Fiber Ends with ConnectorMax Inspecting Fiber Ends with ConnectorMax When you connect the Fiber Inspection Probe to your unit (or computer via a USB adapter) you can view and inspect fiber ends right away. This direct viewing mode is known as the Live mode.

  • Page 42: Capturing Images

    In single-fiber connector mode, if the autosaving features are enabled, your capture is stored in the default folder. If not, you will be prompted to save the acquisition before you go to the next one. FIP-400...
  • Page 43 Inspecting Fiber Ends Capturing Images In multiple-fiber connector mode, continue capturing files until you have reached the number set in the user preferences. At the end of the capture, you will be prompted to save your file. You can also save the file at any time, even if you have not reached the maximum incremental value set.

  • Page 44: Retesting A Fiber

    If you reset a specific fiber, select it in the provided list. 4. Capture the file again. Note: The reset function will only become available again in the main window once you save your file (single-fiber test mode only). FIP-400...

  • Page 45: Saving Files

    Inspecting Fiber Ends Saving Files Saving Files In capture mode, you can save the acquisition files manually for future reference. If you have purchased the analysis option you can also set ConnectorMax so that it saves the capture automatically regardless of the result, or automatically when the result is Pass only.
  • Page 46 MPORTANT If you have enabled the Generate report on save option, the new report file will automatically overwrite the old one without notifying you. FIP-400...

  • Page 47: Opening And Closing Files

    Inspecting Fiber Ends Opening and Closing Files Opening and Closing Files You can open captured files directly from the application to view them. You can either open current .cmax files, or a legacy image file taken from a previous fiber inspection. Note: The accepted image formats for legacy files are .bmp, .jpg and .gif.

  • Page 48: Analyzing Captures (Optional, Single-Fiber Connector Mode Only)

    Note: On units that allow it (FTB-500, FTB-200 v2), you will notice that the Pass/Fail LED will indicate the analysis result as you capture files. To enable the analysis tool: 1. From the main window, select User Preferences. 2. Under the General tab, select Analyze on capture. FIP-400...
  • Page 49 Inspecting Fiber Ends Analyzing Captures (Optional, Single-Fiber Connector Mode Only) 3. Select whether you want the analysis to be automatically saved if the result of the analysis is pass, or select the manual save option if you only want to save specific analyses. Note: The automated save option is only available if you have purchased the analysis option.
  • Page 50 Information tab, and shows you the details you would see in the corresponding report, if you choose to make one. The Image tab shows the snapshot of the fiber when you captured it.  You can see some anomalies right away, but no analysis is performed. FIP-400...
  • Page 51 Inspecting Fiber Ends Analyzing Captures (Optional, Single-Fiber Connector Mode Only) The Overlay tab shows the status of the analysis, the analysis zones,  and any anomalies (defects, scratches) found on the fiber endface. Fiber Inspection Probe...
  • Page 52 Inspecting Fiber Ends Analyzing Captures (Optional, Single-Fiber Connector Mode Only) The Results tab shows detailed information for scratches and defects  detected in each test zone and the corresponding test status. FIP-400...
  • Page 53 Inspecting Fiber Ends Analyzing Captures (Optional, Single-Fiber Connector Mode Only) The Test Configuration tab shows the detail of the test configuration  you had selected to perform this analysis. Fiber Inspection Probe...

  • Page 54: Creating Reports

    6 and later. You could need to install a plugin to view this format in other types of browsers. Note: The report creation is available only in Capture mode. If you have selected the Generate report on save option, a report is automatically created when you save your capture. FIP-400...
  • Page 55 Inspecting Fiber Ends Creating Reports To activate automated report creation: 1. From the main window, select User Preferences. 2. Under the General tab, select Generate report on save. 3. Select the type of report you want. 4. If you want to change the default location where the reports will be saved, you can do so by using the button.
  • Page 56 2. Select the type of report you want to create, and the location for the report. 3. Click Save to close the window. You can now open the report in any Internet browser from the location where the file was saved. FIP-400...

  • Page 57: Maintenance

    Maintenance General Maintenance To help ensure long, trouble-free operation: Keep the unit free of dust.  Clean the unit casing and front panel with a cloth slightly dampened  with water. Store unit at room temperature in a clean and dry area. Keep the unit ...

  • Page 58: Charging The Battery In The Fip Viewer

    Replacing Batteries Your unit uses batteries with built-in protection that have been especially designed for EXFO. For this reason, you can only replace the main battery with a battery designed for your FIP-400. You can purchase new batteries and empty battery compartments (also known as “battery covers”) from EXFO.

  • Page 59: Recycling And Disposal (Applies To European Union Only)

    Do not throw batteries into fire or water and do not short-circuit the batteries’ electrical contacts. Do not disassemble. Recycling and Disposal (Applies to European Union Only) For complete recycling/disposal information as per European Directive WEEE 2012/19/UE, visit the EXFO Web site at www.exfo.com/recycle. Fiber Inspection Probe...

  • Page 61: Troubleshooting

    Troubleshooting Solving Common Problems The table below presents common problems and their solutions. Problem Solution I cannot analyze an The image is not focused properly; use the focus knob on  image the probe until the focus indicator displays the best value available.

  • Page 62: Contacting The Technical Support Group

    Contacting the Technical Support Group To obtain after-sales service or technical support for this product, contact EXFO at one of the following numbers. The Technical Support Group is available to take your calls from Monday to Friday, 8:00 a.m. to 7:00 p.m.

  • Page 63: Viewing Information About Connectormax

    Troubleshooting Viewing Information about ConnectorMax Viewing Information about ConnectorMax You can view information about ConnectorMax such as the version number and contact information for technical support in the About window. To view ConnectorMax information: On a computer, an FTB-500 or an FTB-1, from the main window, click ...

  • Page 64: Transportation

    Pack the unit in its original packing material when shipping.  Avoid high humidity or large temperature fluctuations.  Keep the unit out of direct sunlight.  Avoid unnecessary shocks and vibrations.  FIP-400...

  • Page 65: Warranty

    Warranty General Information EXFO Inc. (EXFO) warrants this equipment against defects in material and workmanship for a period of one year from the date of original shipment. EXFO also warrants that this equipment will meet applicable specifications under normal use.

  • Page 66: Liability

    Liability Liability EXFO shall not be liable for damages resulting from the use of the product, nor shall be responsible for any failure in the performance of other items to which the product is connected or the operation of any system of which the product may be a part.

  • Page 67: Service And Repairs

    5. Return the equipment, prepaid, to the address given to you by support personnel. Be sure to write the RMA number on the shipping slip. EXFO will refuse and return any package that does not bear an RMA number.

  • Page 68: Exfo Service Centers Worldwide

    Warranty EXFO Service Centers Worldwide EXFO Service Centers Worldwide If your product requires servicing, contact your nearest authorized service center. EXFO Headquarters Service Center 400 Godin Avenue 1 866 683-0155 (USA and Canada) Quebec (Quebec) G1M 2K2 Tel.: 1 418 683-5498...

  • Page 69: A Technical Specifications

    MPORTANT The following technical specifications can change without notice. The information presented in this section is provided as a reference only. To obtain this product’s most recent technical specifications, visit the EXFO Web site at www.exfo.com. Software Fiber Inspection Probe...

  • Page 70: Video Inspection Probe

    Technical Specifications Video Inspection Probe Video Inspection Probe Fiber Probe Viewer USB Converter FIP-400...

  • Page 71: B Fiber Inspection Probe Tip Compatibility Chart

    Fiber Inspection Probe Tip Compatibility Chart The table below establishes the Fiber Inspection Probe tip compatibility with the different fiber inspection and the analysis (option) modules provided with the ConnectorMax application: Tip Description Tip Code Inspection Analysis Uni.1.25 mm tip for PC connector FIPT-400-U12M LC tip for PC bulkhead adapter FIPT-400-LC...
  • Page 72 Bulkhead adapter FIPT-400-ADAPTER Tip for SMA bulkhead adapter FIPT-400-SMA Tip for SMA male connector FIPT-400-SMAM Tip for MTRJ bulkhead adapter FIPT-400-MTRJ Contact your vendor for additional information regarding the most recent Fiber Inspection Probe tips that are not listed above. FIP-400...

  • Page 73: Index

    Index Index custom configurations, transferring .... 31 customer service.......... 61 about window..........57 after-sales service ........56 analysis tool ..........42 documentation..........57 application exiting ........... 33 starting ..........33 autonaming ..........16 equipment returns........61 exiting application ........33 battery charging ..........
  • Page 74 ........15 brightness ..........14 multifiber test ..........15 contrast ..........14 settings, factory........... 31 shipping to EXFO......... 61 single fiber test..........15 naming files ..........16 specifications, product ........ 63 navigating, multiple-fiber acquisition..37 starting application ........33 storage requirements ........
  • Page 75 Index test configuration tab............47 transferring..........31 test configurations, managing ....24 tips changing ..........13 types............2 tool for analysis........... 42 transferring test configurations....31 transportation requirements ....51, 58 type of fiber ..........15 adapter............ 5 connector ..........5 video, image adjustment......
  • Page 76 CHINESE REGULATION ON RESTRICTION OF HAZARDOUS SUBSTANCES NAMES AND CONTENTS OF THE TOXIC OR HAZARDOUS SUBSTANCES OR ELEMENTS CONTAINED IN THIS EXFO PRODUCT EXFO Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363-2006...
  • Page 77 MARKING REQUIREMENTS Product Environmental protection use period (years) Logo This Exfo product EXFO Battery If applicable.
  • Page 78 Tel.: 1 978 367-5600 · Fax: 1 978 367-5700 EXFO FINLAND Elektroniikkatie 2 FI-90590 Oulu, FINLAND Tel.: +358 (0) 403 010 300 · Fax: +358 (0) 8 564 5203 TOLL-FREE (USA and Canada) 1 800 663-3936 © 2014 EXFO Inc. All rights reserved. Printed in Canada (2014-01) ...
