PA653UL & PA803UL Installation Guide
Desktop and Ceiling Mount
Cabinet Dimensions

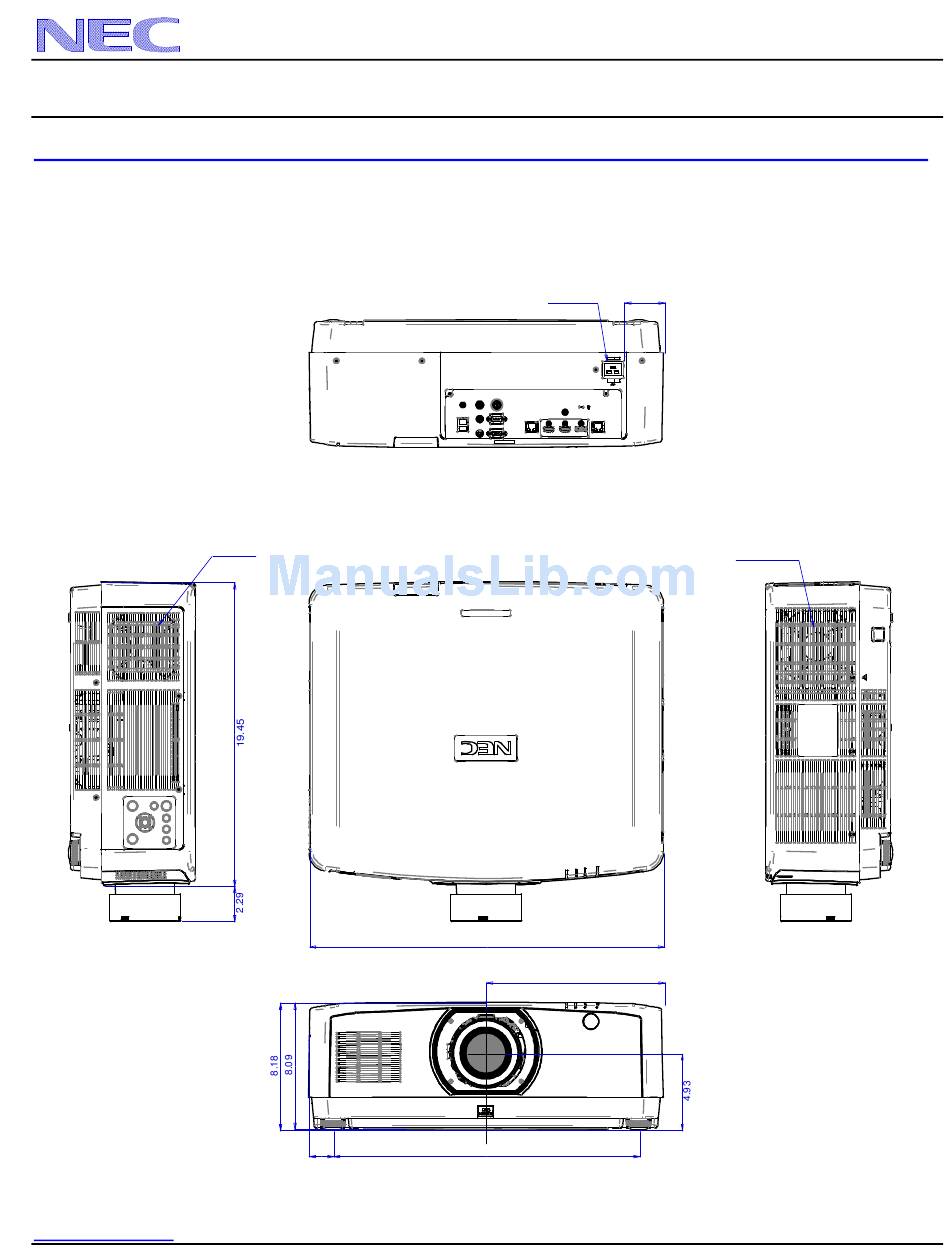

The following diagrams show the cabinet dimensions for the PA653UL/PA803UL.
Dimensions are in inches. For millimeters multiply by 25.4.
Note: Dimensions below shown with the NP41ZL lens
www.necdisplay.com
Exhaust
1.56
NEC Display Solutions of America, Inc.
2.57
AC Inlet
NP41ZL
22.83
11.46
19.71
PA653UL/PA803UL
Rev 1.3
Intak e Filter
Page 5 of 11
