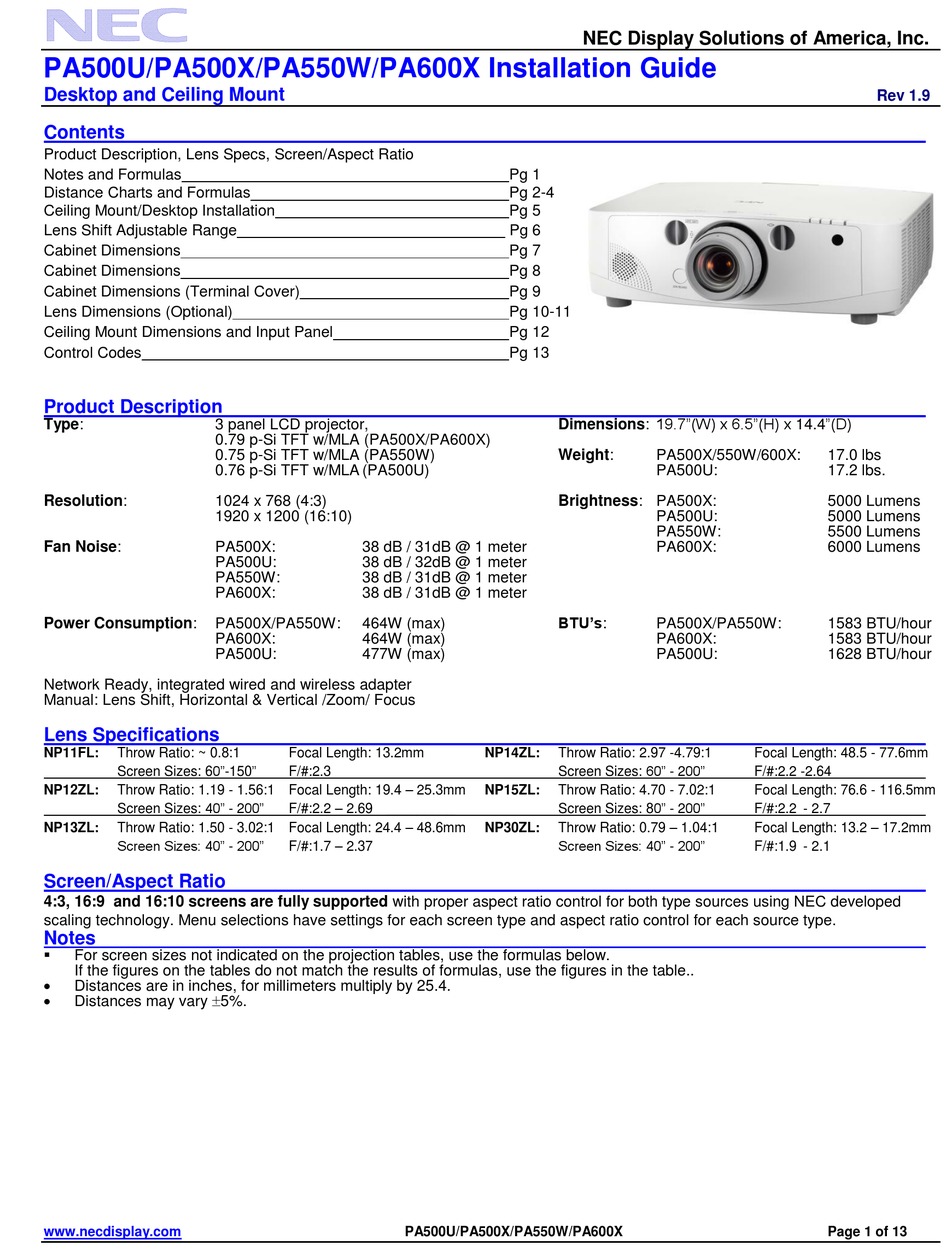

NEC PA500U Installation Manual

PA500U/PA500X/PA550W/PA600X Installation Guide
Desktop and Ceiling Mount
Contents
Product Description, Lens Specs, Screen/Aspect Ratio
Notes and Formulas
Distance Charts and Formulas
Ceiling Mount/Desktop Installation
Lens Shift Adjustable Range
Cabinet Dimensions
Cabinet Dimensions
Cabinet Dimensions (Terminal Cover)
Lens Dimensions (Optional)
Ceiling Mount Dimensions and Input Panel
Control Codes
Product Description
Type: 3 panel LCD projector,
0.79 p-Si TFT w/MLA (PA500X/PA600X)
0.75 p-Si TFT w/MLA (PA550W)
0.76 p-Si TFT w/MLA (PA500U)
Resolution: 1024 x 768 (4:3)
1920 x 1200 (16:10)
Fan Noise: PA500X:
PA500U:
PA550W:
PA600X:
Power Consumption: PA500X/PA550W:
PA600X:
PA500U:
Network Ready, integrated wired and wireless adapter
Manual: Lens Shift, Horizontal & Vertical /Zoom/ Focus
Lens Specifications
NP11FL: Throw Ratio: ~ 0.8:1
Screen Sizes: 60"-150"
Throw Ratio: 1.19 - 1.56:1 Focal Length: 19.4 – 25.3mm
NP12ZL:
Screen Sizes: 40" - 200"
Throw Ratio: 1.50 - 3.02:1 Focal Length: 24.4 – 48.6mm
NP13ZL:
Screen Sizes: 40" - 200"
Screen/Aspect Ratio
4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed
scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes

For screen sizes not indicated on the projection tables, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table..

Distances are in inches, for millimeters multiply by 25.4.
 Distances may vary 5%.
www.necdisplay.com
38 dB / 31dB @ 1 meter
38 dB / 32dB @ 1 meter
38 dB / 31dB @ 1 meter
38 dB / 31dB @ 1 meter
464W (max)
464W (max)
477W (max)
Focal Length: 13.2mm
F/#:2.3
F/#:2.2 – 2.69 _________
F/#:1.7 – 2.37
PA500U/PA500X/PA550W/PA600X
NEC Display Solutions of America, Inc.
Pg 1
Pg 2-4
Pg 5
Pg 6
Pg 7
Pg 8
Pg 9
Pg 10-11
Pg 12
Pg 13
Dimensions: 19.7"(W) x 6.5"(H) x 14.4"(D)
Weight: PA500X/550W/600X:
PA500U:
Brightness: PA500X:
PA500U:
PA550W:
PA600X:
BTU's:
PA500X/PA550W:
PA600X:
PA500U:
NP14ZL: Throw Ratio: 2.97 -4.79:1
Screen Sizes: 60" - 200"
NP15ZL: Throw Ratio: 4.70 - 7.02:1
Screen Sizes: 80" - 200"
Throw Ratio: 0.79 – 1.04:1
NP30ZL:
Screen Sizes: 40" - 200"
Rev 1.9
17.0 lbs
17.2 lbs.
5000 Lumens
5000 Lumens
5500 Lumens
6000 Lumens
1583 BTU/hour
1583 BTU/hour
1628 BTU/hour
Focal Length: 48.5 - 77.6mm
F/#:2.2 -2.64
Focal Length: 76.6 - 116.5mm
F/#:2.2 - 2.7
Focal Length: 13.2 – 17.2mm
F/#:1.9 - 2.1
Page 1 of 13
