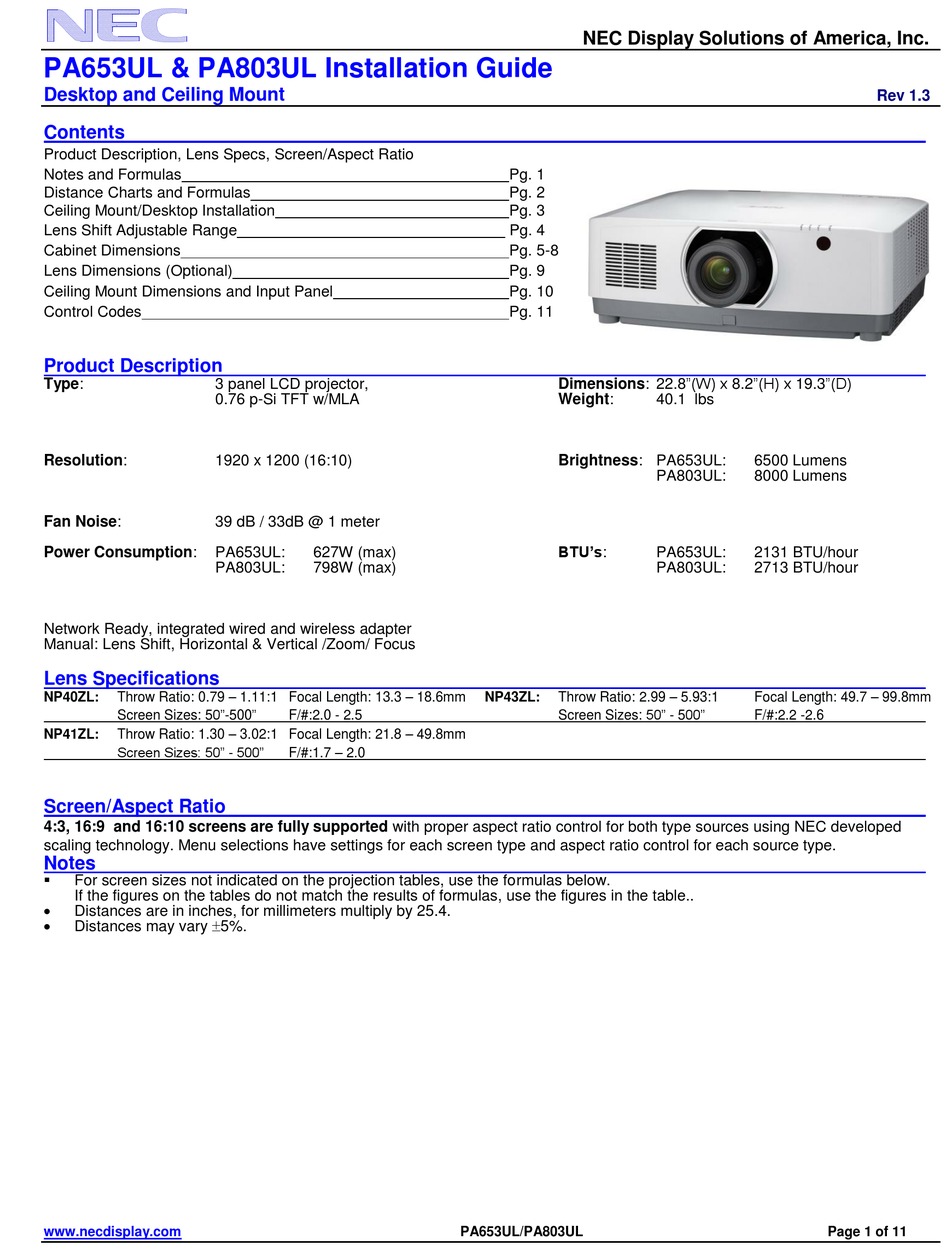

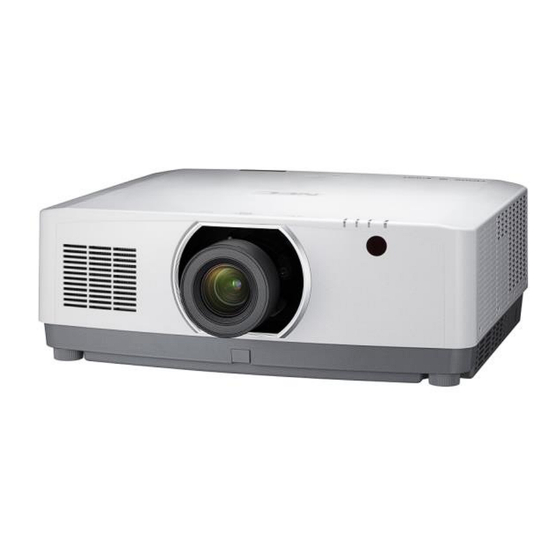

PA653UL & PA803UL Installation Guide
Desktop and Ceiling Mount
Contents
Product Description, Lens Specs, Screen/Aspect Ratio
Notes and Formulas
Distance Charts and Formulas
Ceiling Mount/Desktop Installation
Lens Shift Adjustable Range
Cabinet Dimensions
Lens Dimensions (Optional)
Ceiling Mount Dimensions and Input Panel
Control Codes
Product Description
Type:
3 panel LCD projector,
0.76 p-Si TFT w/MLA
Resolution:
1920 x 1200 (16:10)
Fan Noise:
39 dB / 33dB @ 1 meter
Power Consumption:
PA653UL:
PA803UL:
Network Ready, integrated wired and wireless adapter
Manual: Lens Shift, Horizontal & Vertical /Zoom/ Focus
Lens Specifications
Throw Ratio: 0.79 – 1.11:1 Focal Length: 13.3 – 18.6mm
NP40ZL:
Screen Sizes: 50"-500"
Throw Ratio: 1.30 – 3.02:1 Focal Length: 21.8 – 49.8mm
NP41ZL:
Screen Sizes: 50" - 500"
Screen/Aspect Ratio
4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed
scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes
For screen sizes not indicated on the projection tables, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table..
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary 5%.
www.necdisplay.com
627W (max)
798W (max)
F/#:2.0 - 2.5
F/#:1.7 – 2.0
PA653UL/PA803UL
NEC Display Solutions of America, Inc.
Pg. 1
Pg. 2
Pg. 3
Pg. 4
Pg. 5-8
Pg. 9
Pg. 10
Pg. 11
Dimensions: 22.8"(W) x 8.2"(H) x 19.3"(D)
Weight:
40.1 lbs
Brightness: PA653UL:
PA803UL:
BTU's:
PA653UL:
PA803UL:
Throw Ratio: 2.99 – 5.93:1
NP43ZL:
Screen Sizes: 50" - 500"
Rev 1.3
6500 Lumens
8000 Lumens
2131 BTU/hour
2713 BTU/hour
Focal Length: 49.7 – 99.8mm
F/#:2.2 -2.6
Page 1 of 11
