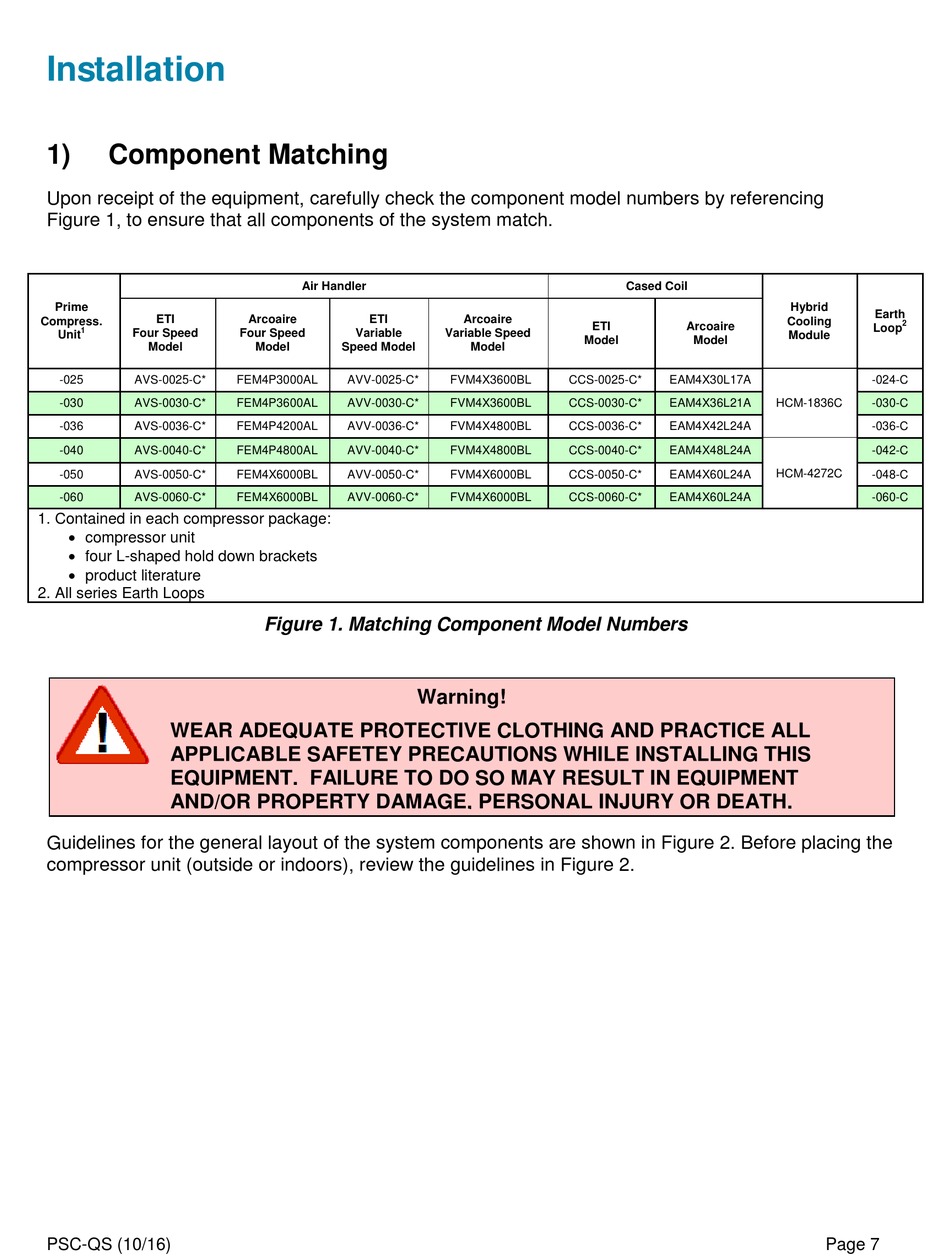

Installation; Component Matching; Figure 1. Matching Component Model Numbers - EarthLinked Prime Series Quick Start Instructions

Installation

1)

Component Matching

Upon receipt of the equipment, carefully check the component model numbers by referencing
Figure 1, to ensure that all components of the system match.
Prime
ETI
Compress.
1
Four Speed
Unit
Model
-025 AVS-0025-C*
-030 AVS-0030-C*
-036 AVS-0036-C*
-040 AVS-0040-C*
-050 AVS-0050-C*
-060 AVS-0060-C*
1. Contained in each compressor package:
 compressor unit
 four L-shaped hold down brackets
 product literature
2. All series Earth Loops
WEAR ADEQUATE PROTECTIVE CLOTHING AND PRACTICE ALL
APPLICABLE SAFETEY PRECAUTIONS WHILE INSTALLING THIS
EQUIPMENT. FAILURE TO DO SO MAY RESULT IN EQUIPMENT
AND/OR PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
Guidelines for the general layout of the system components are shown in Figure 2. Before placing the
compressor unit (outside or indoors), review the guidelines in Figure 2.
PSC-QS (10/16)
Air Handler
Arcoaire ETI
Four Speed Variable
Model Speed Model
FEM4P3000AL AVV-0025-C*
FEM4P3600AL AVV-0030-C*
FEM4P4200AL AVV-0036-C*
FEM4P4800AL AVV-0040-C*
FEM4X6000BL AVV-0050-C*
FEM4X6000BL AVV-0060-C*

Figure 1. Matching Component Model Numbers

Arcoaire
ETI
Variable Speed
Model
Model
FVM4X3600BL CCS-0025-C*
FVM4X3600BL CCS-0030-C*
FVM4X4800BL CCS-0036-C*
FVM4X4800BL CCS-0040-C*
FVM4X6000BL CCS-0050-C*
FVM4X6000BL CCS-0060-C*
Warning!
Cased Coil
Hybrid
Cooling
Arcoaire
Module
Model
EAM4X30L17A
EAM4X36L21A HCM-1836C
EAM4X42L24A
EAM4X48L24A
HCM-4272C
EAM4X60L24A
EAM4X60L24A
Earth
2
Loop
-024-C
-030-C
-036-C
-042-C
-048-C
-060-C
